Wiring harness design in CATIA V5 - 3D modeling Week 7 Challenge

Aim: Flatten the harness assembly completed in “ week 4 challenge”. Place the flattened view on drawing sheet. Ensure bundles with protective coverings has different visuals on drawing view.

Solution:

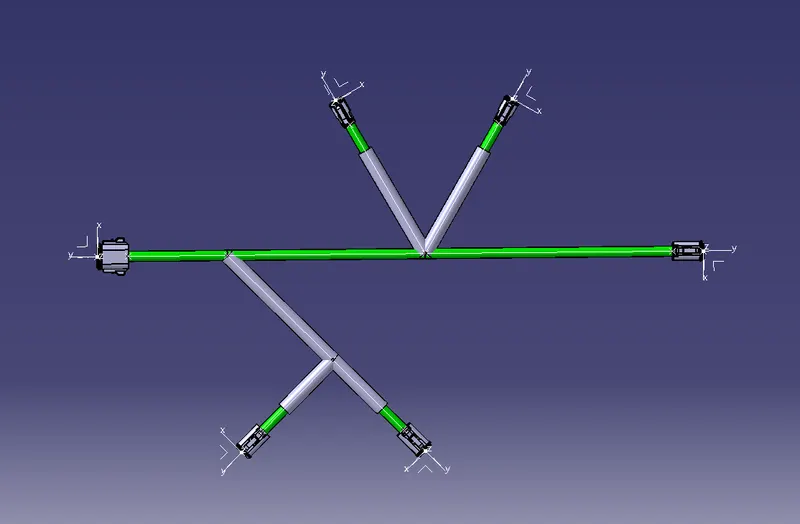

Extracted the wiring harness from the Assembly workbench and used the flatten function on the harness.

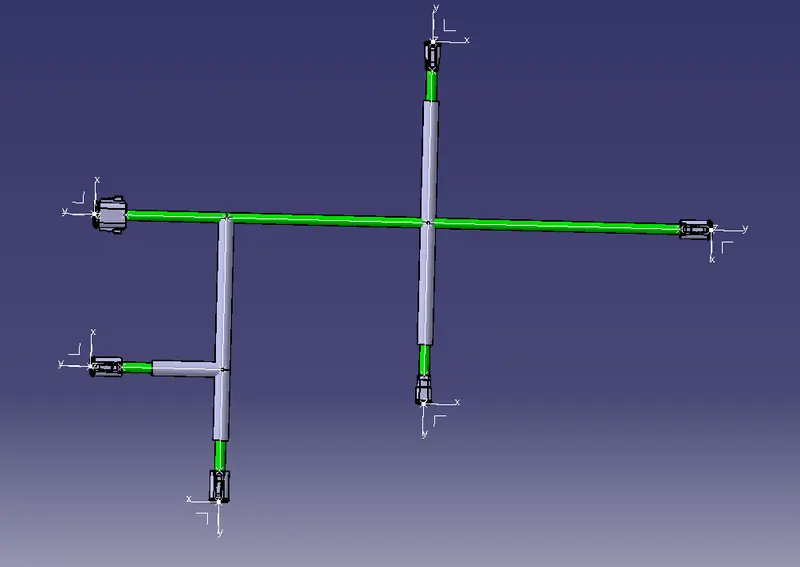

Arranged the harness as per the drawing provided using the rotate function.

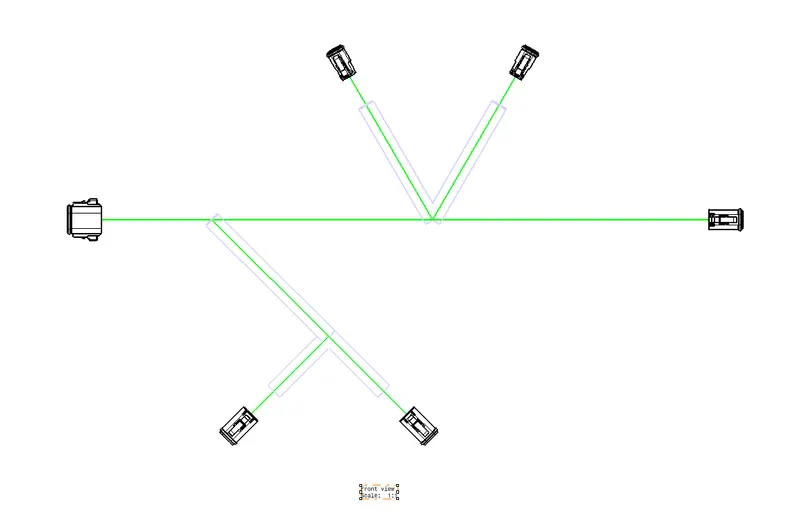

Imported the wiring harness in drawing workbench.
