Wiring harness design in CATIA V5 - 3D modeling Week 7 Challenge
CHALLENGE 7:WIRING HARNESS Relating to FLATTENING OF AN ASSEMBLY
Aim: To create a flattened view of the previously prepared Electrical harness assembly in Catia V5.
Objective:
- Flatten the harness assembly prepared in the week 4 challenge.
- Place the flattened view on the drawing sheet.
- To add the protective covering and ensure that it is of different colour in the drawing
Procedure:

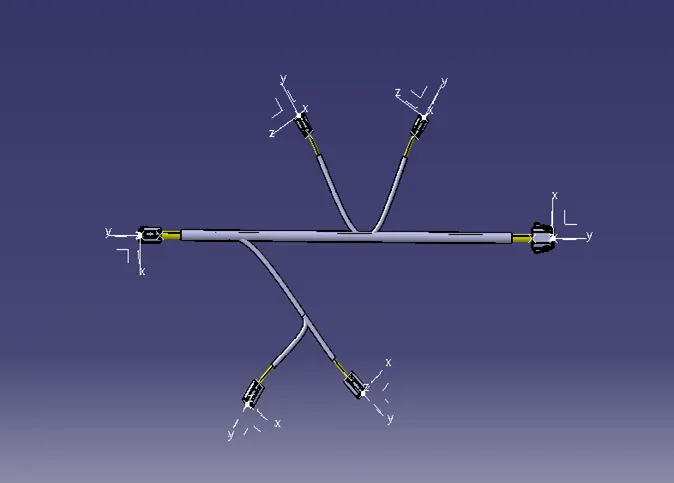

- Open the assembly model already created in Catia V5.
- Now open the new product file and select Electrical harness flattening workbench.

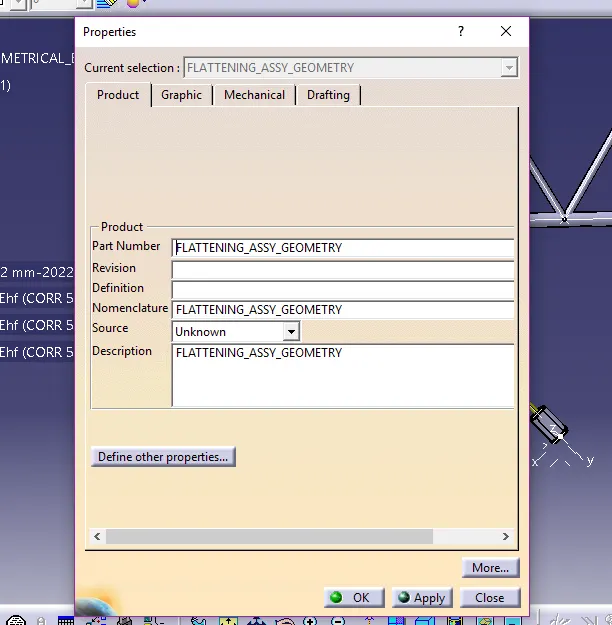

- Rename the product file name as required as shown below.

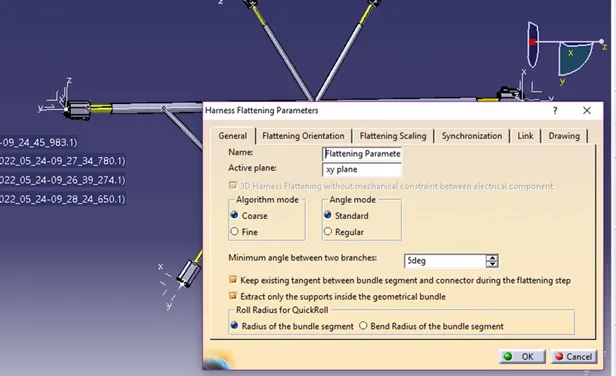

- Give flattening parameters first.
- Bring the harness to assemble in the flattening product file using the extract option.

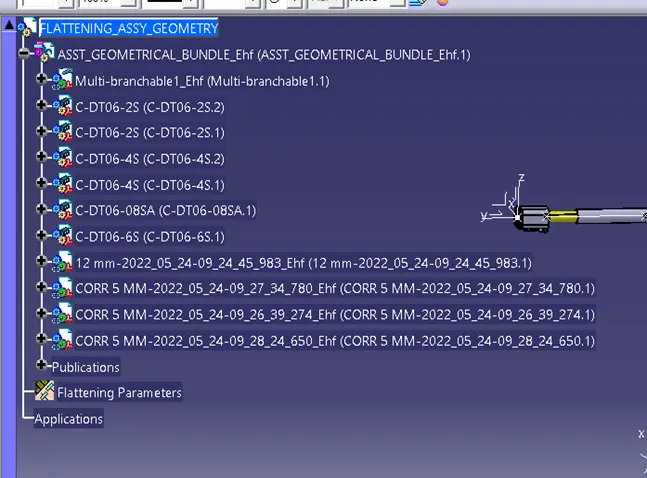

- After the assembly is extracted the file type is changed to.EHF (which stands for electrical harness assembly flattening) is shown in the below image.
- (Now we have to flatten the assembly) Select flatten option.

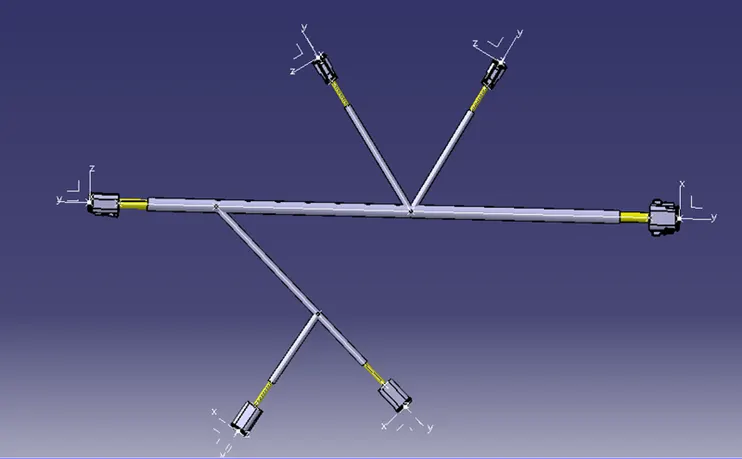

- Then select all the electrical bundles which have to be flattened as shown below.
- One can also select one main bundle branch and then click Select all branches in the flatten window.
DRAWING REPRESENTATION

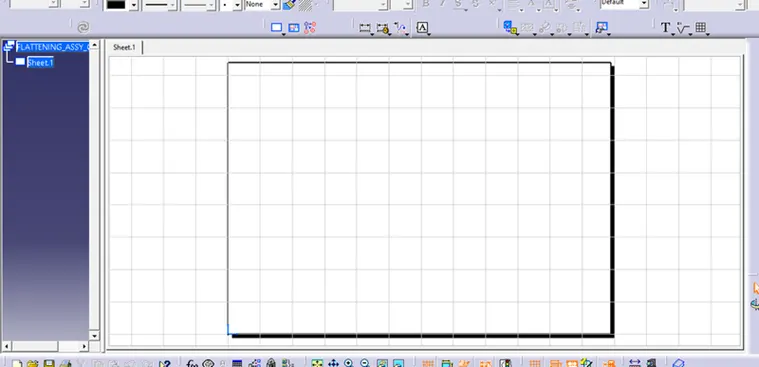

- Open a new drawing file and set the following parameters as shown in the figure.
- First, save the drawing file as Assembly Flattening.
- Adjust both the windows side by side for better understanding.
- Click the front view option in the drawing file and then select any one to flatten surface of the assembly.

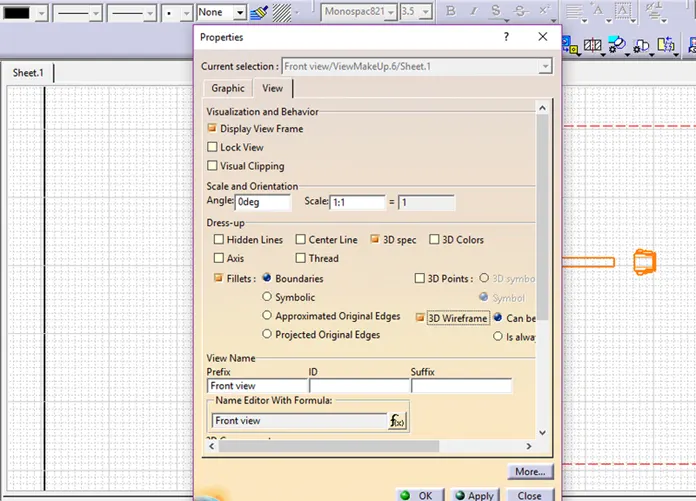

- Enable the 3D wireframe option.

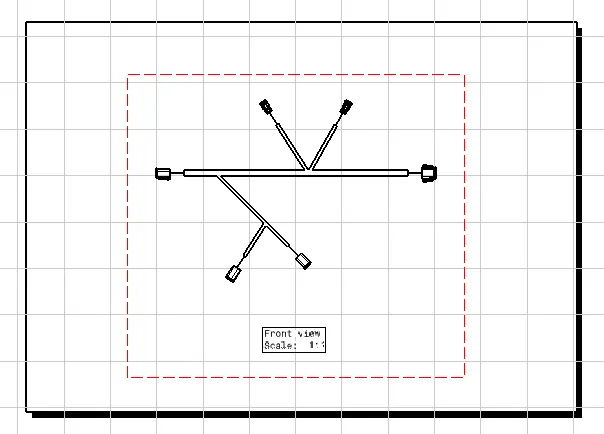

DRAFTING VIEW SACLE 1:1
Conclusion:
The Flattened view and the flattened drawing of the Electrical harness assembly are created. The bundle protections are shown in different visuals compared to the bundle branches.
