Wiring harness design in CATIA V5 - 3D modeling Week 7 Challenge

Flattening parameters are defined as per requirement.

Selected the extract command and picked up Week 4 harness for flattening.

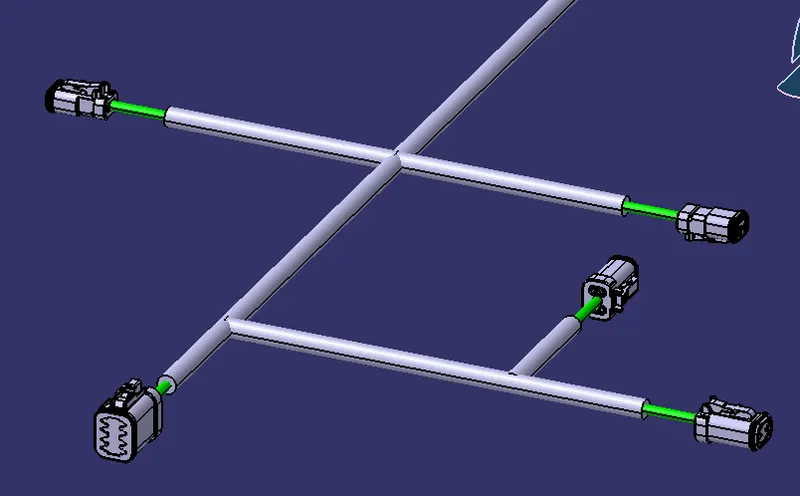

Selected flatten command and flattened the assembly. Used roll, rotate for adjusting the bundles for better representation.

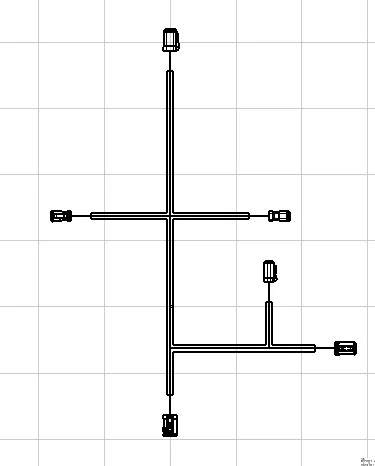

Opened a new drawing worbench. Taken the front view of same flattened assembly and resized. Changed some properties for better understanding of drawing.
