Wiring harness design in CATIA V5 - 3D modeling Week 7 Challenge

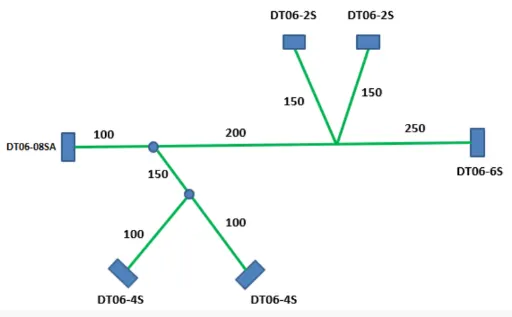

Wiring harness Design & Drafting

THE WIRING HARNESS AND DRAFT THE WIRING HARNESS ASSEMBLY.

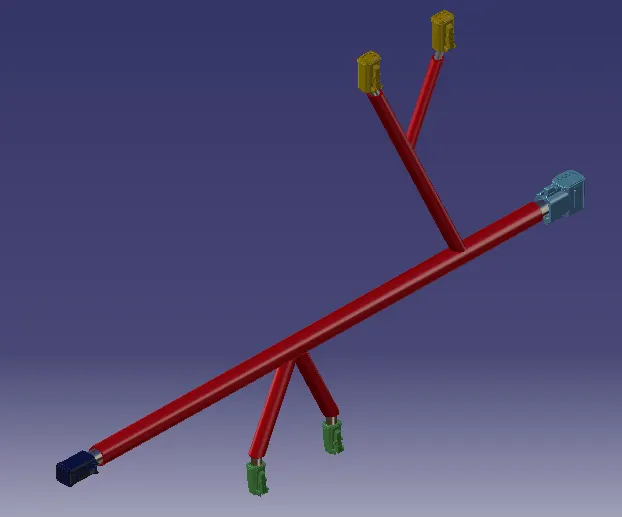

HARNESS ASSEMBLY:

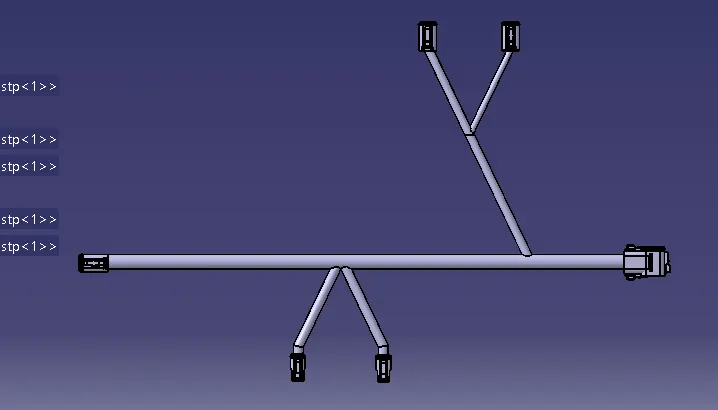

HARNESS FLATTENING:

• THE HARNESS FLATTENING WORKBENCH AND DEFINE THE FLATTENING PARAMETERS. THE EXTRACT COMMAND TO BRING THE HARNESS ASSEMBLY TO THE FLATTENING WORKBENCH HERE.
• A SUITABLE PLANE WE FLATTEN THE HARNESS ASSEMBLY.
• BUNDLE SEGMENTS ARE ROTATED AT THE REQUIRED ANGLES.
• THE HARNESS ASSEMBLY IS THEN DRAFTED.
• FLATTENING PARAMETERS ARE DEFINED IN ORDER TO MAKE THE BUNDLE AND THE CORRUGATED TUBES VISIBLE IN THE 3D DRAWINGS.

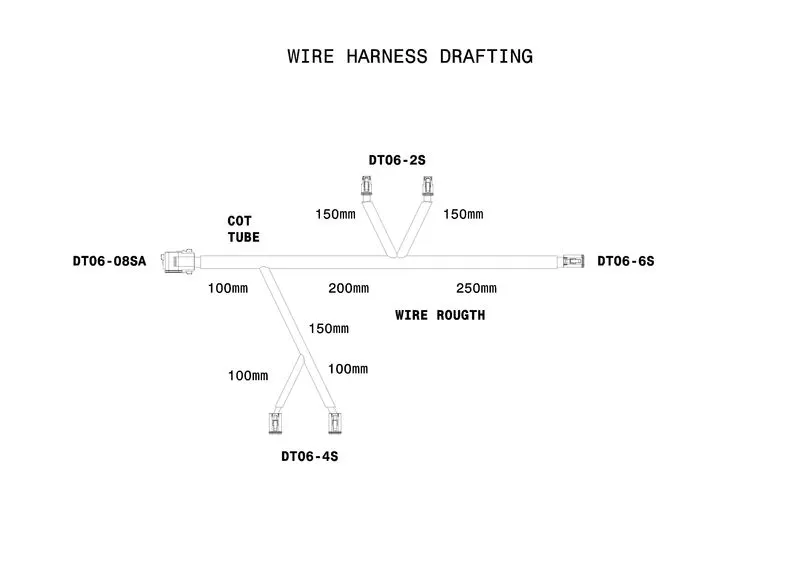

DRAFTING REPRESENTATION:
