Wiring harness design in CATIA V5 - 3D modeling Week 7 Challenge

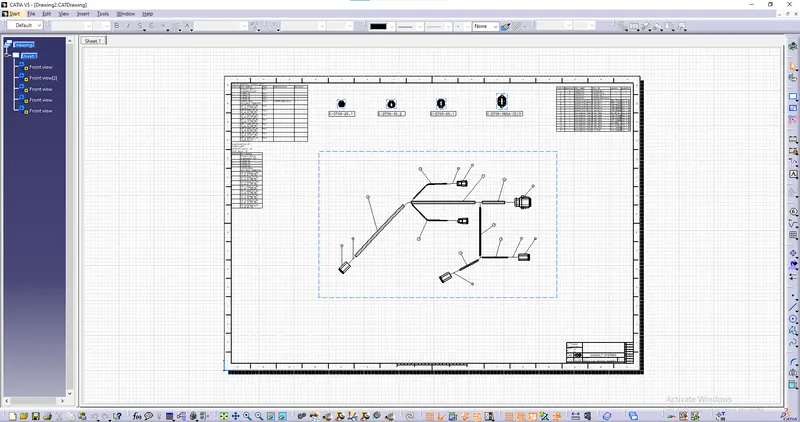

1. Harness assembly drawing Using Week 4 Challenge. The drawing sheet contains flattened views. Wire bundle is denoted as single line and the COT tube is Denoted as double line.

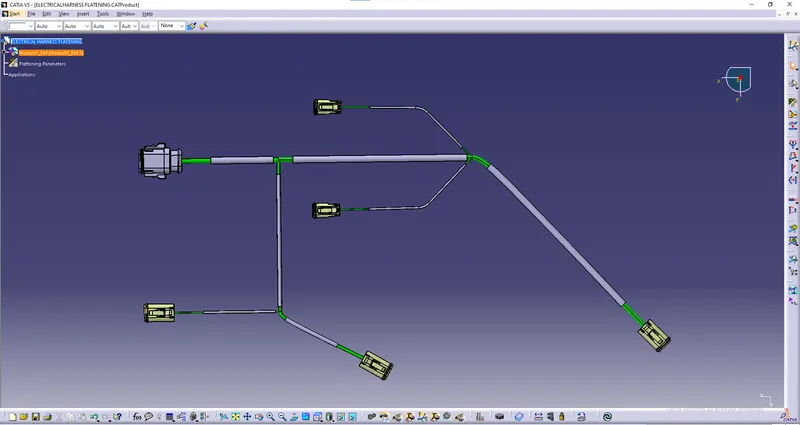

2. Flatening parameter is applied to the product geometry & the Geometric bundle is flatened
