Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

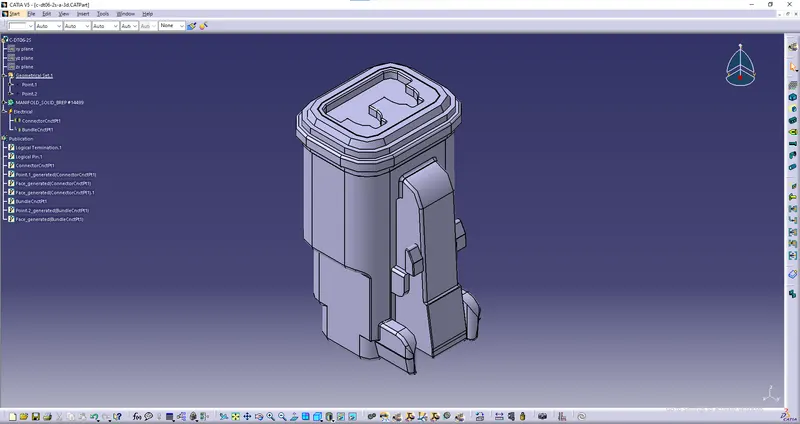

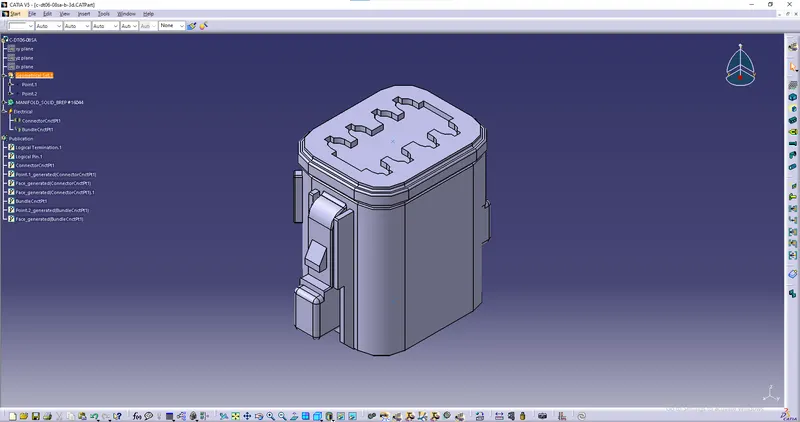

1. DT06-08SA Connector 3D is Downloaded in TE and Electrically defined,

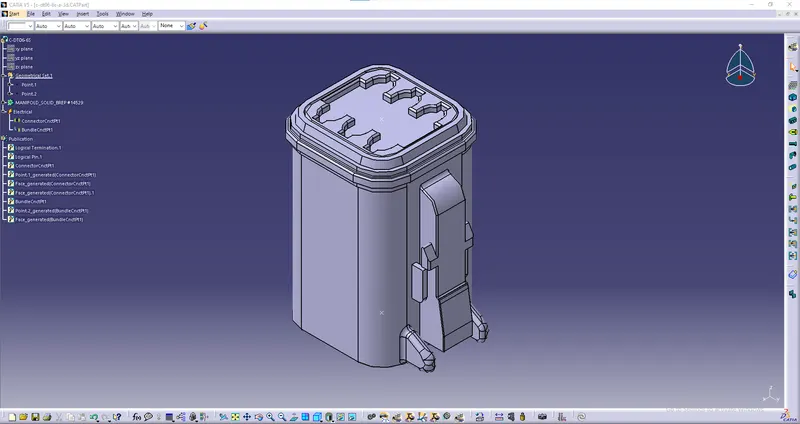

2. DT06-6S Connector 3D is Downloaded in TE and Electrically defined,

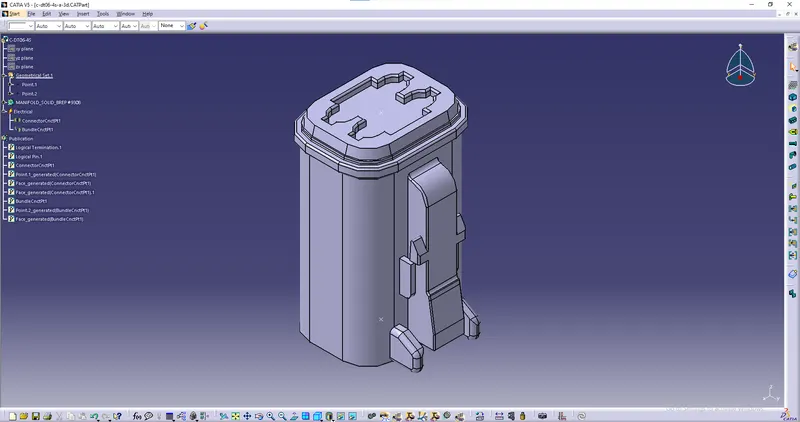

3. DT06-4S Connector 3D is Downloaded in TE and Electrically defined,

4. DT06-2S Connector 3D is Downloaded in TE and Electrically defined,

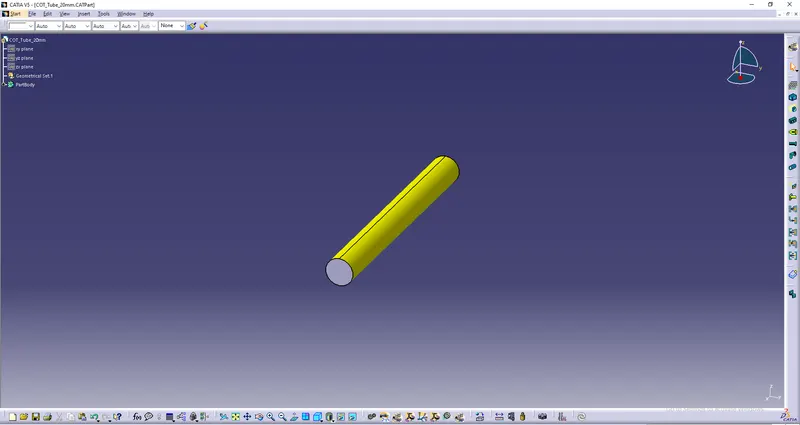

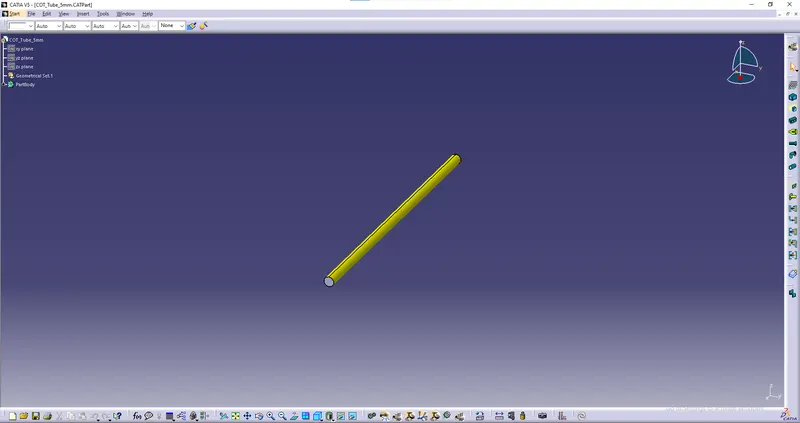

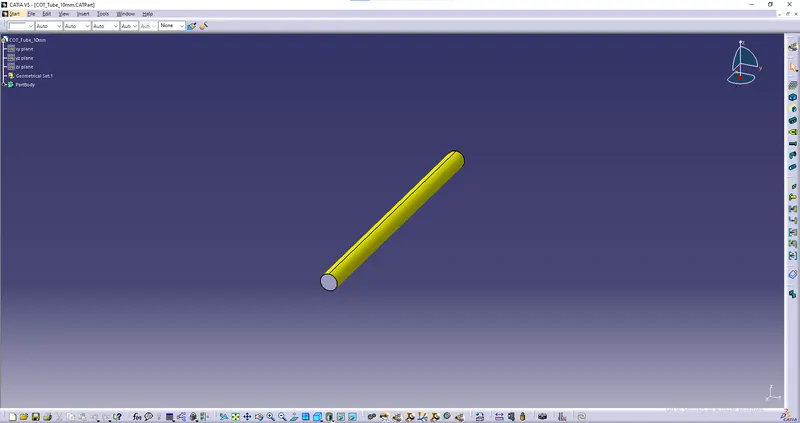

5. COT TUBES are created in Electrically created in Electrical Part Design For 05mm, 10mm, 20mm

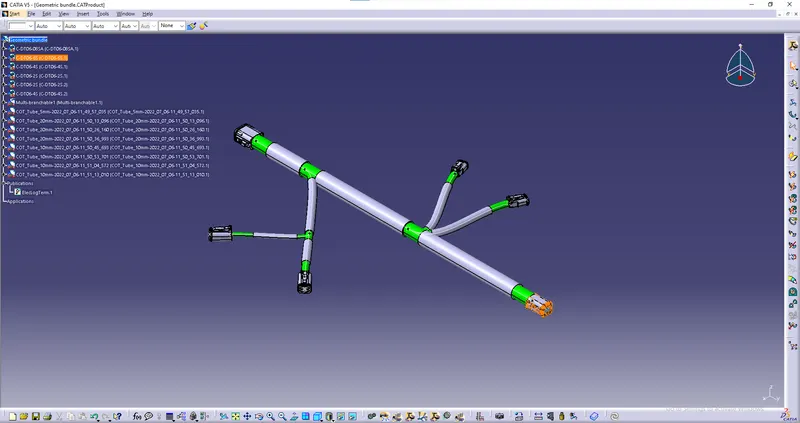

6. Connectors are connected using Geometrical bundle in Electrical harness assembly And Protective coverings are Applied to it with the requirement of 30 mm from connector end as an Extremity,

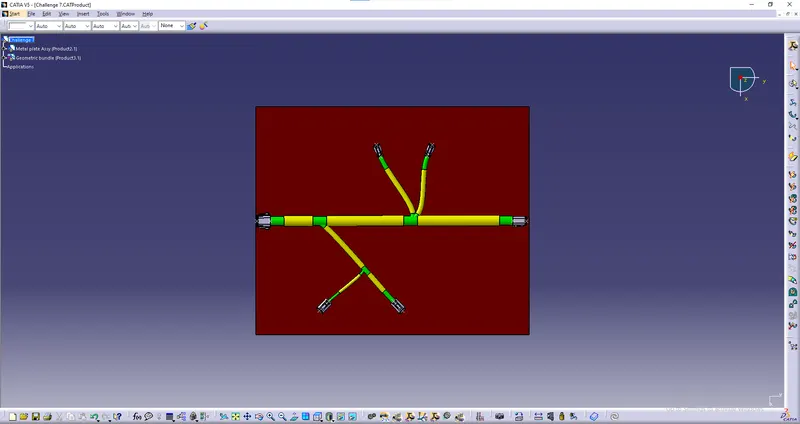

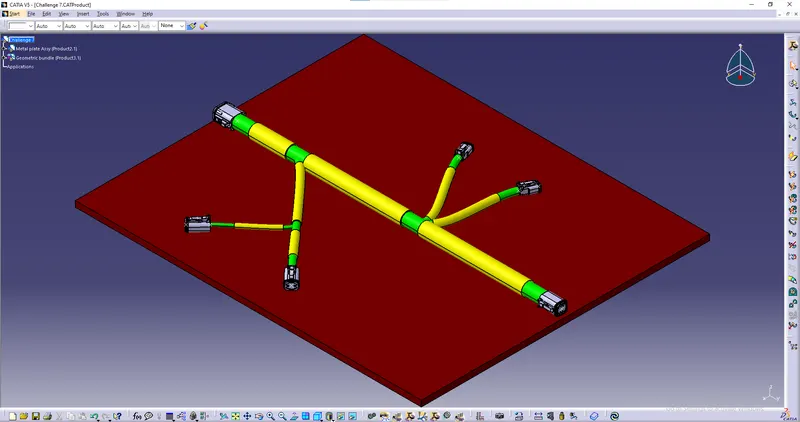

7. Full Harness layout in electrical workbench is done.
