Wiring harness design in CATIA V5 - 3D modeling Week 5 & 6 Challenge

5&6 challenge

Q1. Route the following harness layout in Electrical workbench. Make assumption for harness bundle diameters. Use the connectors provided. After completion of routing,

Objective:

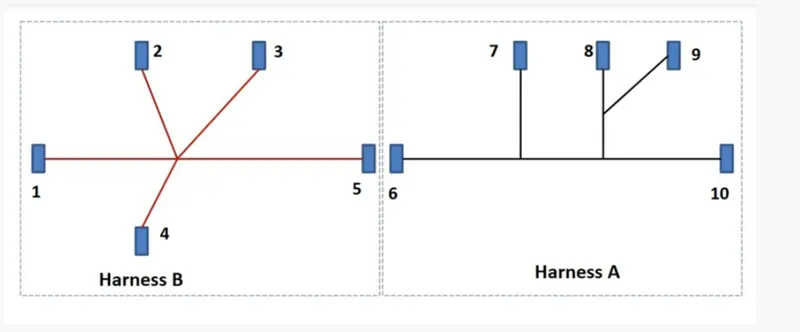

The objective of this project is to first route the two Harness A and Harness B as per the given harness layout

The electrical connectors are represented by numbers in the figure. There are 8 different types of connectors at 10 different locations.

2. Bundle continuity has to be checked for the two created harness.
3. After the two Harnesses are created, the next objective is to have them interconnected electrically.
4. Check for bundle warnings in Harness A and Harness B.
5. Add annotations to all the connectors in Harness A and Harness B.
6. The final objective of this project is to convert the final harness file into IGS file forma

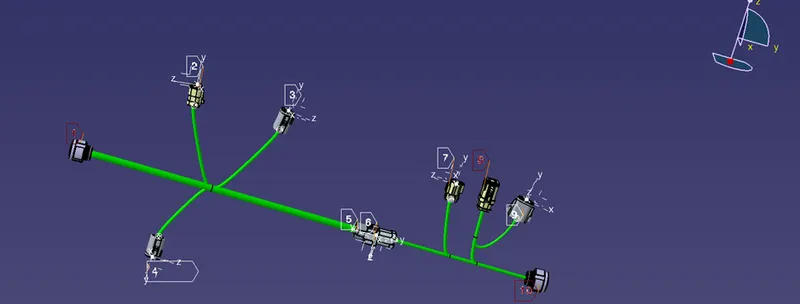

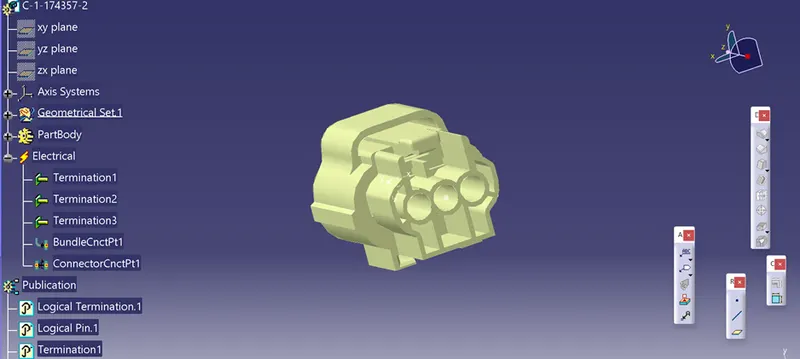

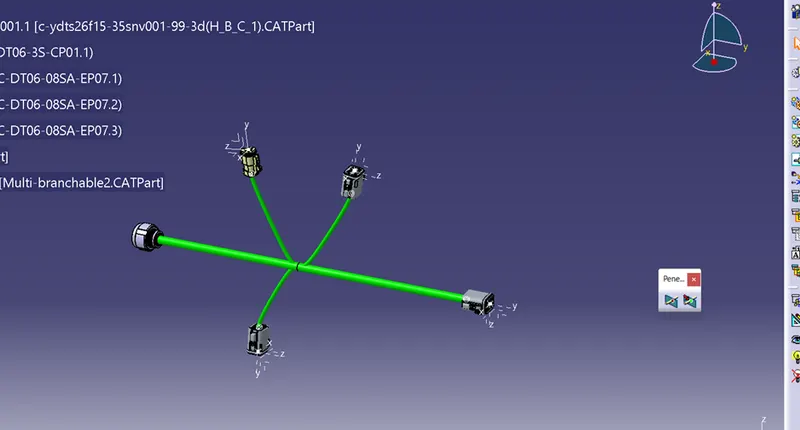

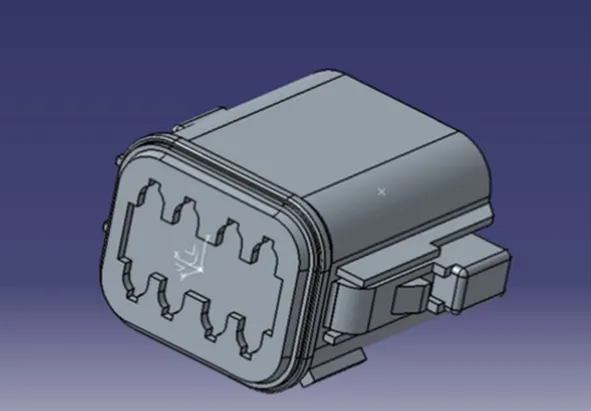

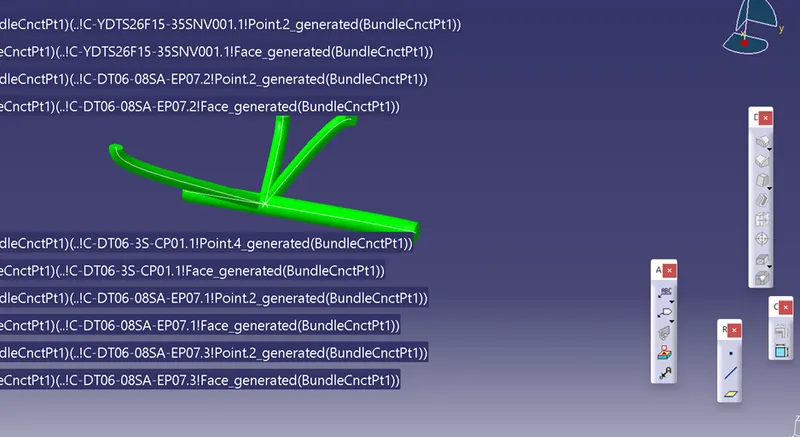

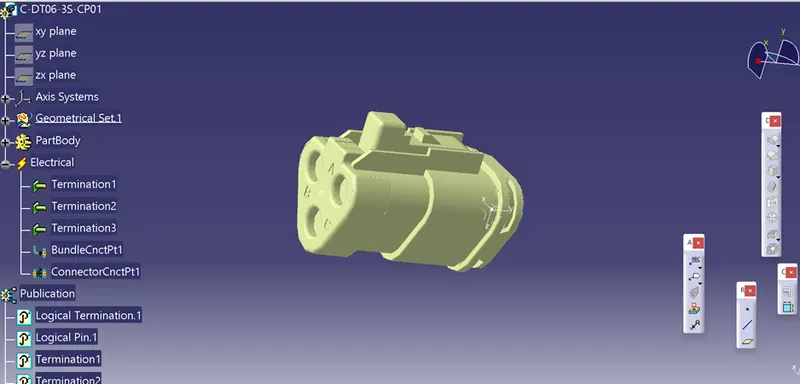

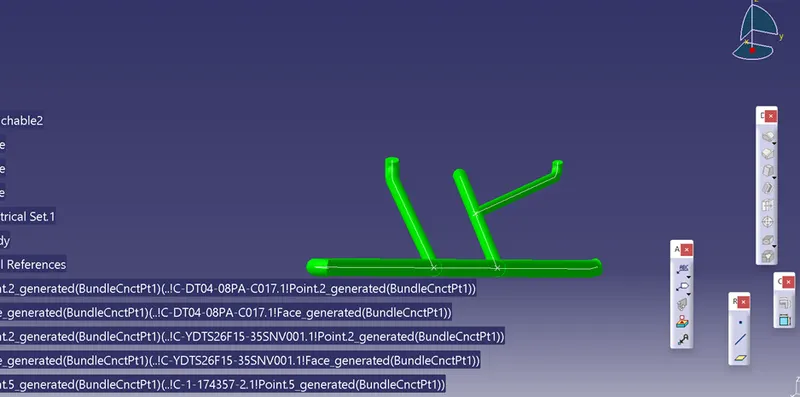

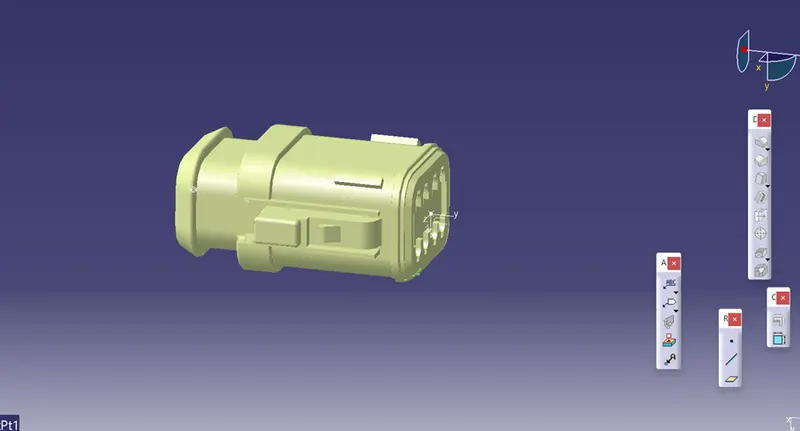

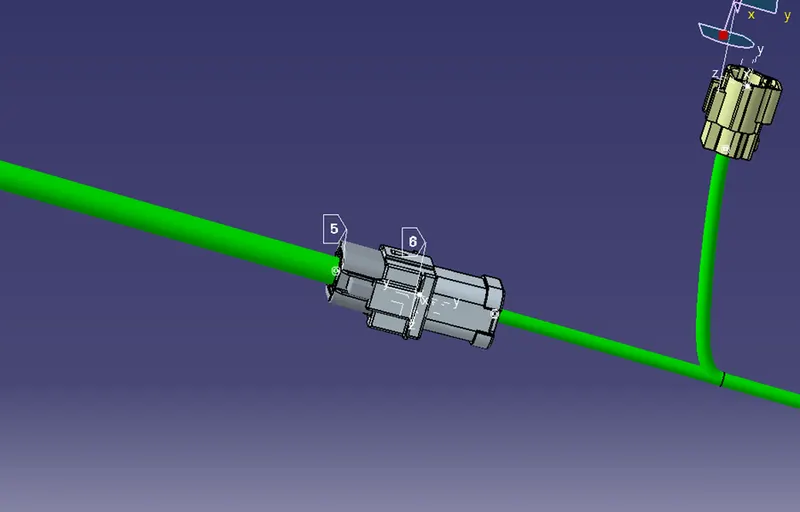

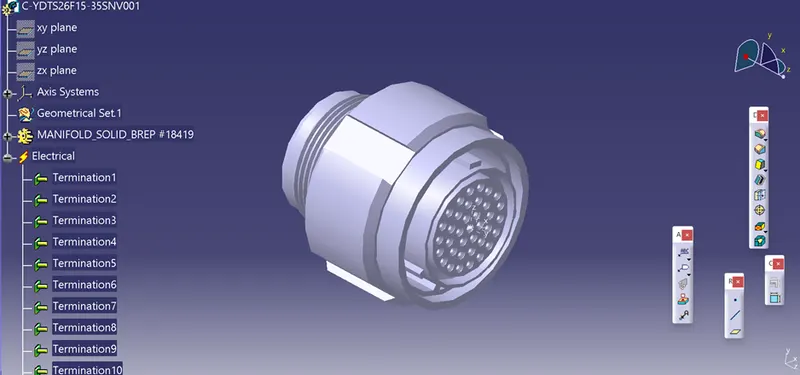

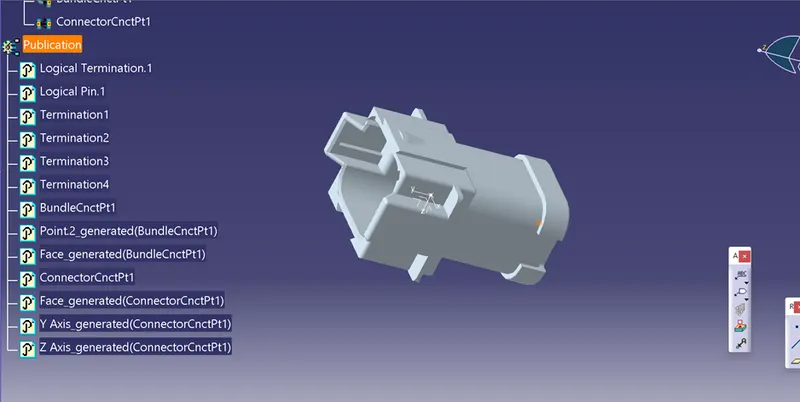

The electric connectors are shown below:

Multi branchableA:

Multibranchable B:

References:

Skill lync

Catia software
