Wiring harness design in CATIA V5 - 3D modeling Week 5 & 6 Challenge

Wiring harness design & Interconnection

Route electrical harnesses per the given layout and interconnect them as a single harness assembly check for bundle continuity, and bundle warnings, and then provide annotations for the final harness assembly.

This project is to first route the two Harness A and Harness B as per the given harness layout.

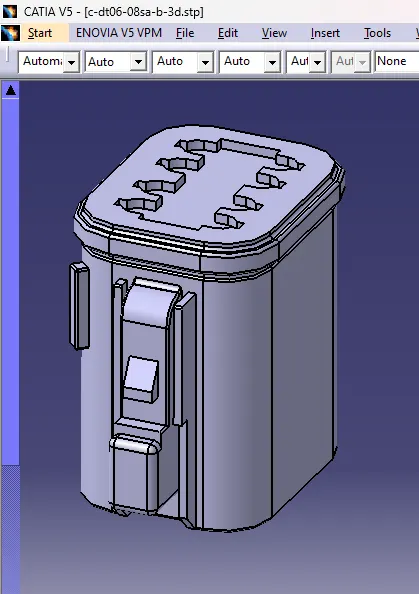

DT06-08SA-B

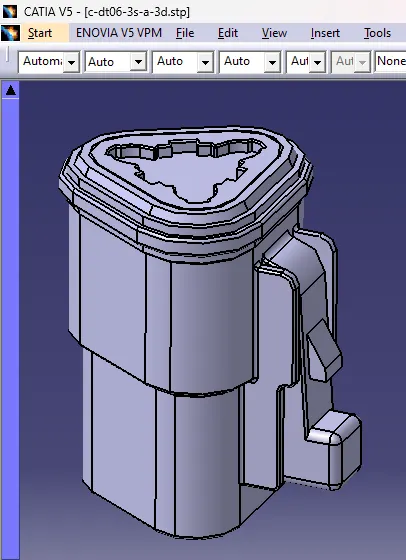

DT06-3S-A

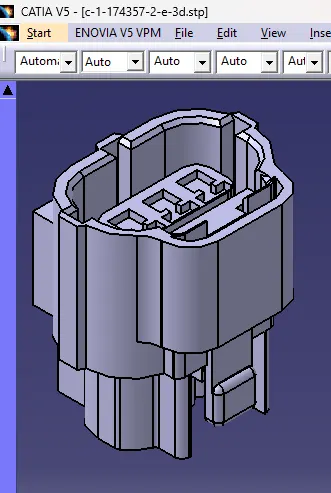

1-174357-2-e

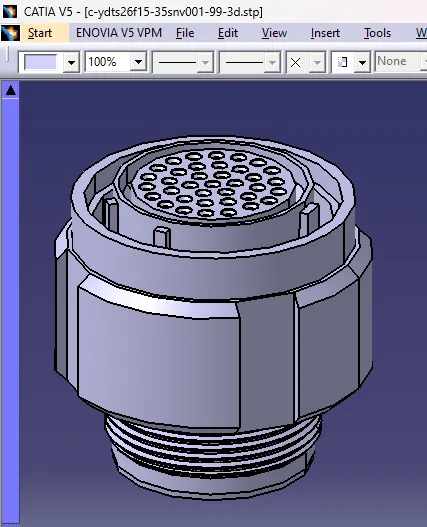

YDTS26F15-35SNV001

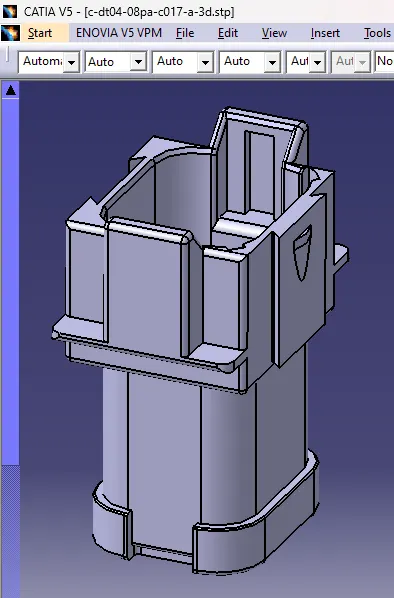

DT04-08PA-C017-A

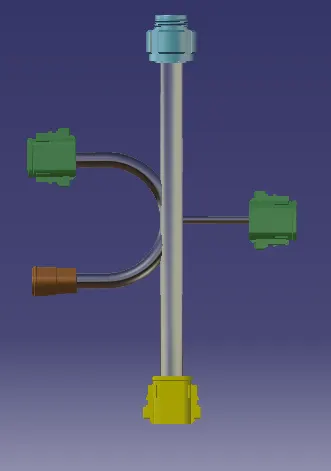

HARNESS A

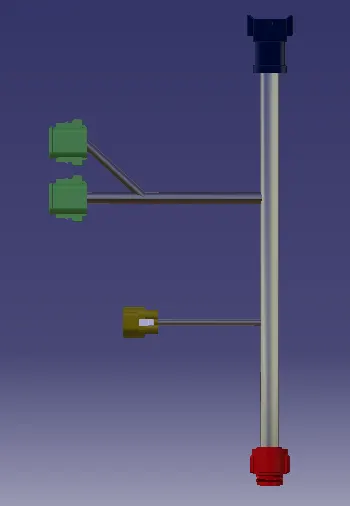

HARNESS B

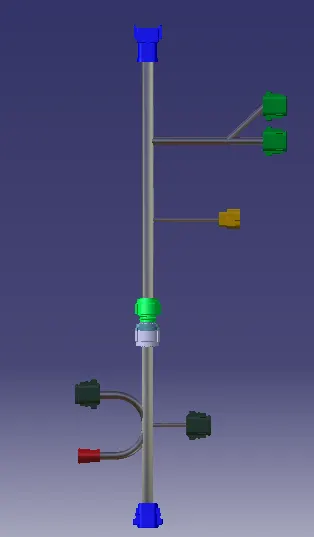

HARNESS A & B CONNECTION
