Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

1. The given parts are downloded from te.com and defined all the geometrical features in the part workbench

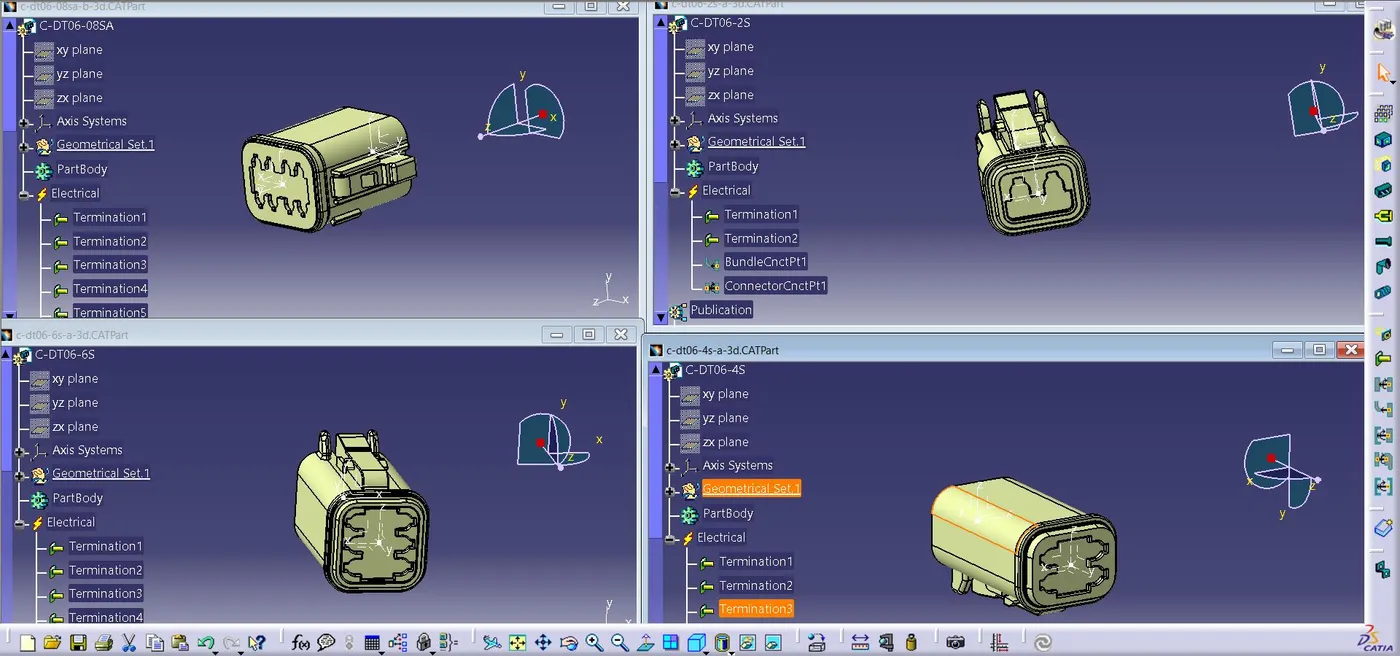

2. All the parts are defined as a connector using Electrical part workbench

3. And then the connector connection point, and Bundle connection point are defined,

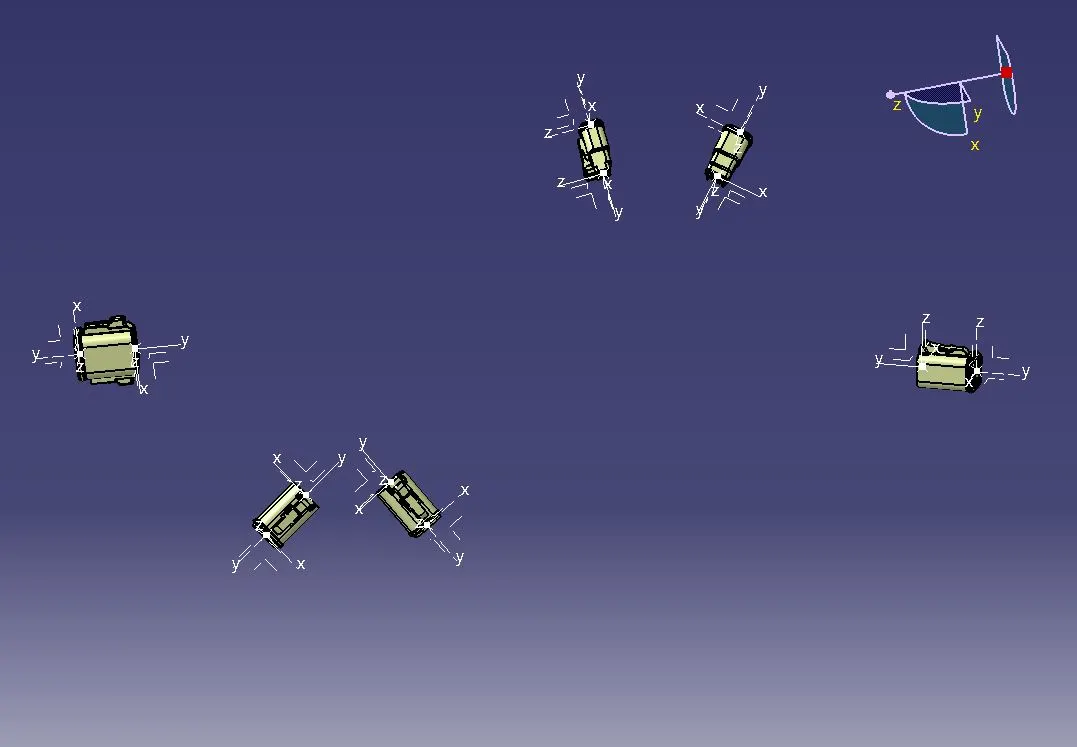

all the connectors are connected by the given Layout.

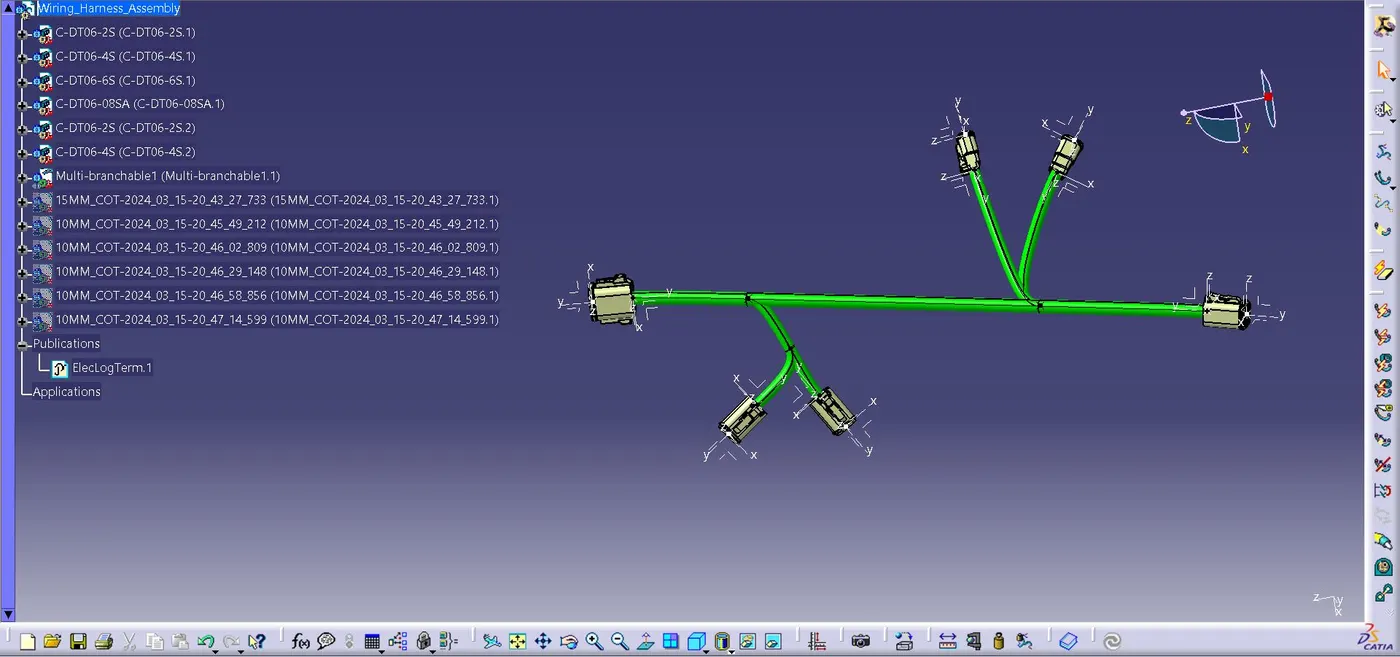

And using multibranchable tool to connect all the connectors

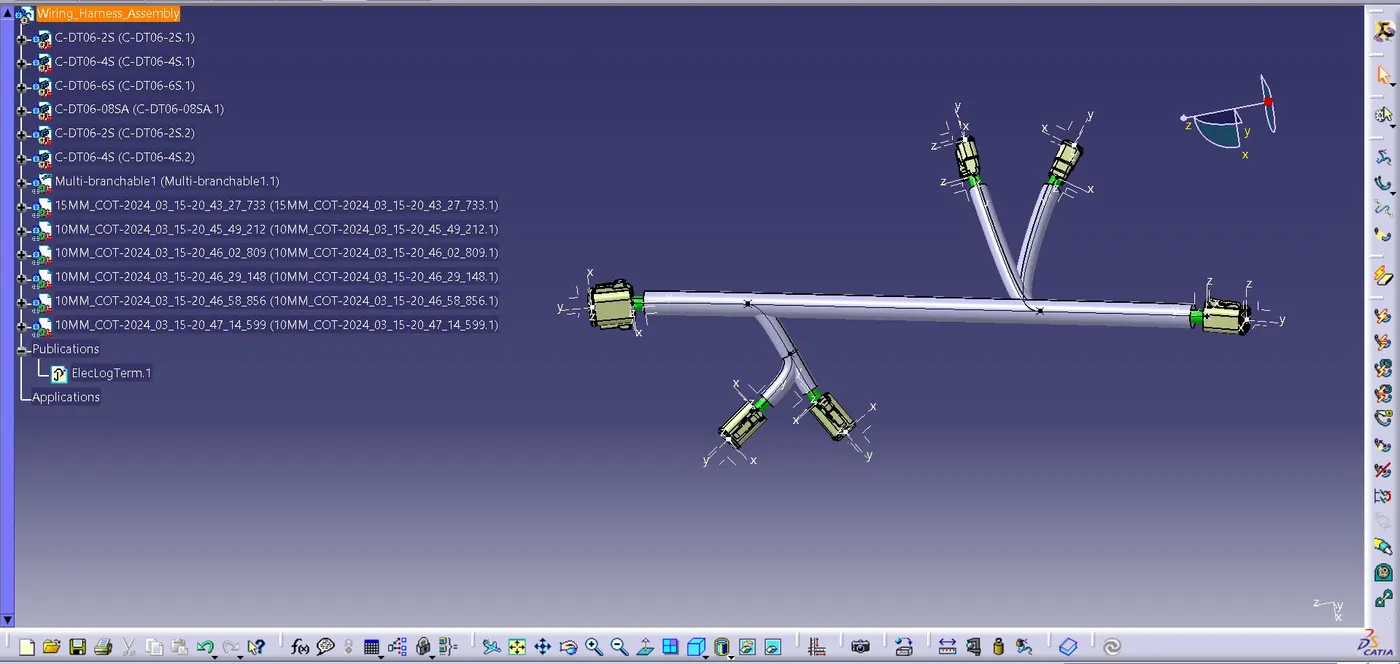

Finally the protective covers are added on the assembly
