Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

PPradeep Singh Chouhan11 Aug 2023

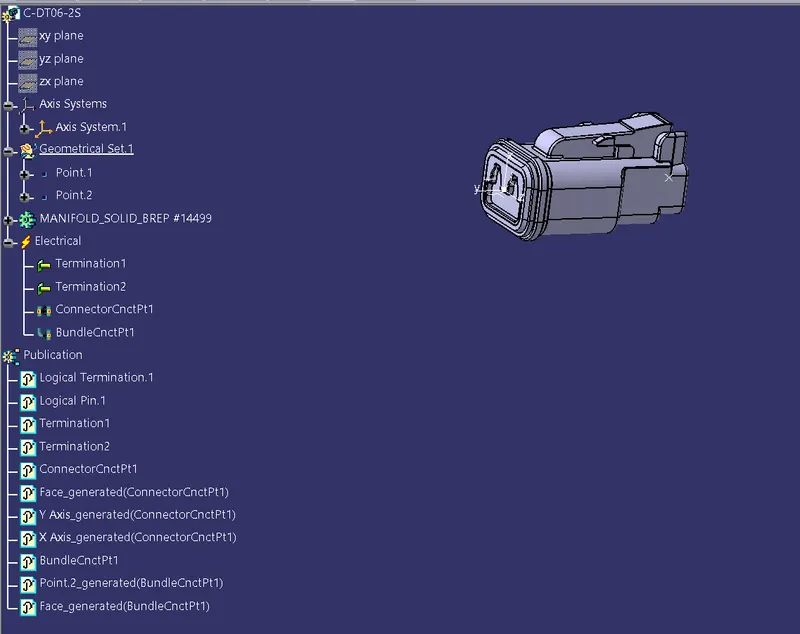

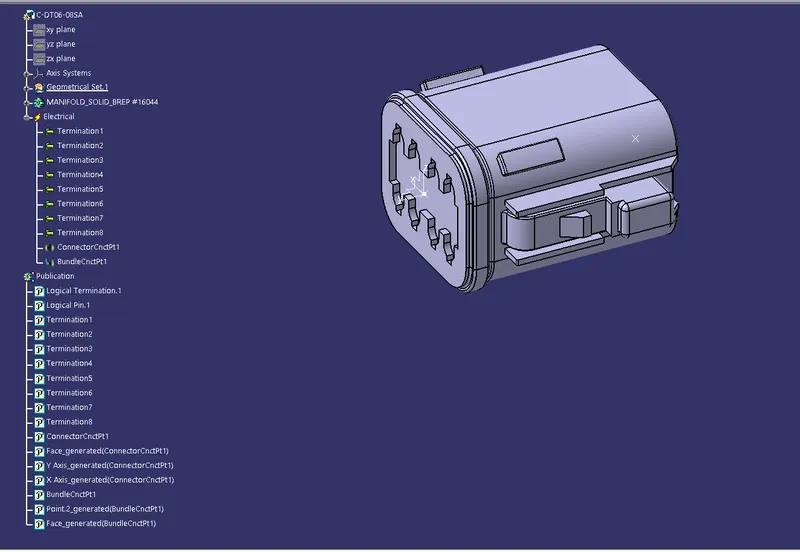

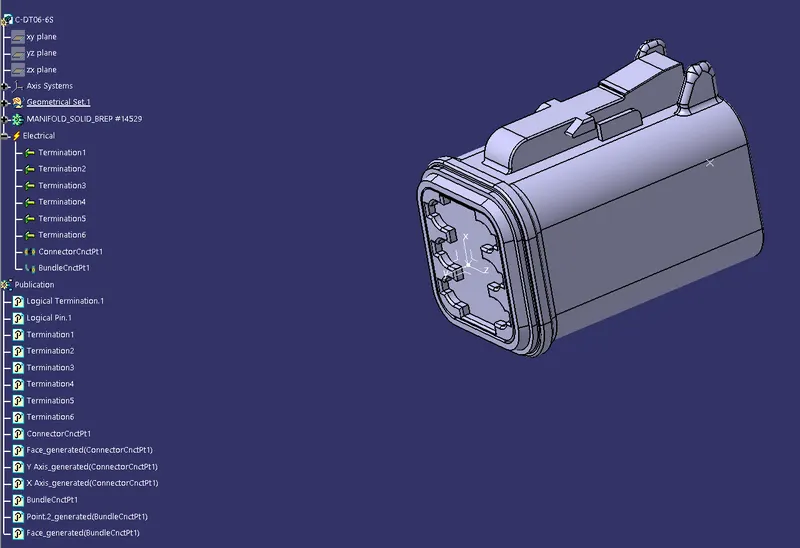

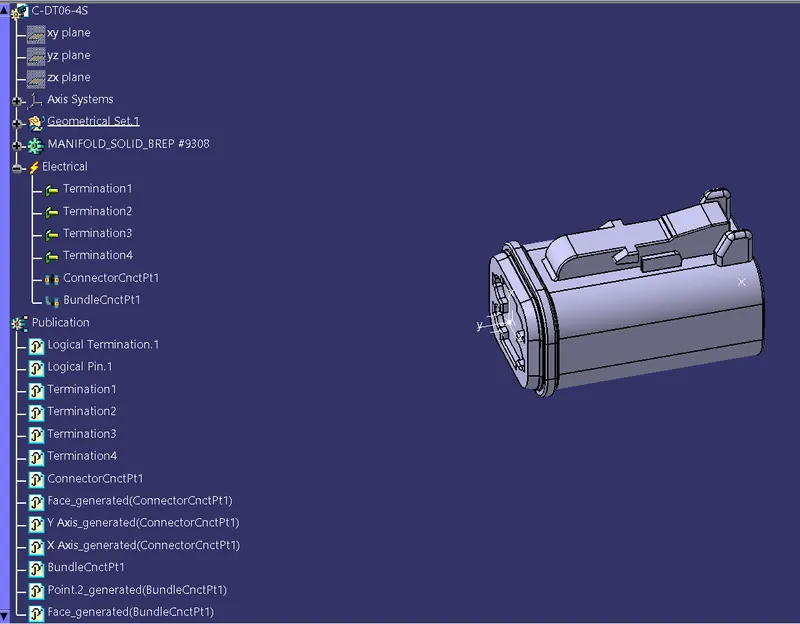

defining the connector electrically

  • Connector connection point
  • bundle connection point
  • axis system at the connector connection point
  • define all the connectors as electrical components

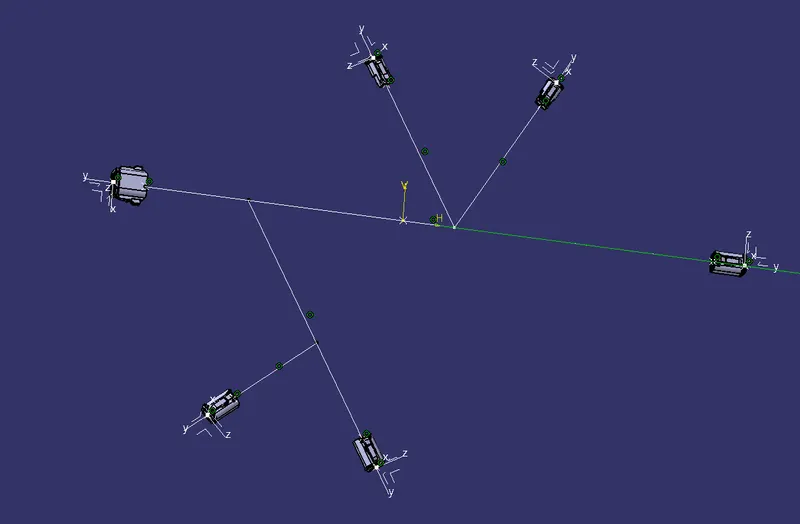

skeleton

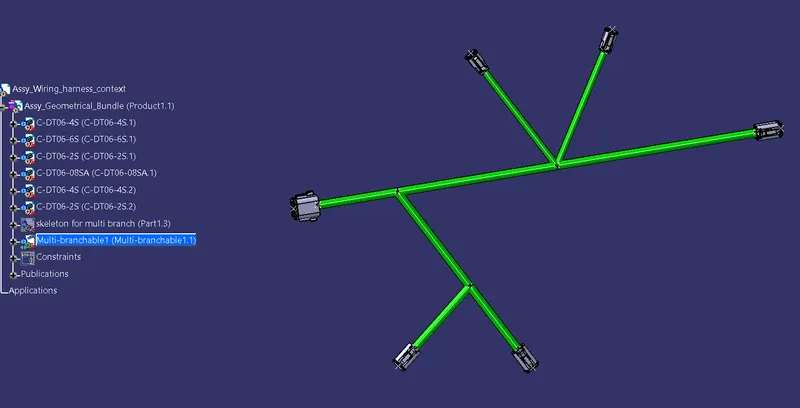

geometrical bundle

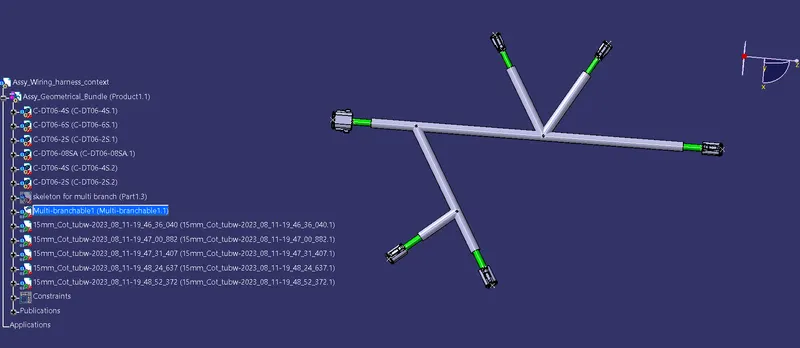

protection covering
