Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge
Route the following harness layout in Electrical workbench. Make assumption for harness bundle diameters. Use Following connectors as shown in layout diagram.
Add protective covering on all branches connected to DT06-2S & DT06-4S connectors. Keep end extremity at 30mm (from connectors end)

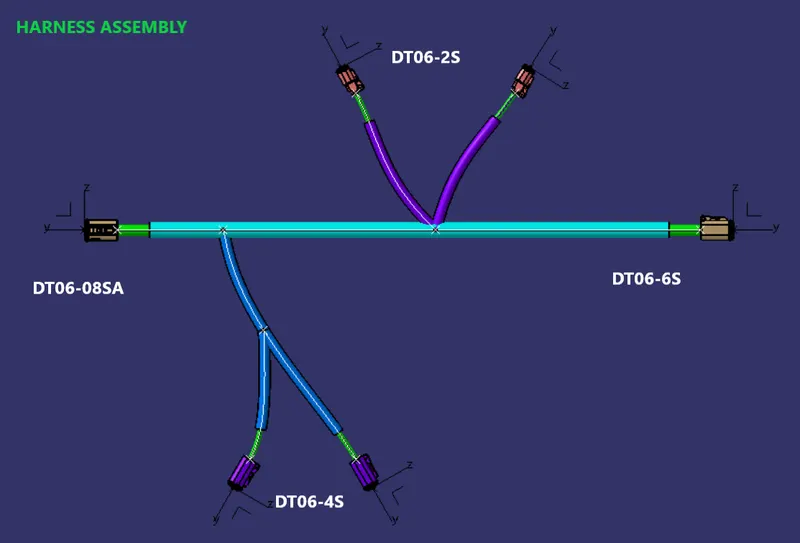

HARNESS LAYOUT
Downloading Connector Data from te.com
After downloading Connectors we have define the Connectors as Electrical Parts
CONNECTORS

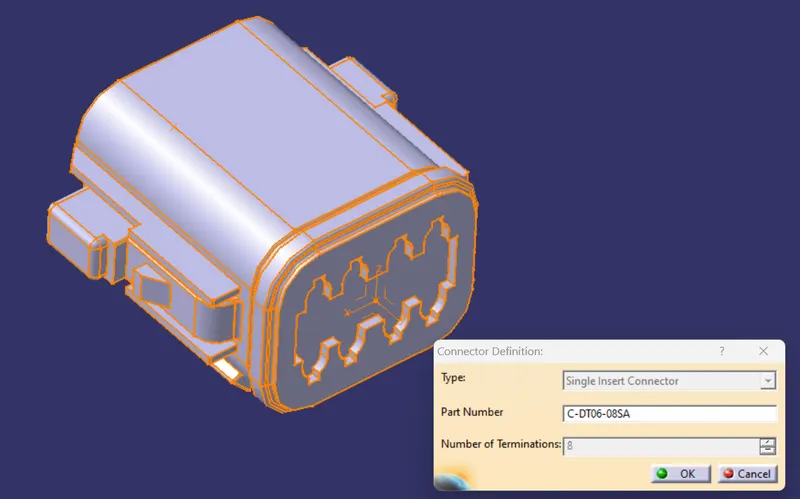

1. DT06-08SA

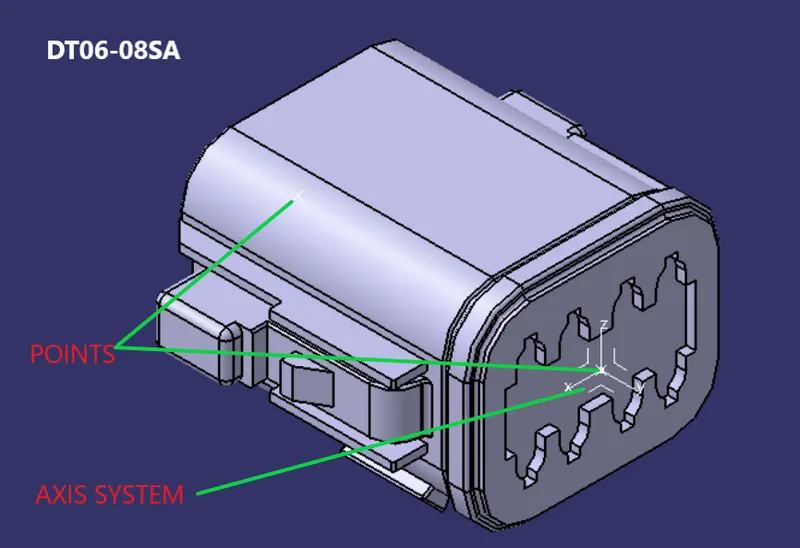

Geometrical features Points and Axis System in created
by using these Features we have to Define mechanical part as electrical part i.e Connector.
- CONNECTOR DEFINITION

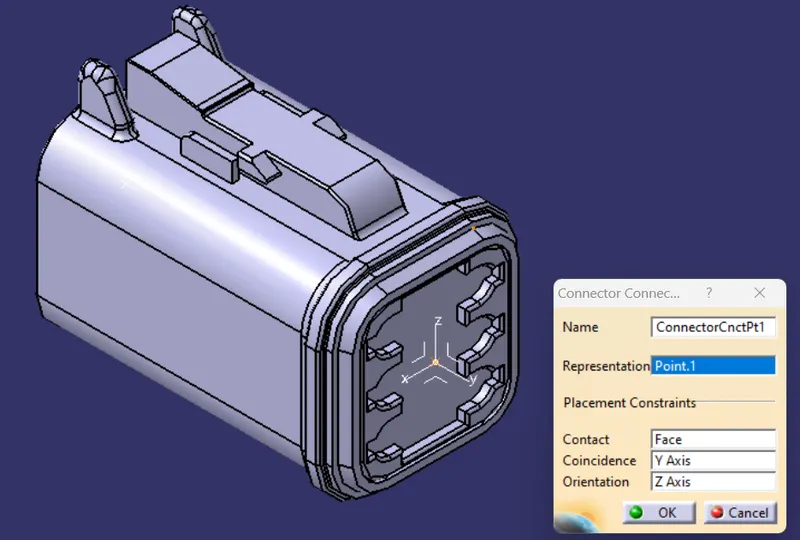

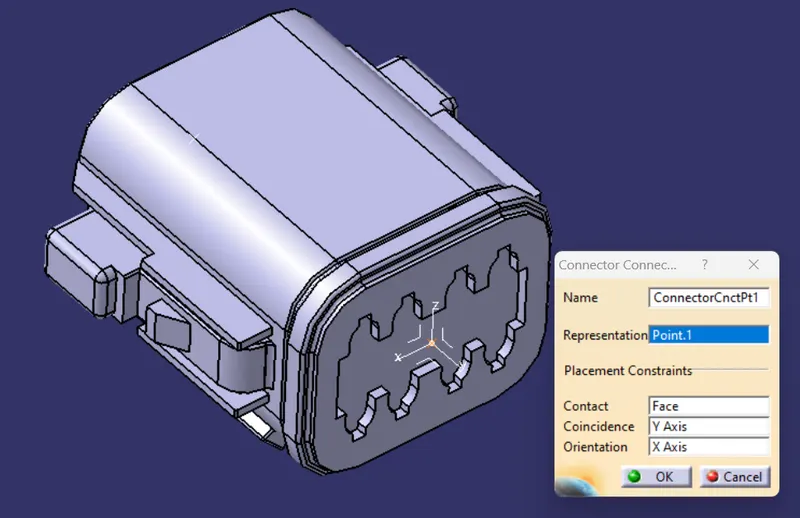

- CONNECTOR CONNECTION POINT DEFINATION

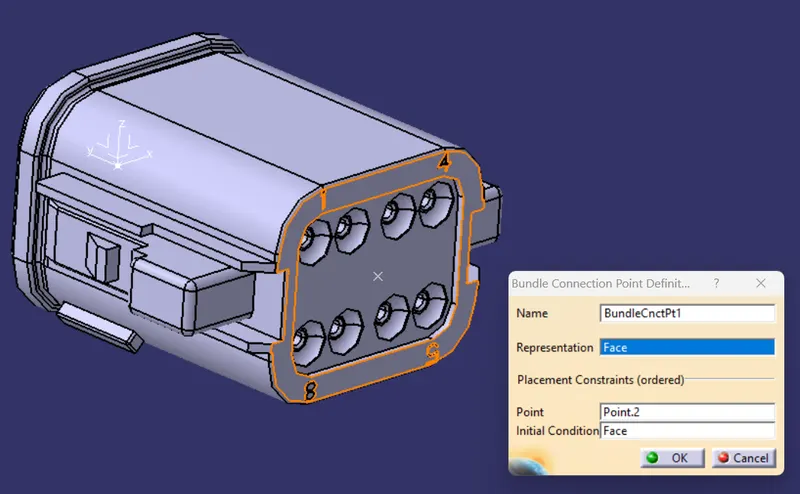

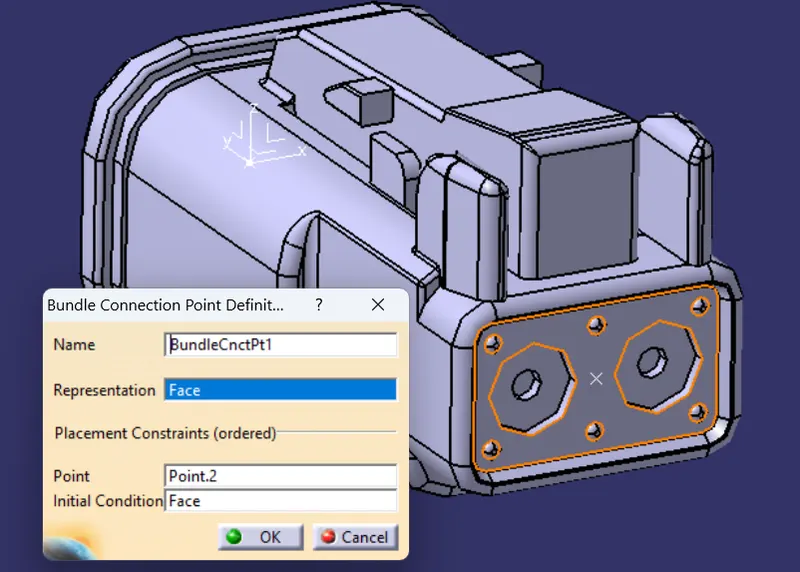

- BUNDLE CONNECTION POINT

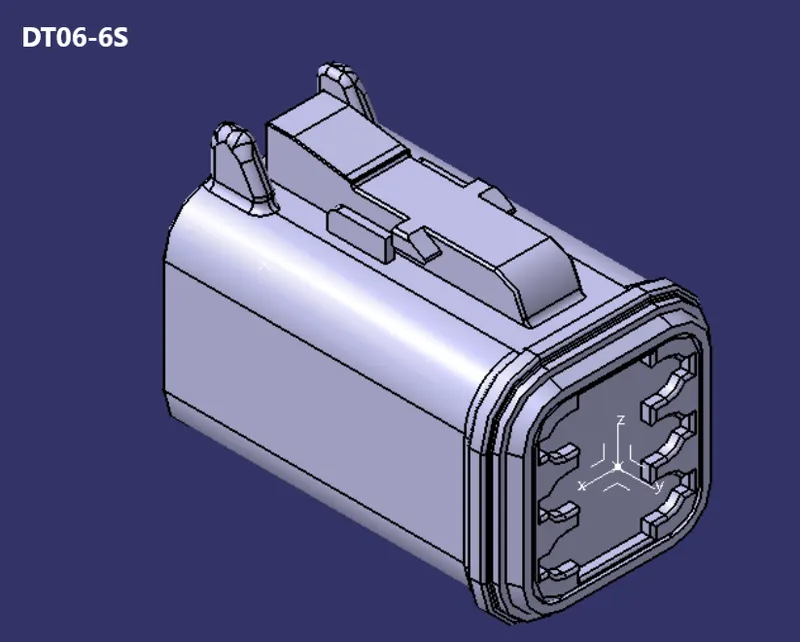

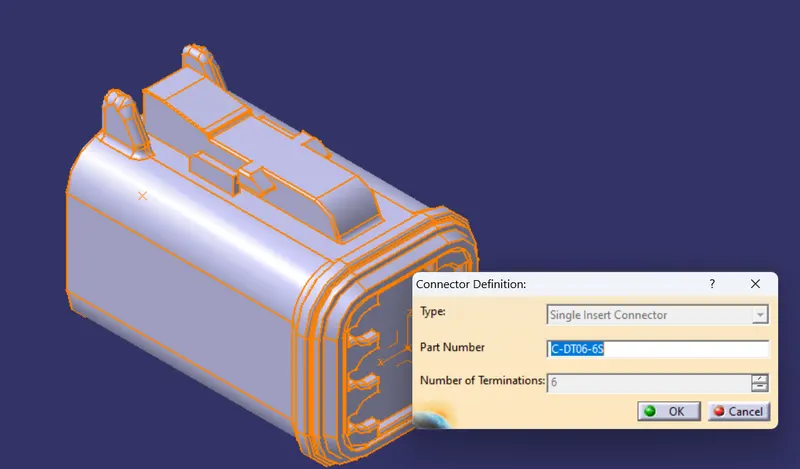

2.DT06-6S
Geometrical features Points and Axis System in created
by using these Features we have to Define mechanical part as electrical part i.e Connector.
- CONNECTOR DEFINITION

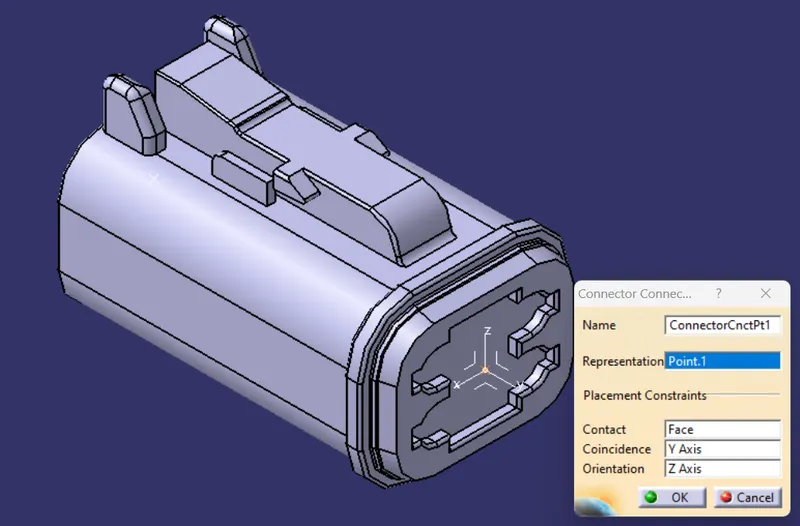

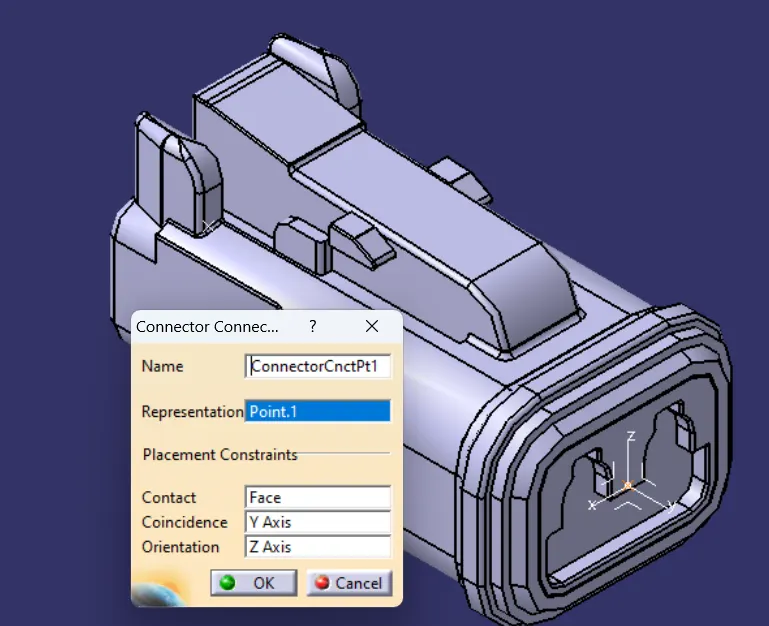

- CONNECTOR CONNECTION POINT DEFINATION

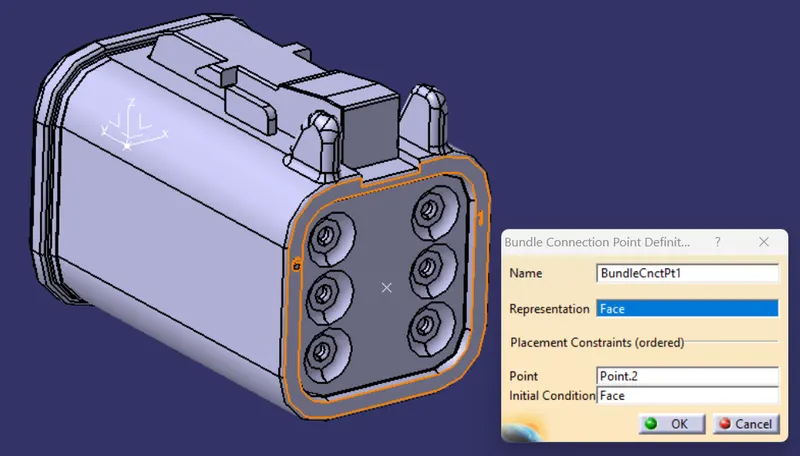

- BUNDLE CONNECTION POINT

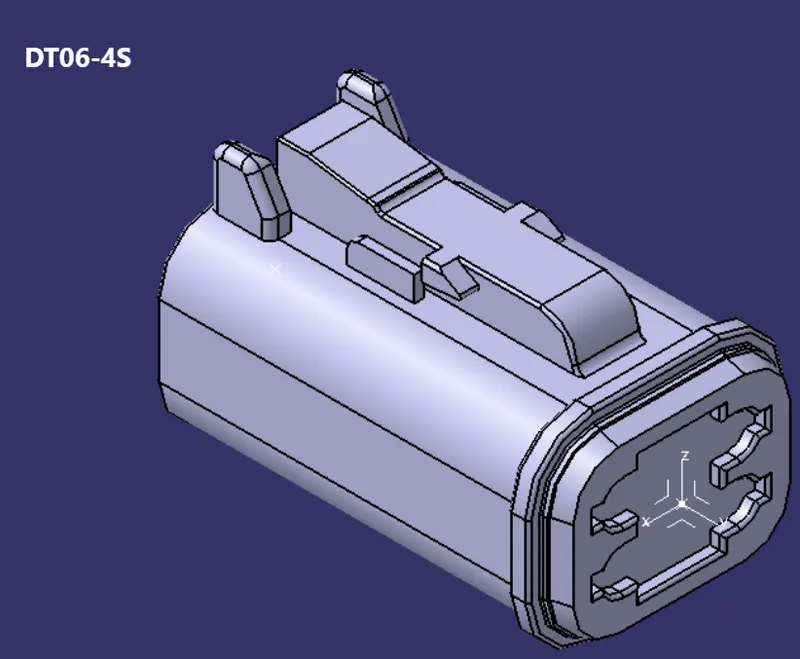

3.DT06-4S
Geometrical features Points and Axis System in created
by using these Features we have to Define mechanical part as electrical part i.e Connector.

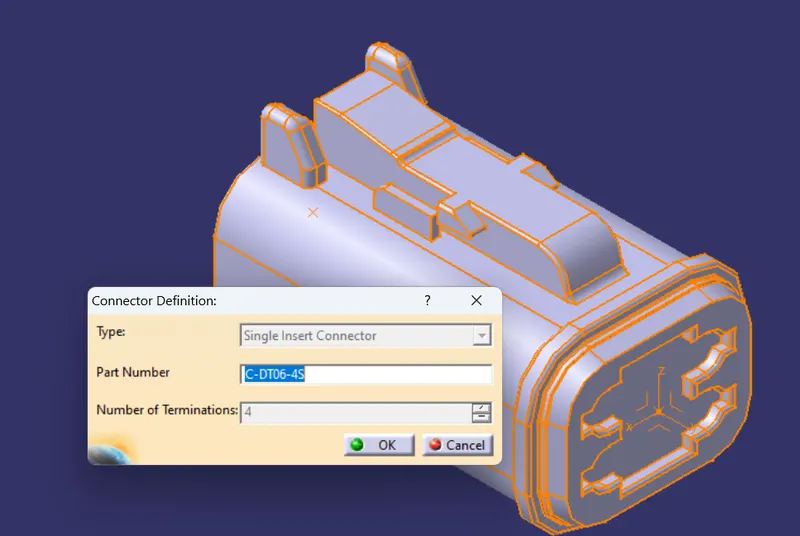

- CONNECTOR DEFINITION
- CONNECTOR CONNECTION POINT DEFINATION

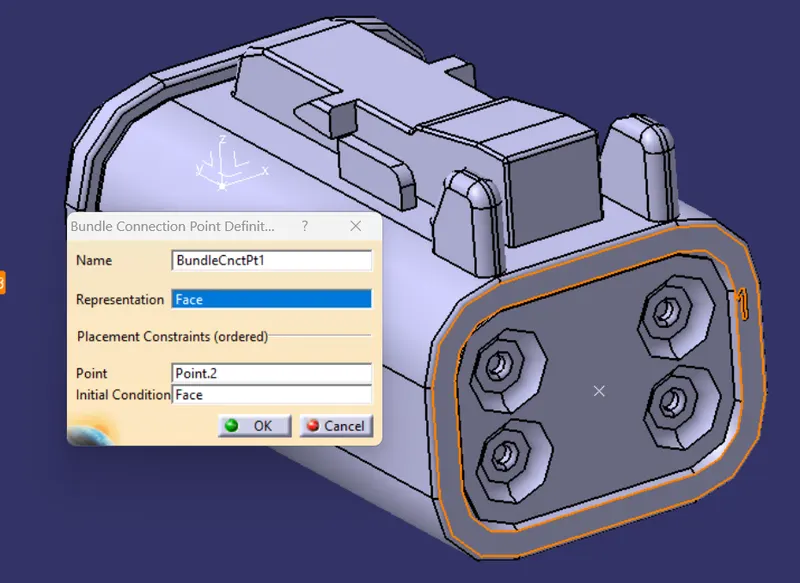

- BUNDLE CONNECTION POINT

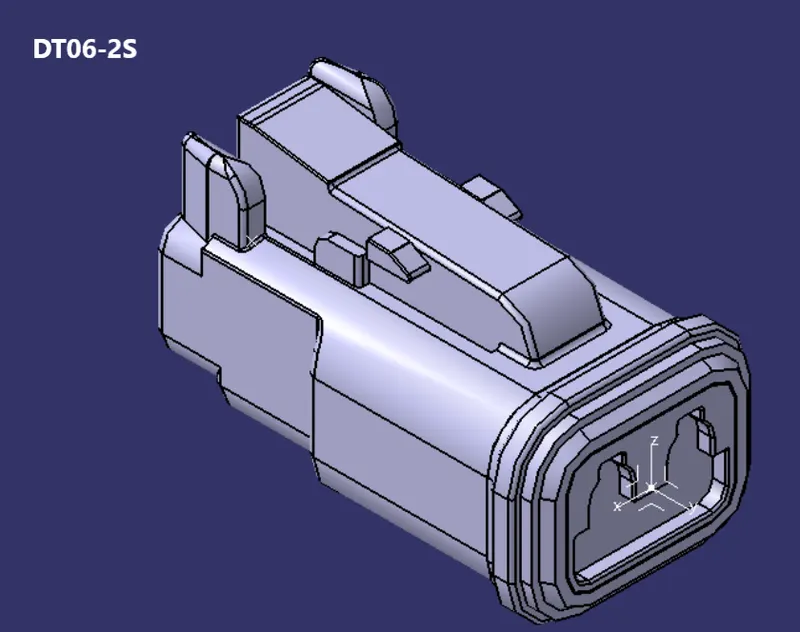

3.DT06-2S
Geometrical features Points and Axis System in created
by using these Features we have to Define mechanical part as electrical part i.e Connector.

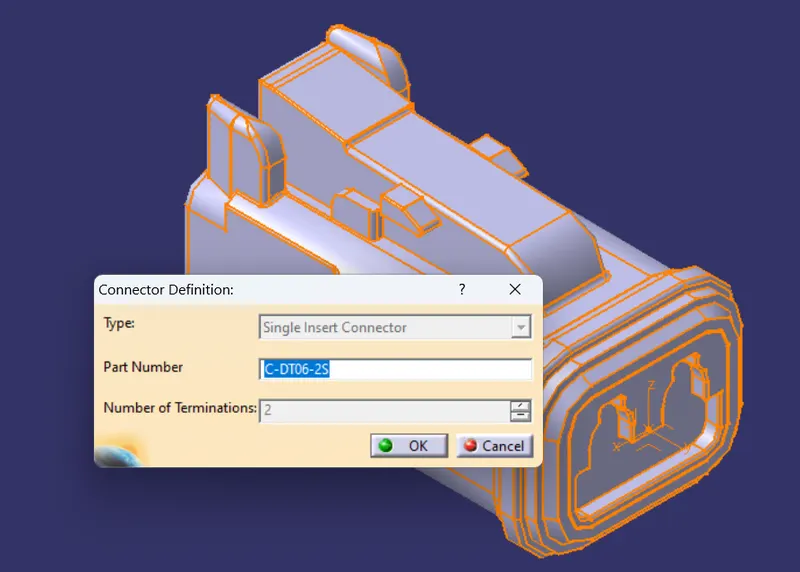

- CONNECTOR DEFINITION
- CONNECTOR CONNECTION POINT DEFINATION
- BUNDLE CONNECTION POINT

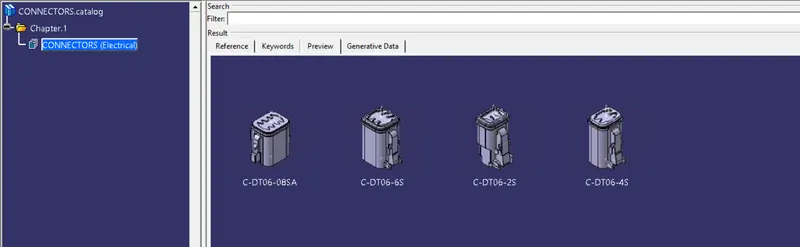

Adding to catalouge
PROTECTIVE COVERING

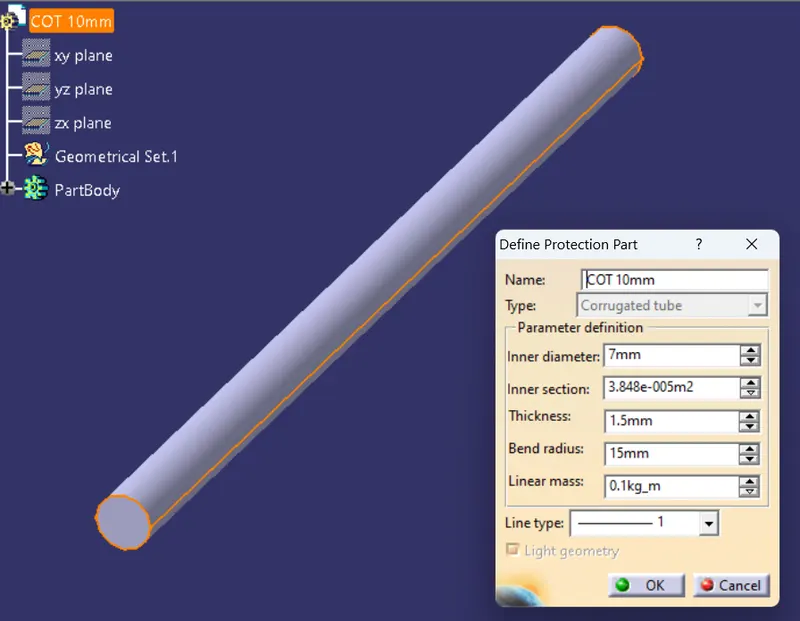

- 10mm covering

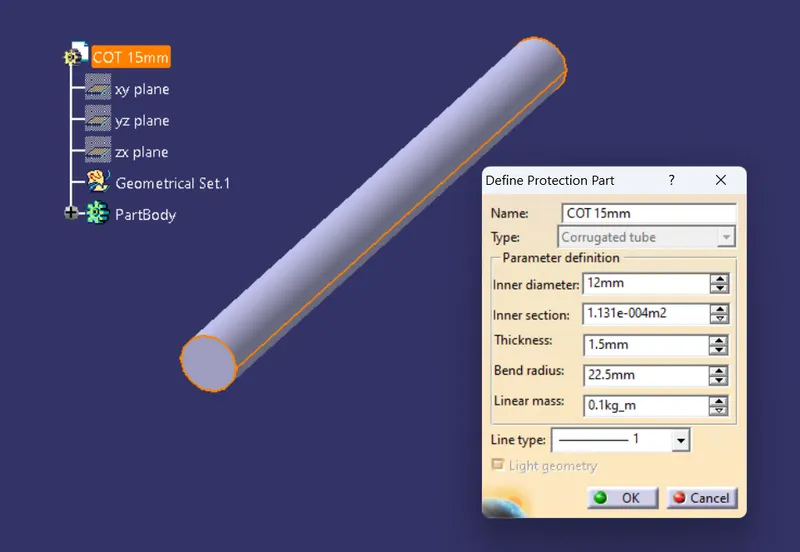

- 15 mm Covering

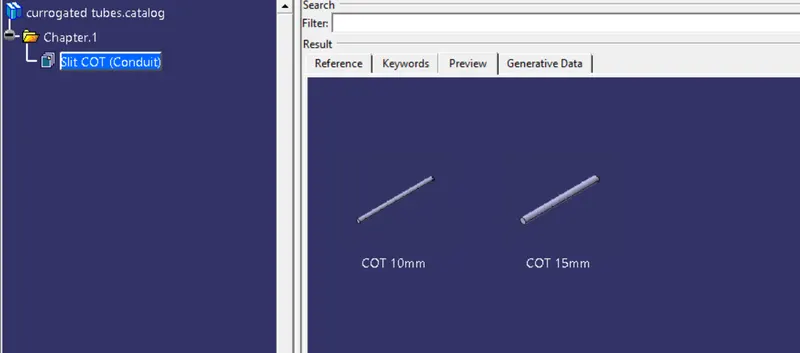

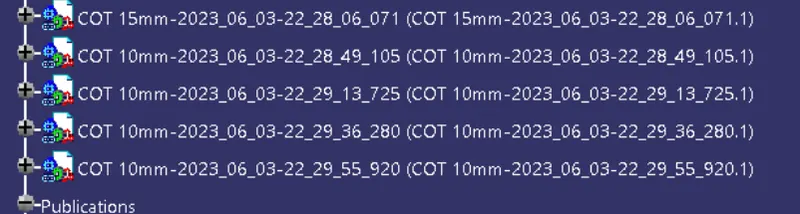

Adding to catalouge

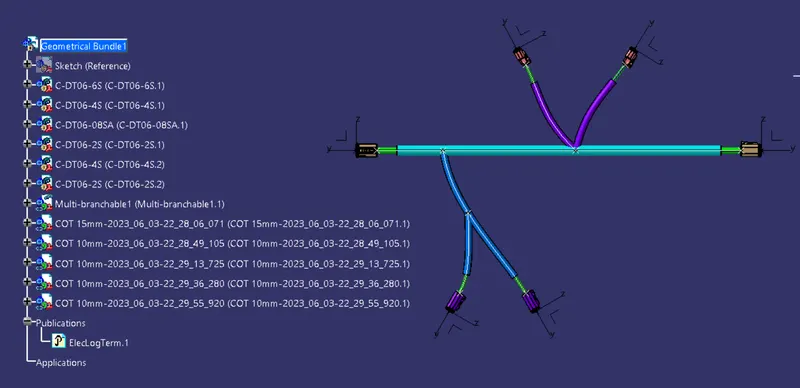

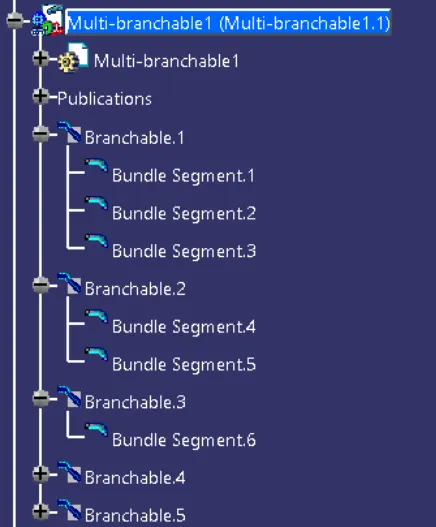

Multi branchable bundle added
Protective covering
Tree
CONCLUSION
- Connectors are downloded in te.com
- Mechanical part files are converted to Electrical Part
- Harness assembly is created and protective covering are added..
