Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

Class A surface Final Part

Rankine cycle Simulator Introduction: The Rankine cycle is a thermodynamic cycle used in power plants and thermal systems to convert heat into mechanical work. It is commonly utilized in steam power plants and represents the idealized operation of a steam power cycle. The cycle consists of four main processes: expansion,…

Parsing NASA thermodynamic data   Introduction: NASA has developed comprehensive thermodynamic databases and associated polynomials for over 1000 species. These polynomials allow for the calculation of important thermodynamic properties such as specific heat capacity, enthalpy, and entropy. By parsing the coefficients…

Introduction: The genetic algorithm (GA) is a search and optimization technique inspired by the process of natural selection and evolution. It is commonly used to solve complex optimization problems where traditional methods may be inefficient or infeasible. In this report, we will provide a conceptual explanation of genetic…

This ODE represents the equation of motion of a simple pendulum with damping. Here, let's assume 'theta' to be 'theta1', convert the 2nd order ODE to 1st order, so- assuming, d(theta1)/dt = theta2; d(theta2)/dt + b*theta2/m + g*sin(theta1)/L=0 => d(theta2)/dt = -b*theta2/m - g*sin(theta1)/L %Main Code %Solving second…

  %2R Robotic Arm Challenge clear all close all clc %inputs %length of the links l1=1; l2=0.8; %angles in terms of theta theta1= linspace(0,90,10); %angle for link1 theta2= linspace(0,90,20); %angle for link2 %coordinates for link1 start point x0=0; y0=0; cuntr=1; for i=1:length(theta1) THETA1= theta1(i); for j=1:length(theta2)…

Project ! Aim:Route the Wiring harness on Given Engine and Prepare flatten view drawing in CATIA V5. Application of all packaging rules, Industry best practices studied in this course shall be demonstrated in design. Apply Protection coverings as required. Proper routing of bundle Report writing Flattening and Drawing…

Project 2 Aim:Route the Wiring harness on Given car body and Prepare flatten view drawing in CATIA V5. Application of all Packaging rules, Industry best practices studied in this course shall be demonstrated in design. Apply Protection coverings as required. Proper routing of bundle Report writing Flattening and Drawing…

Aim: Flatten the harness assembly completed in “ week 4 challenge”. Place the flattened view on drawing sheet. Ensure bundles with protective coverings has different visuals on drawing view. Solution: Extracted the wiring harness from the Assembly workbench and used the flatten function on the harness.…

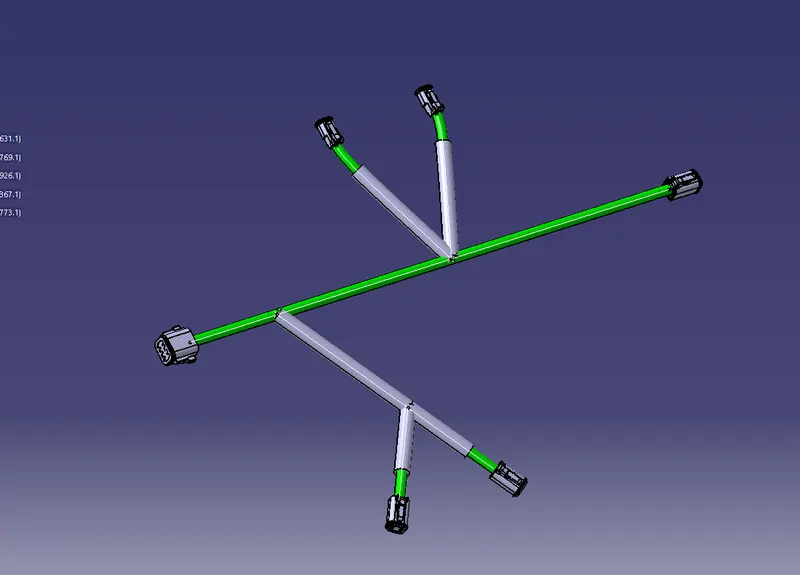

Harness routing Aim: Route the following harness layout in Electrical workbench. Make assumption for harness bundle diameters. Use the connectors provided. After completion of routing, Check the bundle Continuity. Add snap of result in submission Add annotation to all connectors. Make an assumption for annotations like…

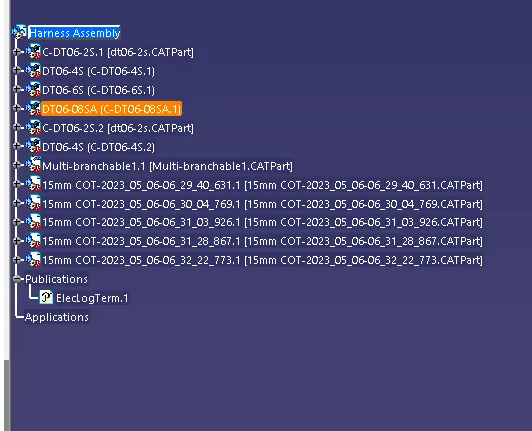

DT06-4S DT06-6S DT06-2S DT06-08SA Harness Assembly

Q1.  Q2. Q3.

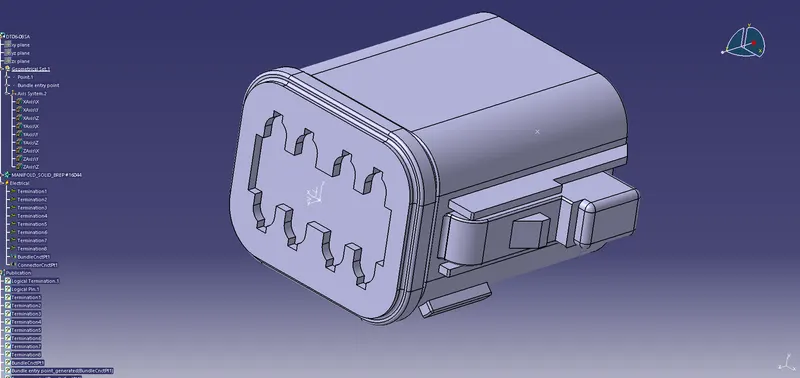

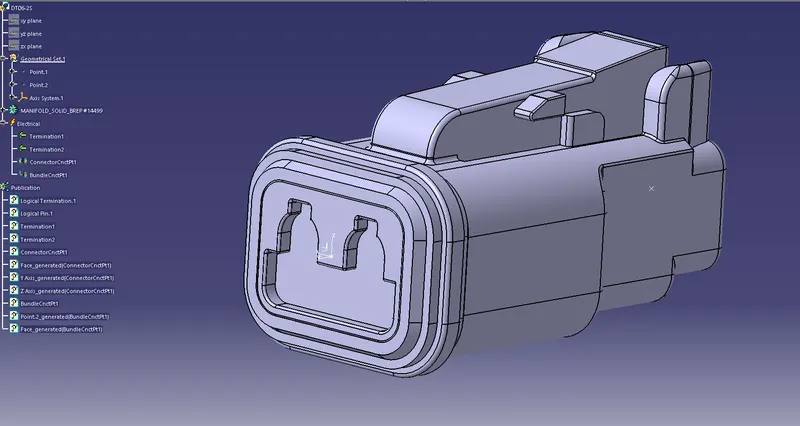

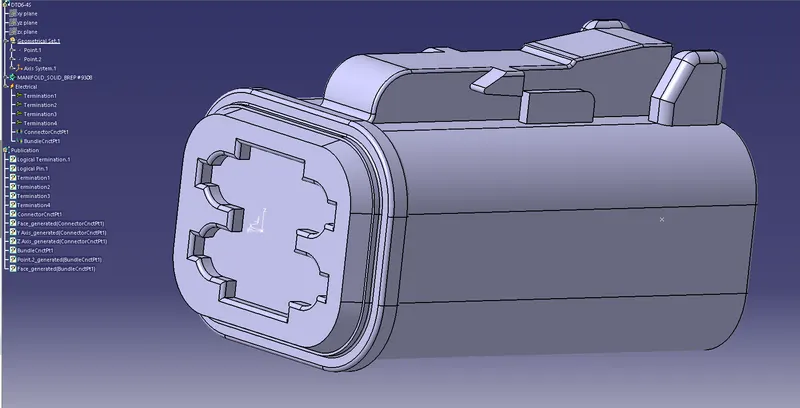

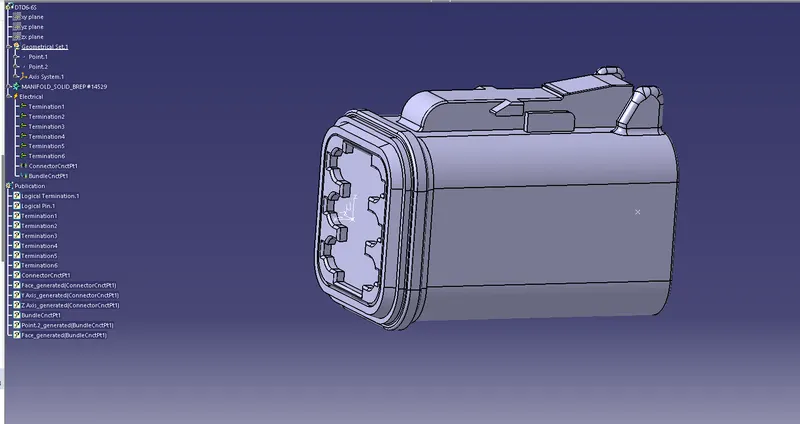

Wiring harness design in CATIA V5 - 3D modeling    Parameter for defining any connectors Geometry Parameters - Point & Coordinate system (Axis) Connector connection points - This point is used for connection of one connector to another connector. Harness Bundle entry point - This point defines where the harness…

Automotive Hood Design   Introduction The hood is a part of a car that covers and protects the engine. It is usually located at the front of the car and can be opened to allow people to access the engine compartment for repairs and maintenance. The hood is also an important safety feature of a car because it helps…

Report on Final Project Aim: To create a CAD model considering following inputs as like in OEM and tier1 companies a) Class A surface b) Nominal thickness : Refer master sections c) Attachment strategy : Find a attachment strategy for the door panel complete work. Use Push pin with Dog house for Lower substrate -…

AUTOMOTIVE BACK DOOR DESIGNING   Introduction The back door of a car is a vital component that provides access to the vehicle's luggage compartment. It must be both functional and visually appealing, while also meeting safety requirements. In modern times, Computer-Aided Design (CAD) software has revolutionized the…

Assemble and apply GD&T to the butterfly valve assembly drawing

Automobile Roof Design Introduction The roof of an automobile serves as a protective structure that shields the passengers and the interior of the vehicle from external elements such as rain, wind, sun, and snow. It also provides structural strength to the overall automobile design. Automobile roofs are typically constructed…

Fender Design The fender plays a crucial role in the exterior of an automobile as it encompasses the wheel arch that accommodates the vehicle's wheels. For optimal protection, the wheel must be positioned within the confines of the fender to prevent the discharge of harsh particles into the environment, which could potentially…

Fender Design - Wheel Arch The fender is a crucial part of a car's exterior because it encloses the wheel arch that holds the wheels in place. Properly fitting within the fender's boundaries prevents the wheels from projecting abrasive materials into the air, which could harm the car's exterior or even pedestrians. Additionally,…

Section Modulus calculation and optimization Introduction In CAD modelling, the section modulus is typically used to design and analyse structural components. The section modulus of a component's cross-section can be calculated based on its geometry, which is often created using 3D modelling softwares in my case I have…

Underbody Coating   Underbody coating is a protective layer we can apply to the underside of our car's body to protect it from damage caused by road debris, salt, and water. This coating helps prevent rust and corrosion on the underbody of our vehicle, which can extend its lifespan and maintain its value. There are…

Introduction on Benchmarking Benchmarking is the process of comparing the performance of a company's products, services, or processes against those of the best-in-class businesses in the industry to identify opportunities for improvement. By analysing and comparing the processes of successful companies, organizations can…

Quick Return Mechanism: Part Assembly -  Drafting -   CV Joint: Part Assembly -  Drafting -

Objective: To create a complete solid model from the given master section and class A surface. Discription: Class A Surface: The Class A surface is a surface created by the designer, which is an aesthetic surface with functional features on it. Draft Analysis of Class A surface: Class B Surface: The Class B surface is…

Project: Door Trim Lower with Engineering Features Aim: To create Door Trim Lower Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model. Also…

Attachment Feature Creation - Dog House Aim: Design Dog House for the Door Trim by following the design rules, then perform draft analysis for Class-A surface. Create the final closed body component and perform draft analysis. Description: In order to create a final close body component for a door trim, the following…

Attachment Feature Creation (Ribs & Screw Boss) Aim: Using the given Class-A surface, generate the component while ensuring that the tooling axis meets the required draft angle. After creating the component, conduct a Draft analysis to ensure that the draft angle is appropriate. Design the rib and screw boss in accordance…

Core & Cavity Design Objective: To generate the Core and Cavity blocks for the switch bezel component. Description: Tooling Axis : The Tooling Direction refers to the direction in which the mold extracts the part. Typically, the mold is constructed in two separate pieces: the Cavity and Core sides. The Core moves away…
