Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

2. Convecting the Mechanical part into the Electrical part for that I had followed the following steps.

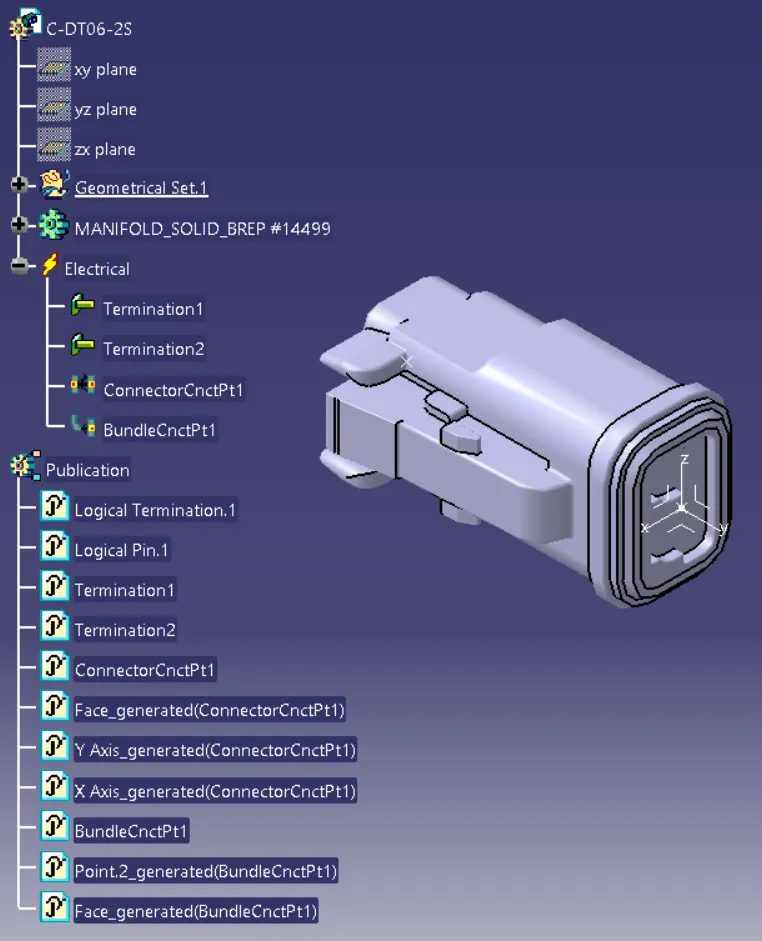

For DT06-2S

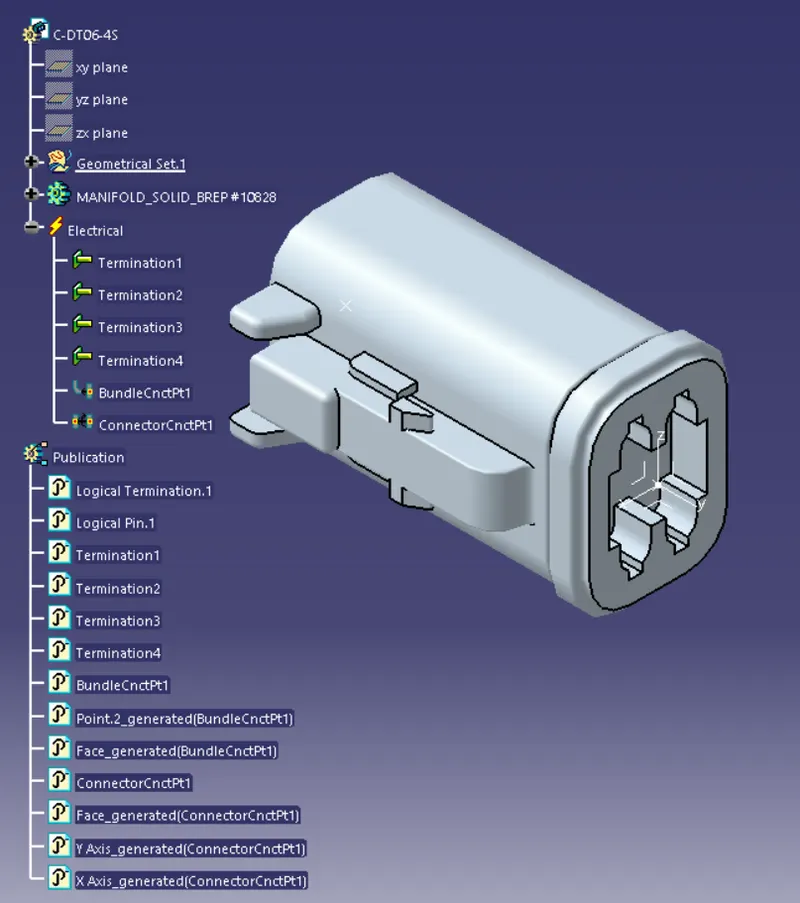

For DT06-4S

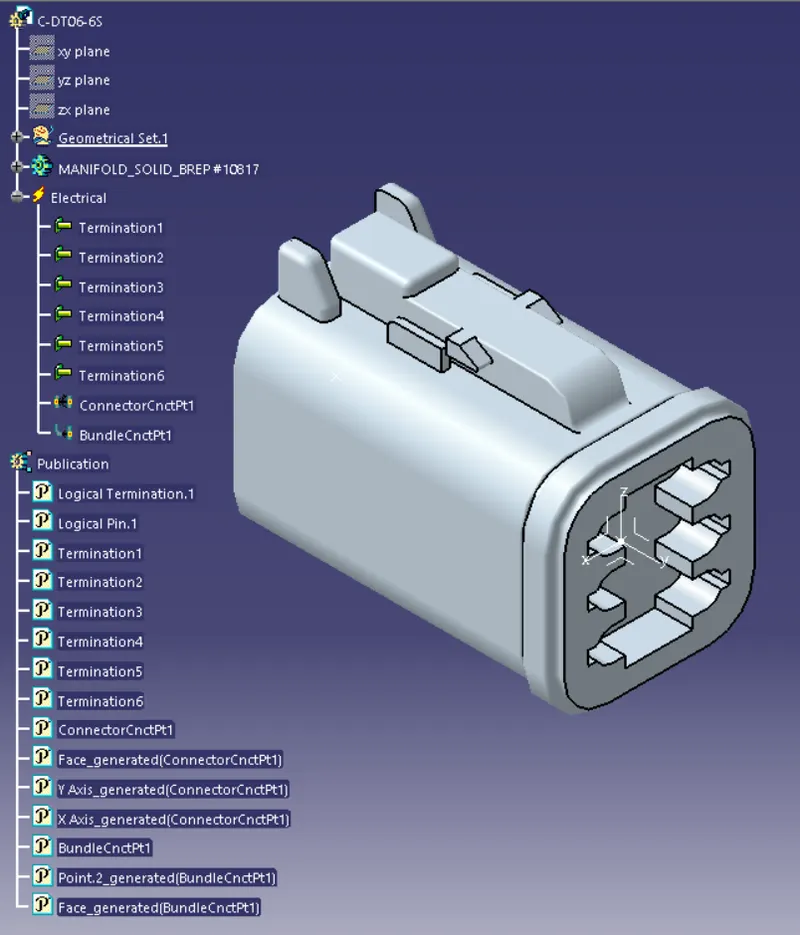

For DT06-6S

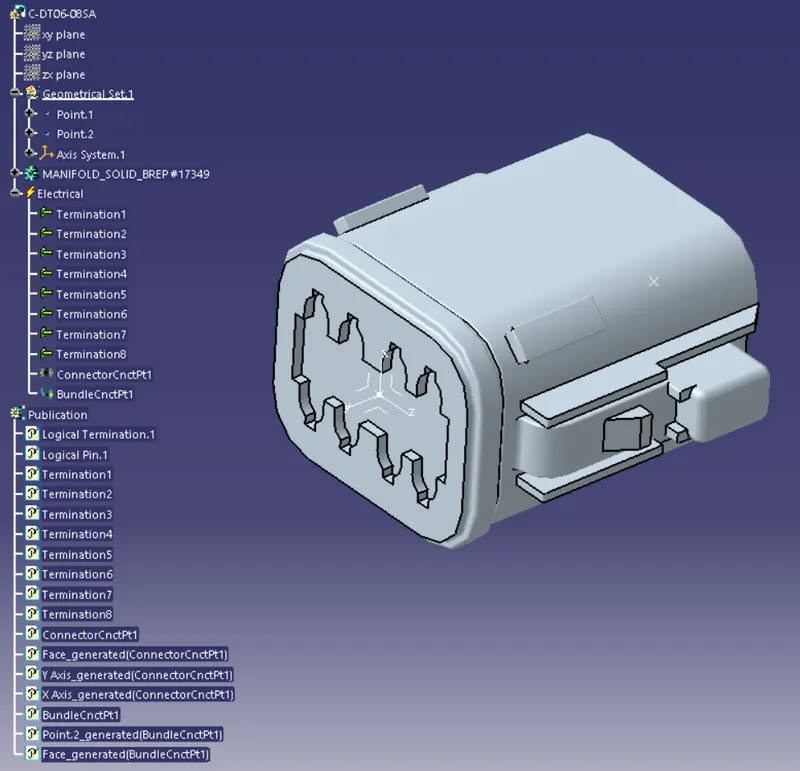

For DT06-08SA

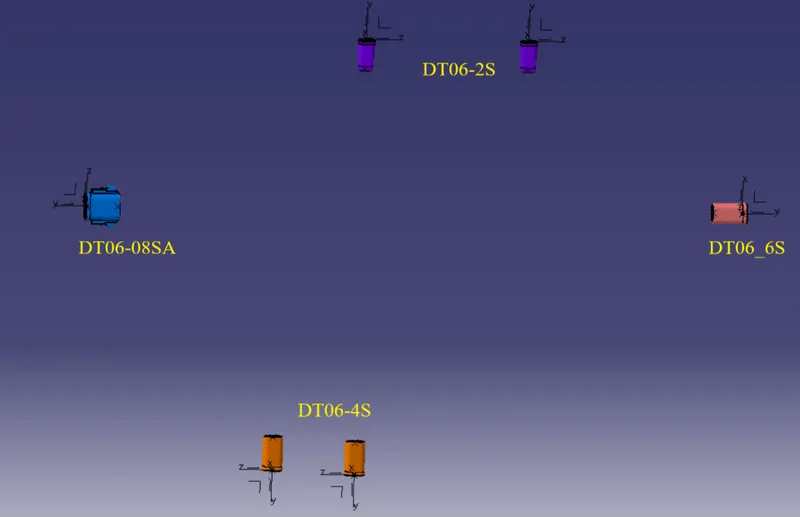

3. Arranging the Connectors by following the Layout

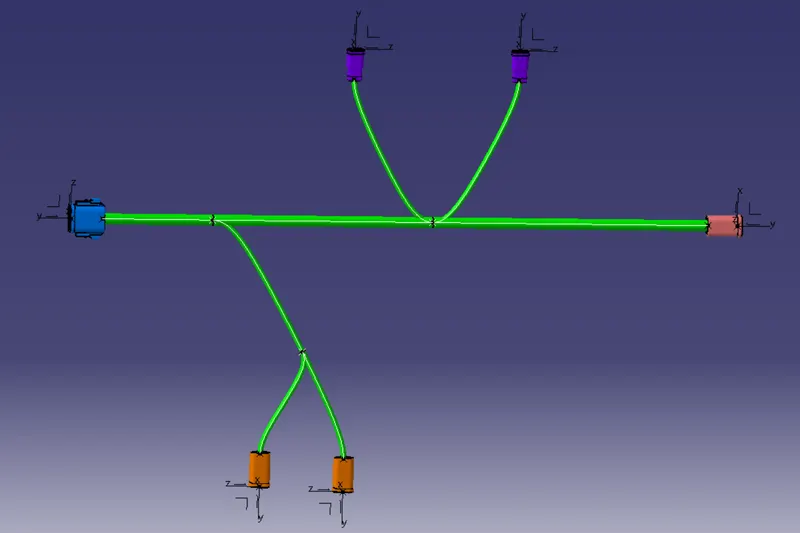

4. Creating Multi-Branching to the connectors

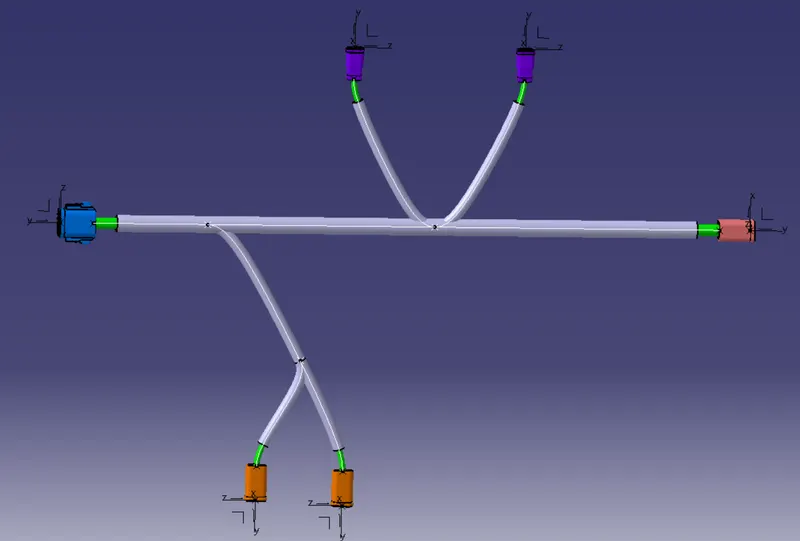

5.creating a protective covering

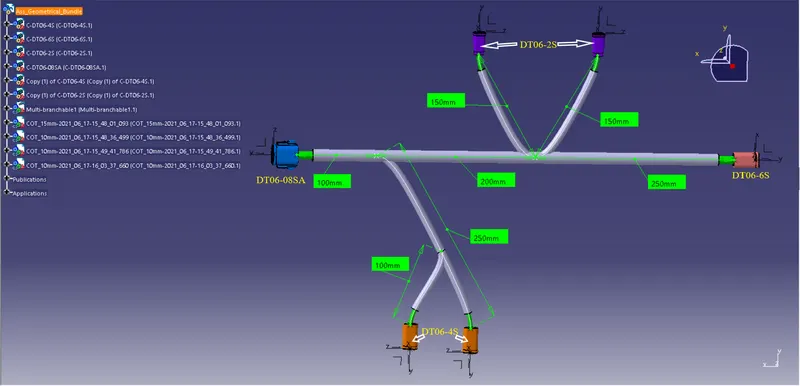

6. checking as per Layout
