Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge
Q1. Route the following harness layout in Electrical workbench. Make assumption for harness bundle diameters. Use Following connectors as shown in layout diagram.
Add protective covering on all branches connected to DT06-2S & DT06-4S connectors. Keep end extremity at 30mm (from connectors end)
Download connector 3D data from www.te.com
- DT06-4S
- DT06-6S
- DT06-2S
- DT06-08SA
Connectors Layout Design:
Steps to be followed:
- Download connector 3D data from www.te.com
- DT06-4S
- DT06-6S
- DT06-2S
- DT06-08SA

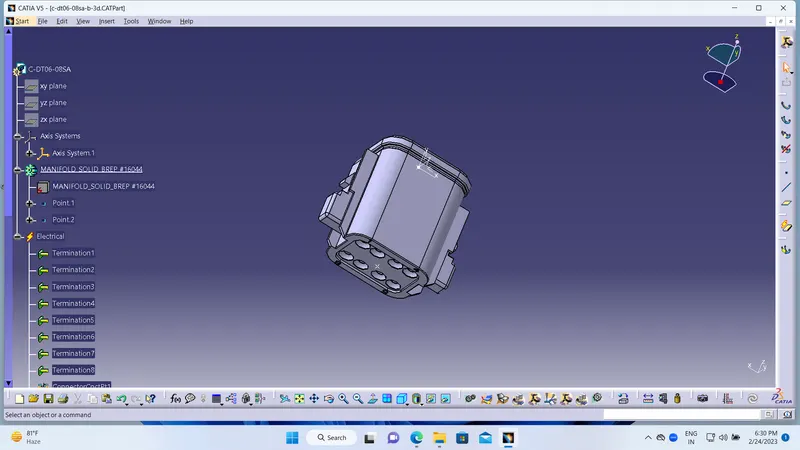

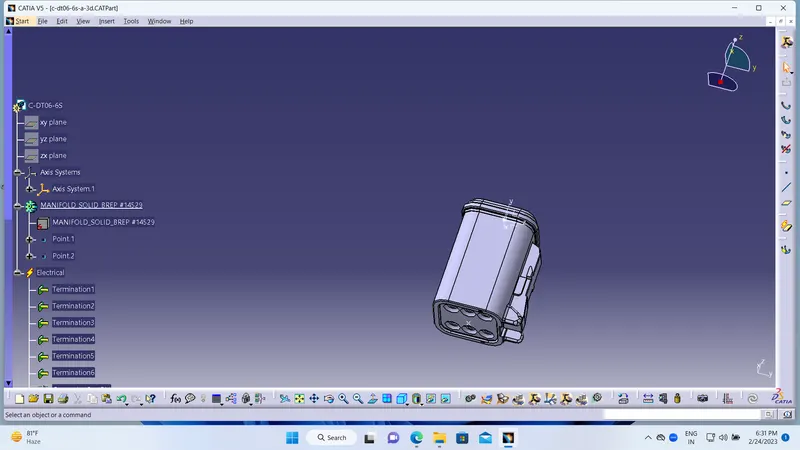

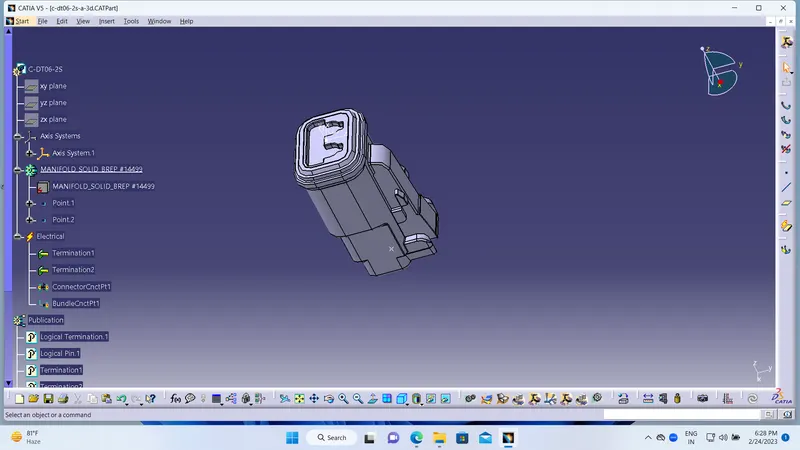

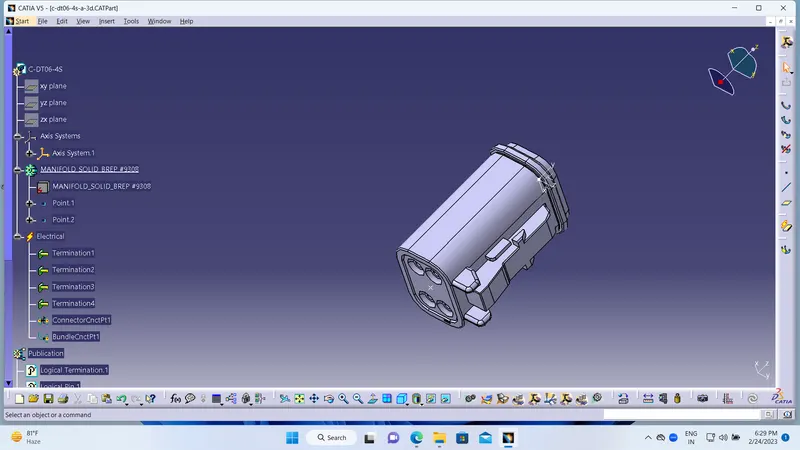

- Converting the Mechanical part into the Electrical part for that I had followed the following steps.
- Arranging the Connectors by following the Layout.

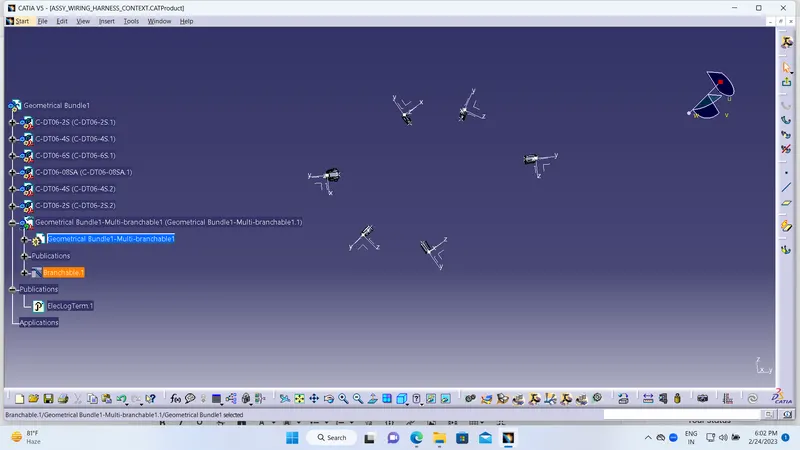

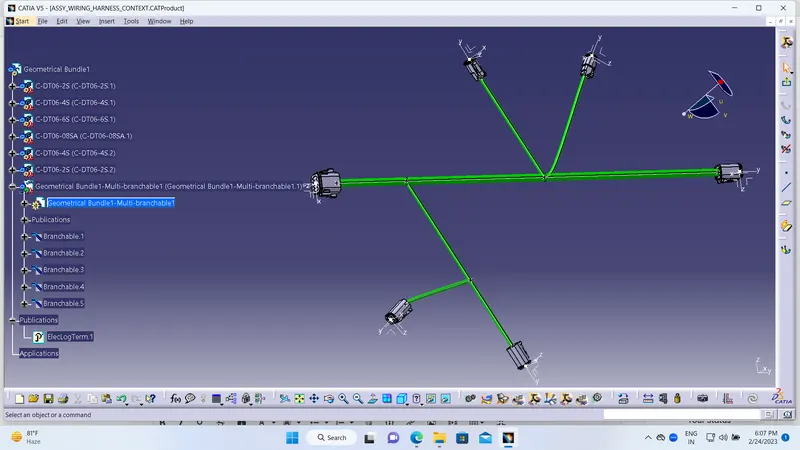

4. Creating Multi-Branching to the connectors.
5.creating a protective covering.

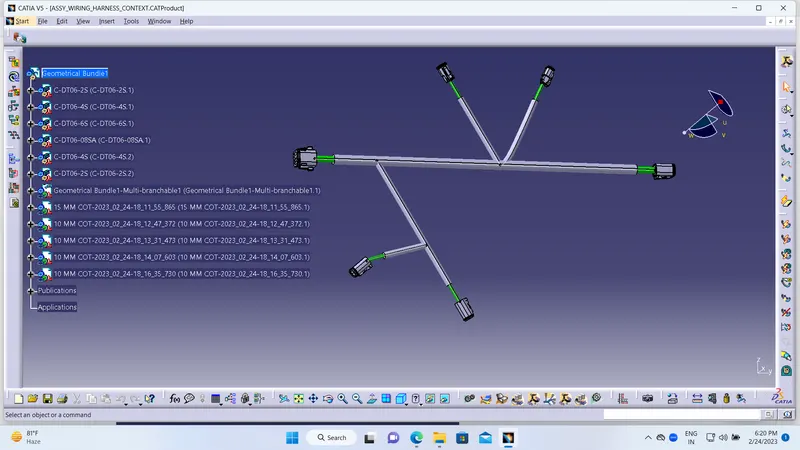

6.Final harness assembly as per Layout.
