Wiring harness design in CATIA V5 - 3D modeling Week 2 Challlenge

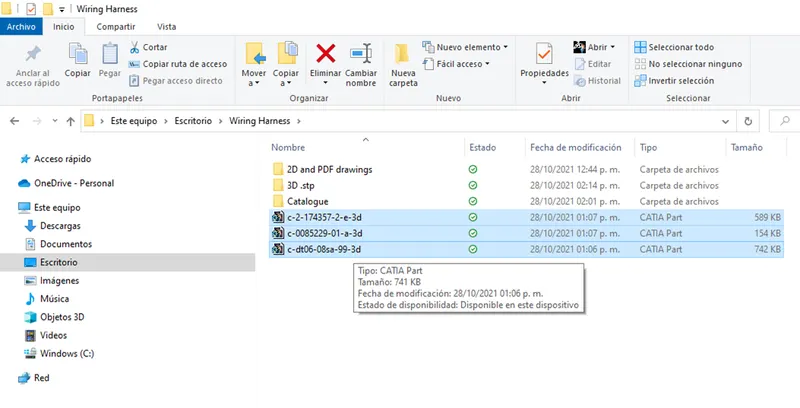

1.- First I have to download the connectors and transfor to CATIA parts:

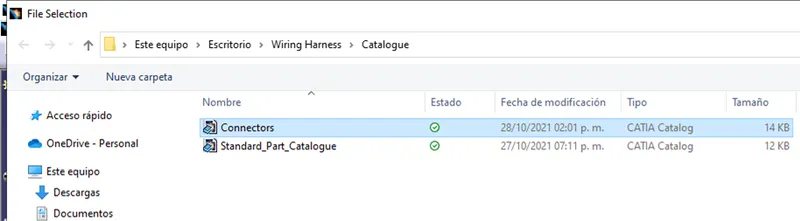

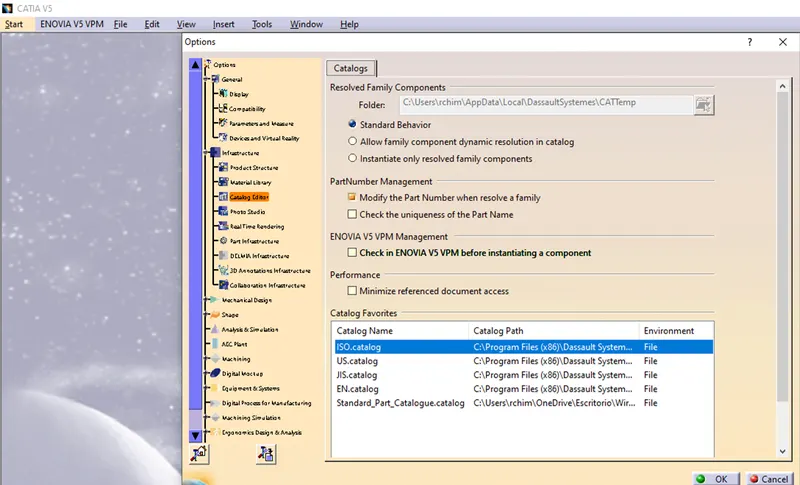

2.- Then I have to create a Catalogue and connectors file:

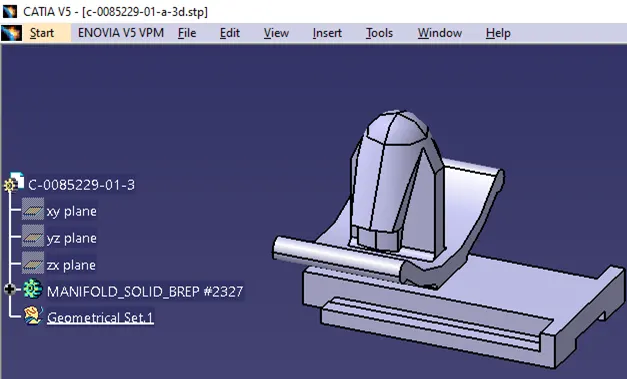

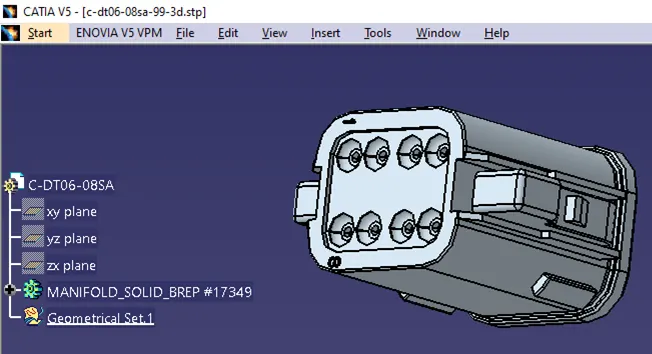

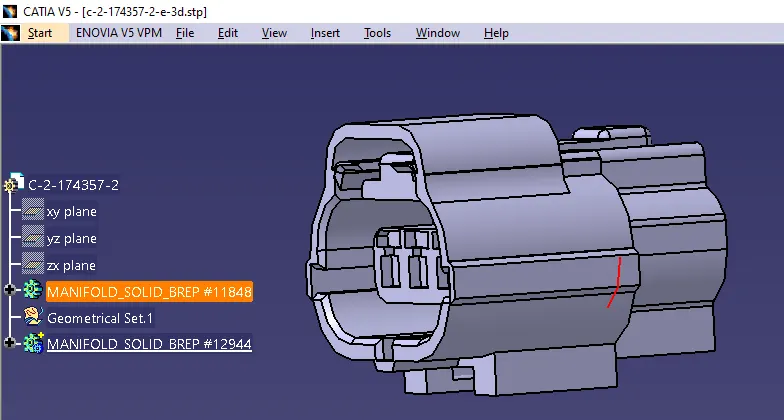

3.- I have to opend the 3D drawings connectors in CATIA, a) DT06 – 08SA, b) 174357-2 & c) 85229-1

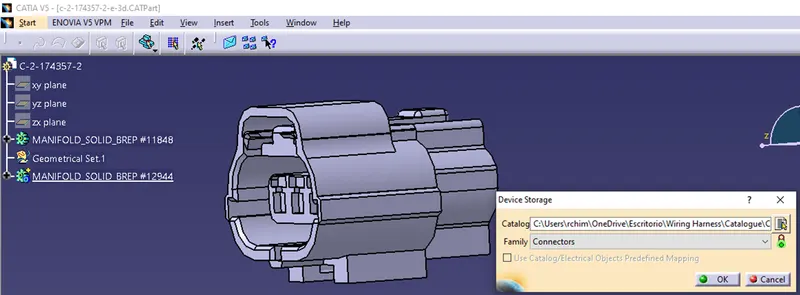

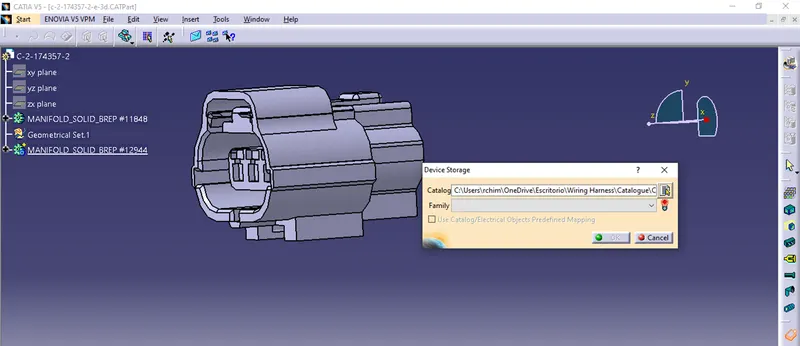

4.- At the end I opened the store device and save each of one connector and clip in the connector file, select connector into the store device window and click in OK.

Done!
