Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

CONNECTOR DEFINATIONS

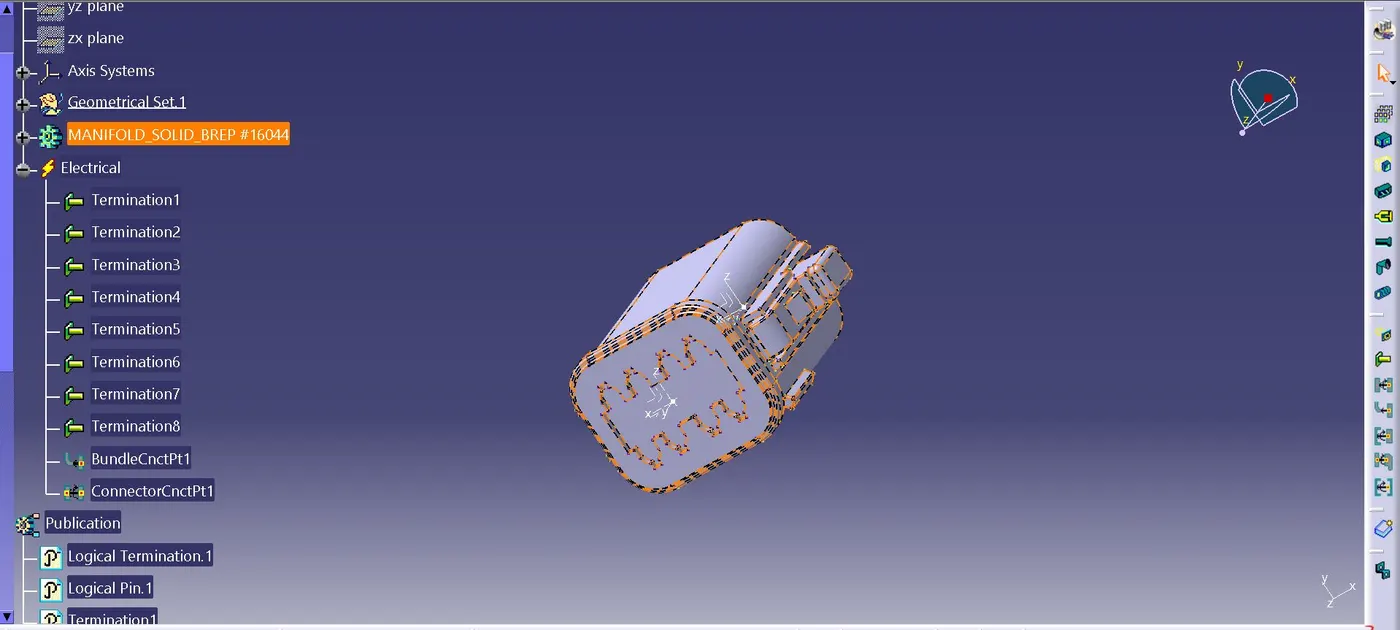

1. DEUTSCH DT06 – 08SA

Connector connection point:

1. Create a midpoint on the contact face for wire bunddle insertion.

2. Construct an axis system with regard to the point we defined and

define the axis direction .

3. After that, create connector connection and bundle connection.

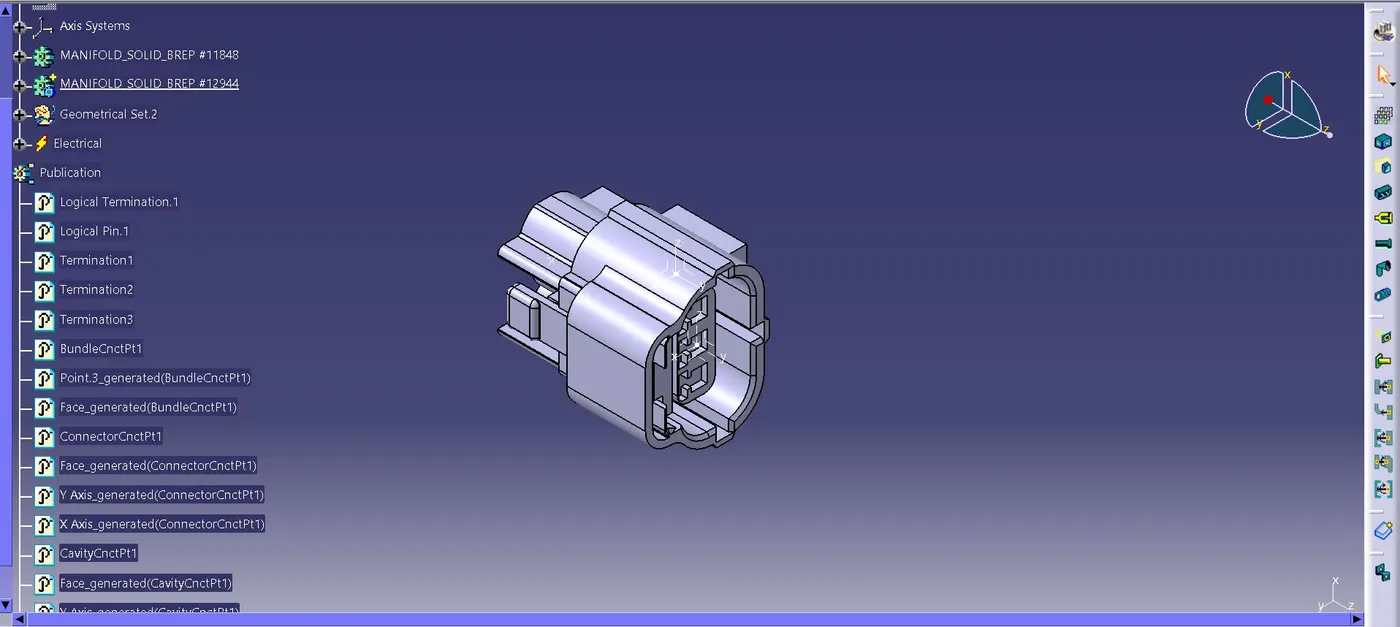

2. Tyco 174357-2

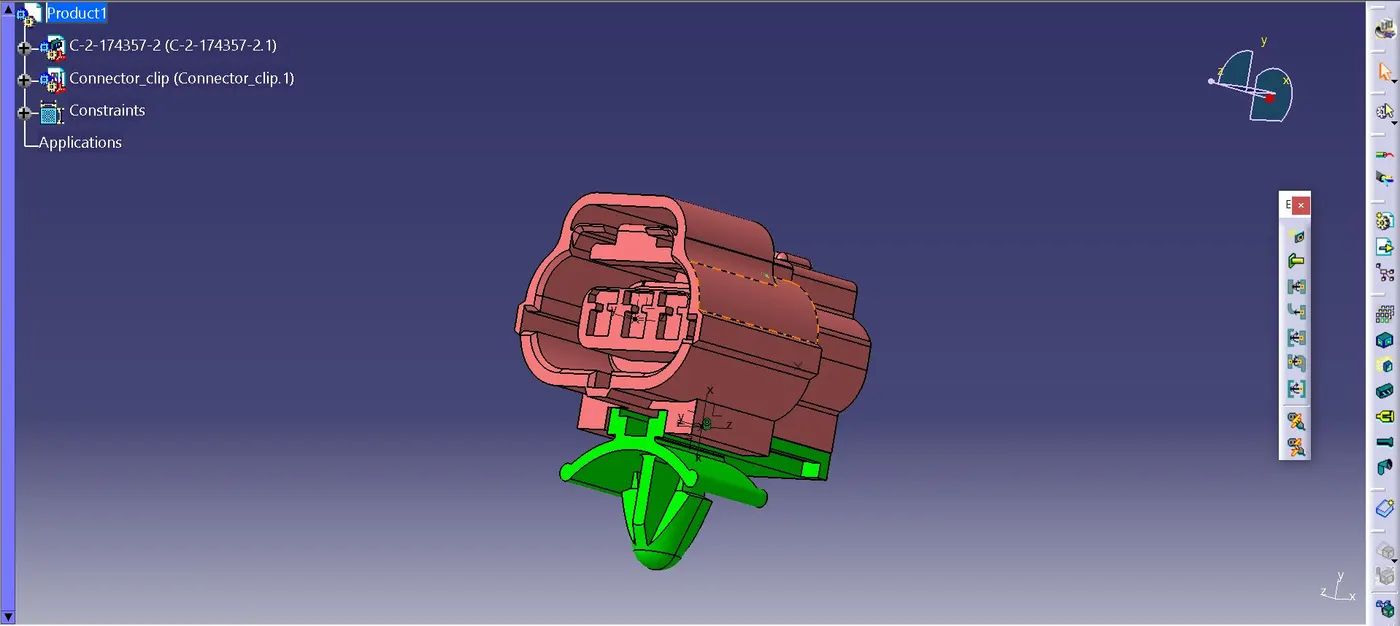

The following steps are used here also, with the exception of the connection cavity point added to install the clip

3.Tyco 85229-1

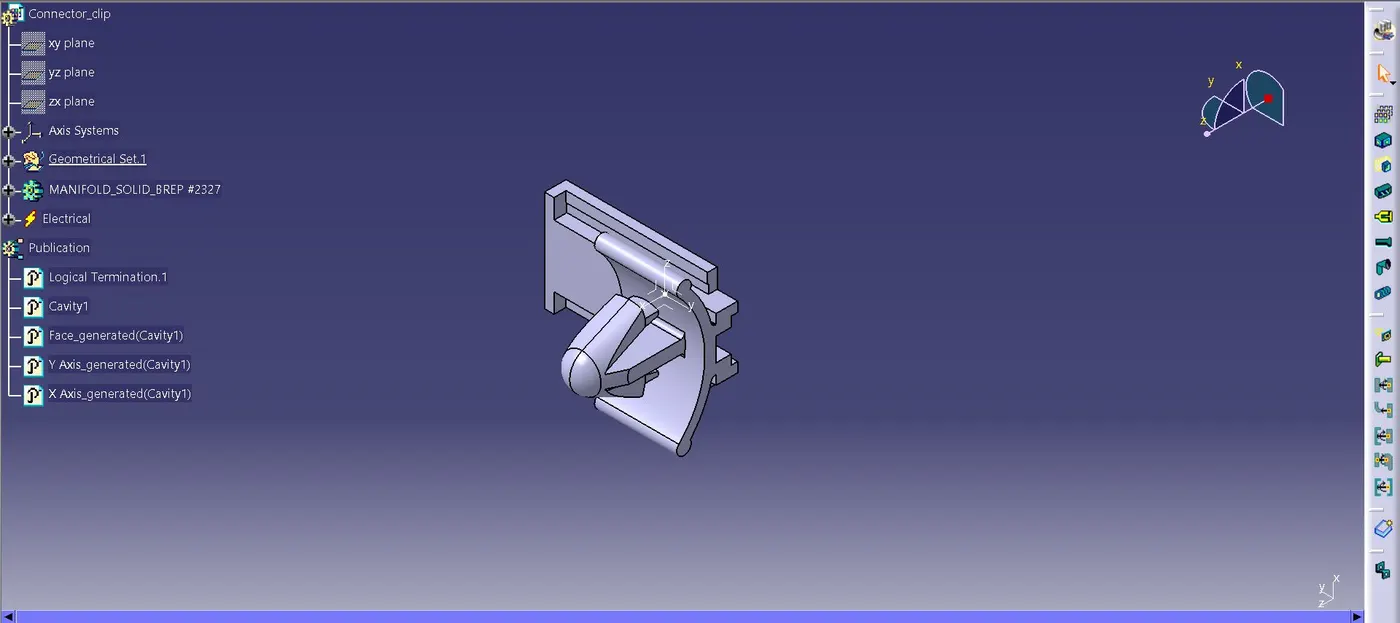

The clip defined as a cavity
