Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

Download following connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip.

1. Deutsch DT06 – 08SA ( https://www.te.com/usa-en/product-DT06-08SA.html)
2. Tyco 174357-2 (https://www.te.com/usa-en/product-2-174357-2.html?source=header-match)
3. Tyco 85229-1 – (https://www.te.com/usa-en/product-85229-1.html?q=85229&source=header)

DEFINE ELECTRICAL CONNECTOR USING ELECTRICAL PART DESIGN WORKBECH:

1. Deutsch DT06 – 08SA

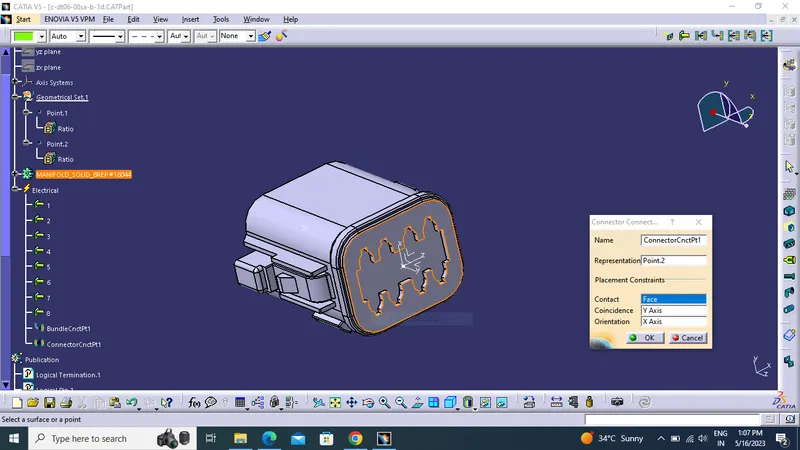

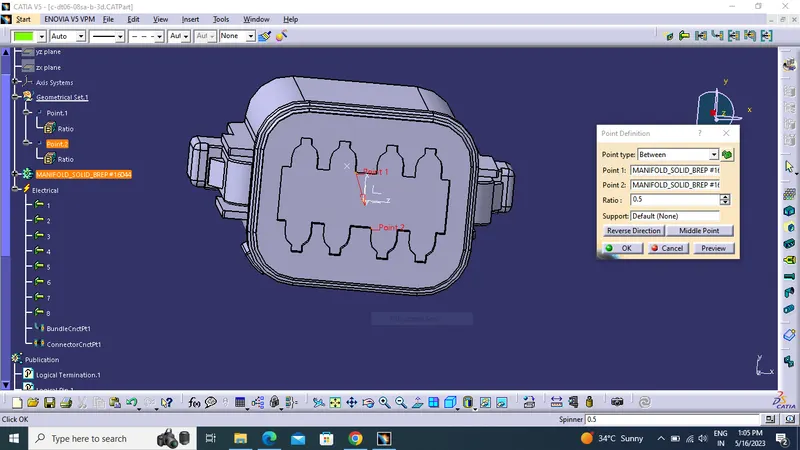

• Bundle connection point

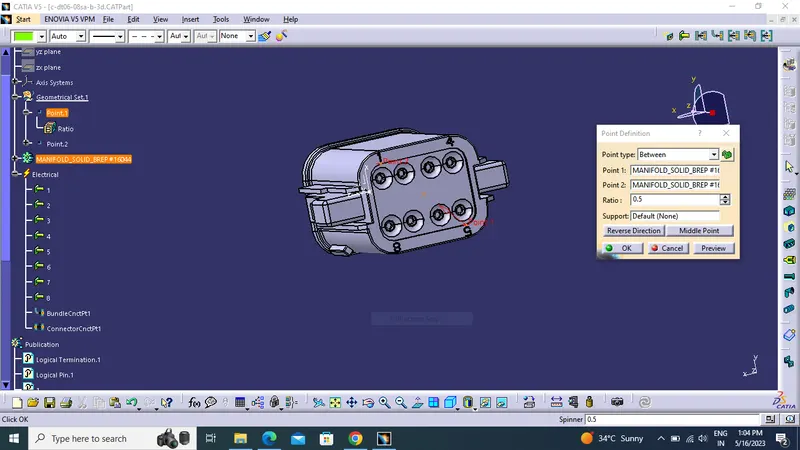

Using part design workbench make point at middle of the connector.

• CONNECTOR CONNECTION POINT

Create midpoint on the contact face between the two point.

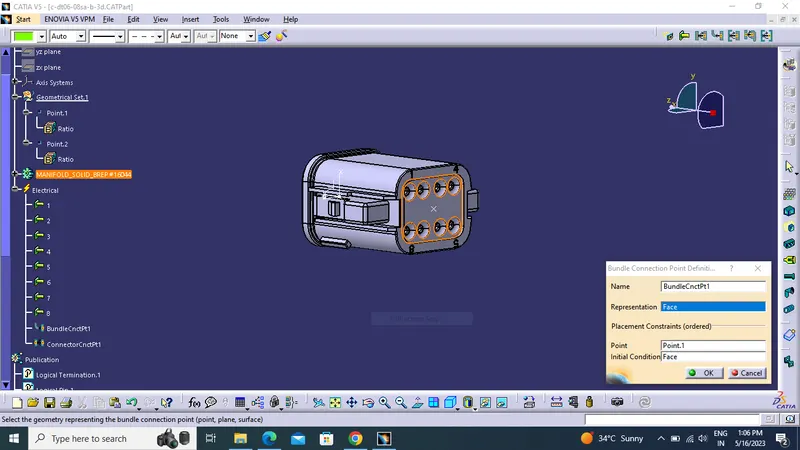

• BUNDLE CONNECTION POINT DEFINTIION

Open electrical part design and define part as connector,then that has 8 therminal define that entry point of wire .Then , create the bundle connection point definition tool.

• CONNECTOR CONNECTION POINT DEFINITION:

Define connector connection point tool.

2.Tyco 174357-2 :

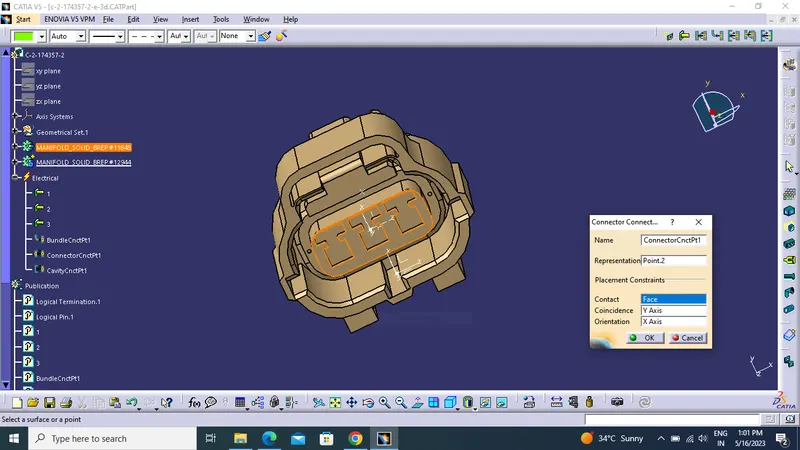

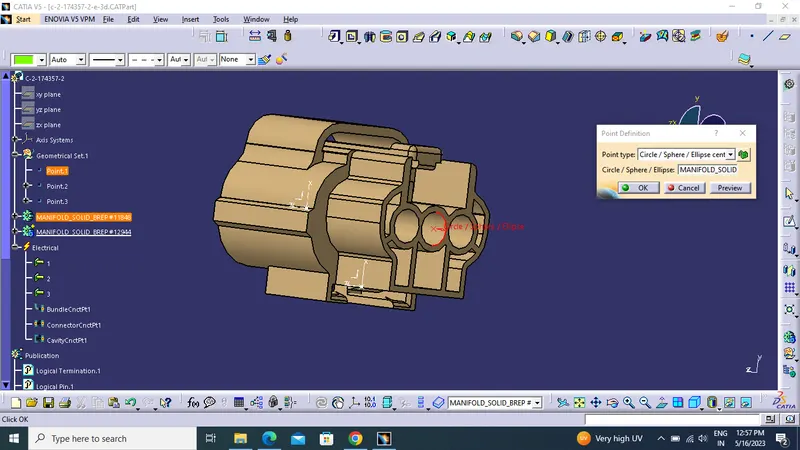

• Create midpoint for both bundle and connector connection point using part desgin.
• Then create connector connection axis at point.

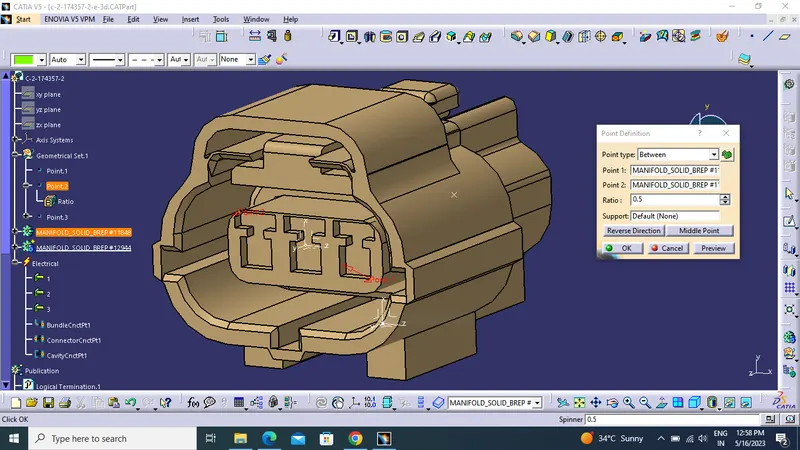

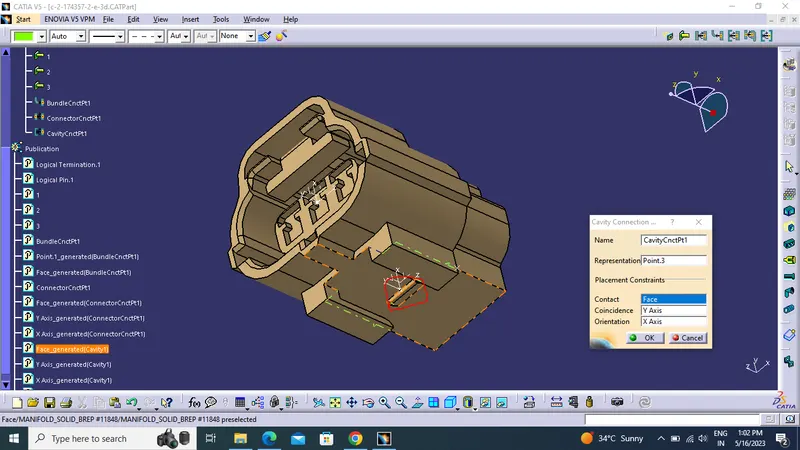

• Create cavity connection point.
• Create cavity connection axis at thst point ,define correct axis in coincidence and orientation.
• Switch electrical part design and define at bundle &connector connection point define tool.
• Define part as connector using tool convert it into electrical.
• Define cavity connection point .

BUNDLE POINT

CONNECTOR CONNECTION POINT

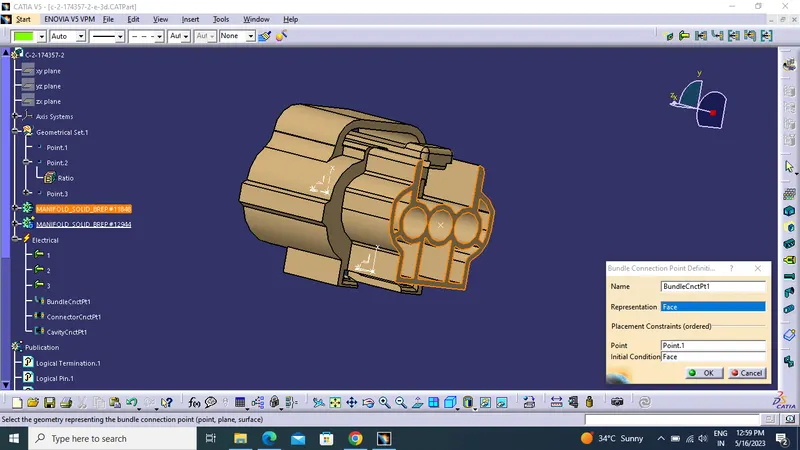

BUNDLE CONNECTION POINT DEFINTIION

CONNECTOR CONNECTION POINT DEFINITION:

CAVITY

3. Tyco 85229-1 :

• Create midpoint in part design workbech.

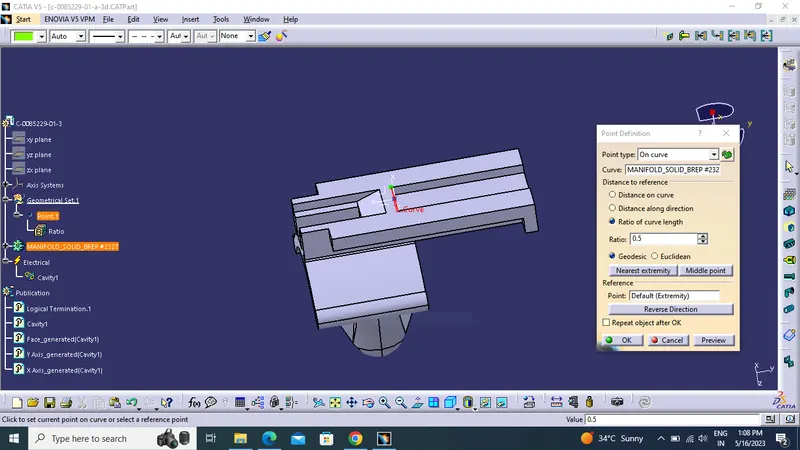

• create cavity connection point at middle of the curve.
• create cavity connection axis system and orientation should be same as in connector.
• Switch to Electric part design and define part as Mounting Equipment.

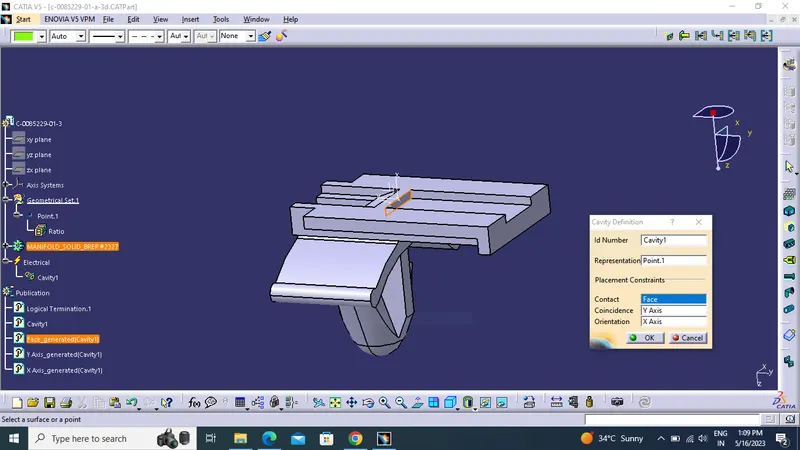

• Define cavity as a cavity connection definition tool.

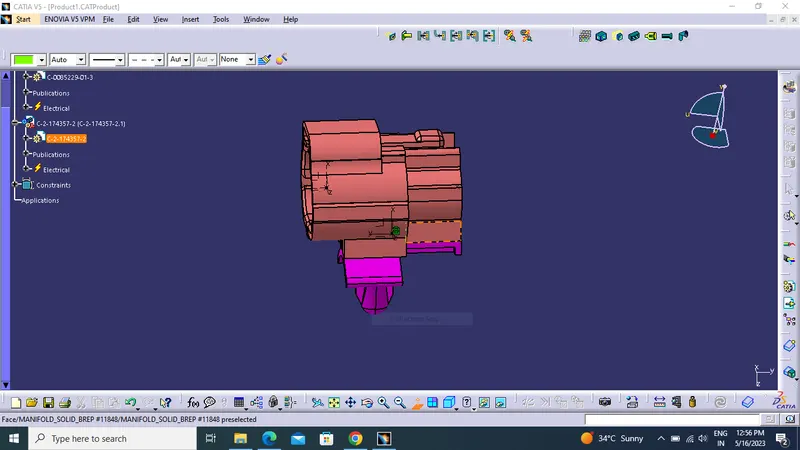

4 . ELECTRIC ASSEMBLY

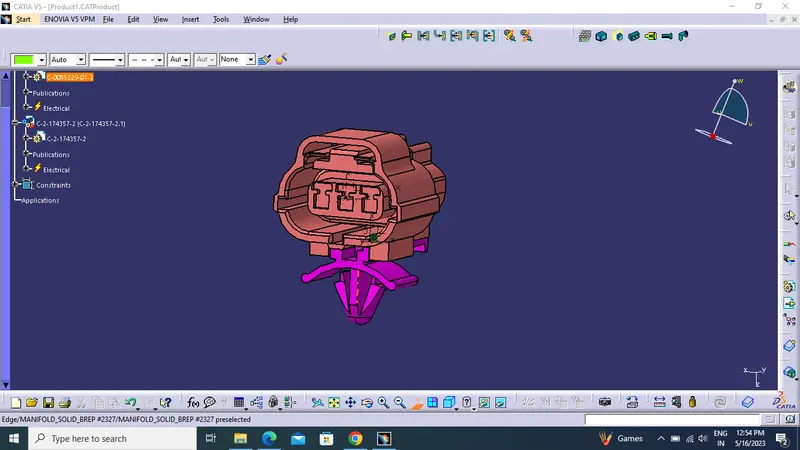

• Create product file in electrical assembly design.
• Import the connector and clip in same prooduct file
• Then click connect electrial device
• Select cavity and connector that will assemble together at orientation and contact axis as we given before.
