Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

Procedure

1. First I have saved the file as a CAT Part.

2. Then I have defined the points and axis system.

3. Then I defined the part as a connector

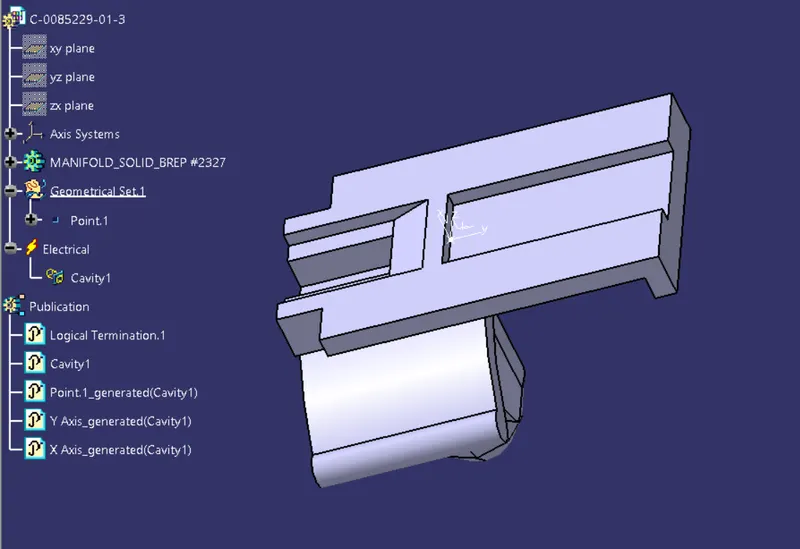

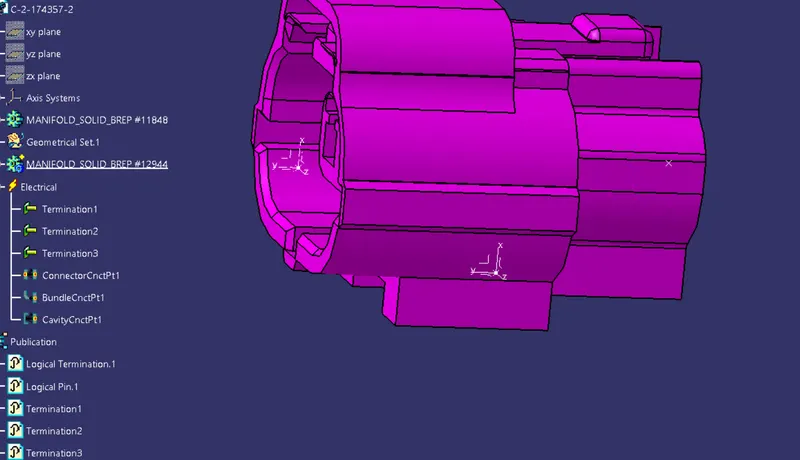

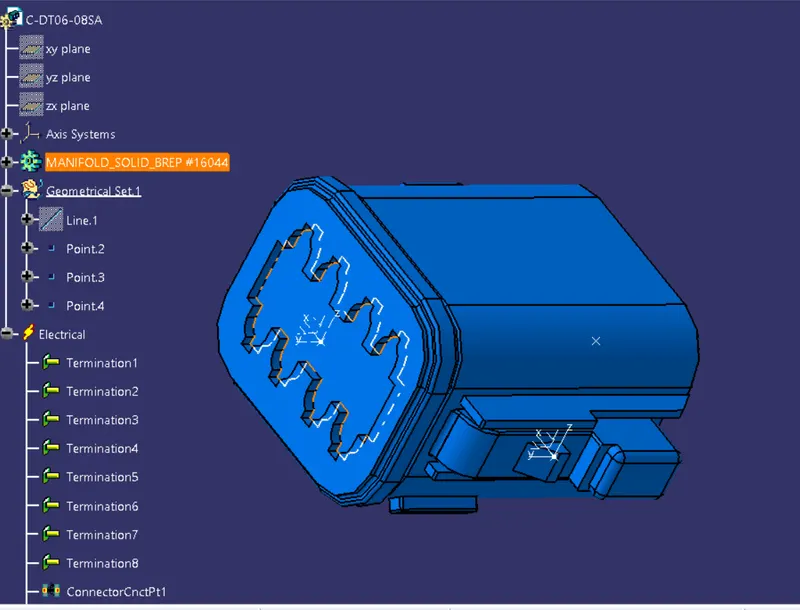

4. Then I have defined the connector connection point, Bundle connection point & Cavity connection point

5. After that I added this into catelogue.
