Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

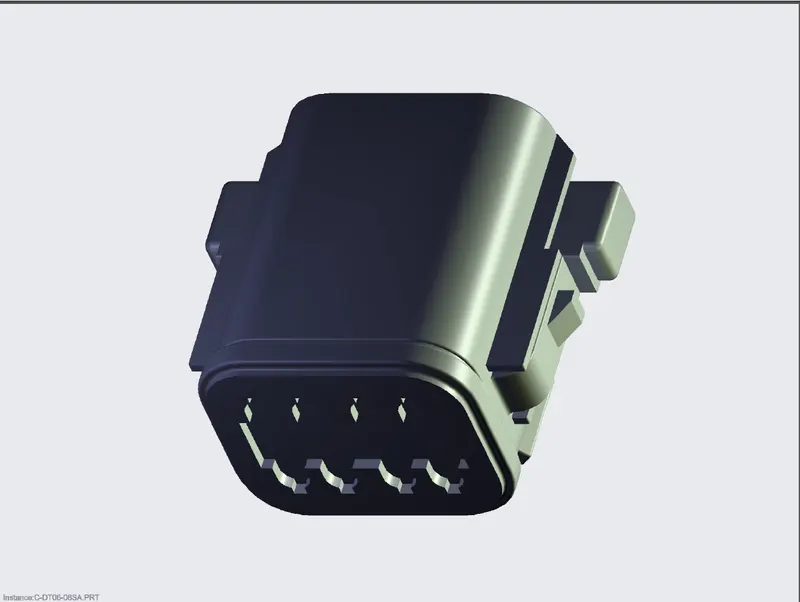

c-dt06-08sa
Product Type Features
-
Connector Shape : Rectangular
-
Connector & Housing Type : Housing for Female Terminals
-
Connector System : Wire-to-Wire
-
Sealable : Yes
-
Hybrid Connector : No
-
Primary Locking Feature : Integrated in Housing
-
Connector & Contact Terminates To : Wire & Cable
Configuration Features
-
Number of Positions : 8
-
Number of Rows : 2
-
Blank Cavity Position : 0
Electrical Characteristics
-
Operating Voltage (VAC): 250
-
Operating Voltage (VDC): 250
-
Nominal Voltage Architecture (V): 12, 24, 48
Body Features
-
Cable Exit Angle : 180°
-
Primary Product Color : Gray
-
Connector & Keying Code : A
Contact Features
-
Contact Type : Socket
-
Mating Pin Diameter : 1.59 mm [ .063 in ]
-
Contact Current Rating (Max) (A): 13
Mechanical Attachment
-
Mating Alignment : With
-
Mating Alignment Type : Keyed
-
Strain Relief : Add By Accessory
-
Connector Mounting Type : Cable Mount (Free-Hanging)
-
Terminal Position Assurance : Yes
Housing Features
-
Housing Material : PA GF
-
Centerline (Pitch) : 9.12 mm [ .359 in ]
Dimensions
-
Accepts Wire Insulation Diameter Range : 2.23 – 3.68 mm [ .088 – .145 in ]
-
Row-to-Row Spacing : 4.45 mm [ .175 in ]
-
Product Length : 30.91 mm [ 1.217 in ]
-
Product Width : 19.71 mm [ .776 in ]
-
Connector Height : 37.21 mm [ 1.465 in ]
Usage Conditions
-
Operating Temperature (Max) : 125 °C [ 257 °F ]
-
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
Operation/Application
-
Circuit Application : Power & Signal
Industry Standards
-
UL Flammability Rating : 12mm Flame Test per Standard UL-94
-
Agency/Standard : SAE J2030
-
Degree of Protection : IP68, IP6K9K
Packaging Features
-
Packaging Method : Box
-
Packaging Quantity : 550
Other
-
Connector Position Assurance Capable : No
-
Serviceable : Yes

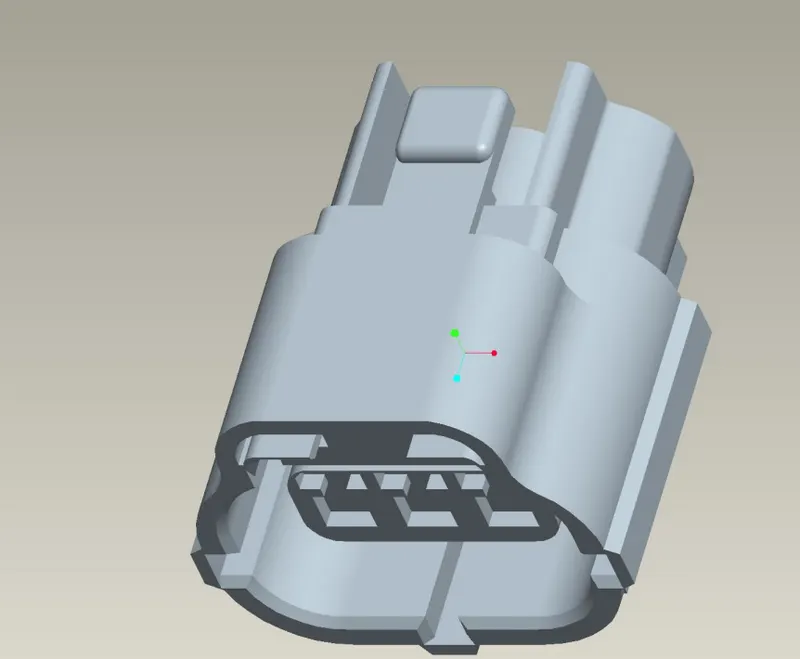

2-174357-2
Product Type Features
-
Connector Shape : Rectangular
-
Connector & Housing Type : Housing for Female Terminals
-
Connector System : Wire-to-Wire
-
Sealable : Yes
-
Hybrid Connector : No
-
Primary Locking Feature : Integrated in Housing
Configuration Features
-
Number of Positions : 3
-
Number of Rows : 1
Electrical Characteristics
-
Operating Voltage (VDC): 12
-
Nominal Voltage Architecture (V): 12
Body Features
-
Cable Exit Angle : 180°
-
Primary Product Color : Black
Contact Features
-
Contact Type : Receptacle
-
Contact Size : 1.8mm
-
Mating Tab Width : 1.8 mm [ .071 in ]
Mechanical Attachment
-
Mating Alignment : With
-
Mating Alignment Type : Polarization Slot
-
Strain Relief : Without
-
Connector Mounting Type : Cable Mount (Free-Hanging)
-
Terminal Position Assurance : Yes
Housing Features
-
Housing Material : PBT
-
Centerline (Pitch) : 4.8 mm [ .189 in ]
Dimensions
-
Product Length : 27.6 mm [ 1.087 in ]
-
Product Width : 25.4 mm [ 1 in ]
-
Connector Height : 22.8 mm [ .898 in ]
Usage Conditions
-
Operating Temperature (Max) (°C): 70, 75, 80, 85, 90, 100, 105
-
Operating Temperature (Max) (°F): 158, 167, 176, 185, 194, 212, 221
-
Operating Temperature Range : -30 – 105 °C [ -22 – 221 °F ]
Operation/Application
-
Circuit Application : Signal
Industry Standards
-
UL Flammability Rating : UL 94V-2
Packaging Features
-
Packaging Method : Bag
-
Packaging Quantity : 100
Other
-
Connector Position Assurance Capable : No
-
Serviceable : Yes

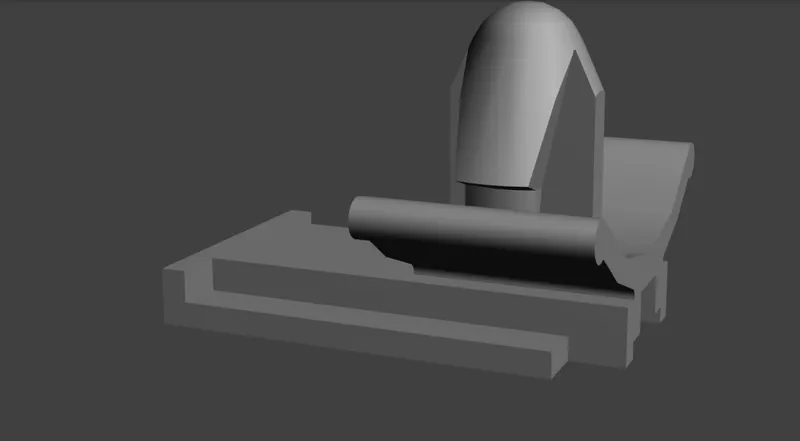

85229-1
Product Type Features
-
Automotive Connector Accessory Type : Mounting Clip
Body Features
-
Primary Product Material : PA
-
Primary Product Color : Black
Usage Conditions
-
Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]
Industry Standards
-
UL Flammability Rating : UL 94V-2
Packaging Features
-
Packaging Method : Bag
-
Packaging Quantity : 1000
