Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

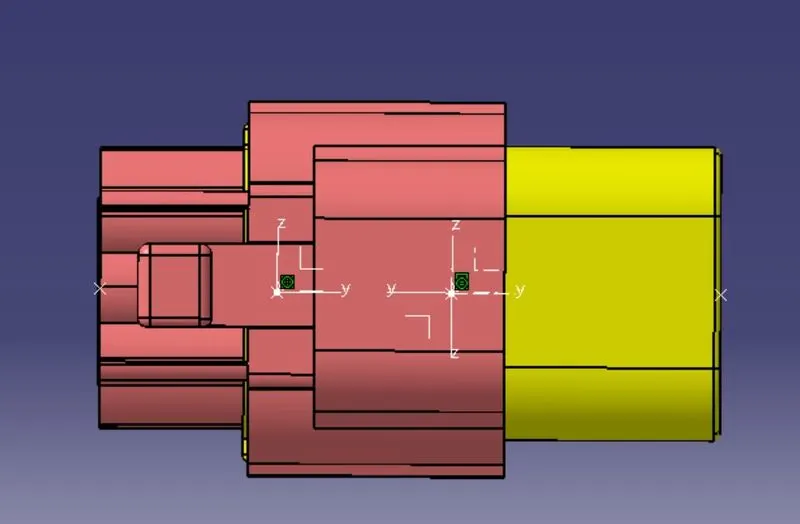

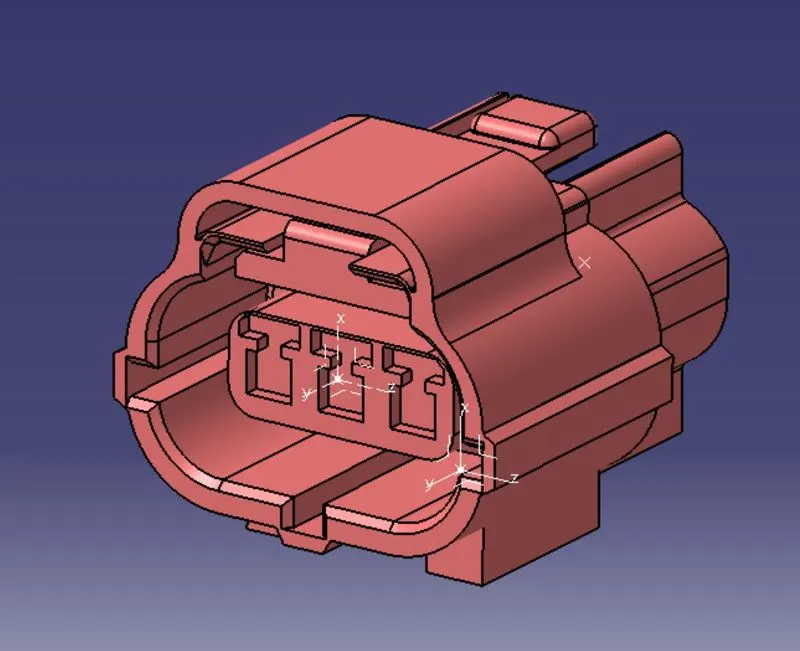

C-2-174357-2:

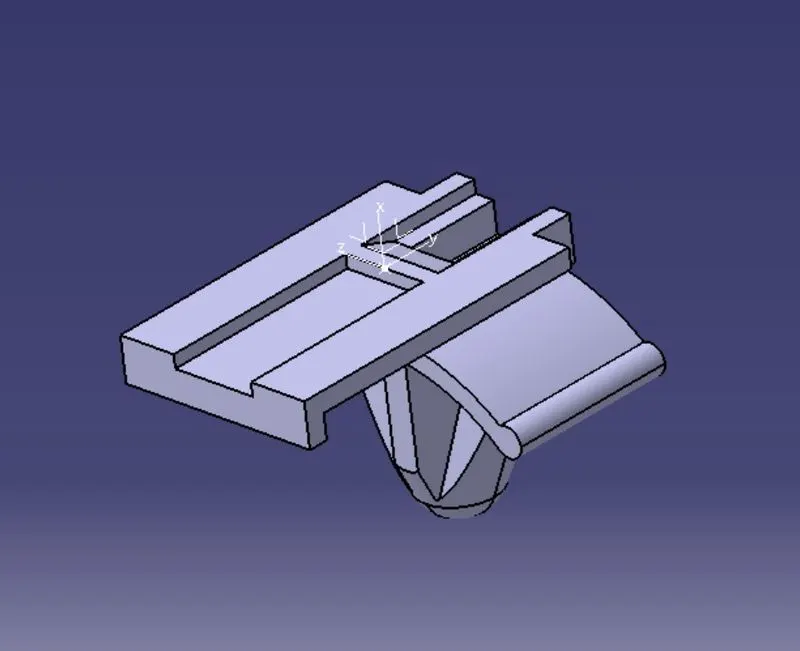

First create the center point on mating face of connector and bundle entry face of the connector.Then defines the axia system on connector mating face with respect to connector connection point.Where Y axis is on coincidence side, X axis is on lock side of the connector.similarly in this connector slot given for cavity mounting, So after giving geometry to bundle connection point,we have to give geometry for cavity connection point where cavity clip will mount.

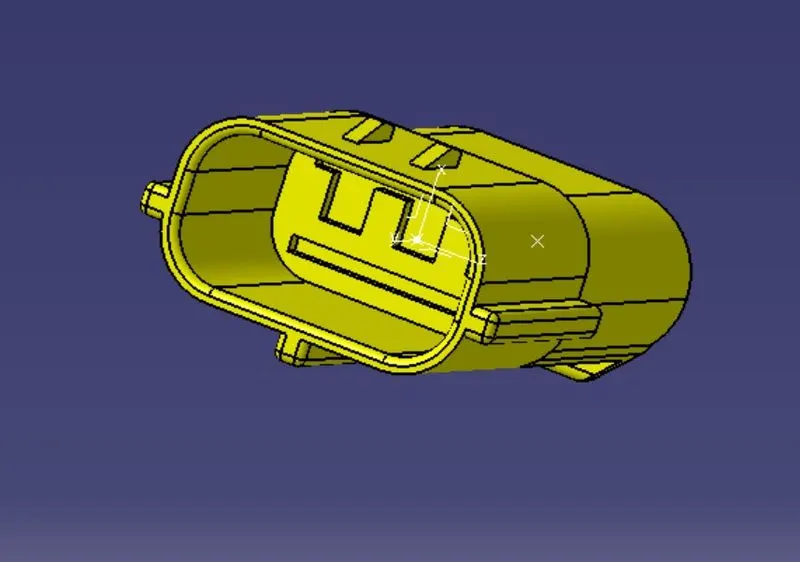

C-0085229-01-3:

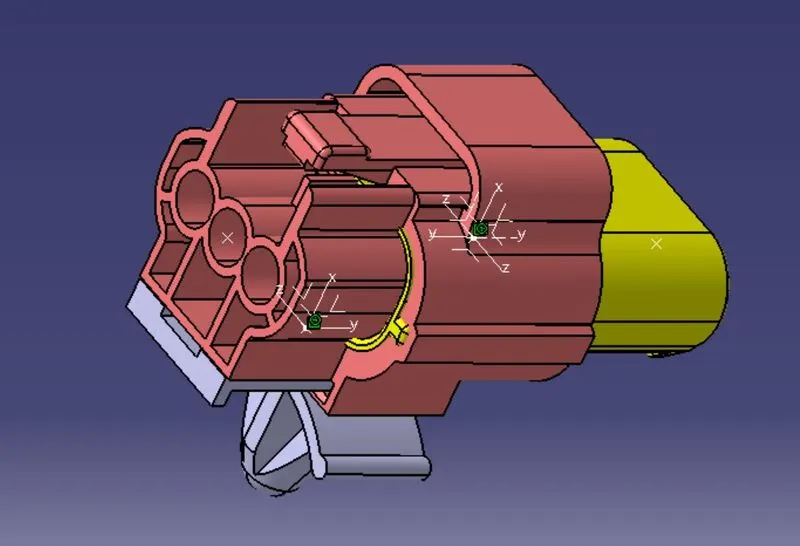

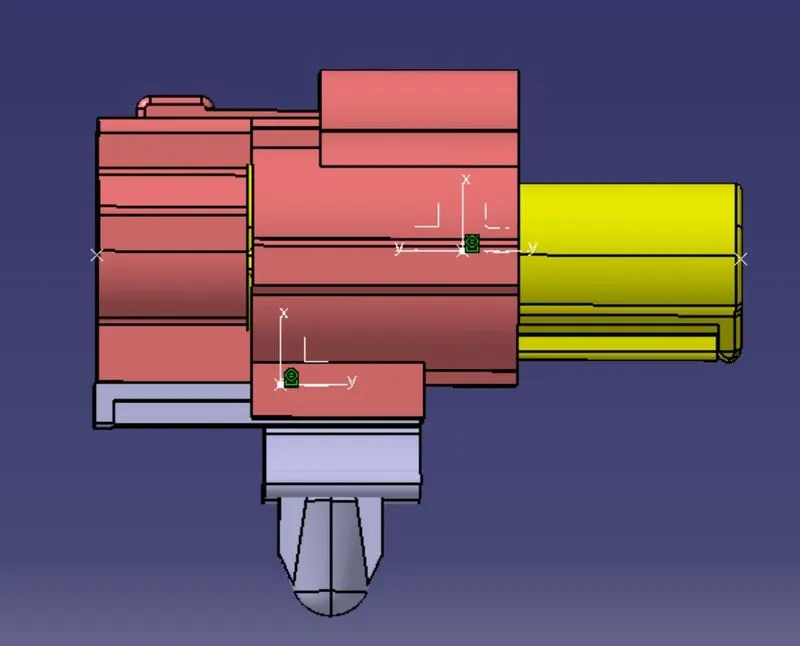

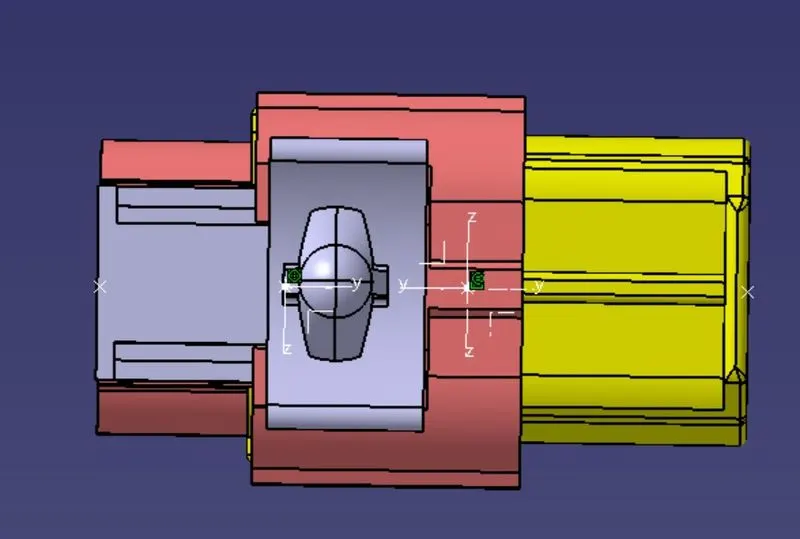

C-174359-2:
