Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

1. Download following connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip.

AIM:

• To define Electrical properties of the given components.

OBJECTIVE:

• To download the above CAD data of the parts from the given source.
• To define the Electrical properties correctly.
• To create catalogues of the components so that it can be used later.

Introduction:

A connector is a device(or more precisely, a mating pair of devices, often a plug and a socket) for connecting together two or more wires, cables, or hoses, allowing electricity or fluid to flow but also allowing easy disconnection and reconnection when necessary.

Mounting Clips are used for supporting conduits. These clips are made of High Quality Impact Resistant Polyamide. The mounting clips are stackable and are fixed with the help of screws on to the panel or equipment surface.

Specifications:

Connectors:- Deutsch DT06 – 08SA

Tyco 174357-2

Mounting Clip:-Tyco 85229-1

Design Methodology:

Deutsch DT06 – 08SA:-

1. First open the 3D CAD data in Catia and then convert the file format(ex: .igs,.stp) to .CATPart.
2. Then define the connector geometrically in the Catia Part Design Workbench. To do that we have to first assign a mid-point to the bundle connection side face of the connector and then we also have to assign a mid-point to connector connection side of the connector, along with that we also have to assign an axis system on the mid-point of the connector connection side face. This will allow us to fully define our connector geometrically.
3. After that start the Electrical Part Design Workbench in Catia to define the connector electrically.
4. First we select the define connector option from the toolbars and then we select the connector body and also assign the number of terminals to the connector which in this case are 8 terminals.
5. Then we select the define bundle connection point option from the toolbars and then we select the connector body, bundle contact face for representation, mid-point for point, and again bundle contact face for initial condition and then click on ok.
6. Lastly we select the define connector connection point option from the toolbars and then we select the connector body, mid-point for representation, contact face for contact, Y-axis for coincidence and X- axis for orientation and then click on ok. This will fully define our connector electrically.
7. Save the file.

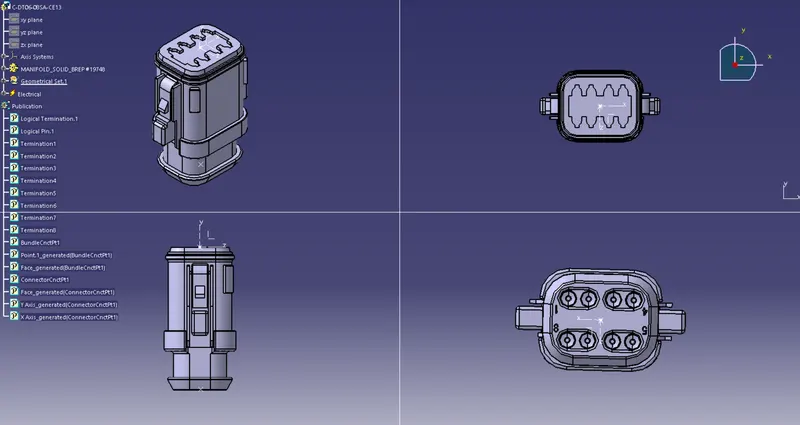

Connector(Deutsch DT06 – 08SA) Views

Tyco 174357-2 & Tyco 85229-1 :-

For connector:

1. First open the 3D CAD data in Catia and then convert the file format(ex: .igs,.stp) to .CATPart.
2. Then define the connector geometrically in the Catia Part Design Workbench. To do that we have to first assign a mid-point to the bundle connection side face of the connector and then we also have to assign a mid-point to connector connection side of the connector, along with that we also have to assign an axis system on the mid-point of the connector connection side face.
3. Also we have to create a mating reference at the bottom side of the connector so that we can mount a clip onto the connectors. To do that we can just create a mid-point and an axis system with that mid-point as reference on the face which will have contact with the clip. This will allow us to fully define our connector geometrically.
4. After that start the Electrical Part Design Workbench in Catia to define the connector electrically.
5. First we select the define connector option from the toolbars and then we select the connector body and also assign the number of terminals to the connector which in this case are 3 terminals.
6. Then we select the define bundle connection point option from the toolbars and then we select the connector body, bundle contact face for representation, mid-point for point, and again bundle contact face for initial condition and then click on ok.
7. Then we select the define connector connection point option from the toolbars and then we select the connector body, mid-point for representation, contact face for contact, Y-axis for coincidence and X- axis for orientation and then click on ok.
8. Then we select the define cavity connection point option from the toolbars and then we select the connector body, bottom side mid-point as representation, mating face for contact, Y-axis for coincidence and X- axis for orientation and then click on ok. This will fully define our connector electrically.
9. Save the file.

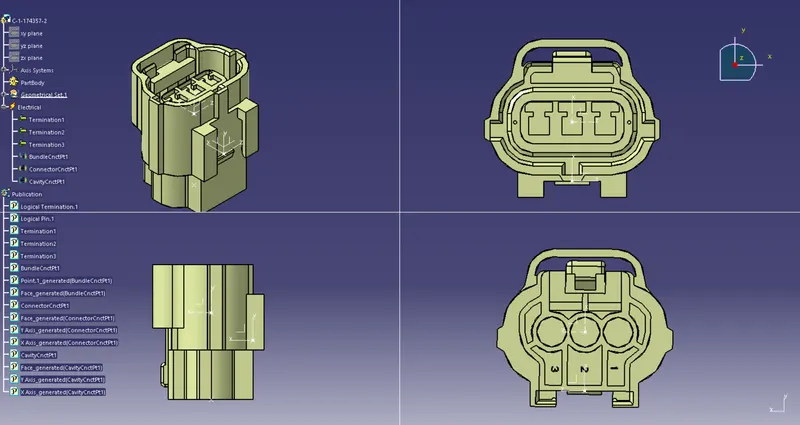

Connector(Tyco 174357-2) Views

For Mounting Clip:

1. First open the 3D CAD data in Catia and then convert the file format(ex: .igs,.stp) to .CATPart.
2. Then define the clip geometrically in the Catia Part Design Workbench. To do that we can just create a mid-point and an axis system with that mid-point as reference on the face which will have contact with the connector. This will allow us to fully define our clip geometrically.
3. After that start the Electrical Part Design Workbench in Catia to define the clip electrically.
4. First we select the define mounting equipment option from the toolbars and then we select the clip.
5. Then we select the define cavity option from the toolbars and then select the clip body, mid-point for representation, contact face for contact, Y-axis for coincidence and X- axis for orientation and then click on ok. This will fully define our connector electrically.
6. Save the file.

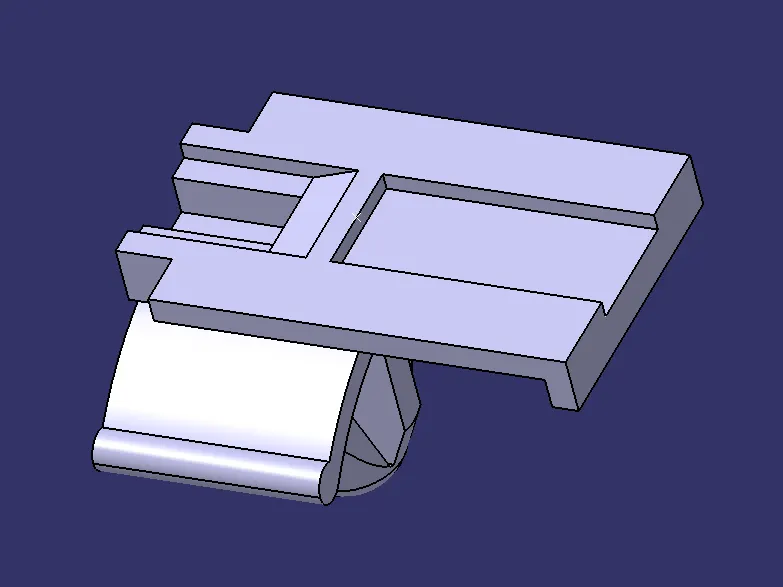

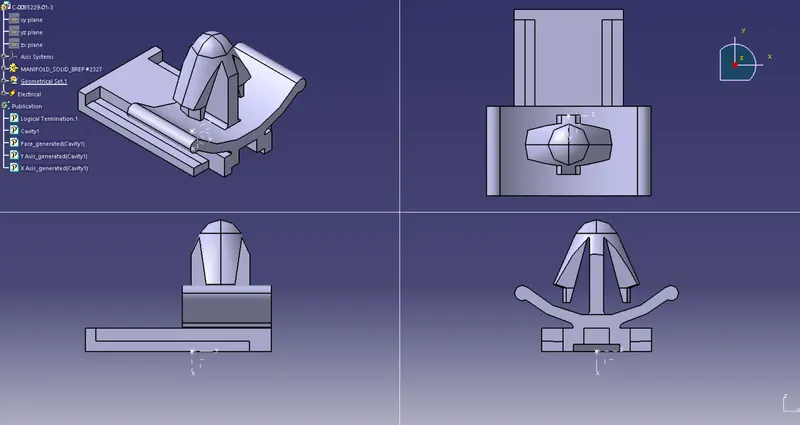

Mounting Clip(Tyco 85229-1) Views

For Connector and clip assembly:

1. Start the Assembly Design Workbench in Catia. Copy the connector and clip parts and paste in the assembly tree. Rotate both the models in order to give them proper orientation so that they can come in contact properly.
2. Start the Electrical Assembly Design Workbench in Catia. Select the connect electrical devices option from the toolbars and then select the connector and clip to mount then together.
3. Save the file.

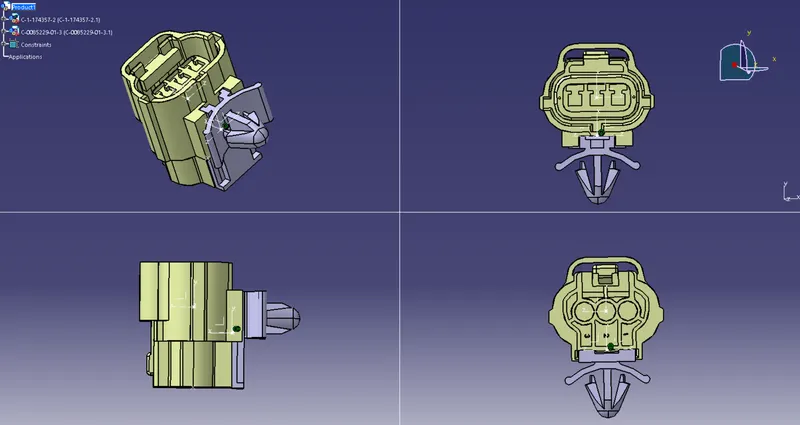

Connector(Tyco 174357-2) and Clip(Tyco 85229-1 ) Assembly Views

SOLUTION METHODOLGY:

CATALOGUE DOCUMENT:

• First a new 'catalogue document' is created and then add family is selected in order to add the group to the catalogue document.
• The name of the family is given as the 'connectors' and the catalogue document is saved in the desired folder.
• After defining the electrical properties, the components are saved in the catalogues so that it can be used in the feature without again defining the electrical properties.

• PART - 1: DEUTSCH DT06 - 08SA:

Step - 1:

• To identify the Connector Side and the Bundle Side.

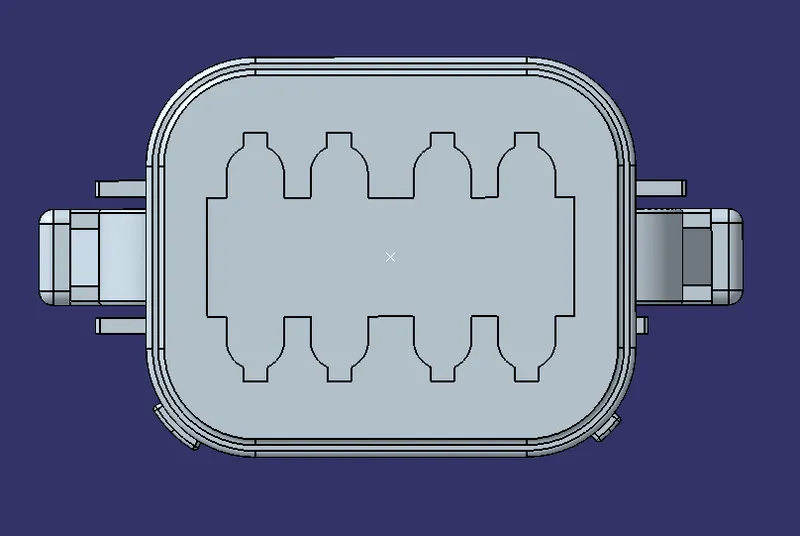

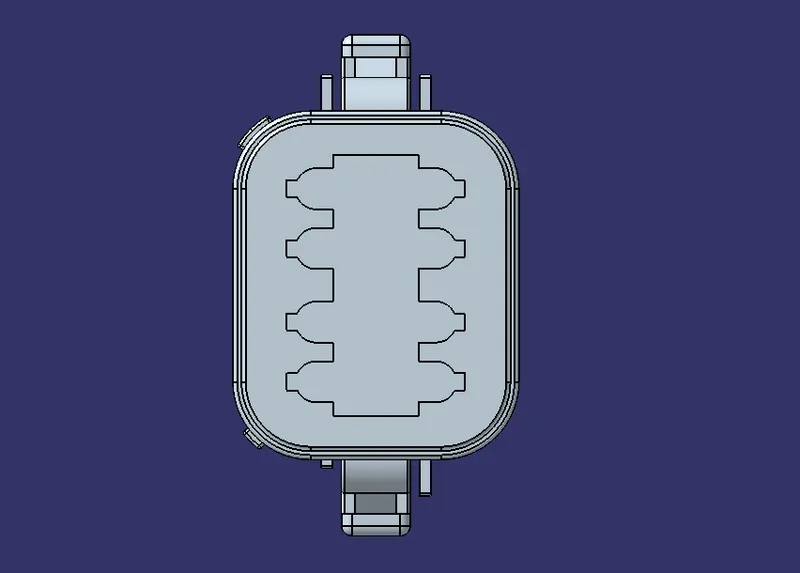

CONNECTOR SIDE:

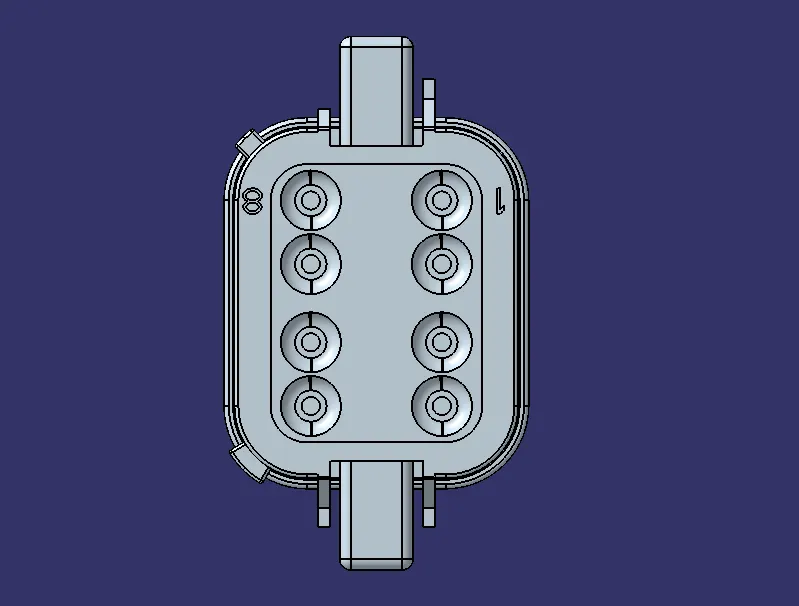

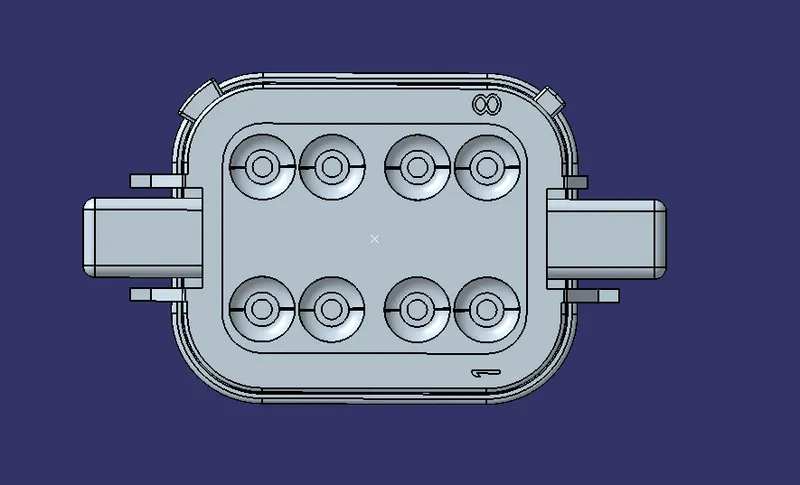

BUNDLE SIDE:

Step - 2:

• To create a mid-point on the bundle side in the Part Workbench to define the Bundle connection properties.

Step - 3:

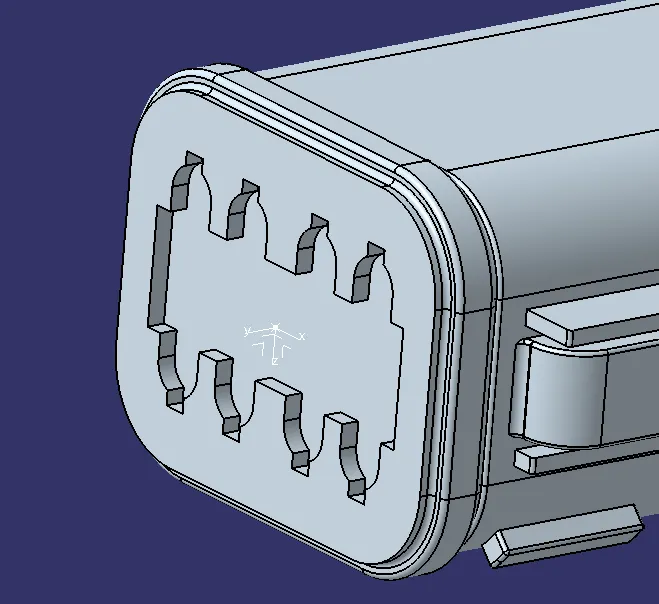

• To create a mid-point at the Connector side in the Part Workbench.
• To create an axis system through the point.
• Define the axis as:
  • X- axis - Towards the locking side
  • Y- Axis - Normal to the connector face

Step - 4:

• Go to the Electrical Part Design Workbench to define the Connector connection point and Bundle connection point.

Step - 5:

• First define the Connector and the number of Termination.
• Then define the Connector Connection Point.
• And then define the Bundle Connection Point.

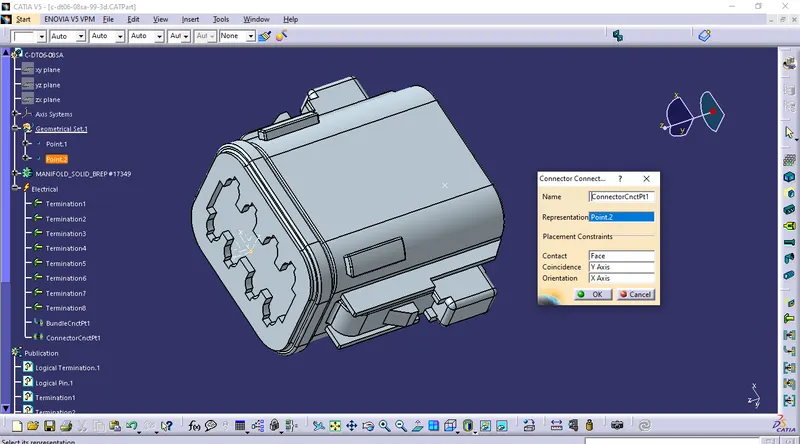

CONNECTOR CONNECTION POINT:

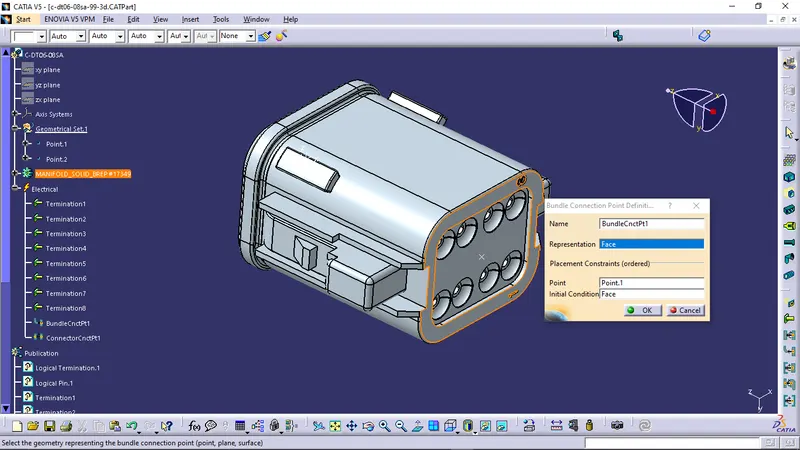

BUNDLE CONNECTION POINT:

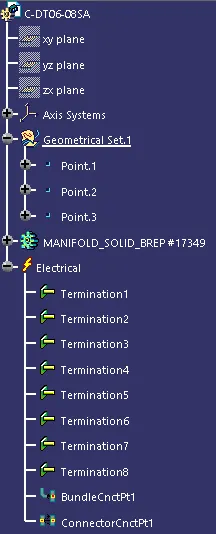

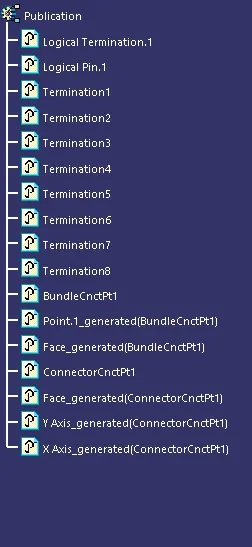

TREE STRUCTURE:

Step - 6:

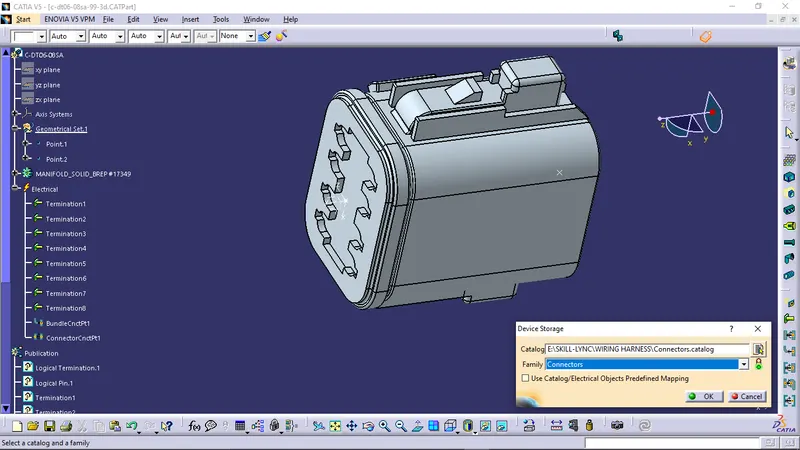

• Now save the part and add the part to the Catalogue created for the connectors so that it can be used later.

• PART - 2: TYCO 174357 - 2:

Step - 1:

• To identify the Connector Side and the Bundle Side.

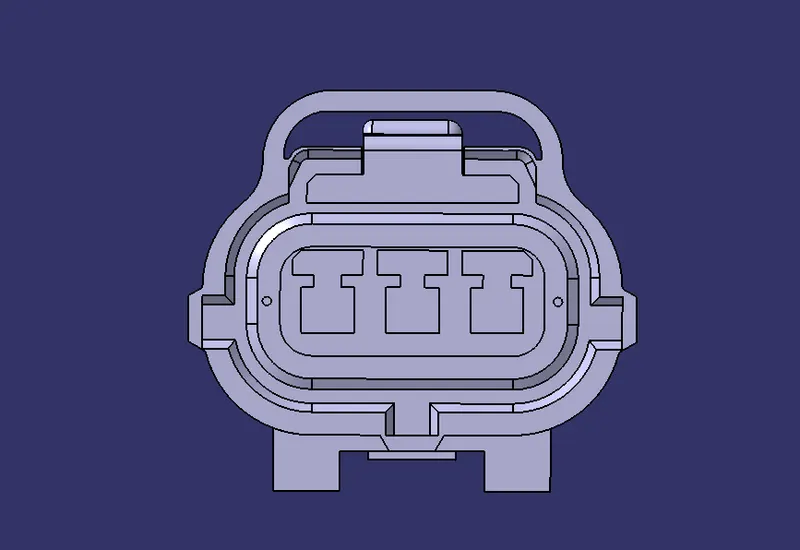

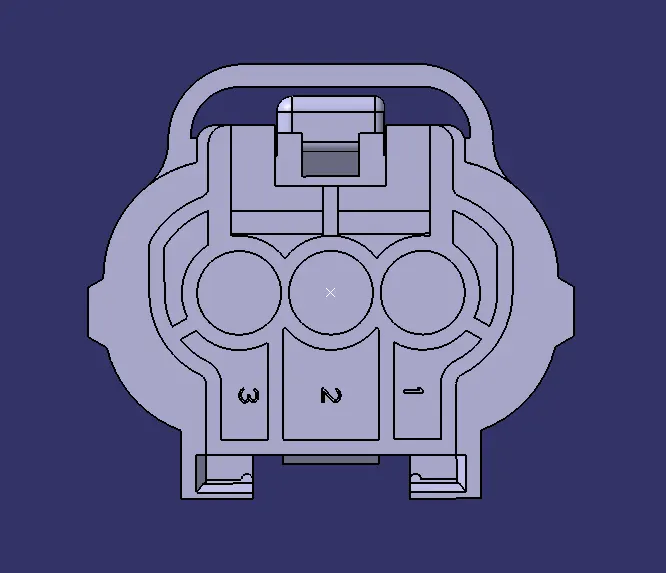

CONNECTOR SIDE:

BUNDLE SIDE:

Step - 2:

• To create a mid-point on the bundle side in the Part Workbench to define the Bundle connection properties.

Step - 3:

• To create a mid-point at the Connector side in the Part Workbench.
• To create an axis system through the point.
• Define the axis as:
  • X- axis - Towards the locking side
  • Y- Axis - Normal to the connector face

Step - 4:

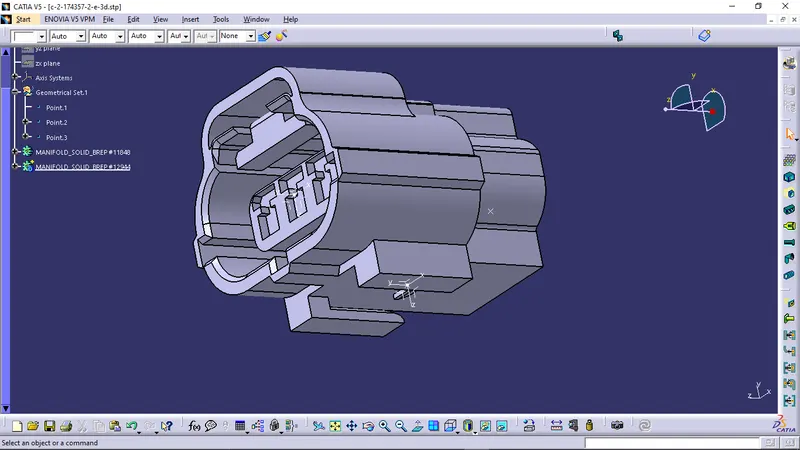

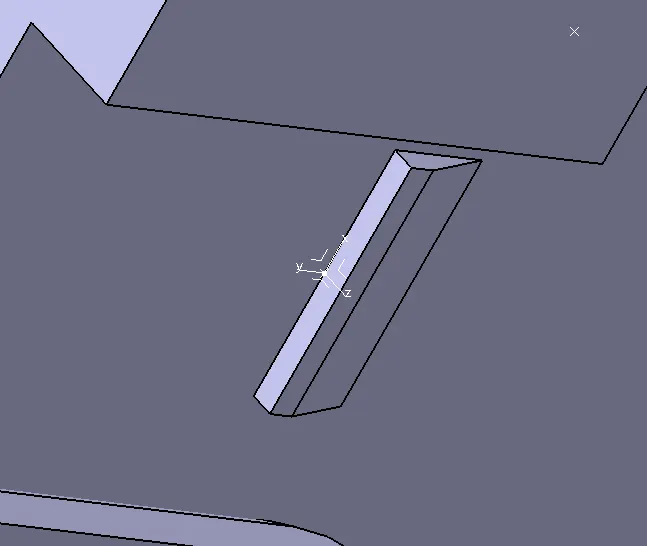

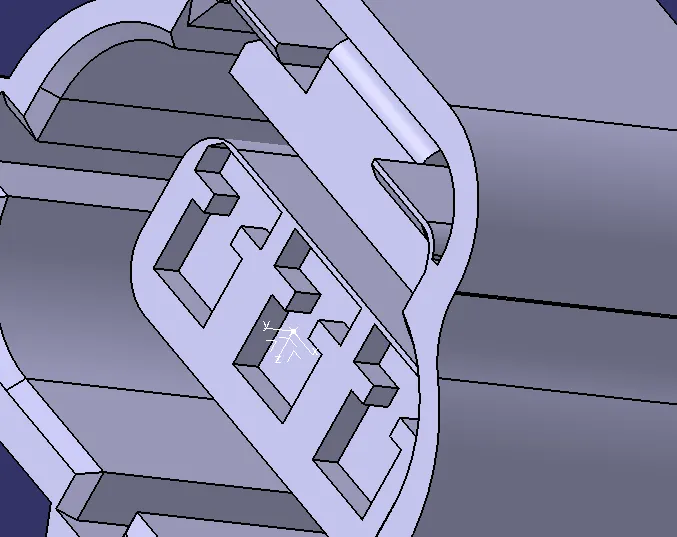

• Create a point for the Mounting clip at the required cavity position and create an axis system through the point for the cavity clip.

Step - 5:

• Go to the Electrical Part Design Workbench to define the Connector connection point and Bundle connection point.

Step - 6:

• First define the Connector and the number of Termination.
• Then define the Connector Connection Point.
• And then define the Bundle Connection Point.
• And then define the Cavity Connection point.

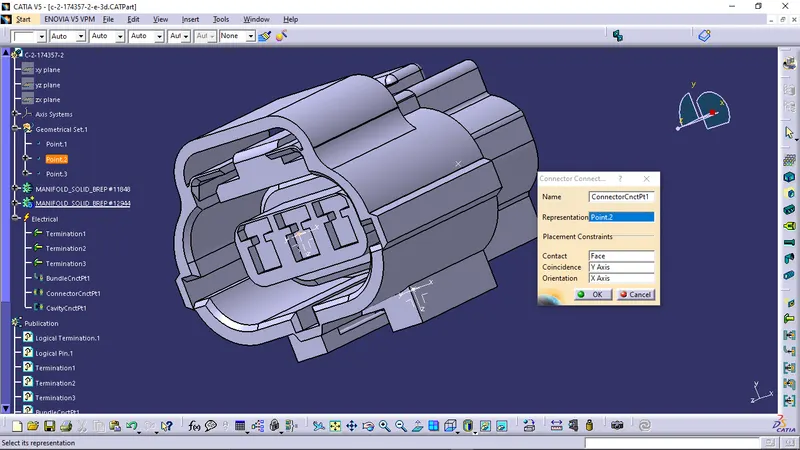

CONNECTOR CONNECTION POINT:

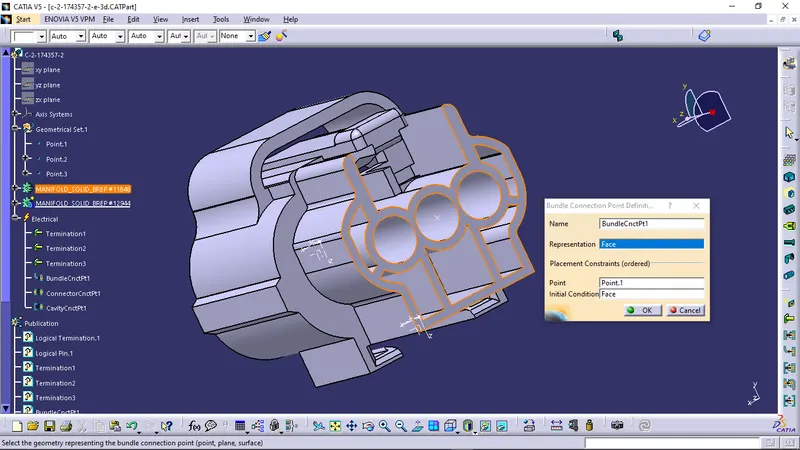

BUNDLE CONNECTION POINT:

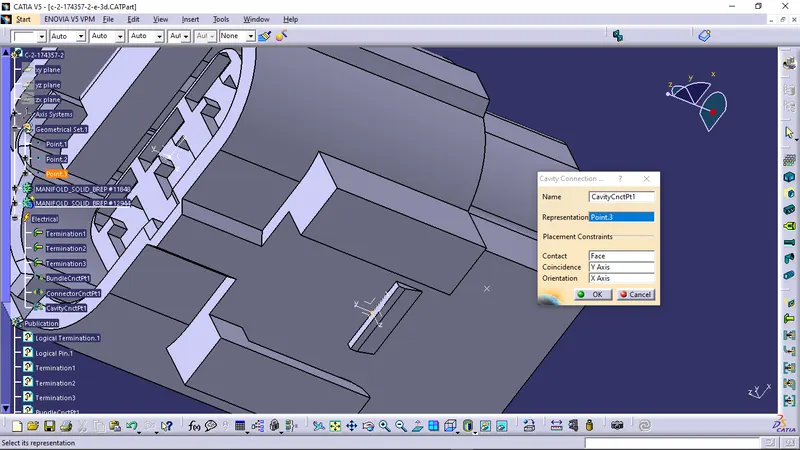

CAVITY CONNECTION POINT:

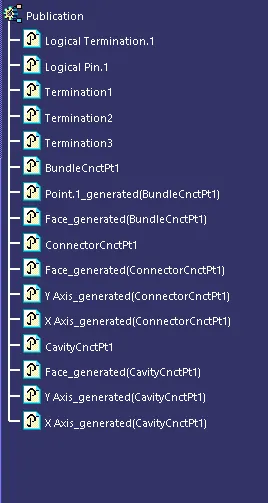

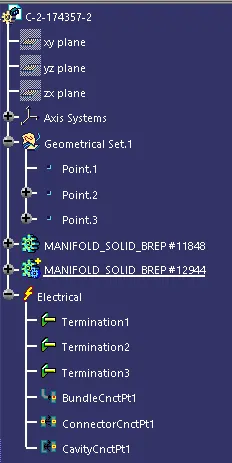

TREE STRUCTURE:

Step - 7:

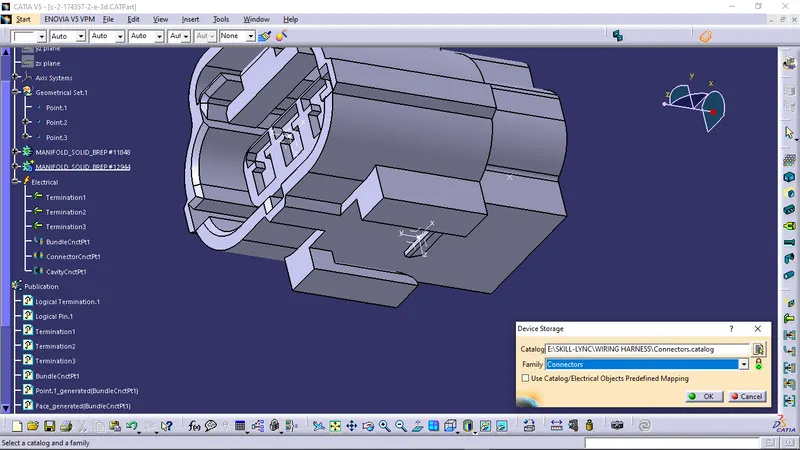

• Now save the part and add the part to the Catalogue created for the connectors so that it can be used later.

• PART - 3: TYCO 85229 - 1:

Step - 1:

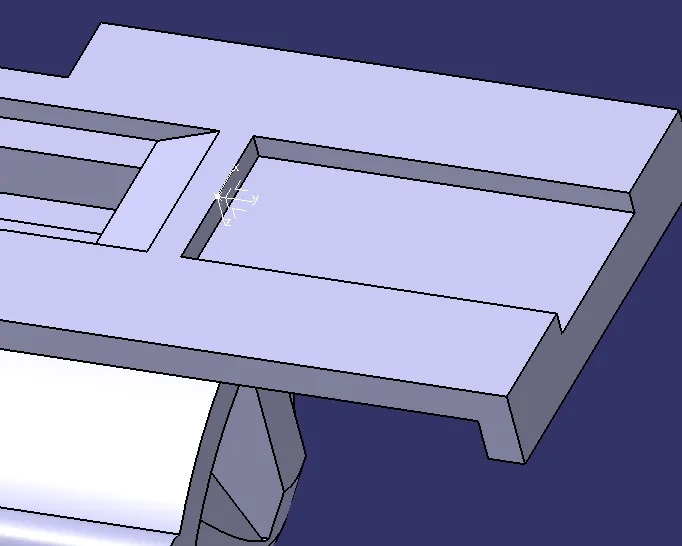

• Create a mid-point at the location where the mounting equipment will be fitted with the connector.

Step - 2:

• Create an axis system through the point.
• Define the axis as per the orientation defined in the connector in which the mounting equipment will be assembled.

Step - 3:

• Go to the Electrical Part Design Workbench to define the electrical properties.
• Define the object as the Mounting equipment.
• Then define the same as cavity.

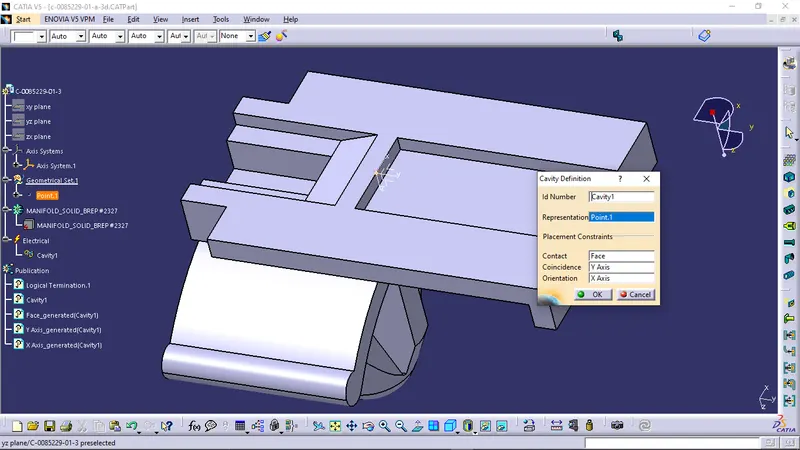

CAVITY DEFINITION:

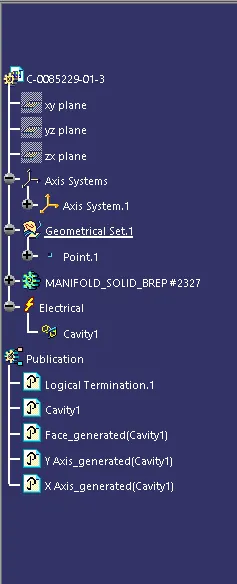

TREE STRUCTURE:
