Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

1st Connector:-

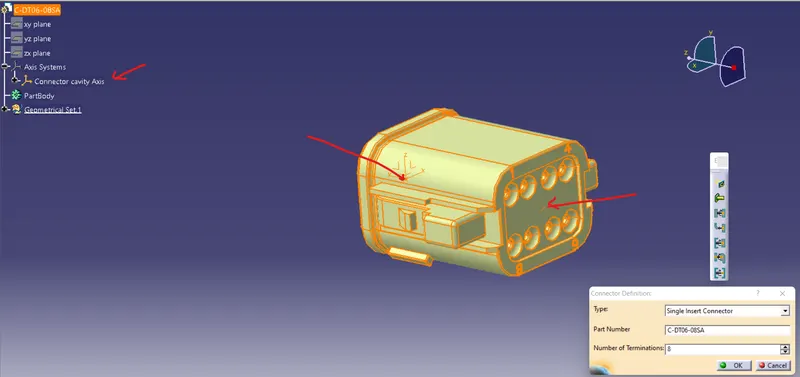

This is a female connector and for this connector I have added 2 points, one on mating side and the other on Wire entry side. Than i have added axis on the mating side which is called as connector cavity axis. In this snap i have converted it to eletrical part.

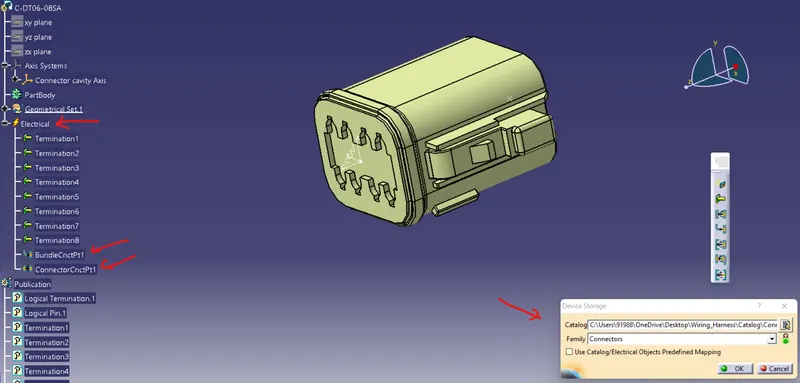

Now i have converted it to eletrical part and added Bundle Connection point and Connector connection point on the both sides. And also i have added to the catalog which i had created earlier.

2nd connector:-

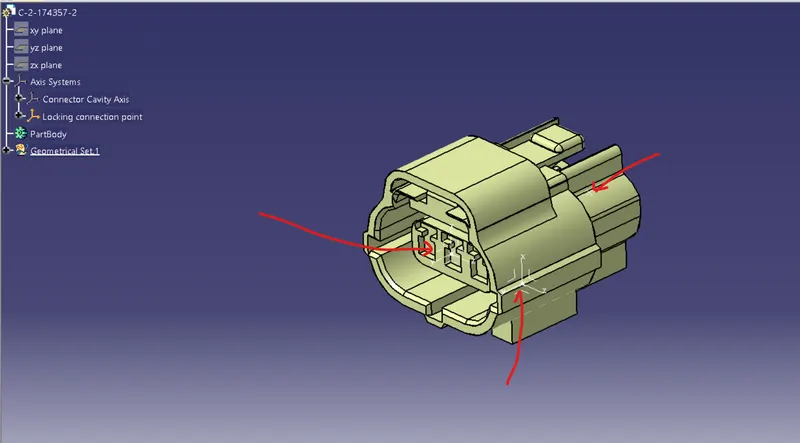

This is also a female connector or a housing. I have added 3 points on each side, one on the mating side, one on the bundle entry side and the other on Locking connection point. Than i have added axis for the mating side and on the locking side. The locking side axis is similar to the mating axis.

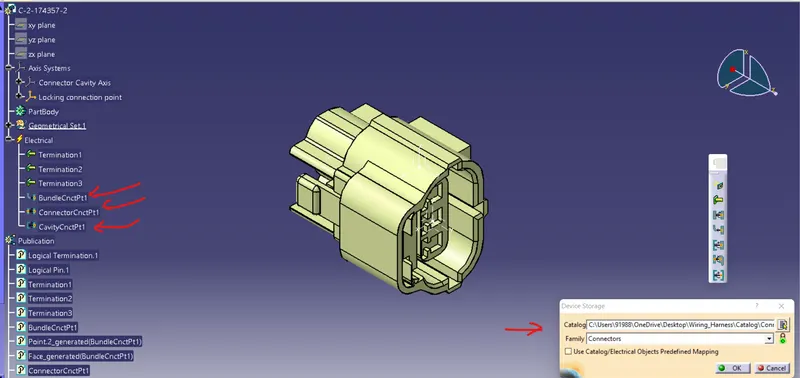

Now i have converted it to electrical part and added bundle connection point , connector connection point and cavity connection point. And I have added this part to the catalog which I had created earlier.

3rd part (Mounting clip):-

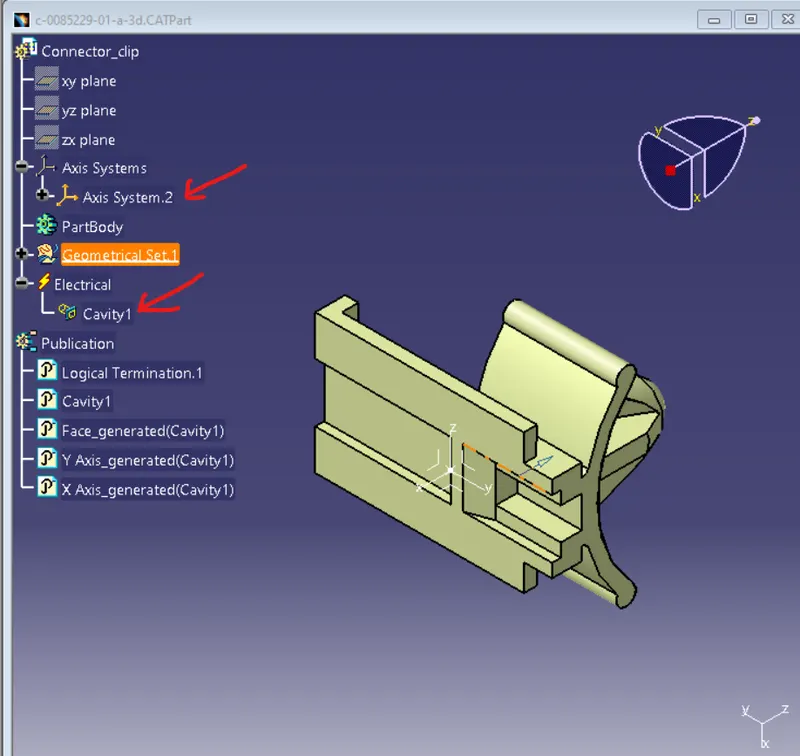

This is an Automotive connector Accessories and its also called as connector clip. For this one I have added a point and an axis on the surface where connector gets mated. converted it to a eletrical part, defined this whole thing as an cavity.

I have 3 CADprt files and one product file.

Thank You.
