AIM
To run the Explicit dynamics analysis for Mechanism on a total of 2 different cases with change in load condition terms and provide the inference on the output.
Objective
To find and compare the results of Equivalent stress, directional deformation, Equivalent elastic strain, and contact pressure in all cases.
For this challenge, you will have to perform the tension and torsion test on the specimen provided below the video corresponding to the challenge.
For the tension test, displace one end of the specimen to 18mm while keeping the other fixed. You will need to find out the total deformation, equivalent stress and temperature of the specimen and attach appropriate images to show your results.
For the torsion test, you will need to displace one end of the specimen to an angle of 1200 degree. Find out the total deformation, equivalent stress and temperature of the specimen and attach images to show your results.
CASE 1 = Tension load test challenge
CASE 2 = Torsion load test challenge
CASE 1
Tension load test challenge
For the tension test, displace one end of the specimen to 18mm while keeping the other fixed. You will need to find out the total deformation, equivalent stress and temperature of the specimen and attach appropriate images to show your results.

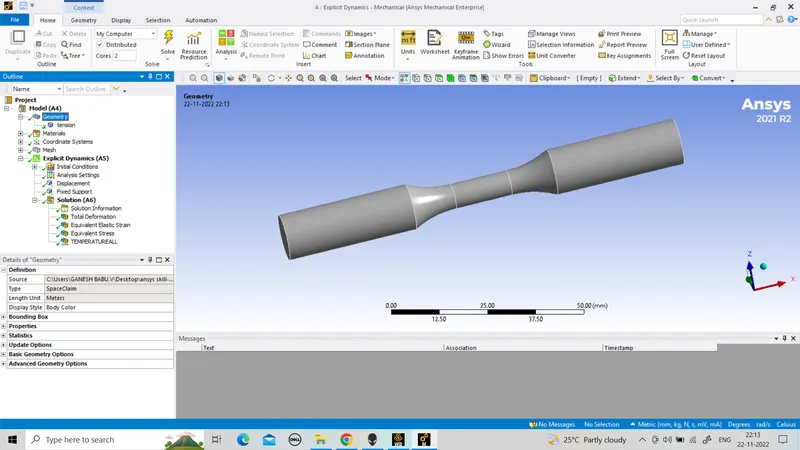

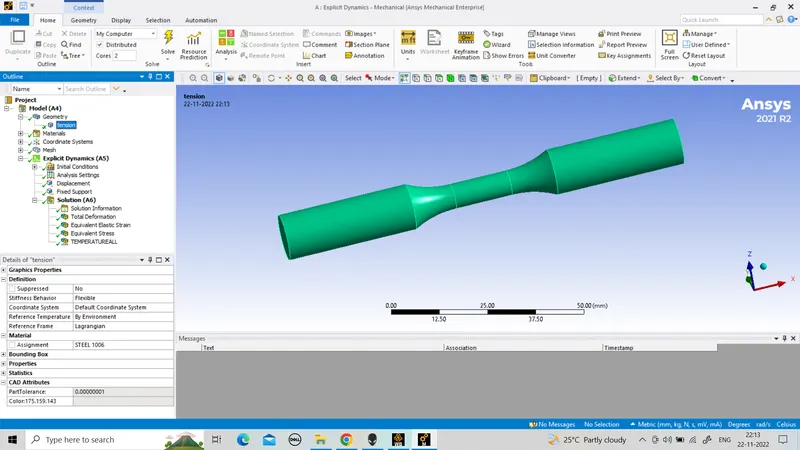

Import the model.
select the material.
Steel 1006
From the material librery in Explicit dynamics

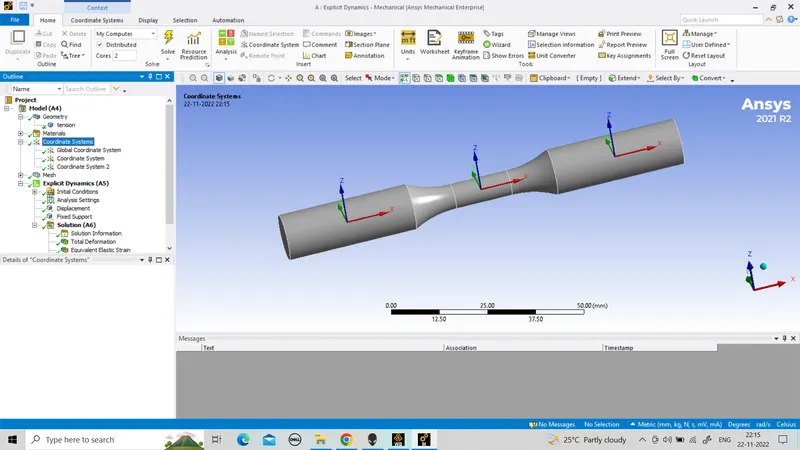

create the two new coordinate system from the given rod on both side.
the two new coordinate system will be type of cartesian
Mesh the component with mesh option.

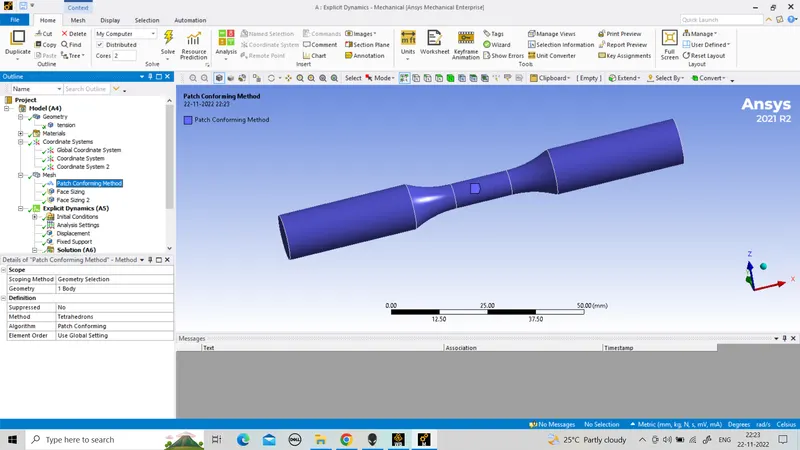

in mesh select the method option as tetrahedral
After that use face sizing

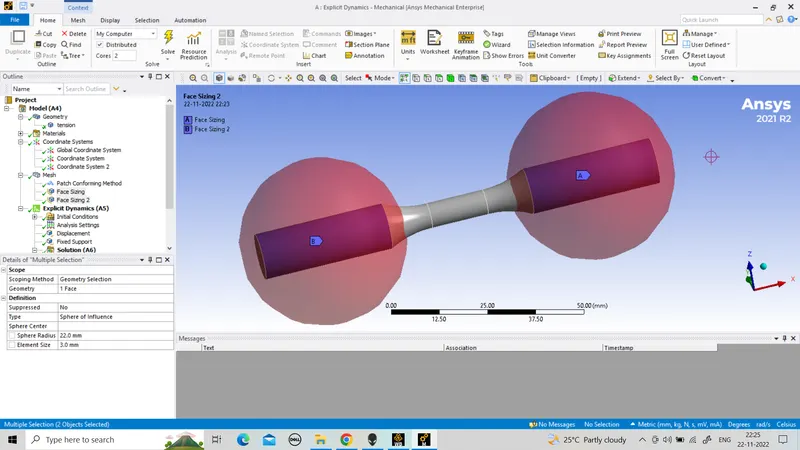

type as sphere of influence
radius = 22mm
element sizing of 3mm

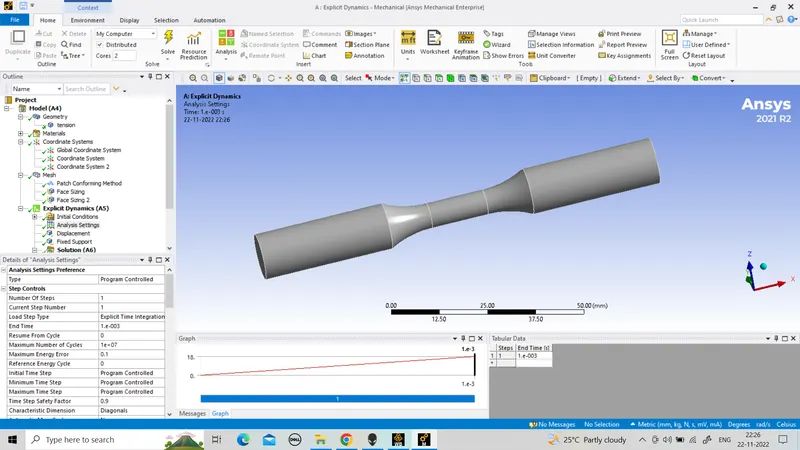

Analysis setting
End time step = 1E-3

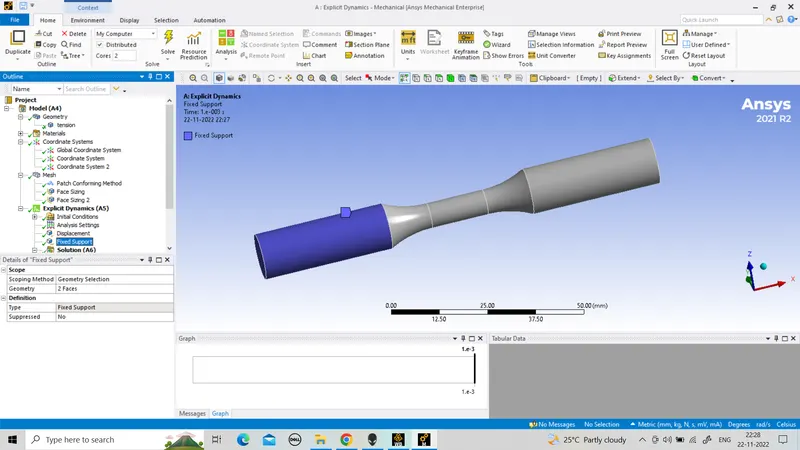

fixed support

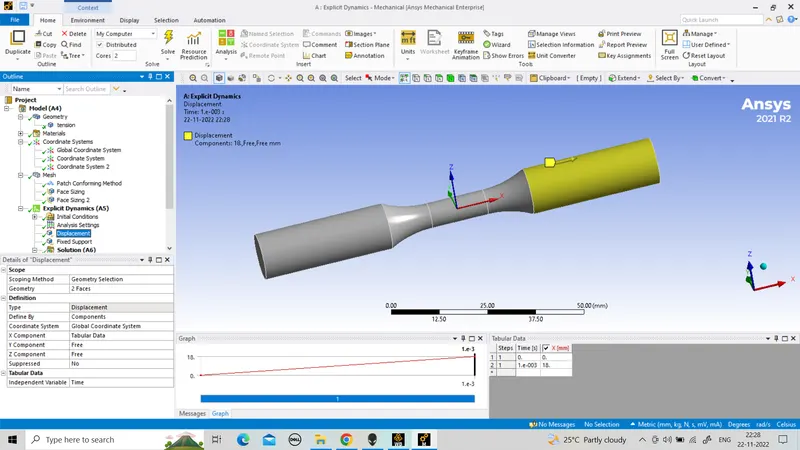

Displacement
x= 18mm
Import the model.
select the material.
Steel 1006
From the material librery in Explicit dynamics
create the three new coordinate system from the given rod on both side.
the two new coordinate system will be type of cartesian

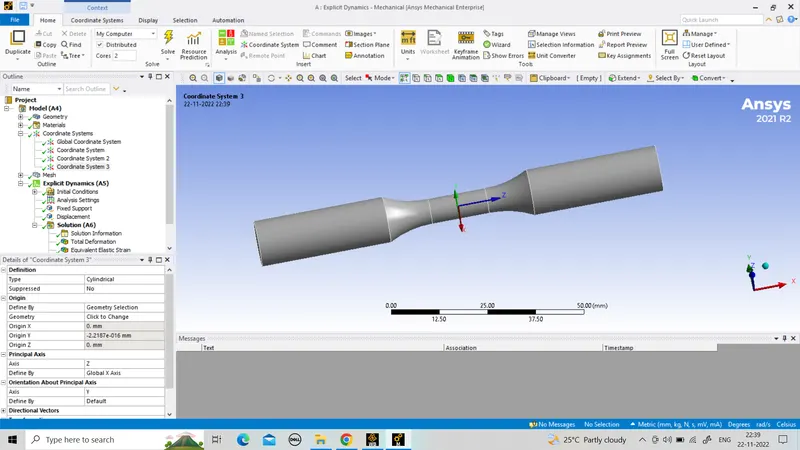

third coordinate sustem will be cylindrical
Mesh the component with mesh option.
in mesh select the method option as tetrahedral
After that use face sizing
type as sphere of influence
radius = 22mm
element sizing of 3mm

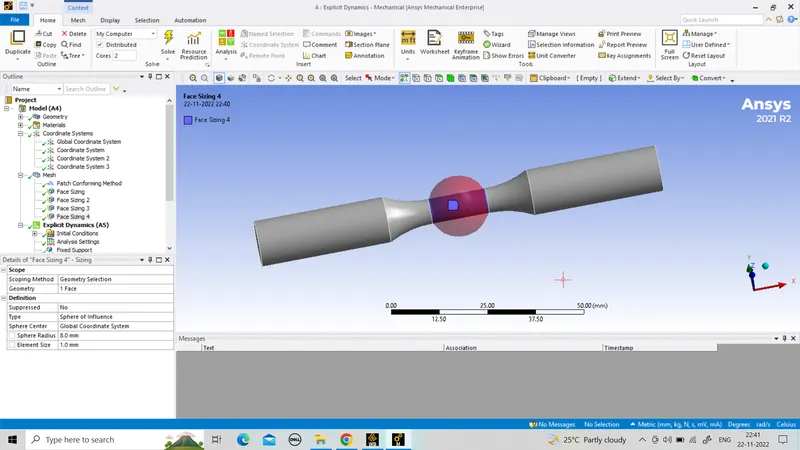

face sizing mesh
element size of 1mm
Analysis setting
End time step = 1E-3
fixed support

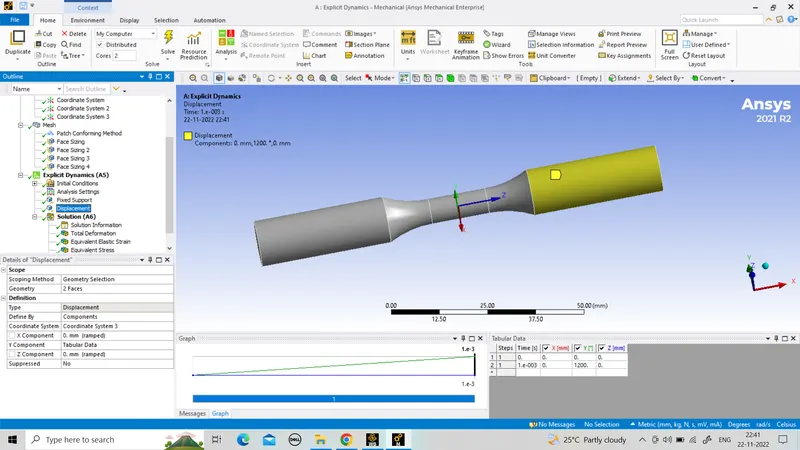

Displacement
y = 1200
RESULT
For the tension test, displace one end of the specimen to 18mm while keeping the other fixed. You will need to find out the total deformation, equivalent stress and temperature of the specimen and attach appropriate images to show your results.
For the torsion test, you will need to displace one end of the specimen to an angle of 1200 degree. Find out the total deformation, equivalent stress and temperature of the specimen and attach images to show your results.
CASE 1
Tension test challenge

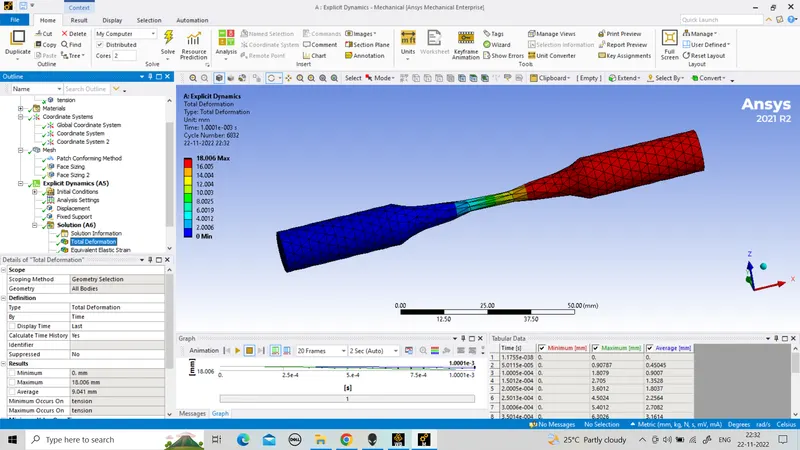

total deformation

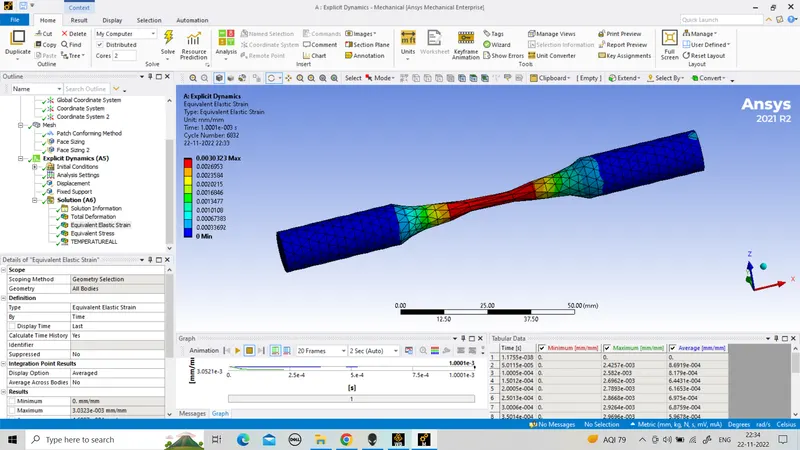

Equivalent strain
Equivalent stress

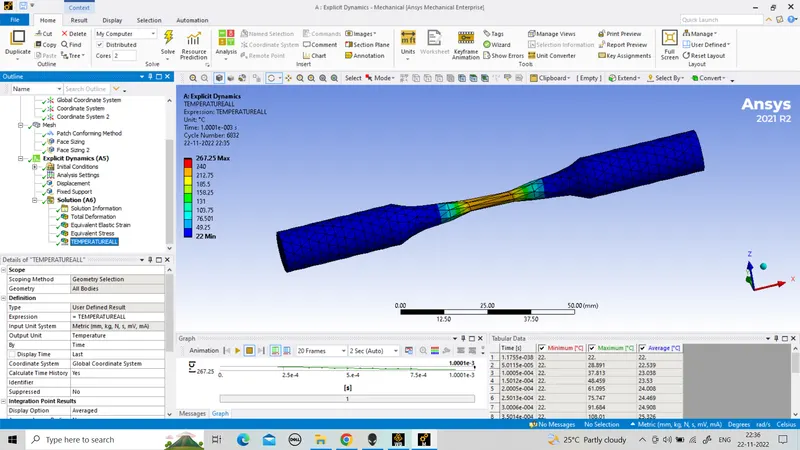

Temperature
CASE 2
Torsion test challenge
For the torsion test, you will need to displace one end of the specimen to an angle of 1200 degree. Find out the total deformation, equivalent stress and temperature of the specimen and attach images to show your results.

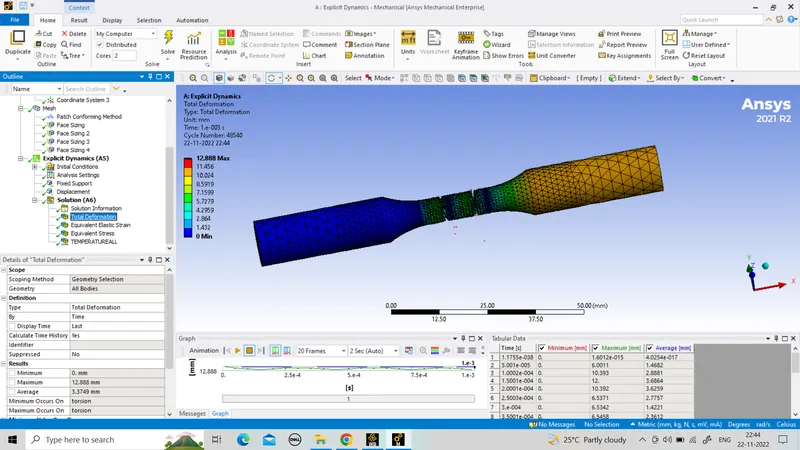

total deformation

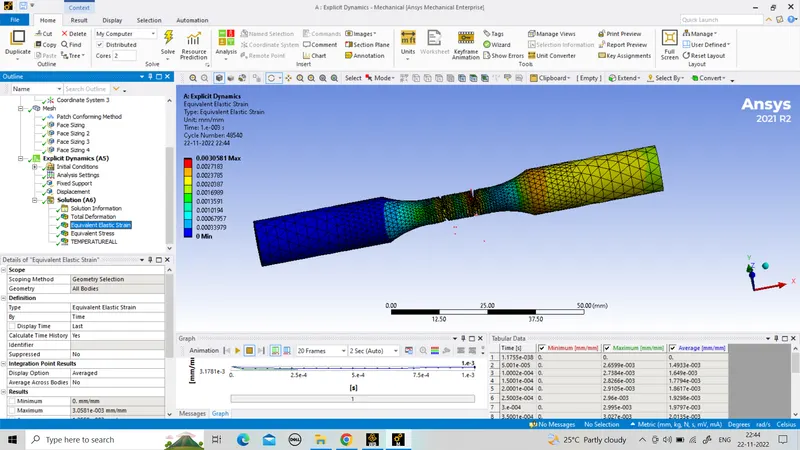

equivalent strain

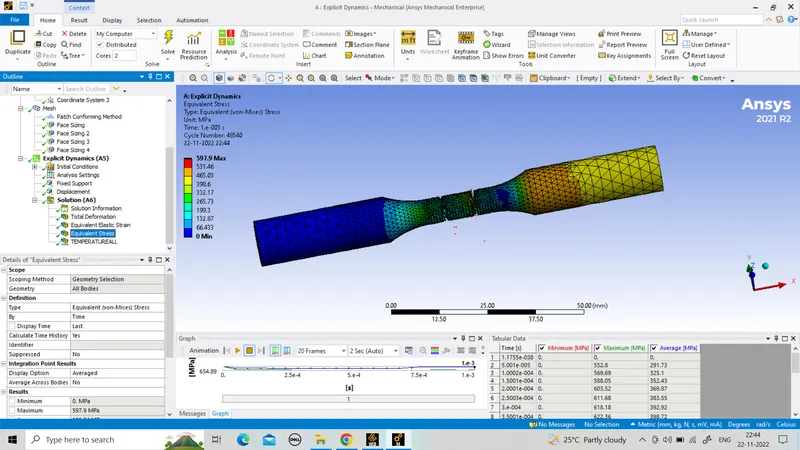

equivalent stress

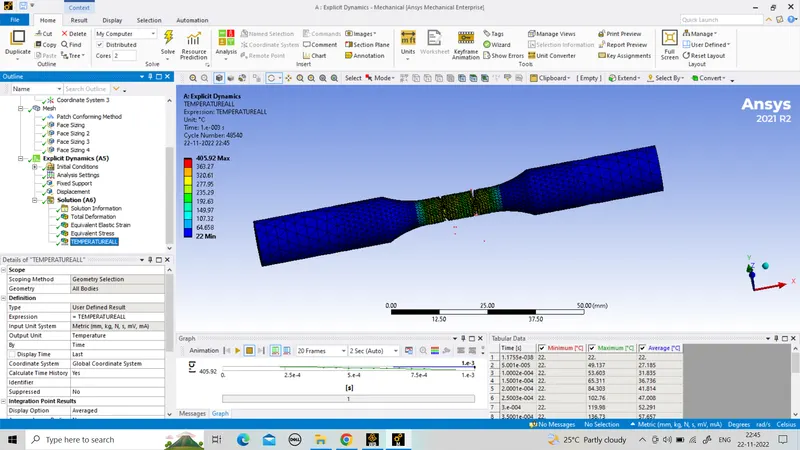

temperature
CASE TOTAL DEFORMATION STRAIN STRESS TEMPERATURE
Tension 18.006MAX 0.0030323MAX 609.29MAX 267.25MAX
Torsion 12.888MAX 0.0030581MAX 597.9MAX 405.95MAX
