Week 9 Tension and Torsion test challenge
- Objective: To perform an explicit dynamics simulation of the tension and torsion test on the specimen using Ansys Workbench.
- Tool/Software: Ansys Workbench 2022R
- Modal: Provided by Skilllync (Download from the challenge)
- Material: STEEL 1006 (For Work specimen)

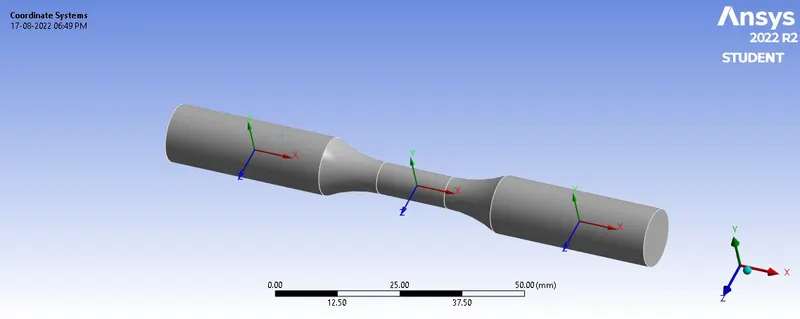

- Coordinate System:
Tension Test:

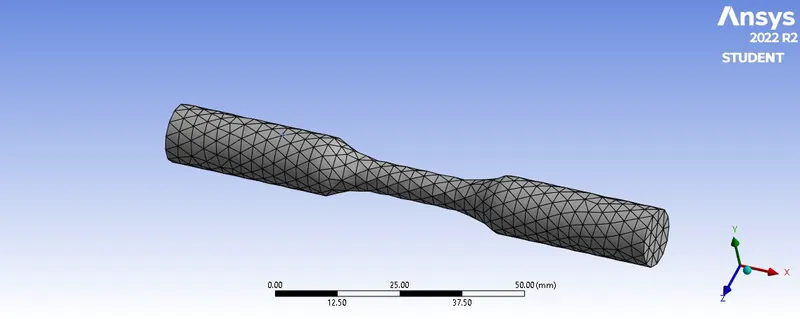

1. Mesh:
| Mesh Type | Patch Conforming Method | Face Sizing | Face Sizing 2 |
| Geometry |
body |
Left side Face | Left side Face |
| Mesh Type | Tetrahedrons | Sphere of Influence | Sphere of Influence |
| Sphere Center | Coordinate System | Coordinate System 2 | |
| Sphere Radius | 22.0 mm | 22.0 mm | |
| Element Size | 3.0 mm | 3.0 mm | |
| Nodes | 843 | ||
| Elements | 3200 | ||
2. Supports:

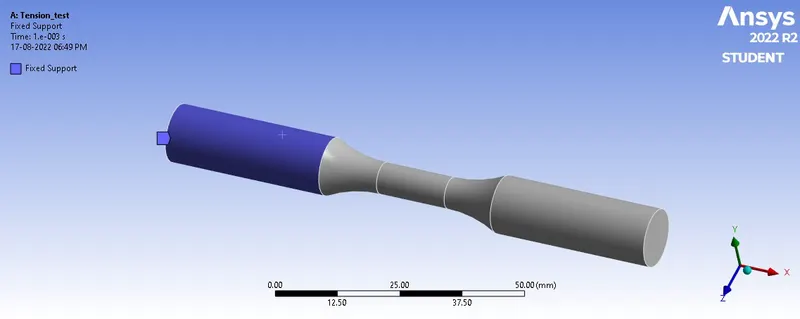

1) Fixed Support
2) Displacement = 18 mm(X-Component)
3. Results

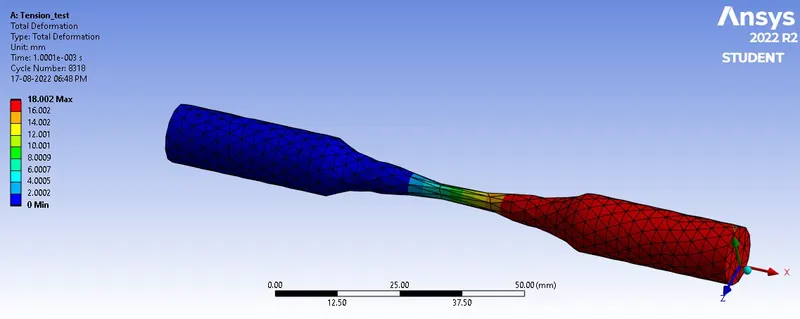

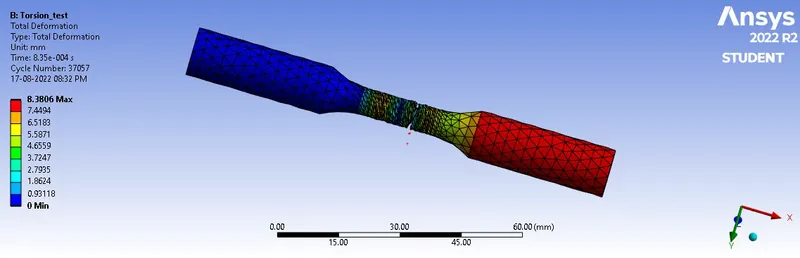

Total Deformation =18.002 mm

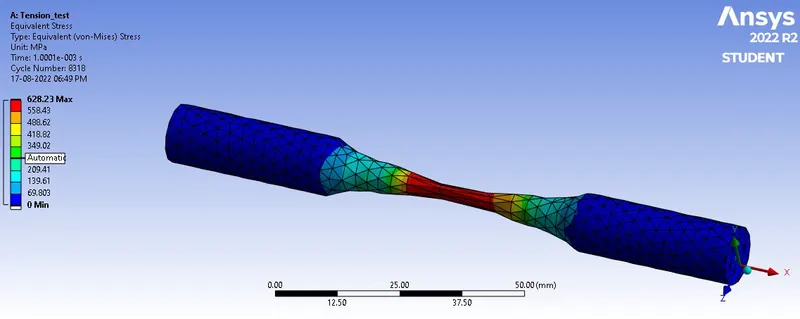

Equivalent Stress = 628.2295 MPa

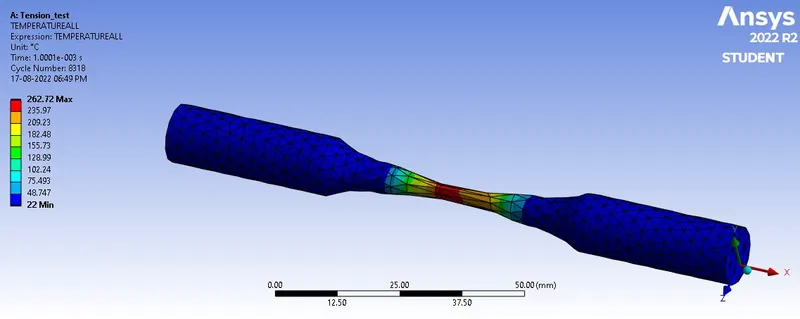

TEMPERATURE ALL = 262.717 °C
Torsion Test:

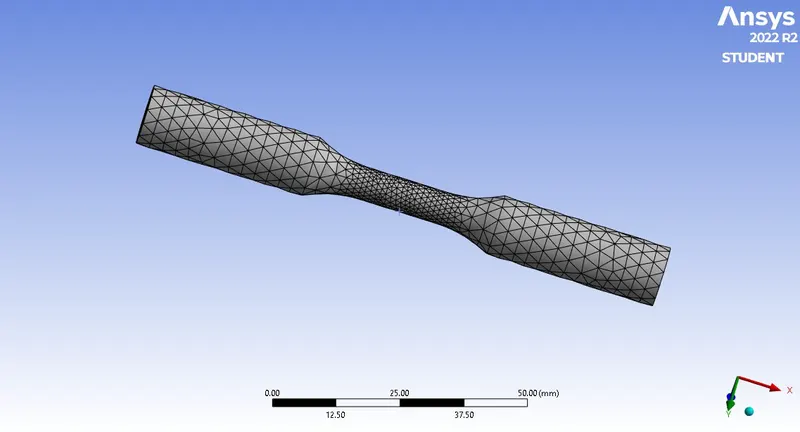

Mesh
| Patch Conforming Method | Face Sizing | Face Sizing 2 | Face Sizing 3 | Face Sizing 4 | |
| Geometry | body | Left side Face | Left side Face | 2 Conical shaps | Center small diameter |
| Mesh Type | Tetrahedrons | Sphere of Influence | Sphere of Influence | Element Size | Sphere of Influence |
| Sphere Center | Coordinate System | Coordinate System 2 | Global Coordinate System | ||
| Sphere Radius | 22.0 mm | 22.0 mm | - | 8.0 mm | |
| Element Size | 3.0 mm | 3.0 mm | 1.5 mm | 1.0 mm | |
| Nodes | 1876 | ||||
| Elements | 8165 | ||||

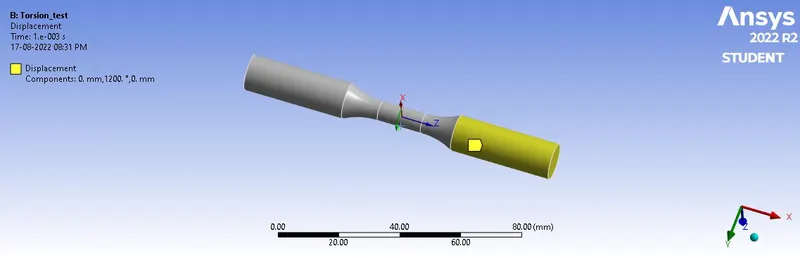

Displacement
Results:
Total Deformation =18.002 mm
Equivalent Stress = 628.2295 MPa

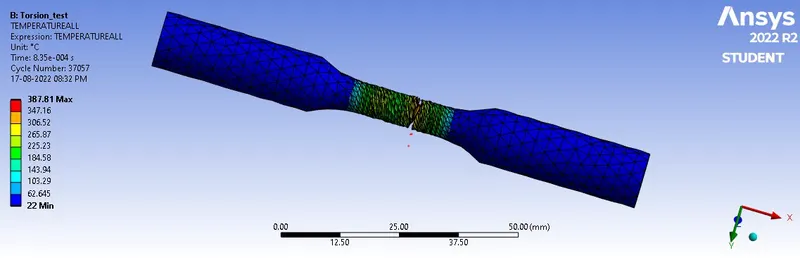

TEMPERATURE ALL = 262.717 °C
