Week 9 Tension and Torsion test challenge

KKarthikeyan .K2 Jun 2022

Objective : To perform the tension and torsion test on the specimen

For the tension test, displace one end of the specimen to 18mm while keeping the other fixed.

For the torsion test, you will need to displace one end of the specimen to an angle of 1200 degree.

Find out the total deformation, equivalent stress and temperature of the specimen.

Procedure:

tension test

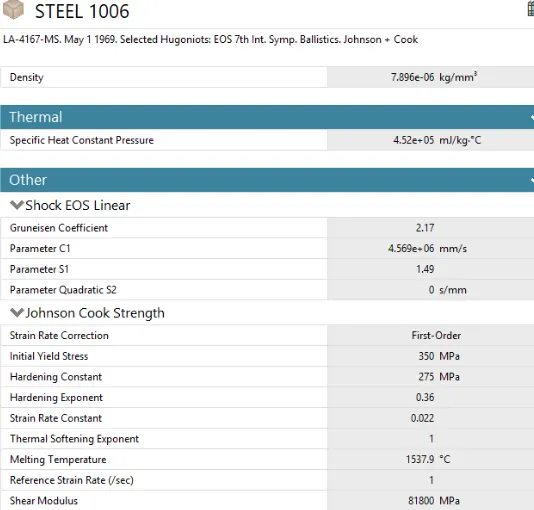

create explicit dynamics in ansys workbench and in engineering data select the material steel 1006 from explicit material.

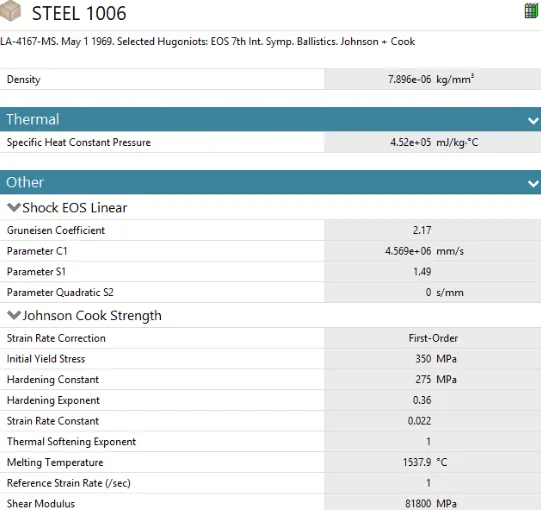

steel 1006

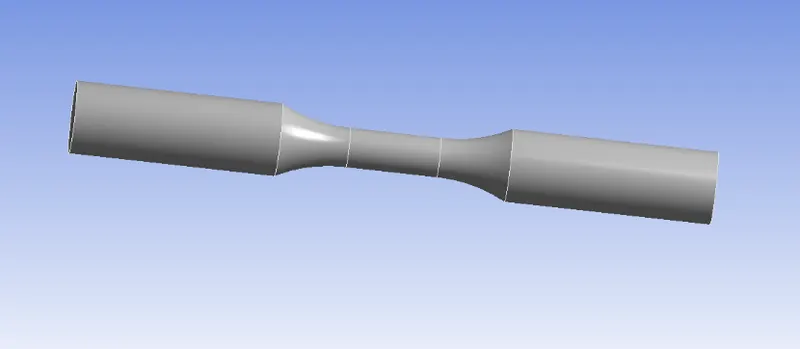

import the geometry and check in spaceclaim for any irregularities.

Then open ansys mechanical and assign the steel 1006 material to the components.

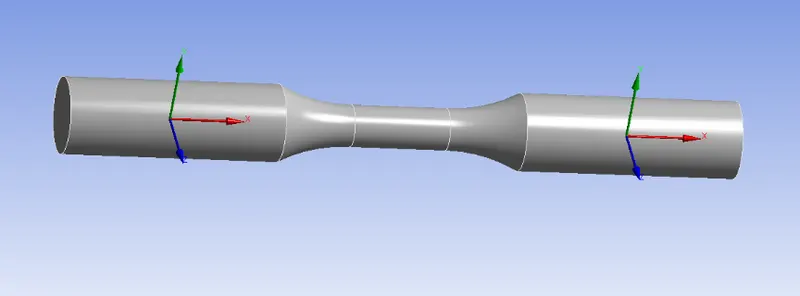

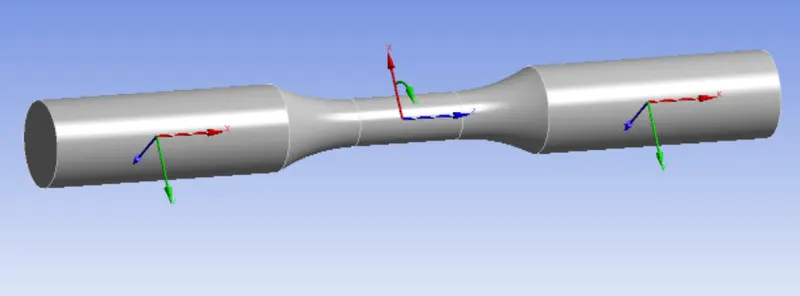

Coordinate system - for meshing, two additional cartesian coordinate system are defined.

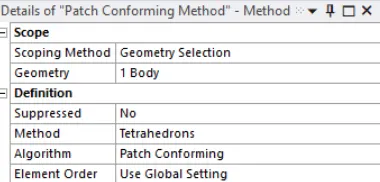

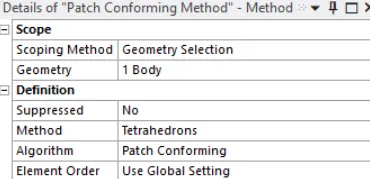

Mesh - the model is meshed by using patch conforming method and tetrahedrons used.

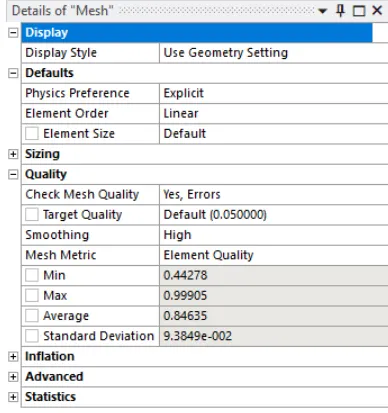

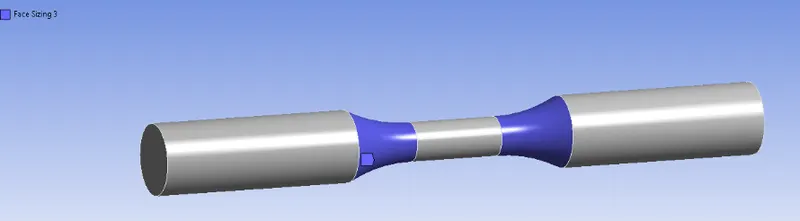

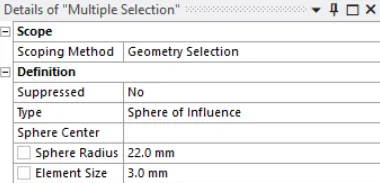

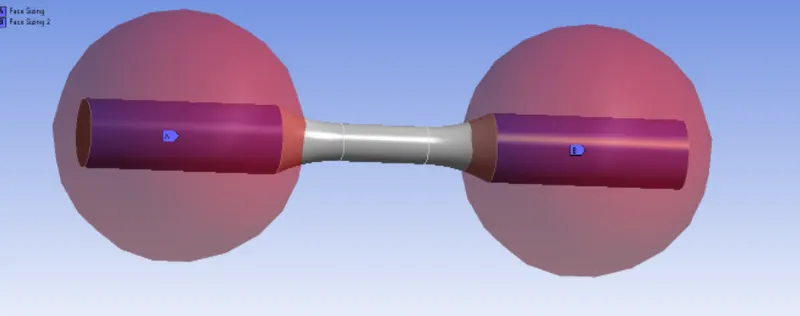

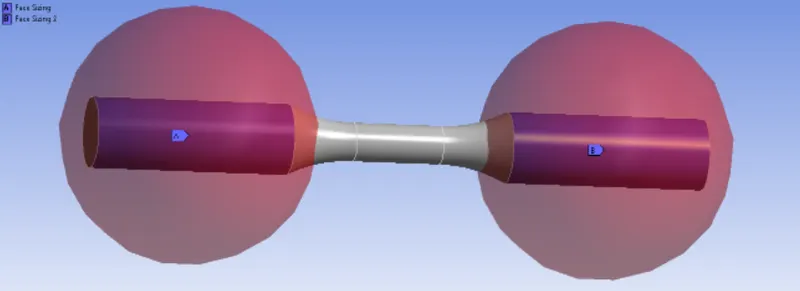

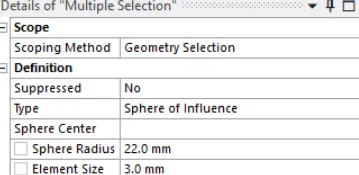

Face sizing - face sizing option is used. Type set to sphere of influence with sphere center as the center of manually defined coordinate system and the sphere radius of 22mm and the element size of 3mm.

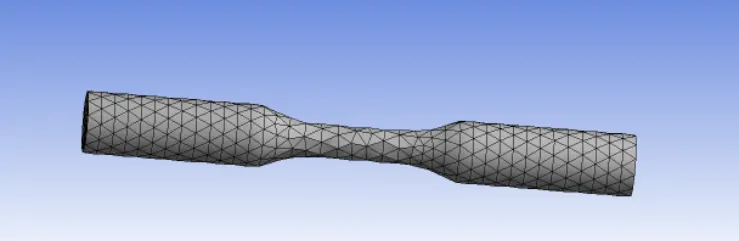

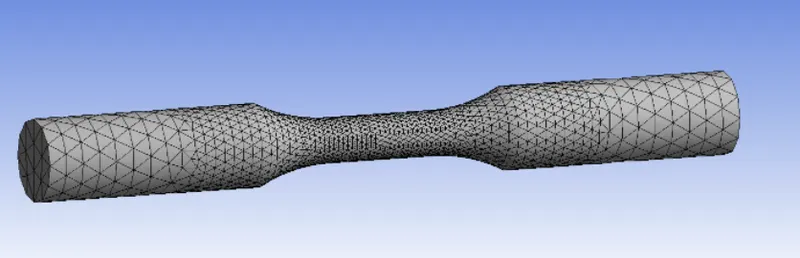

final mesh

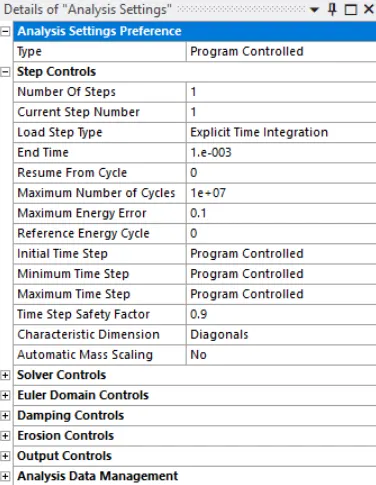

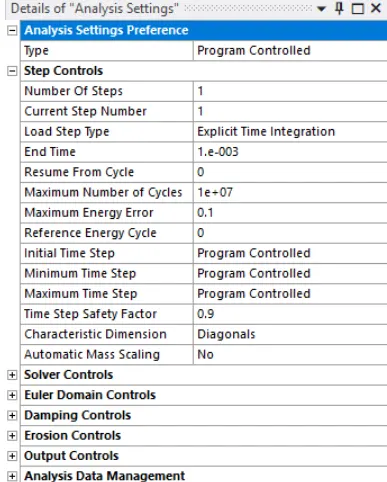

Analysis setting - set end time as 1e-3, and all the setting set to default.

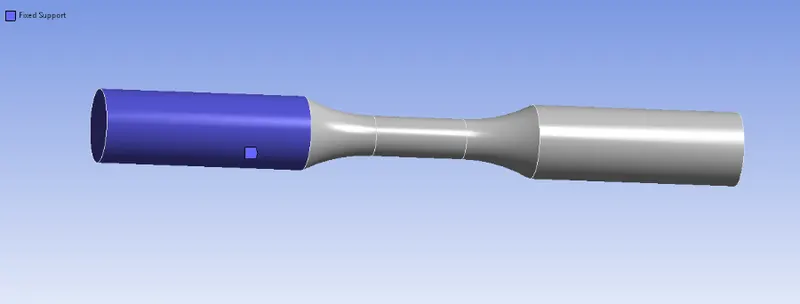

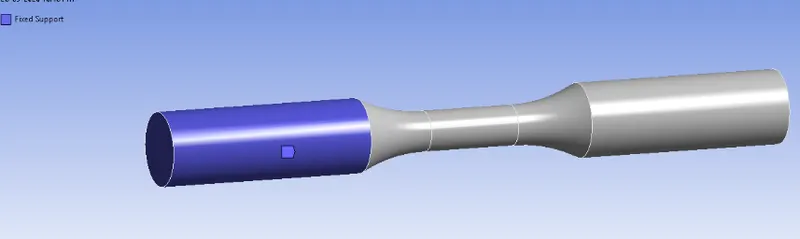

Fixed support - one end of the specimen is fixed.

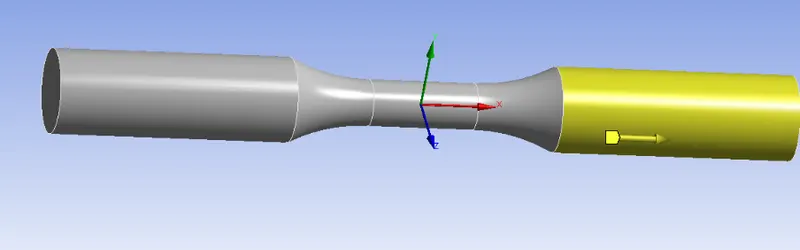

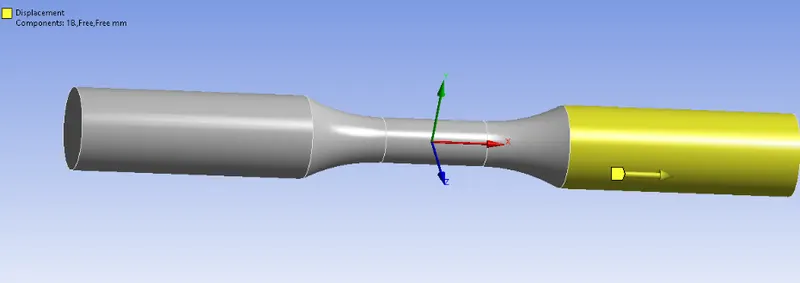

Displacement - displace other end of specimen to 18mm.

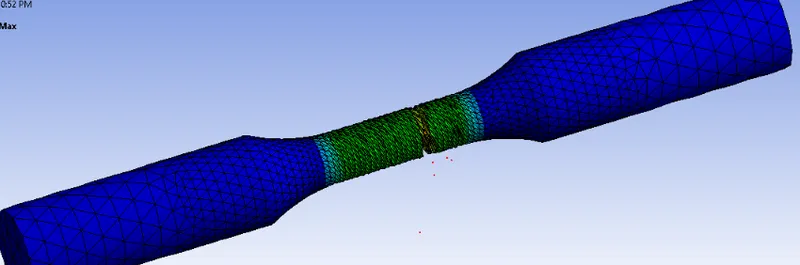

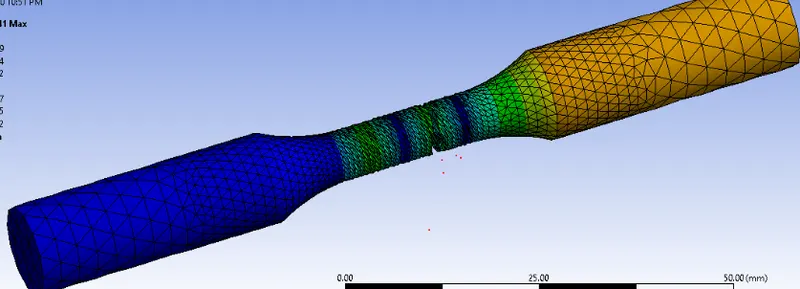

Run the simulation and the result obtained

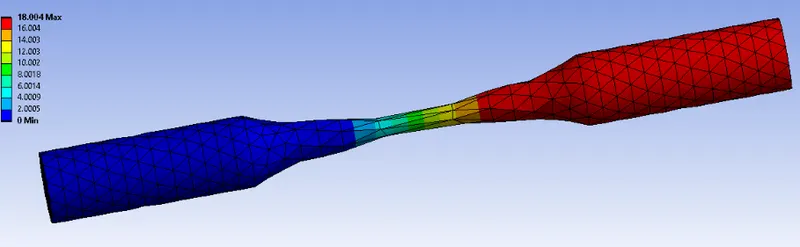

total deformation - 18.004mm

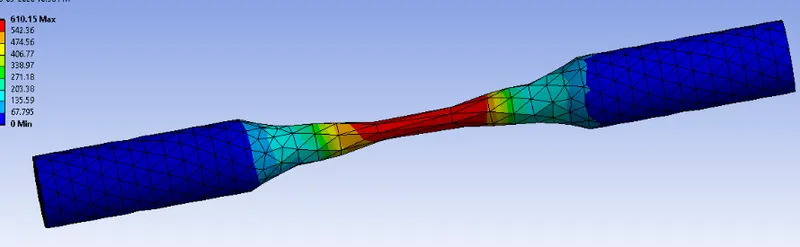

Equivalent stress max - 610.15Mpa

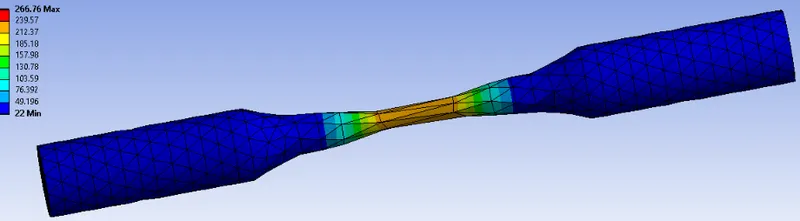

Temperature max - 266.76 degree celsius

conclusion:

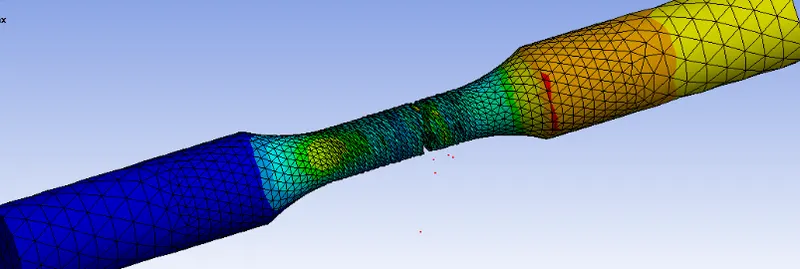

Max equivalent stress is developed in the center portion of the workpiece, where neck formation occurs.

Maximum temperature is developed at the center portion.

The maximum deformation of the workpiece is 18.004 which matches the give displacement value.

Torsion test

create explicit Dynamics in anysis work bench and in engineering data select the material steel 1006 from explicit materials.

steel 1006

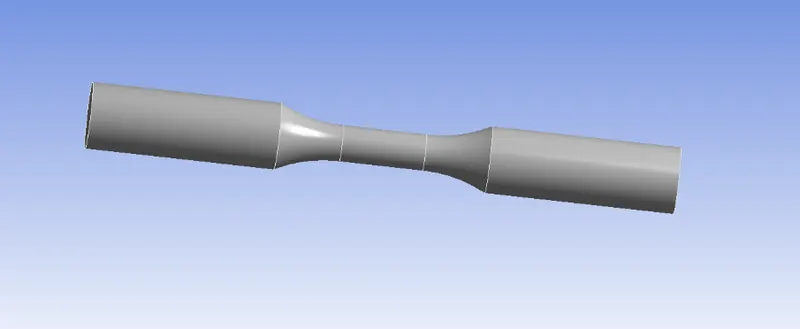

import the geometry and check in spaceclaim for any irregularities.

Then open ansys mechanical and assign the steel 1006 material to the components.

Coordinate system - for meshing, two additional cartesian coordinate system are defined.

Mesh - the model is meshed by using patch conforming method and tetrahedrons used.

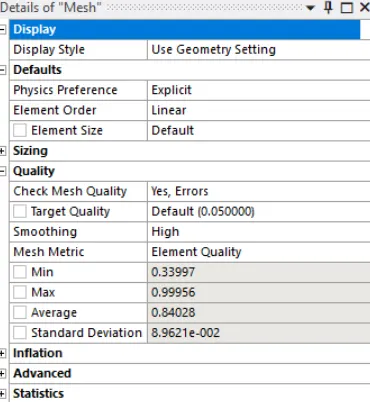

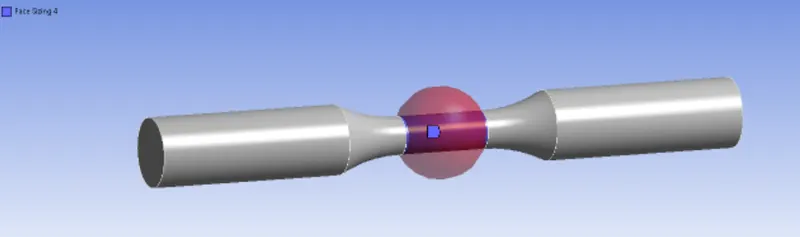

Face sizing - 2face of the specimen is meshed with element size of 1.5mm.

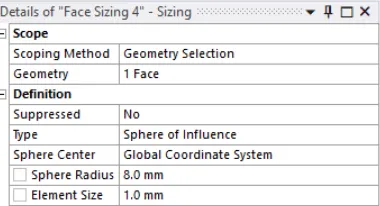

type set to sphere of influence with sphere centre as center of the manually defined coordinate system and sphere radius of 8mm and element size of 1mm.
