Week 9 - Project - Master Section Development

B - Pillar Master section develop

1. B pillar master section created with provider Class A surface.

2. Created Class B and Class C surfaces and Joint them.

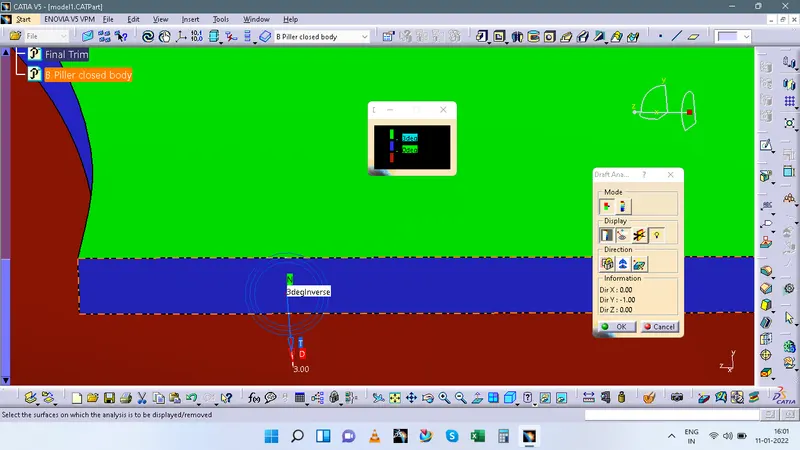

3. Created solid body with A,B and C surface did draft analysis

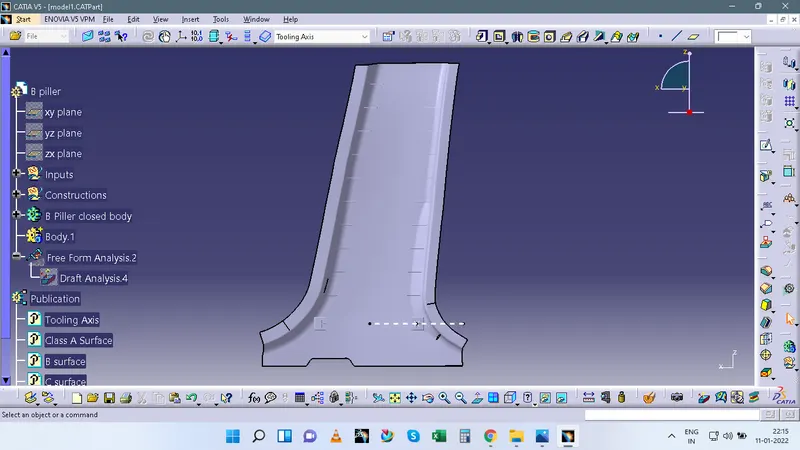

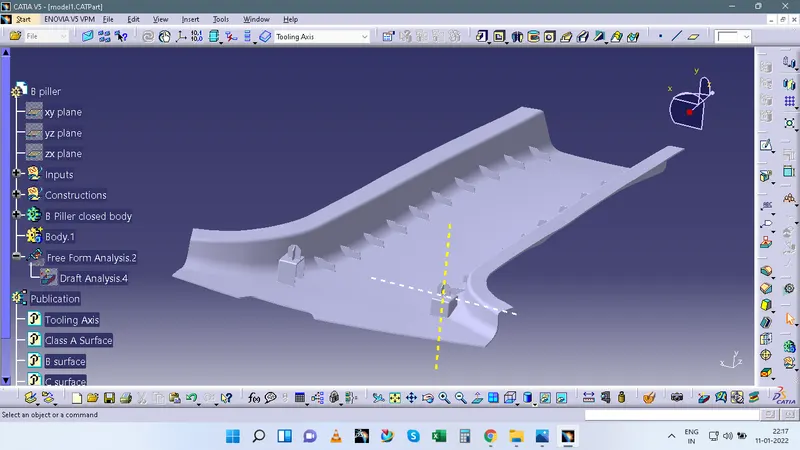

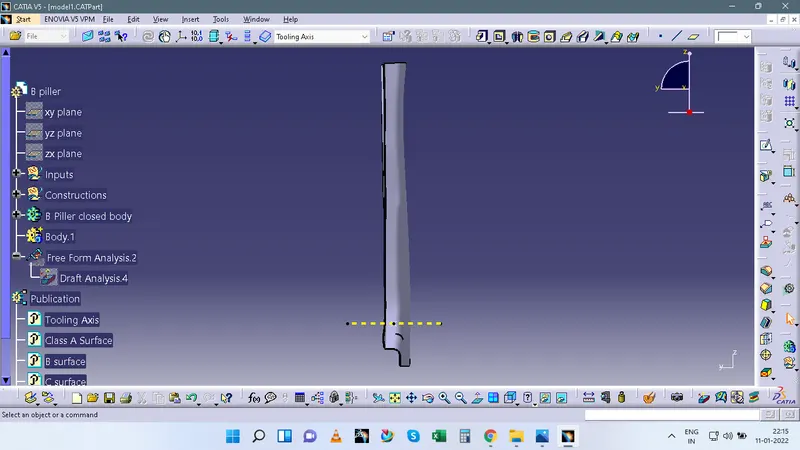

4. Created Main tooling axis and side core axis.

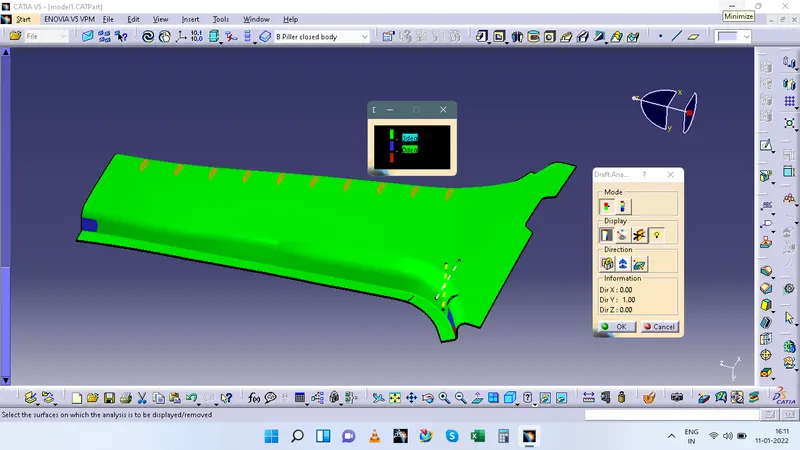

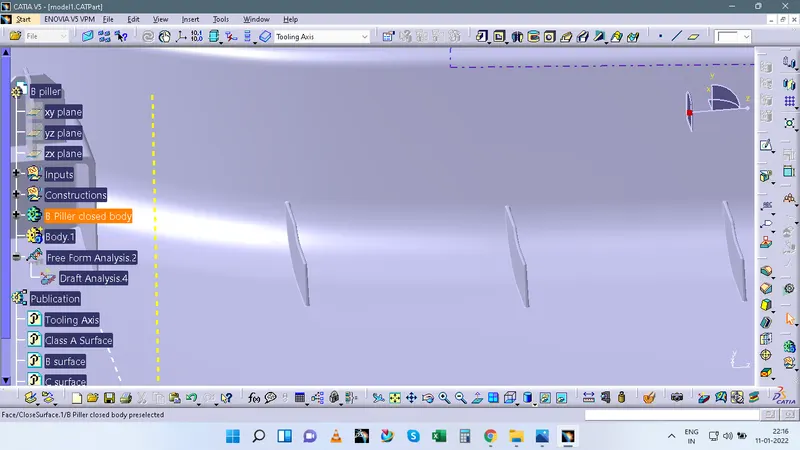

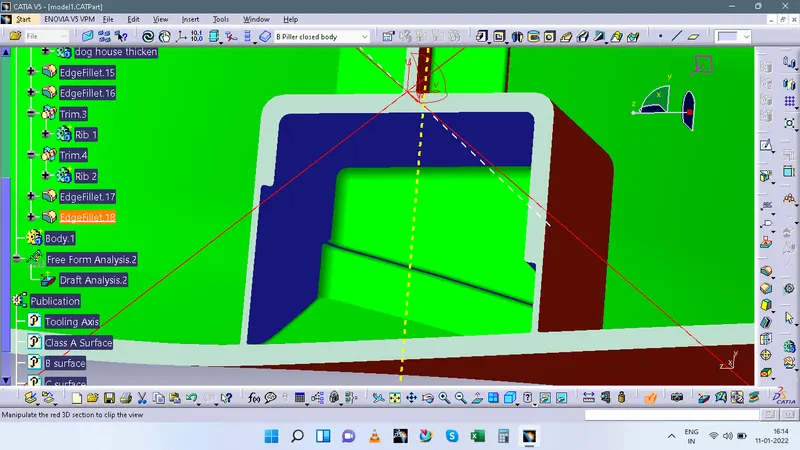

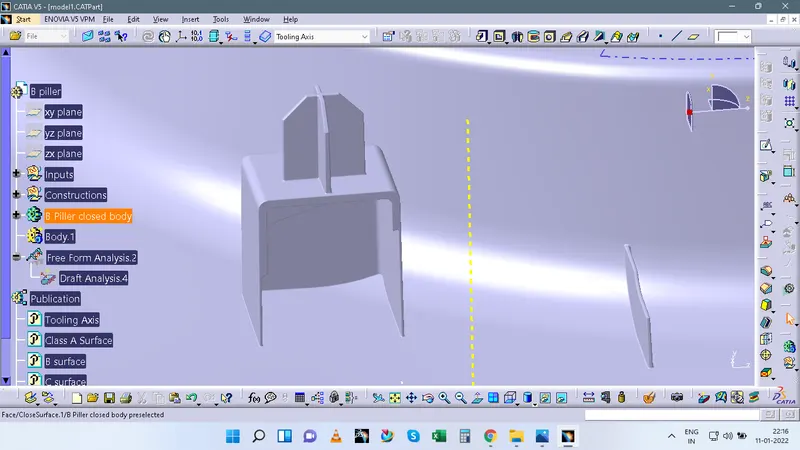

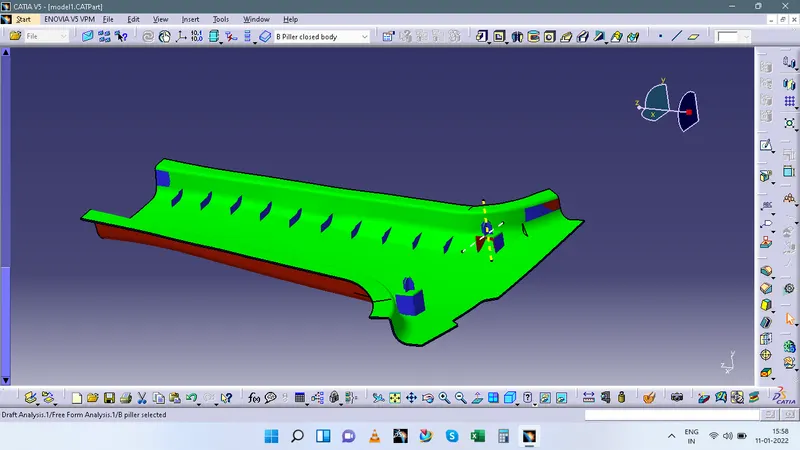

5. Both tooling axis are satisfied the Draft analysis except corner.

6.Make detail PPT for draft analysis please check below attach.
