Week 9 - Project - Master Section Development
- Issues Faced

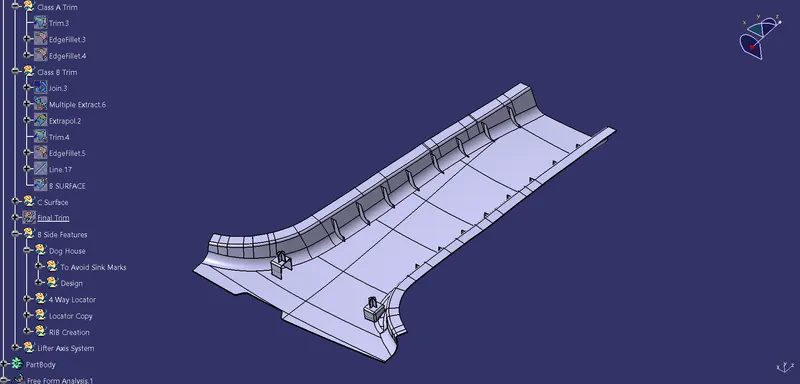

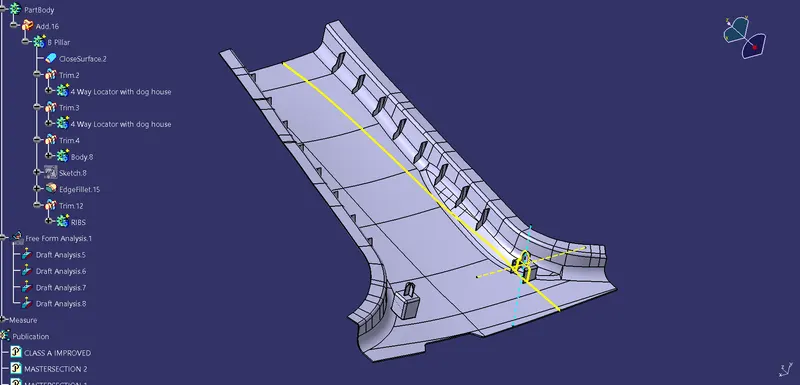

- The Mastersection 2 given was ignored as the intersection of that was not in alignment with master section 2 and hence the dog house and the 4 way locator was created with the intersection of Mastersection 1.

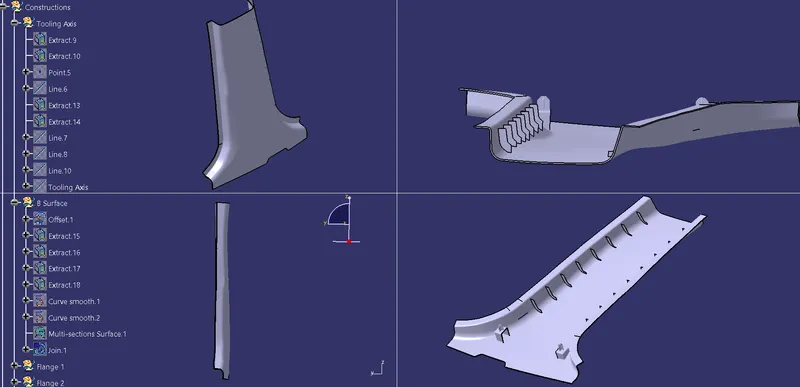

- The tooling Axis was created with the help of Mastersection 1 and Mastersection 2, therefore the tooling axis had a small variation which affected the draft analysis of Dog House & 4 Way Locator with Main tooling Axis
