Week 9 - Project - A pillar Design with Master Section

A pillar creation

Tooling axis-

The tooling axis has been created by using the master section. In this challenge, we have two master sections.

“Master section-

Master Sections are the guides for design requirements that shape the component after technical styling of Class A Surfaces

master section gives the idea for thickness. Tooling axis”

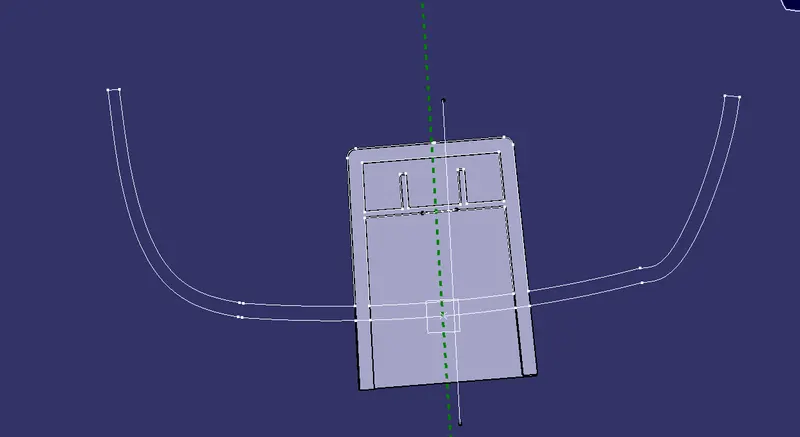

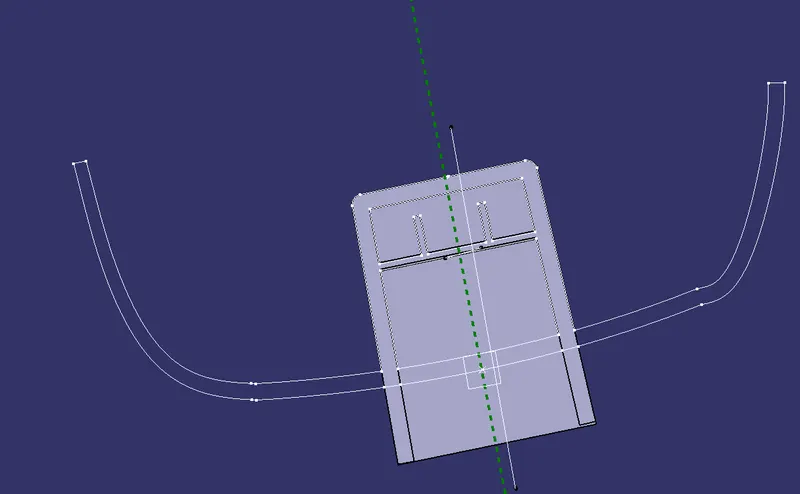

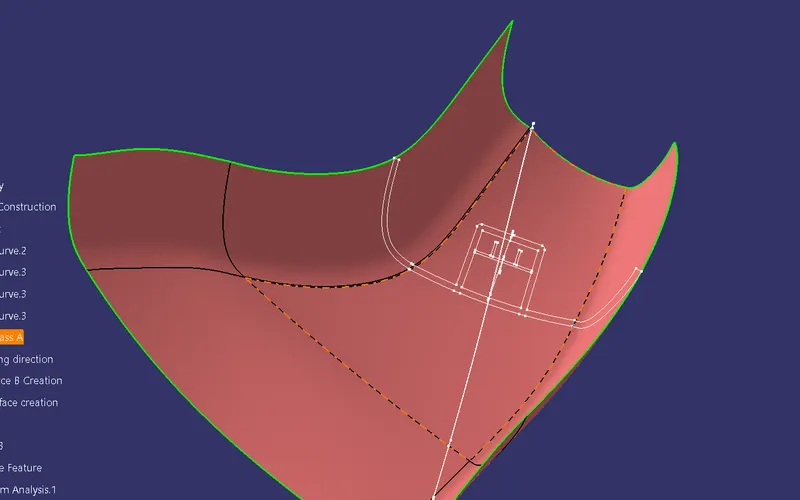

Using the cross master section we create lines using point to point method after that using the bisection method I draw a line between them. A similar process was performed for the Diagonal master section and we got two lines later we bisect these into lines and get the tooling axis. After finding the axis I perform a Draft analysis for the Class A surface.

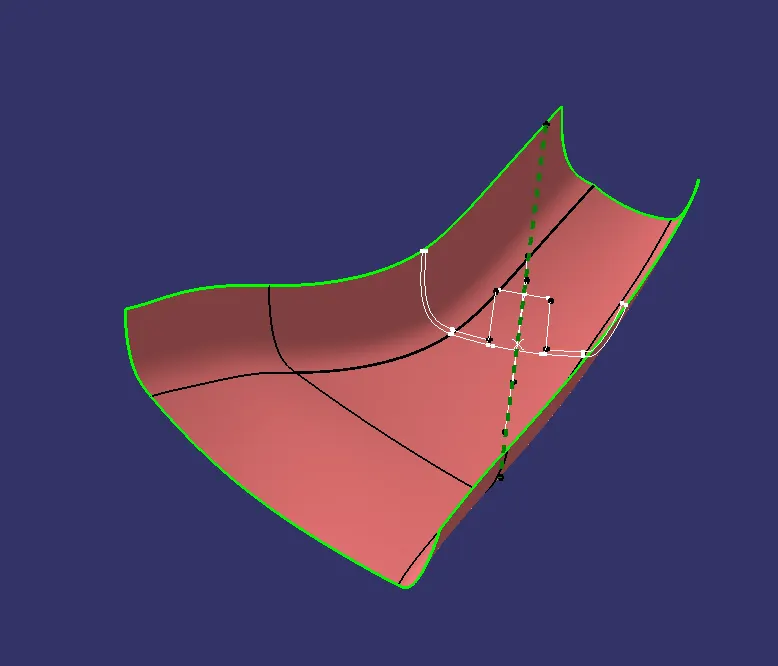

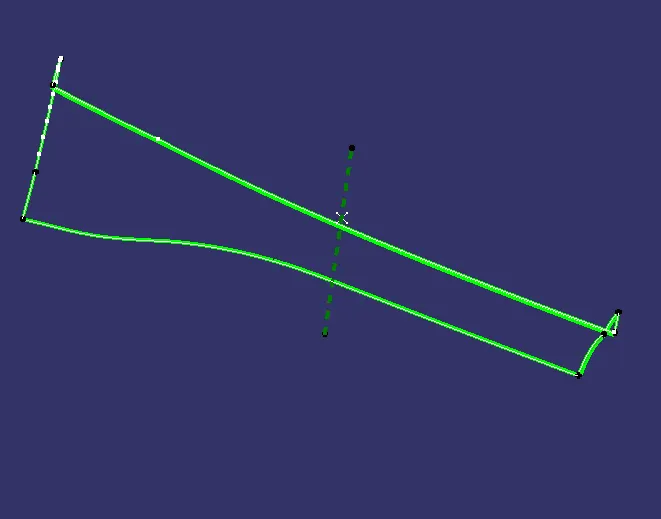

green is the tooling axis which bisects both lines.

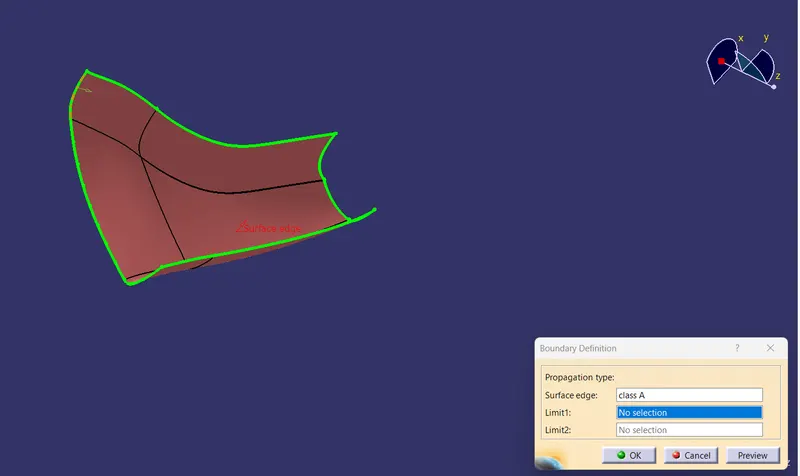

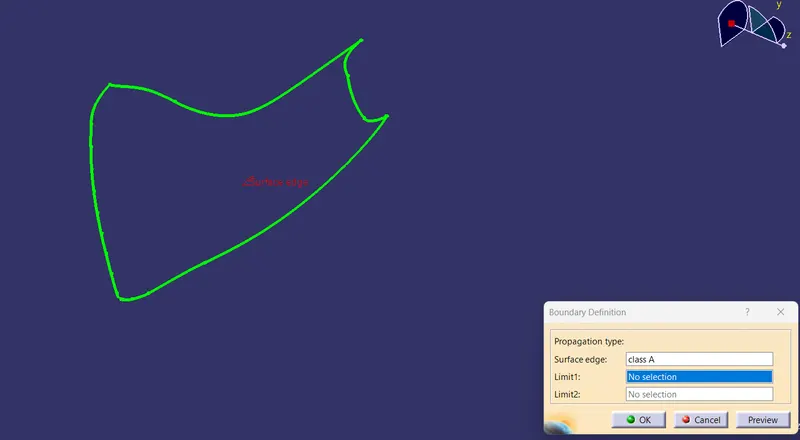

Before the Draft analysis quality of the class, a surface must be checked by using the boundary command (must be one continuous boundary is there)

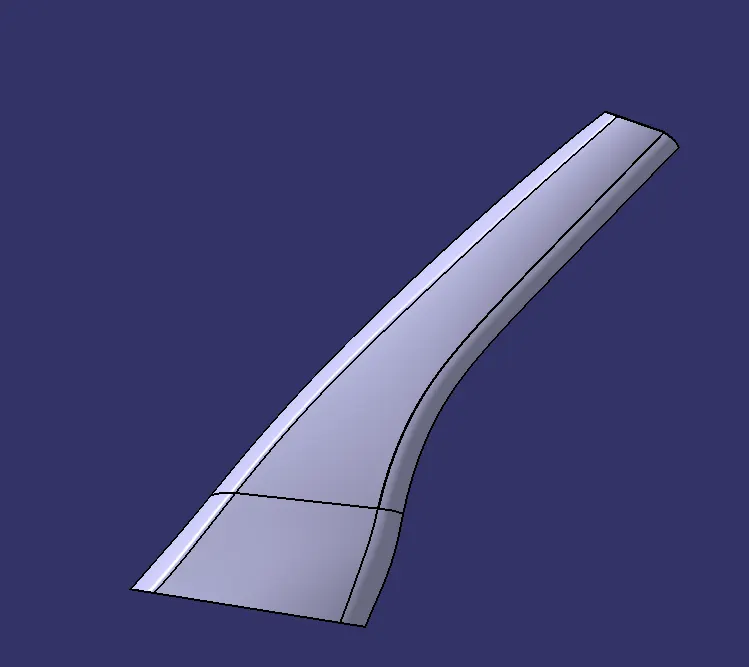

The quality of this Class A is Good

After this go to the draft analysis

Insert + analysis + Draft Analysis

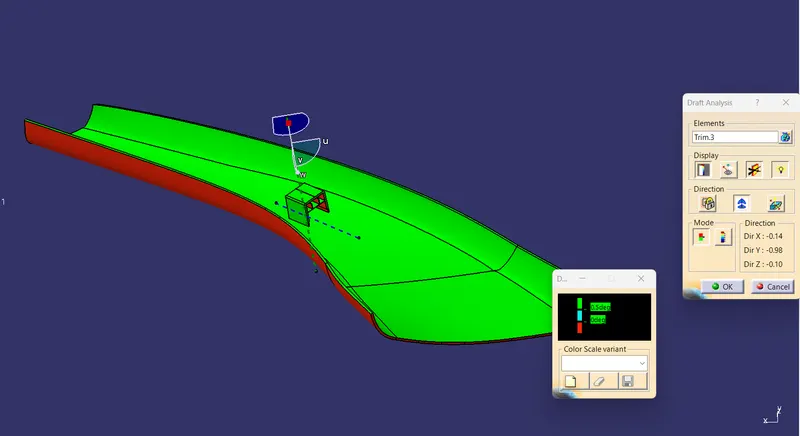

Drag the campus on the tooling axis and select the surface. And do the analysis at 3 deg.

Report on draft Analysis

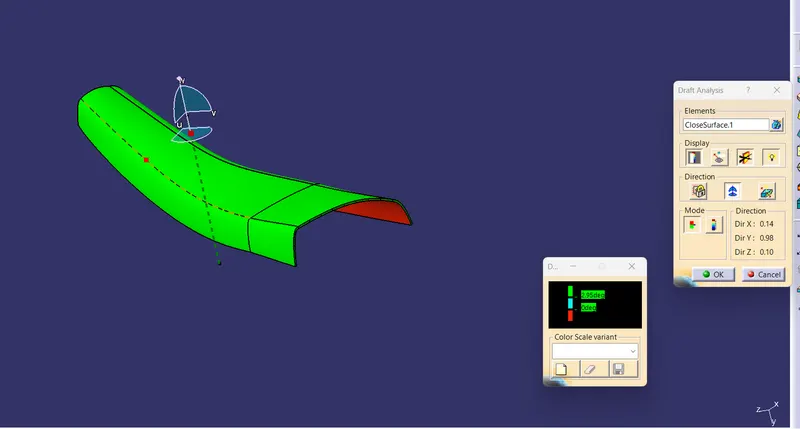

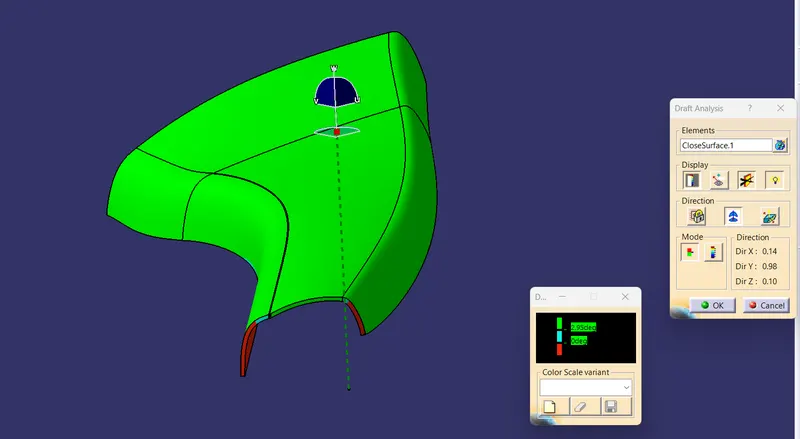

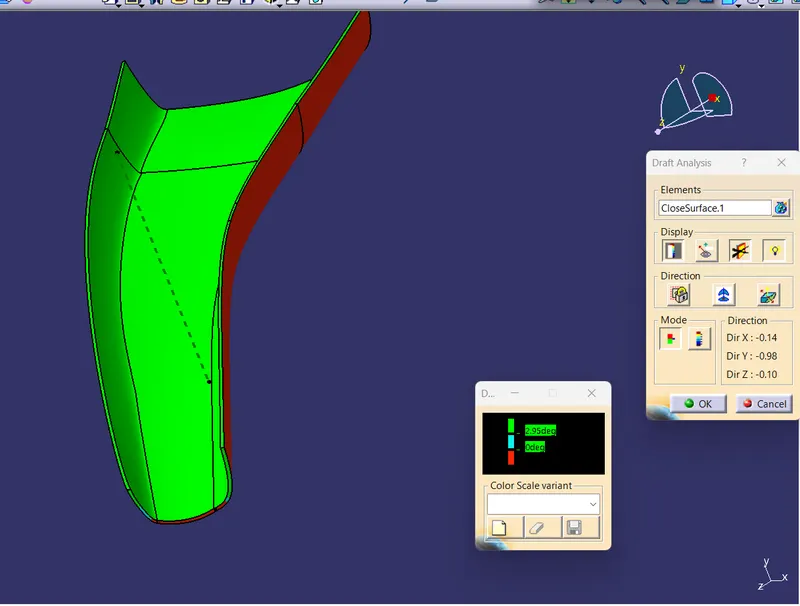

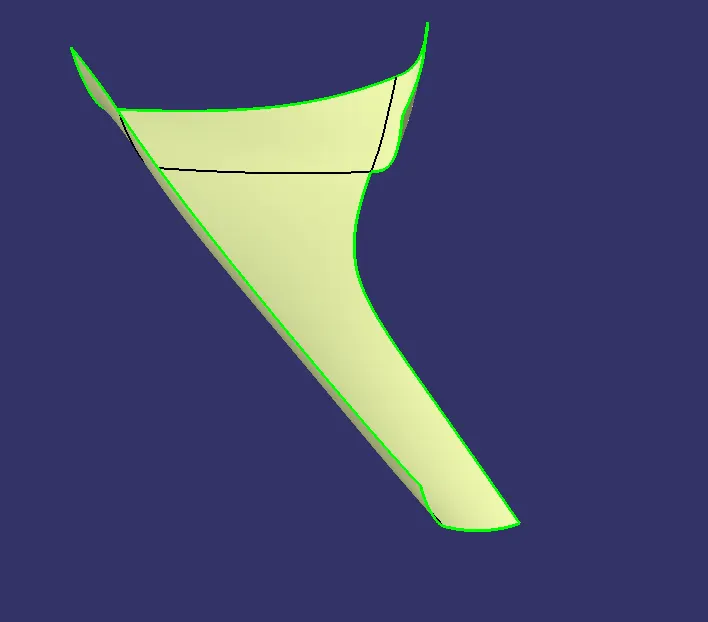

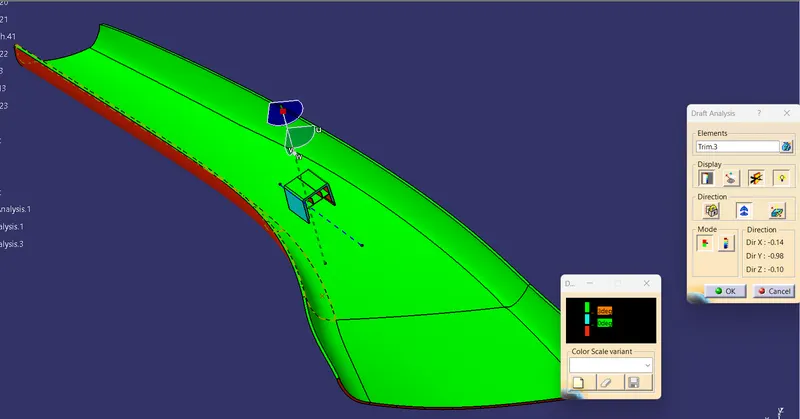

Class A surface clearing the Draft Analysis

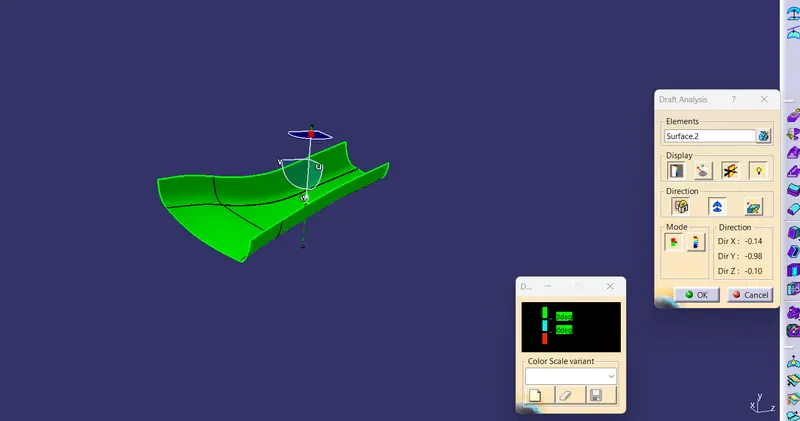

Class B Surface Clearing the Draft analysis at 2.90 deg.

B Side feature Clearing the Draft Analysis At 0.45 deg.

tooling axis for Side core-

draft analysis

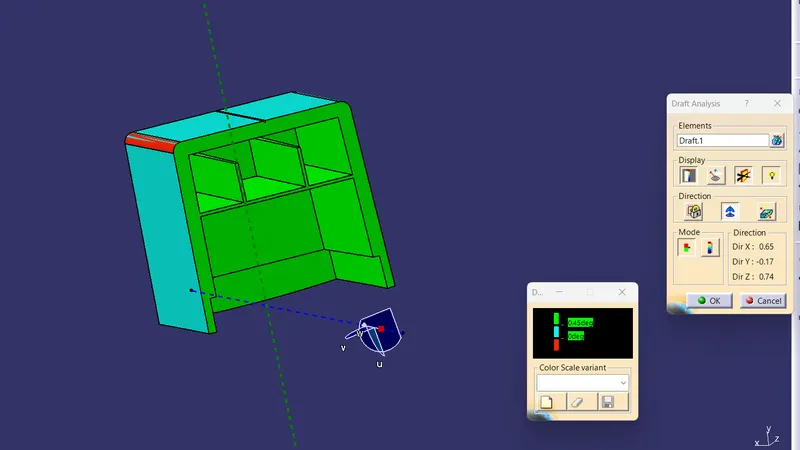

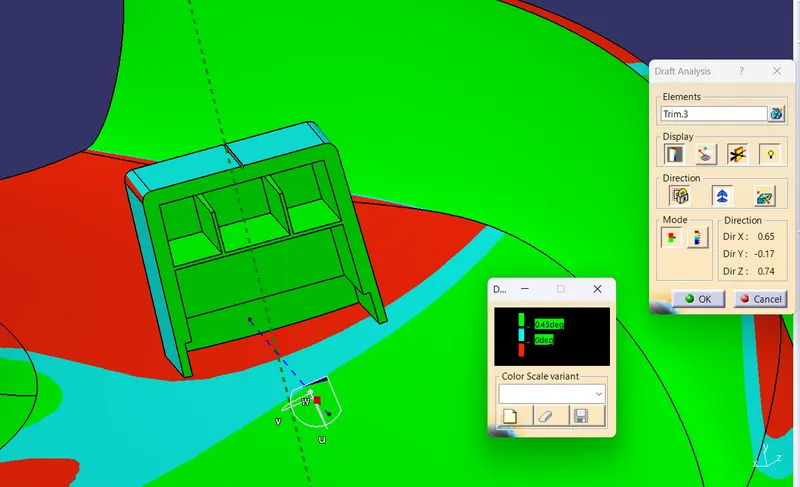

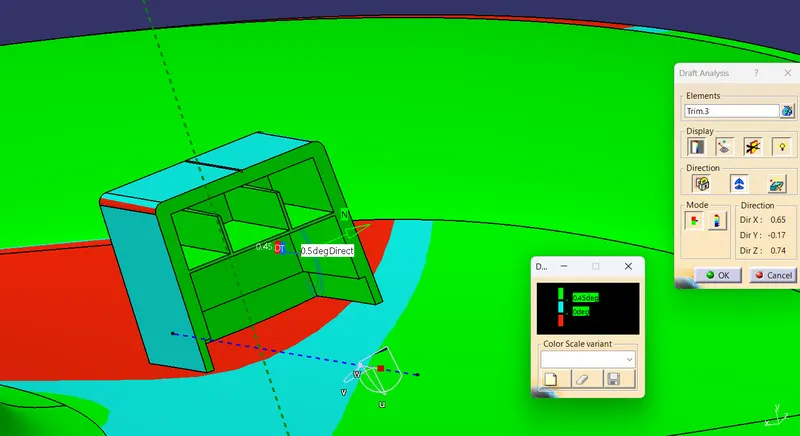

Side core tooling axis draft analysis 0.45deg.

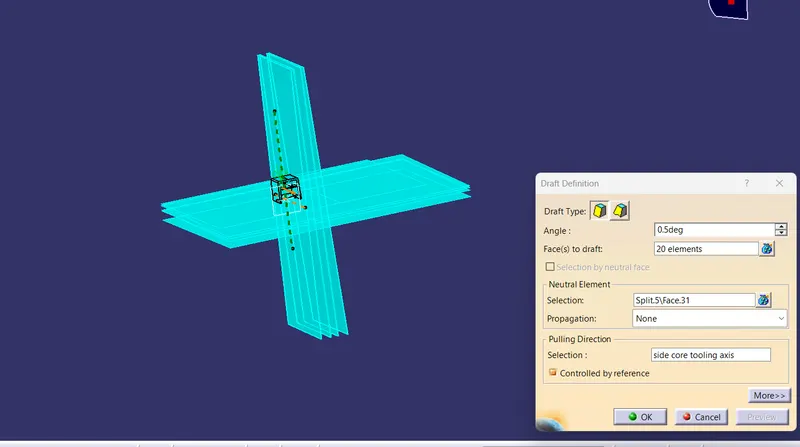

B side Feature clearing draft analysis in the main tooling direction

Clearing at 0.5 deg.

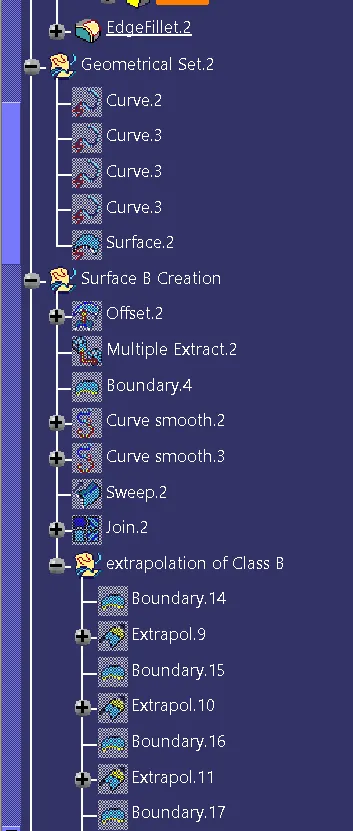

Class B surface Creation

offset 2.5mm

profile sweep

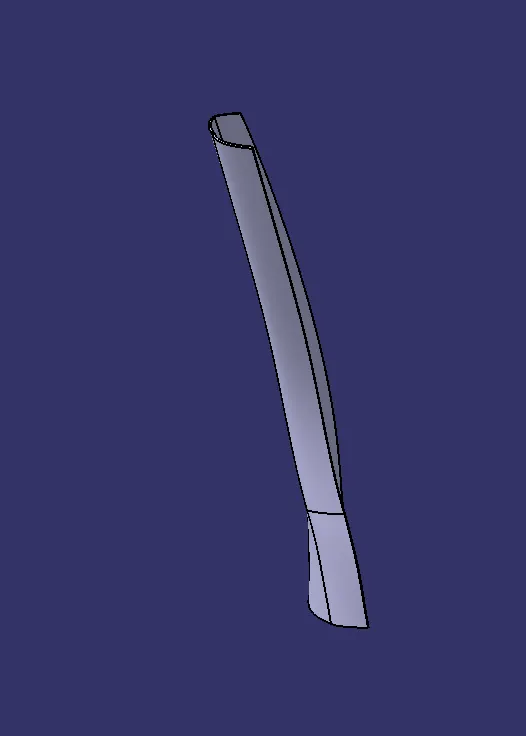

B surface

Class C Surface creation –

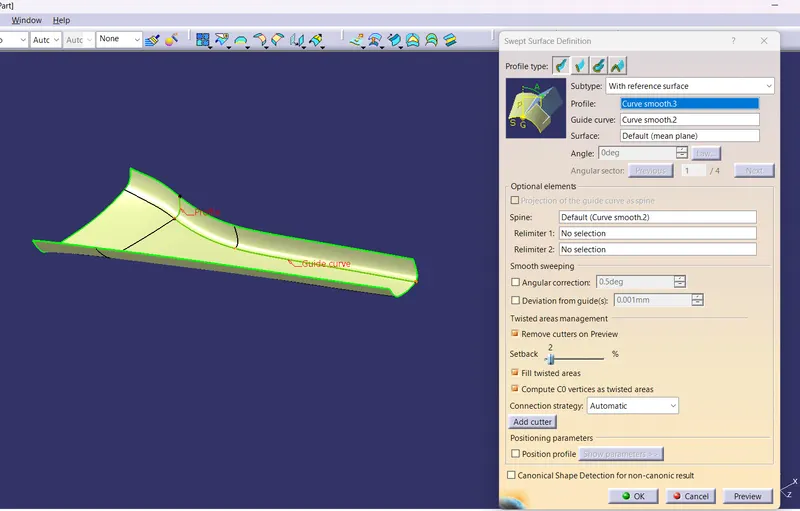

Using the Sweep command, I created the C surface with respect to Tooling Direction and Class A Surface. And also use the profile sweep command to create a C surface.

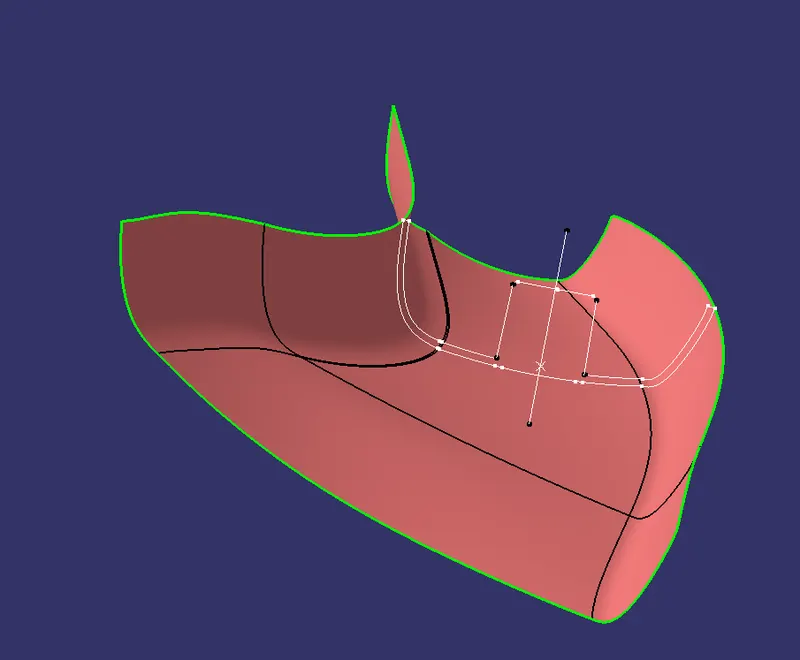

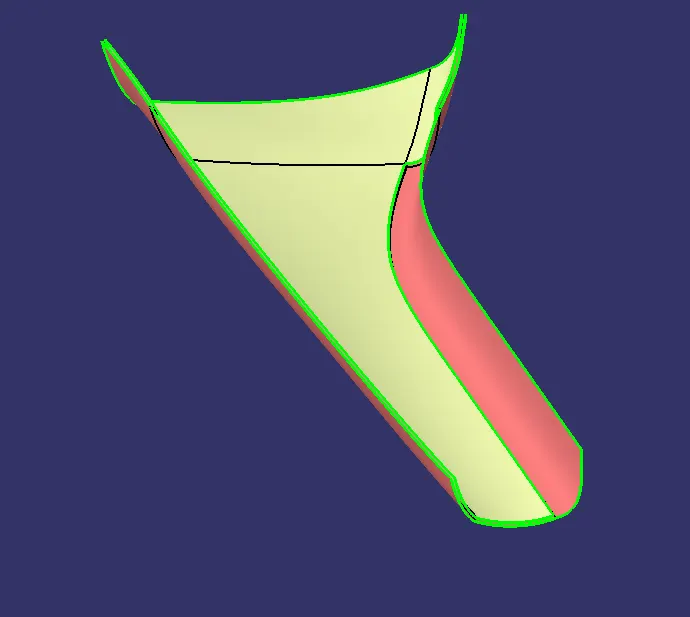

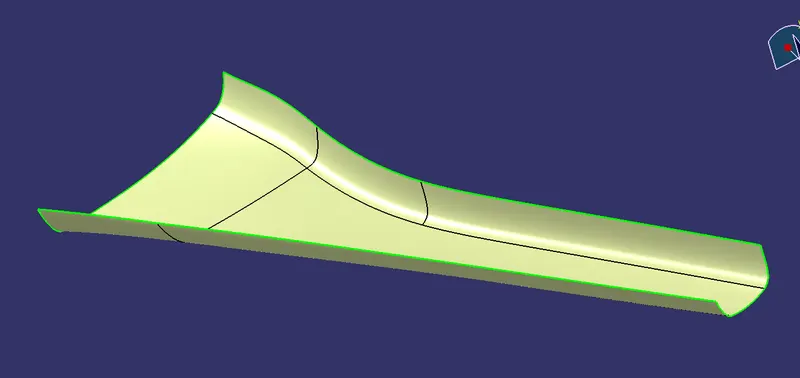

A+C

AC+B surface

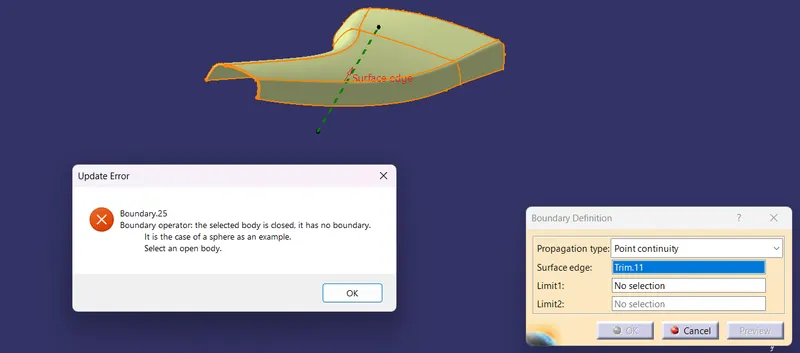

Boundary Check for the Close Surface. If there is any that needed to be troubleshot.

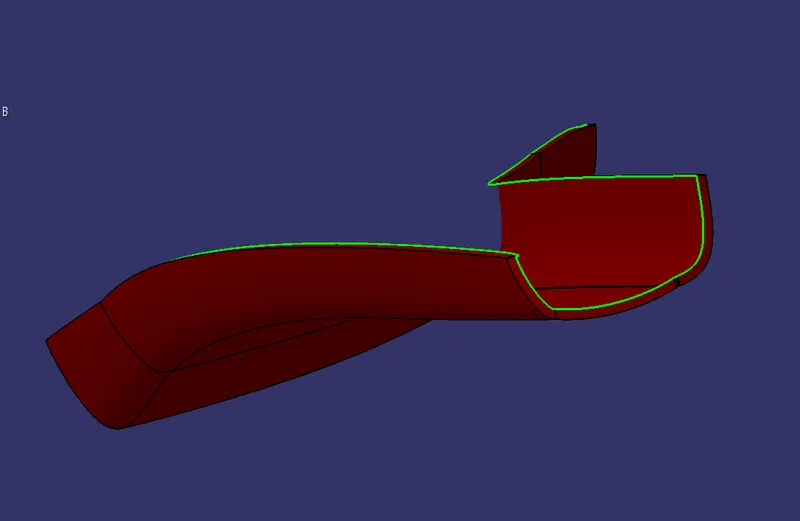

Now, this is A Close Surface.

B side feature

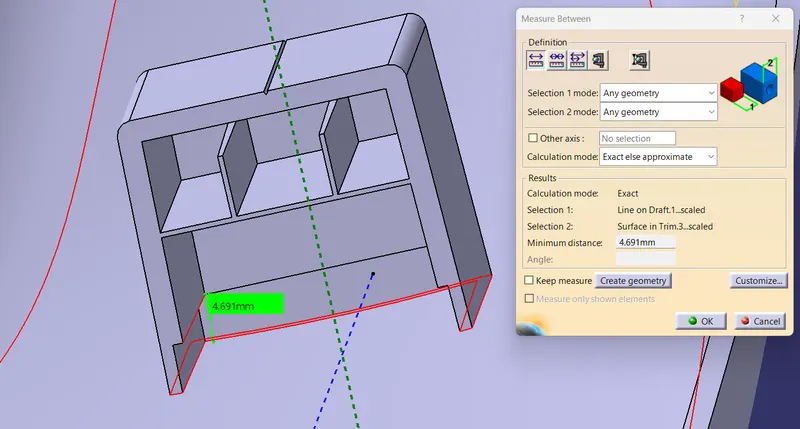

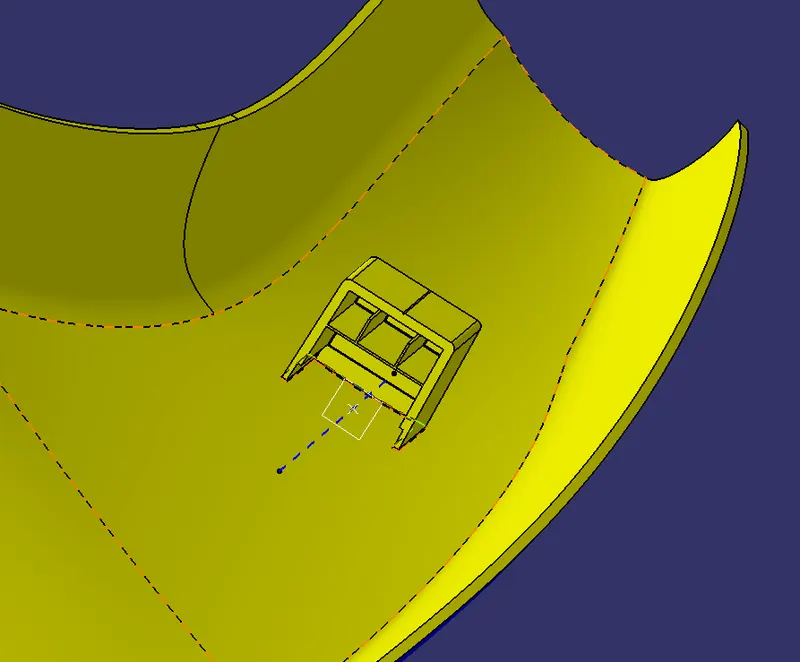

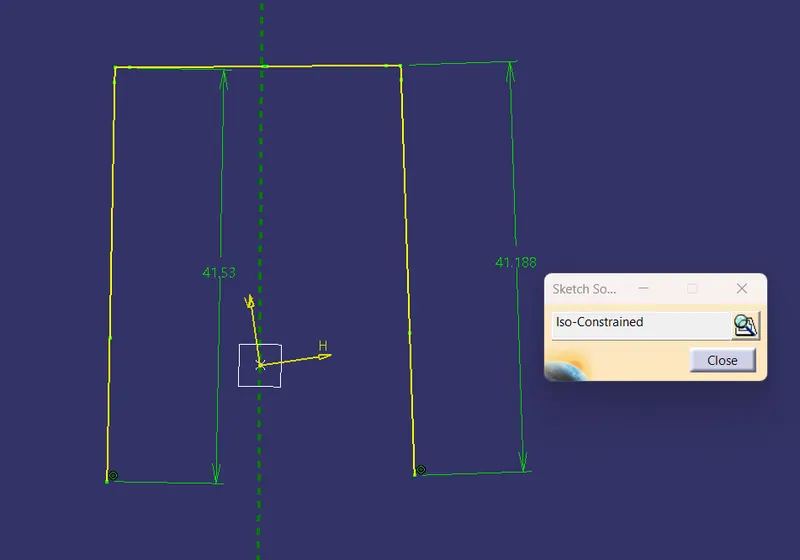

Dog house creation

Creating the dog house with the help of the Master Section.

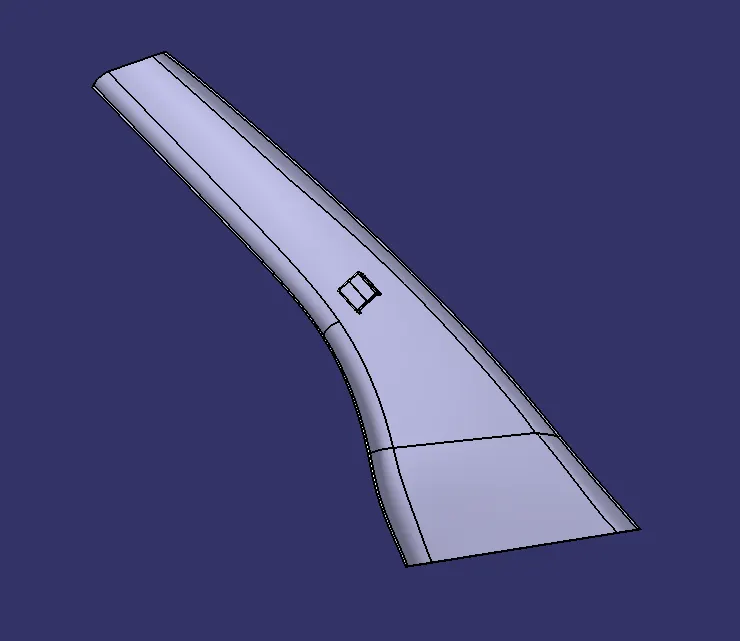

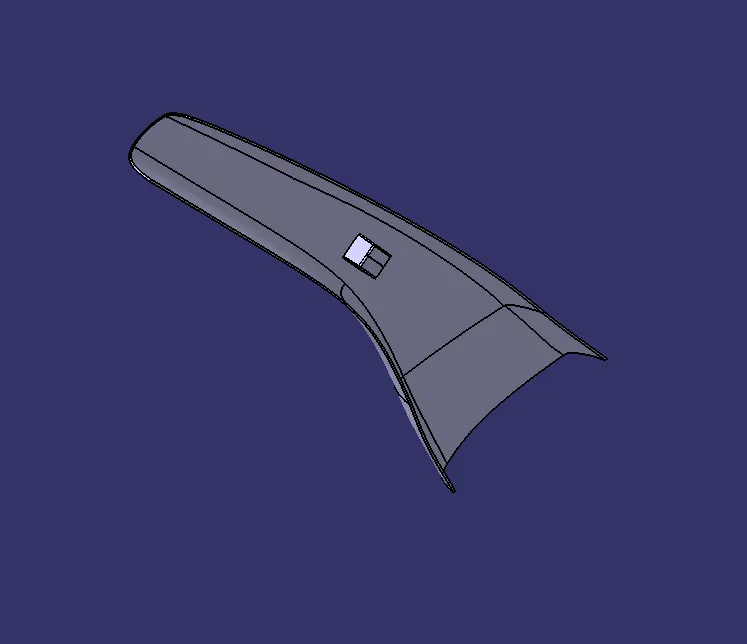

views

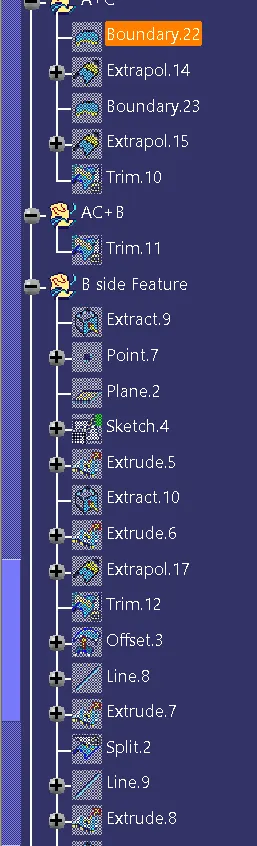

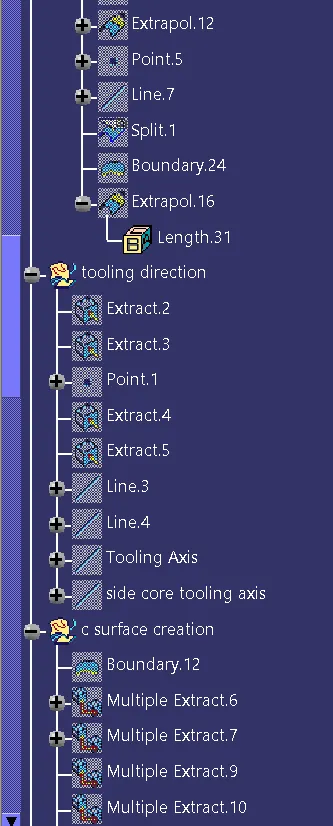

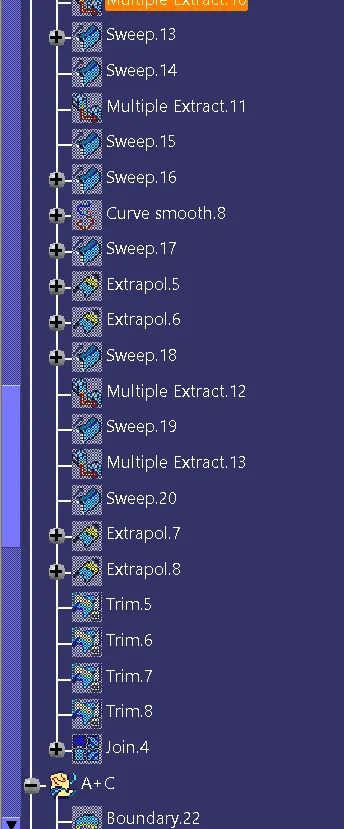

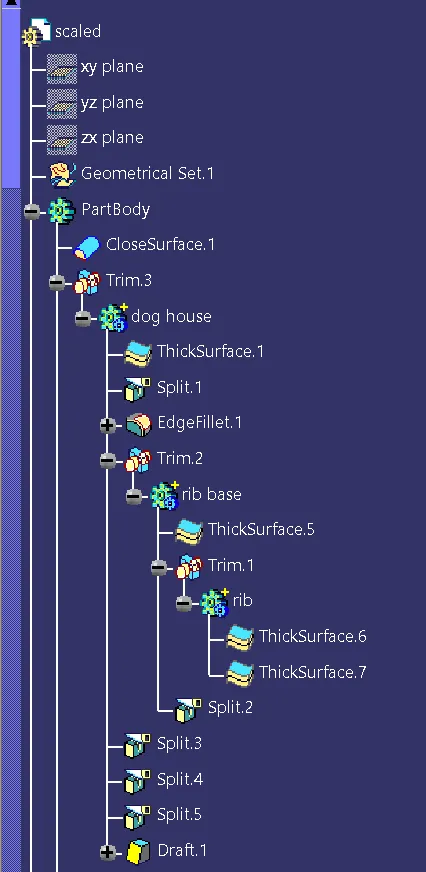

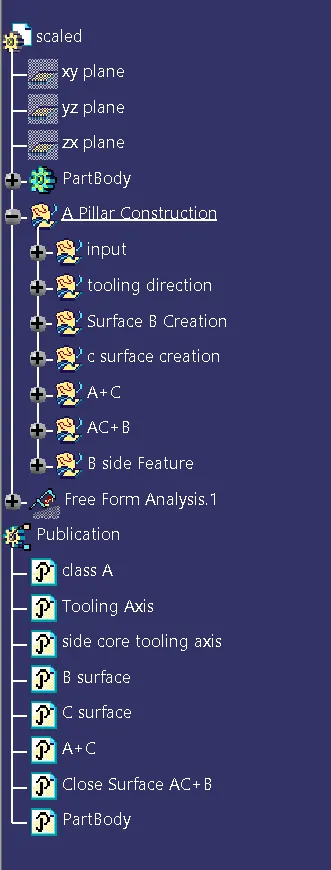

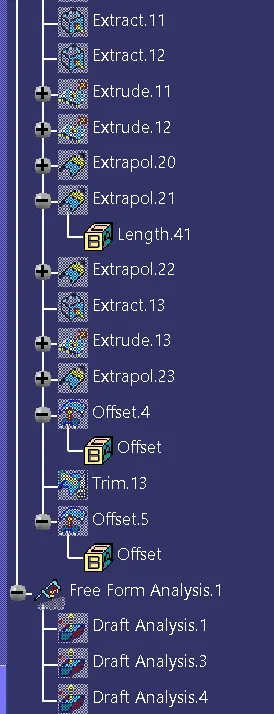

Tree
