Week 9 - Project - A pillar Design with Master Section

A PILLAR DESIGN WITH MASTER SECTION

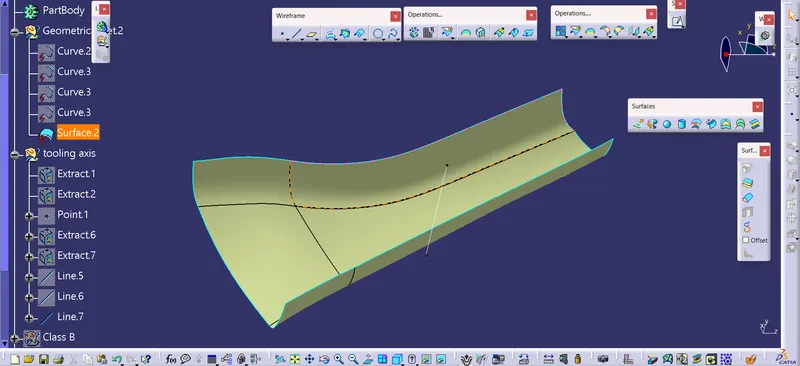

Step 1 - create the two lines with the master section, bisecting the line & create the tooling axis.

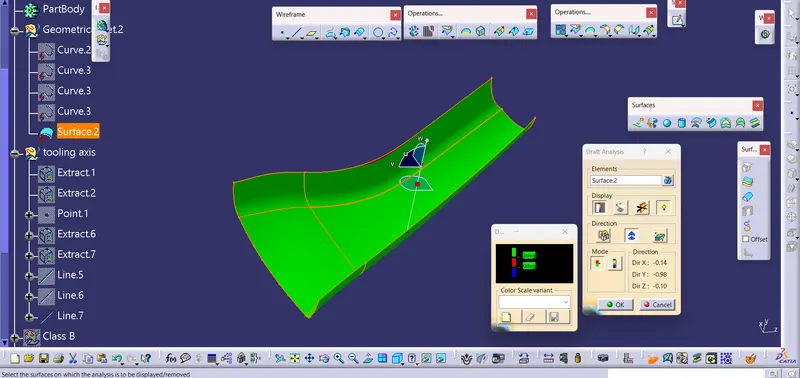

step 2 - Draft analysis done on Class A

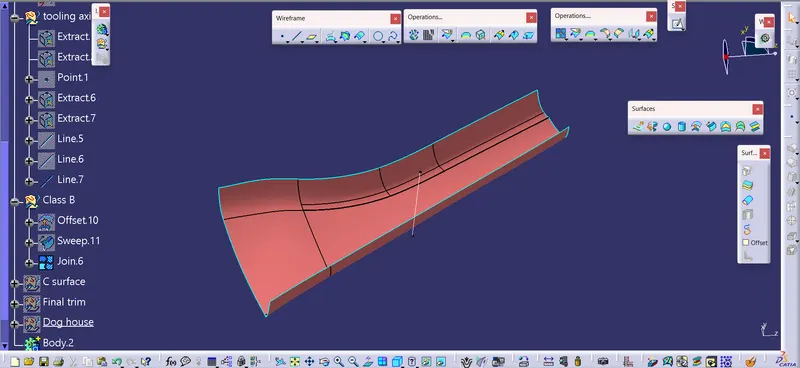

Step 3 - Create B surface offset form the class A surface as per master section.

Step 4 - create the class C surface with swept & multi section surfaces.

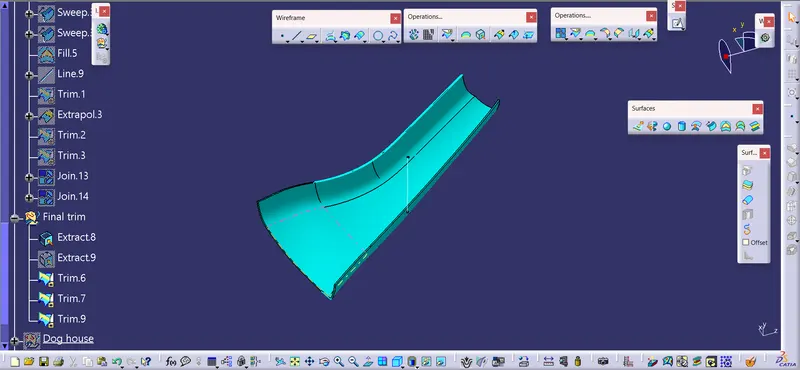

Step 5 - joining all surfaces to create a closed body

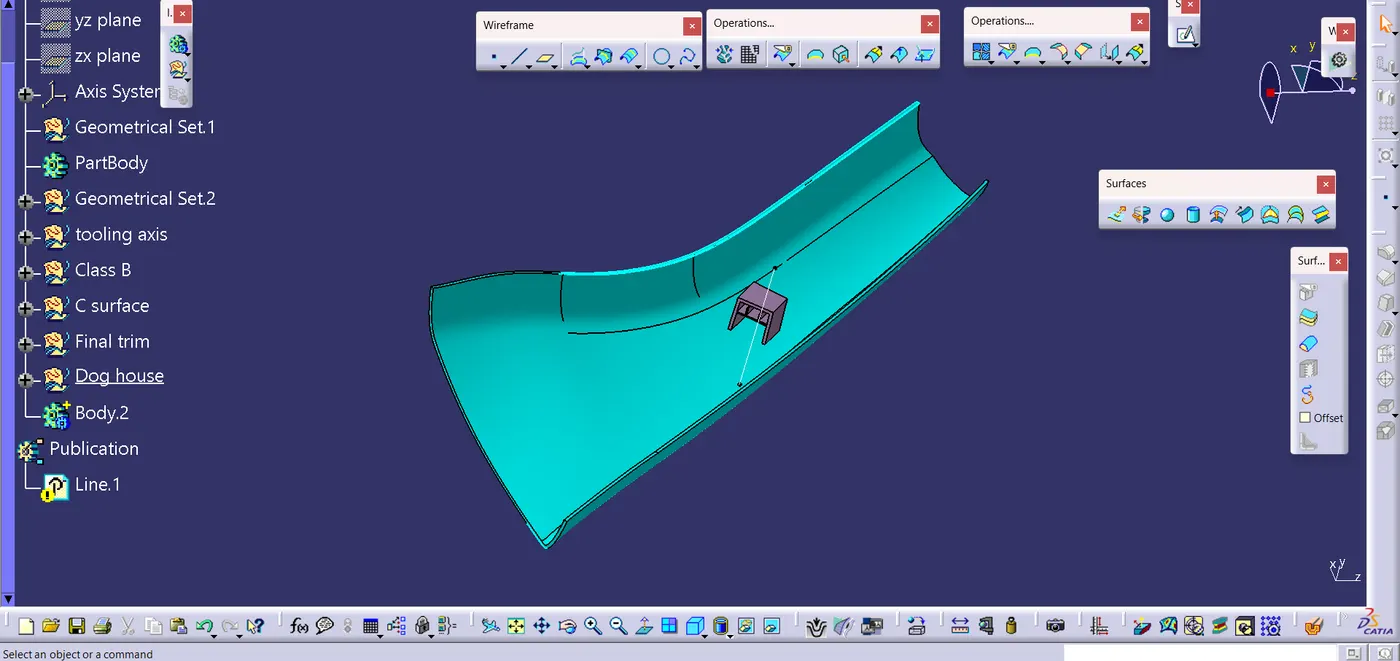

Step 6 - Marking of dog house using extrude of given curves and thick surfaces
