Week 9 - Project - A pillar Design with Master Section

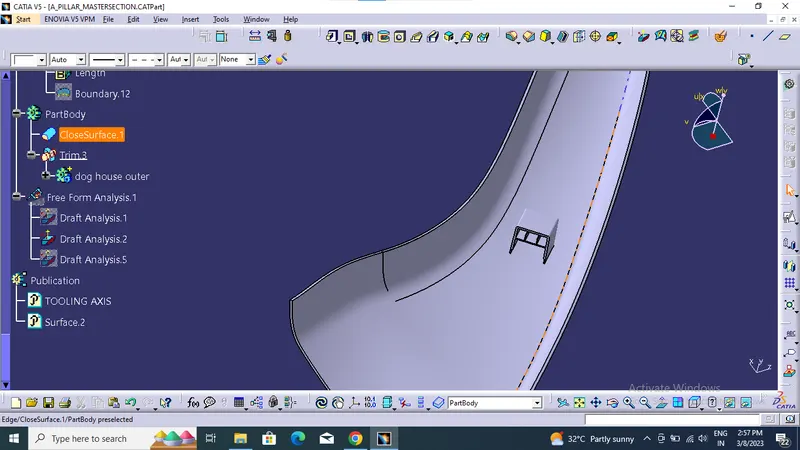

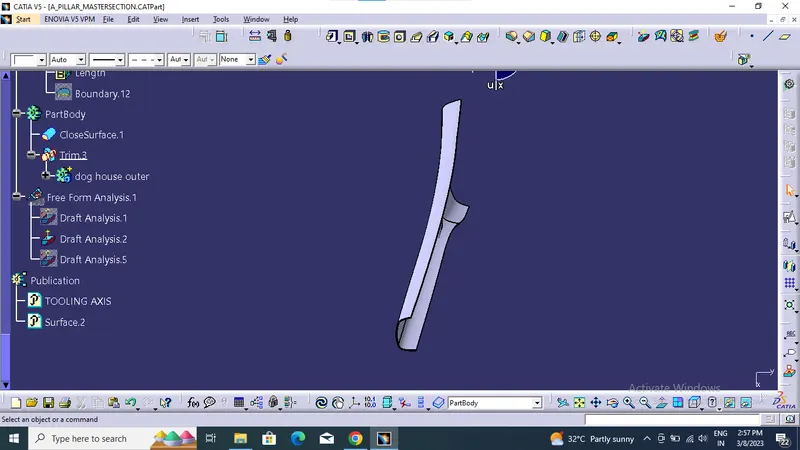

ISOMETRIC VIEW

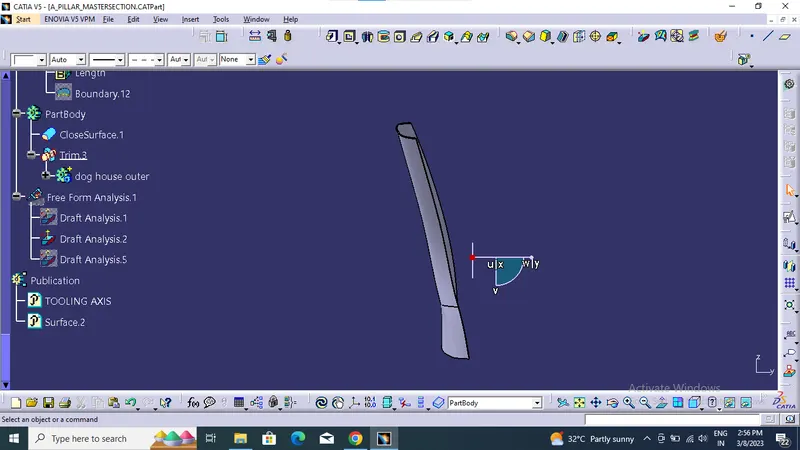

SLIDE VIEW

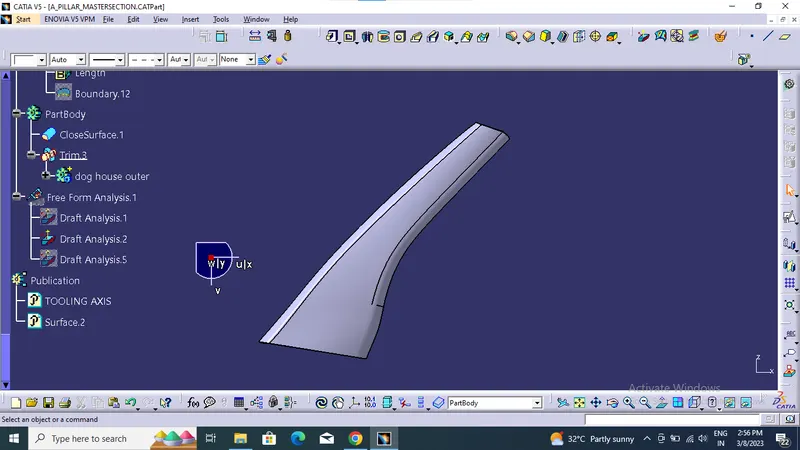

FRONT VIEW
TOP VIEW
DRAFT ANALYSIS

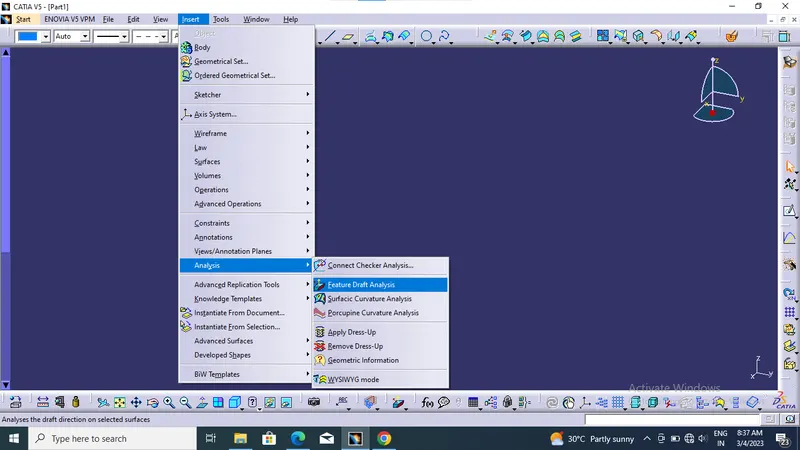

STEP 1 INSERT > ANALYSIS> FEATURE TO DRAFT ANALYSIS

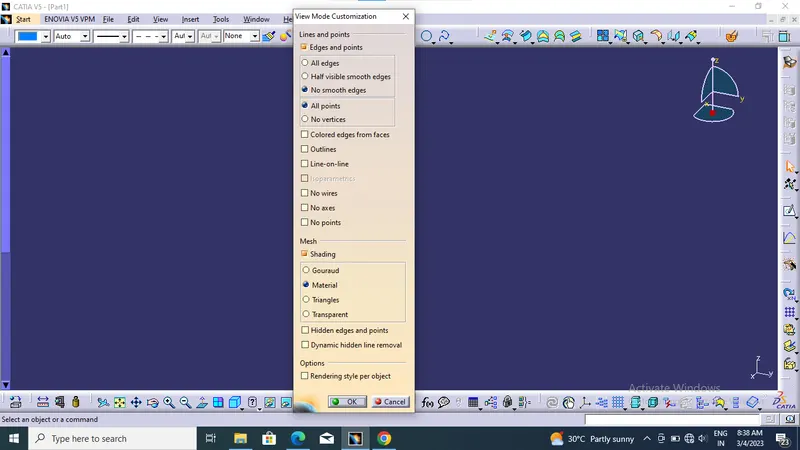

STEP 2 ENSURE THE MATERIAL SELECTION

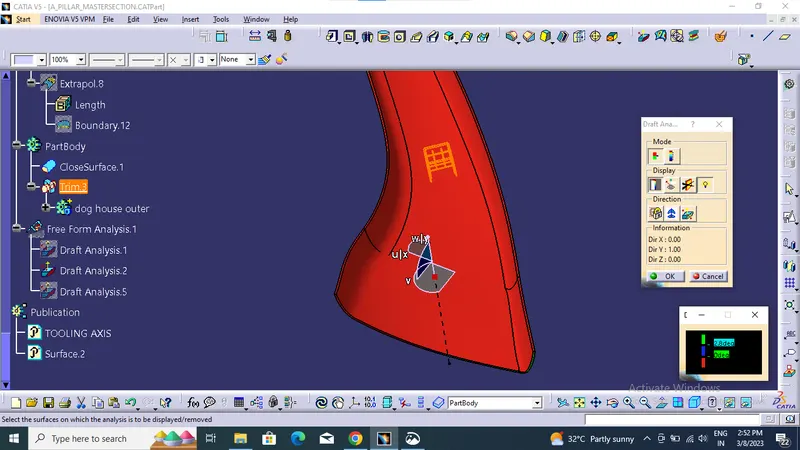

DRAFT ANAYSIS ON CLOSED B0DY

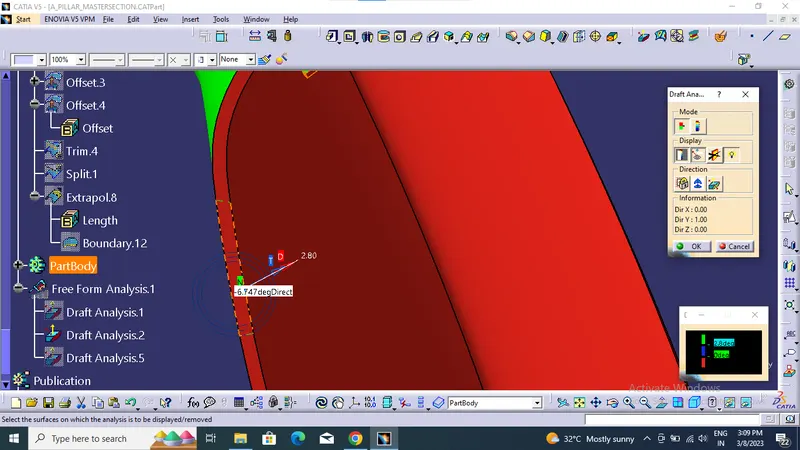

A SURFACE AND B SURFACE ARE CLEARING AT 2.9 DEGREE DRAFTING BUT C SURFACE ARE CLEARING THAT EXPLAIN AT BELOW DIAGRAM
THE C SURFACE IS CREATE BY REFERENCE SURFACE IN SWEEO AT ANGLE OF 93 ALSO INCREASE AND DECREASE THE DEGREE BUT DRAFT ANALYSIS NOT CLEARING AT SPECIFIC GEOMETRY

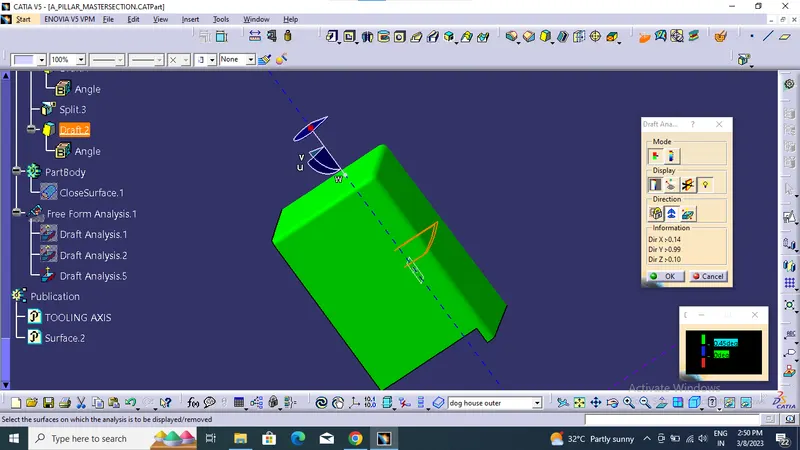

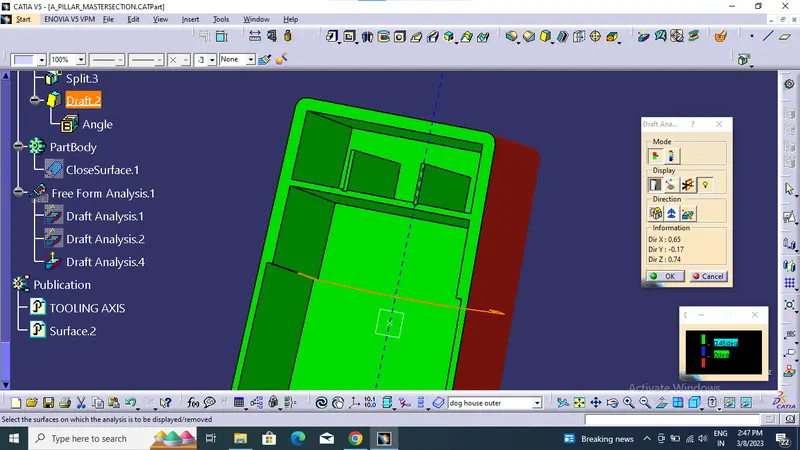

DRAFT ANALYSIS FOR DOG HOUSE
DRAFT ANALYSIS MADE BY MAIN TOOLING AXIS FIR DOG HOUSE USING BISECTING LINE AND SLIDE CORE ARE CLEARING AT 0.45 DEGREE

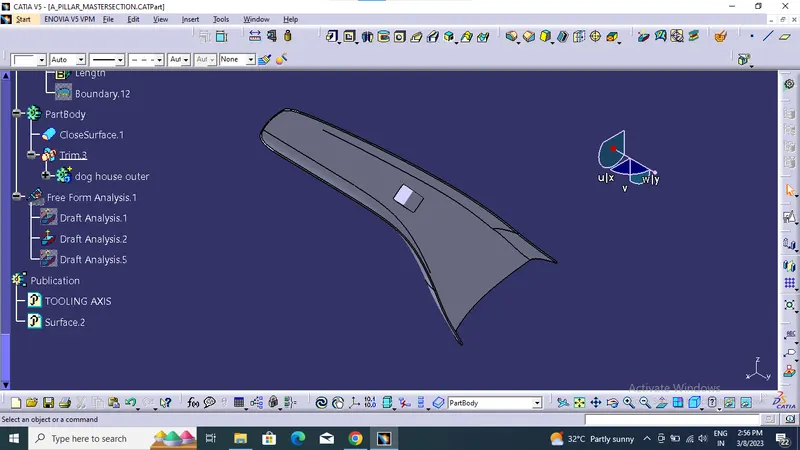

FINAL SOLID PART
