Week 9 - Project - A pillar Design with Master Section

A PILLAR DESIGN:

AIM: To design A -PILLAR , from the given input mastersection and CLASS A surface.

OBJECTIVE: The main objective of the project is to create a solid body from the given class A surface and the master sections, and performs draft analysis in the various stage of design

A SURFACE which is the aesthetic surface is provided which sholud be thicken with c surface and b surface :

B SURFACE IS CREATED BY OFFSETTING TO 2.5MM ON THE DOWNWARDS TO THICKEN THE COMPONENT:

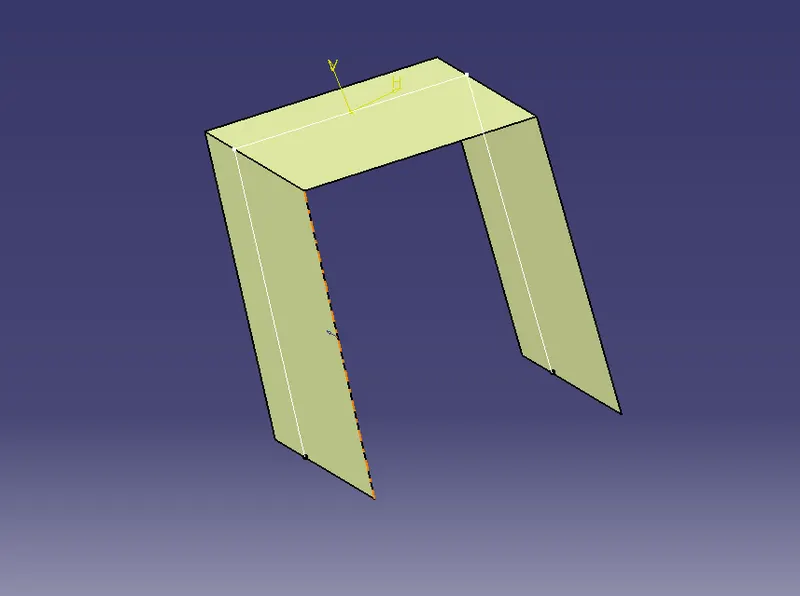

C SURFACE WHICH IS THE COMPOUND SURFACE GOING TO ATTACH WITH A SURFACE:

C AND A SURFACE Trimmed together:

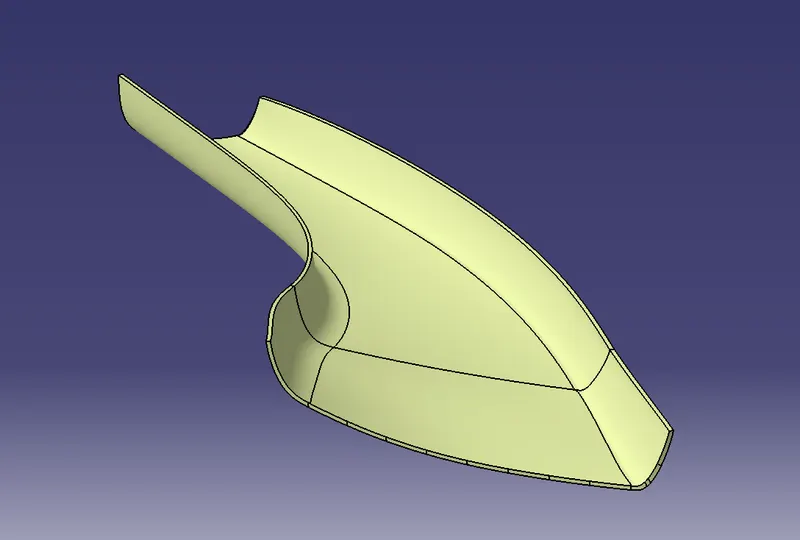

A,B and C surface joined together:

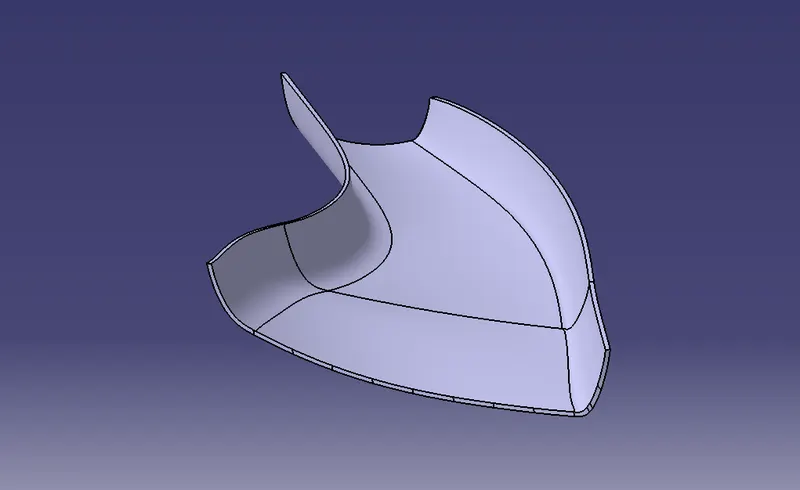

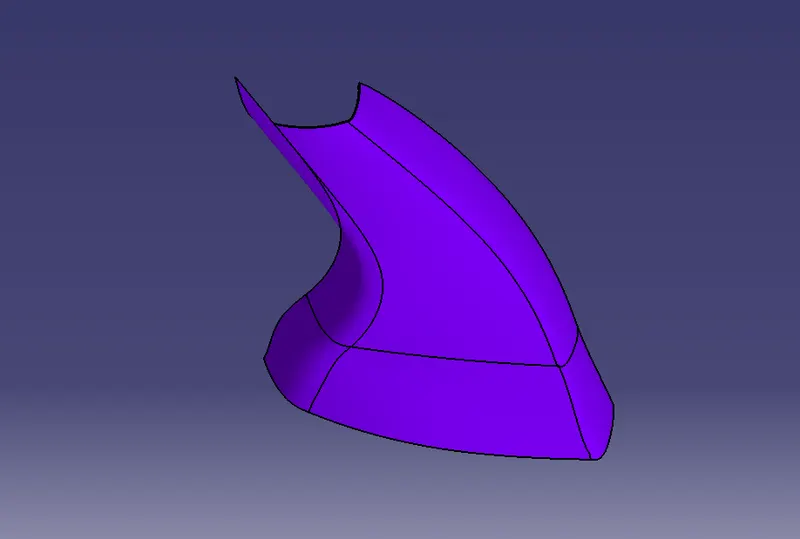

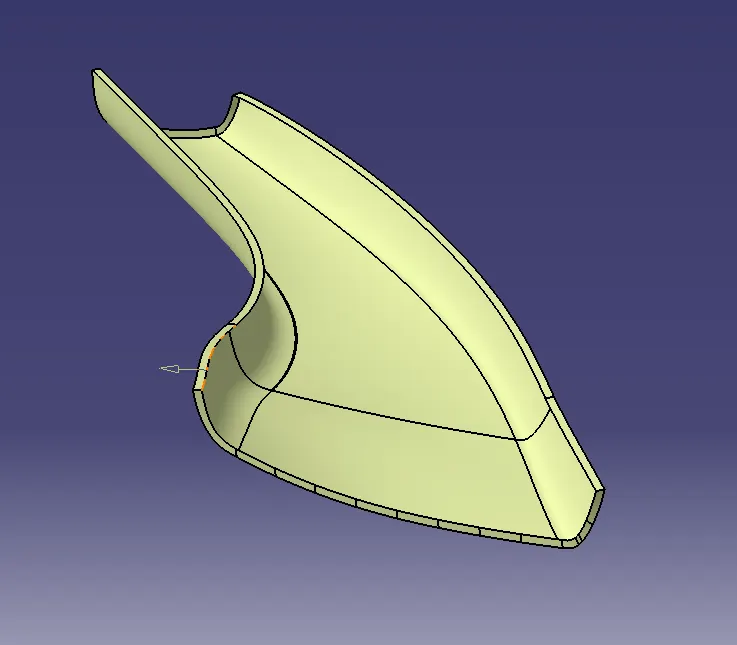

thicken body:

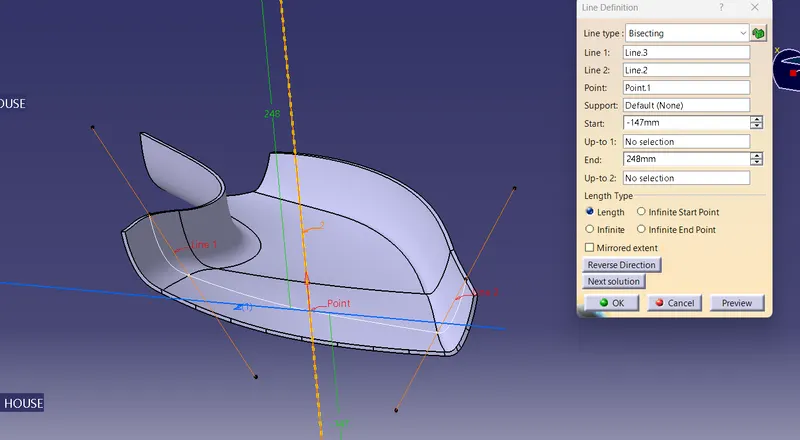

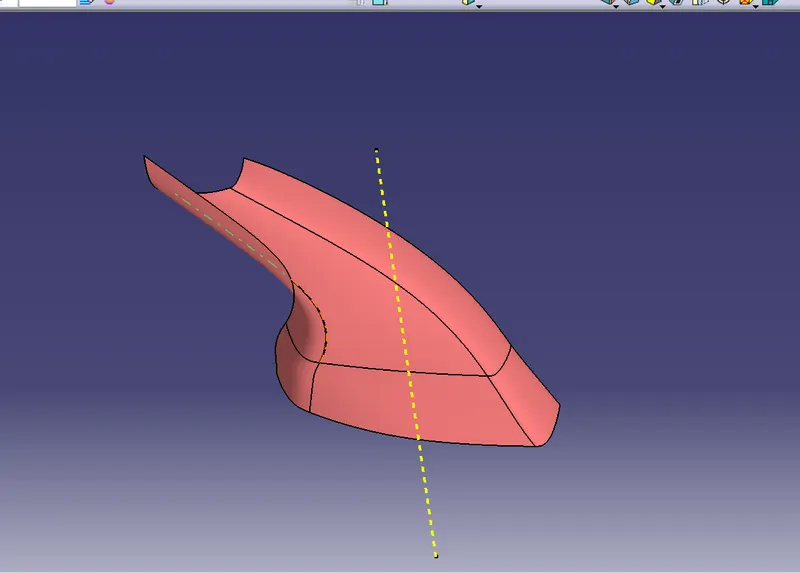

tooling axis creation:

• using bisecting method we can create the tooling axis .

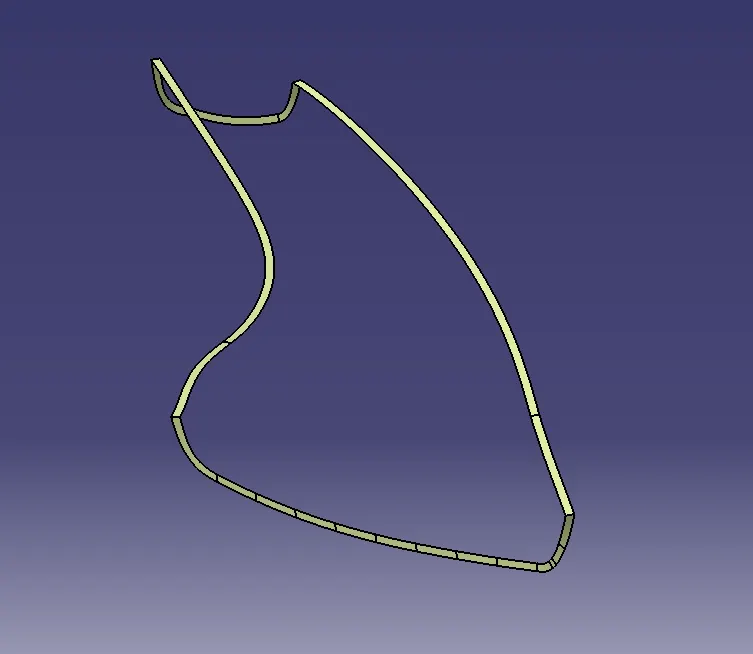

• creting the intersection line by using thicken body with the plane parallel to each other.
• creting the two lines by using the two end point at both the sides .
• the bisecting method is used to create the tooling axis in the middle of the body.

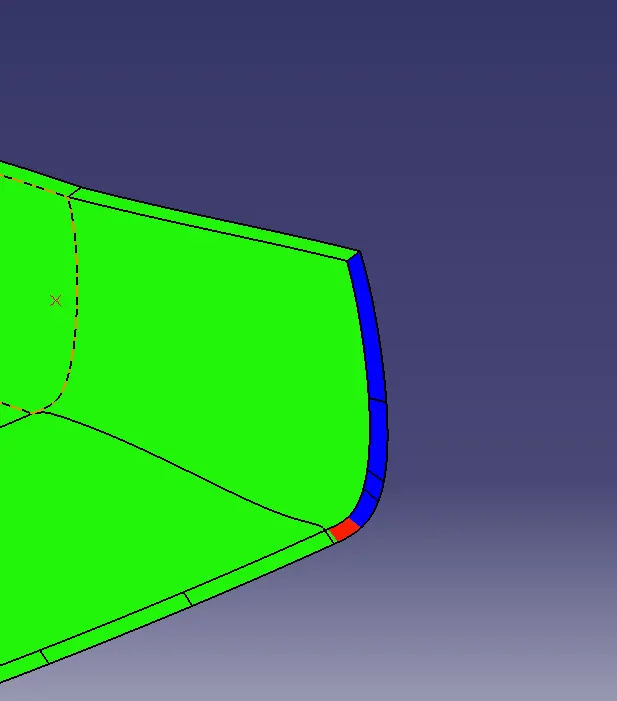

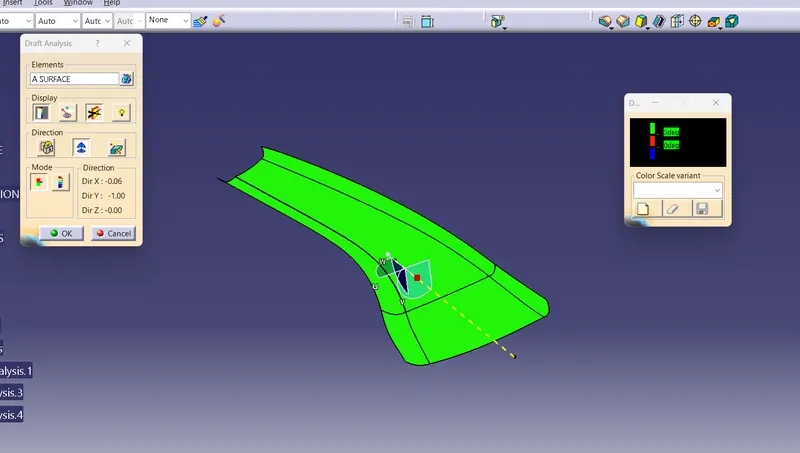

Draft analysis of A surface:

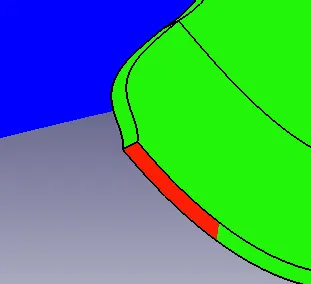

undercuts are there because small curvature is not properly drafted on a surface:

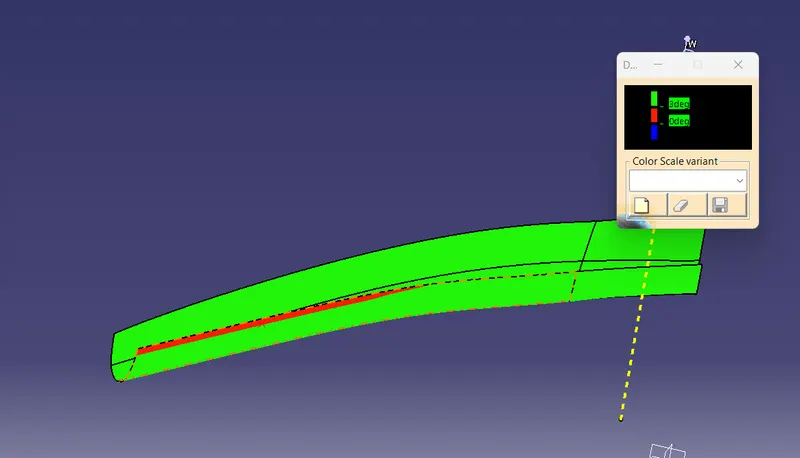

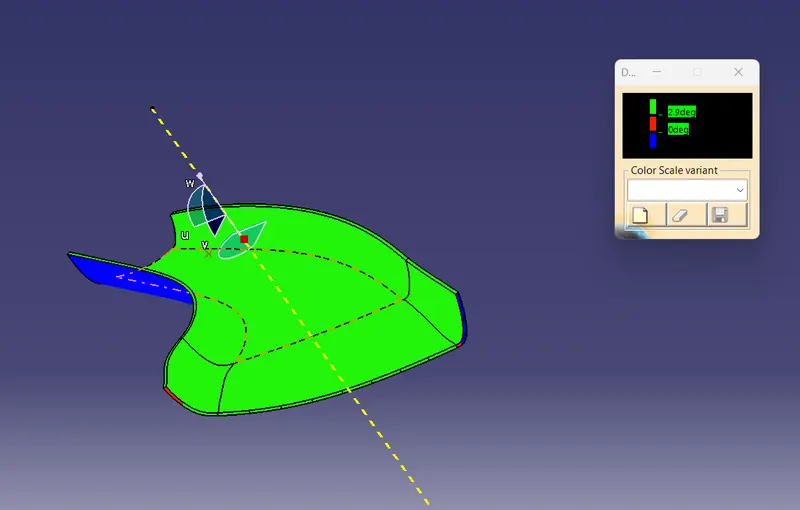

draft analysis of closed body:

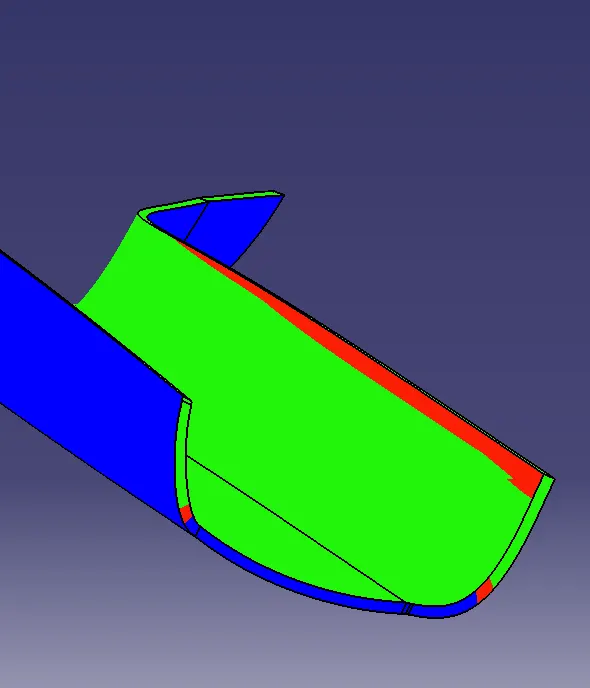

these undercuts are because of curavature is not drafted in the A Surface (Aesthetic surface)

creation of b side features :

Dog house creattion:

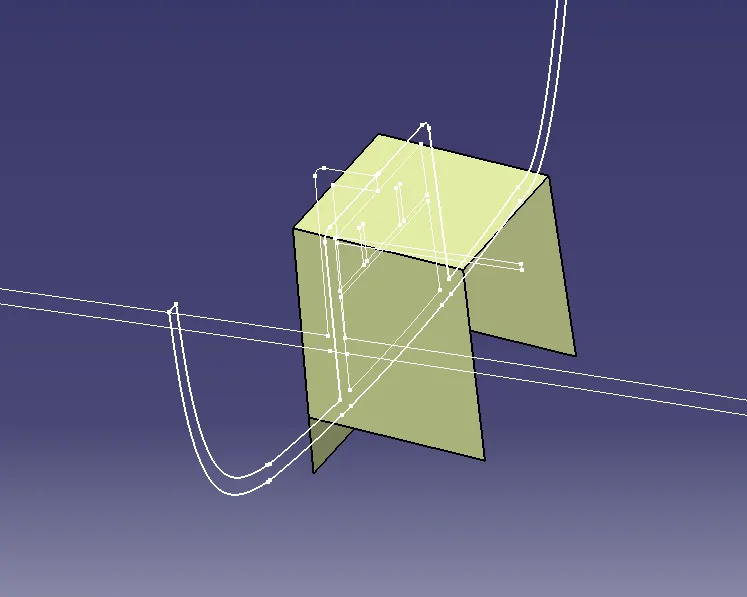

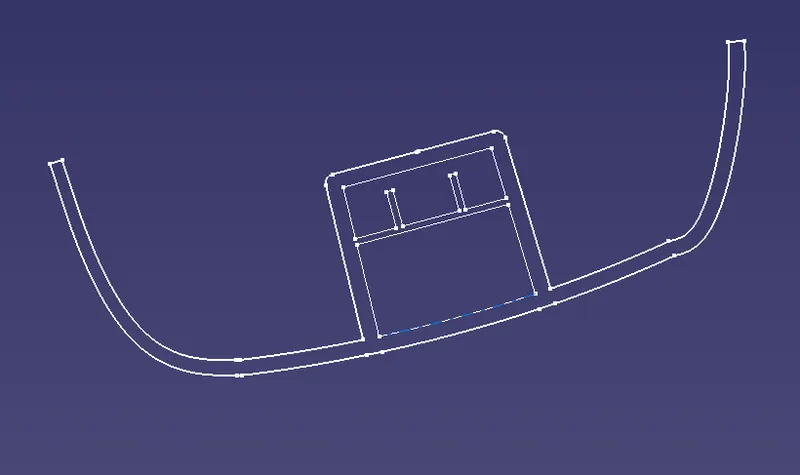

fig point of view: master section of dog house

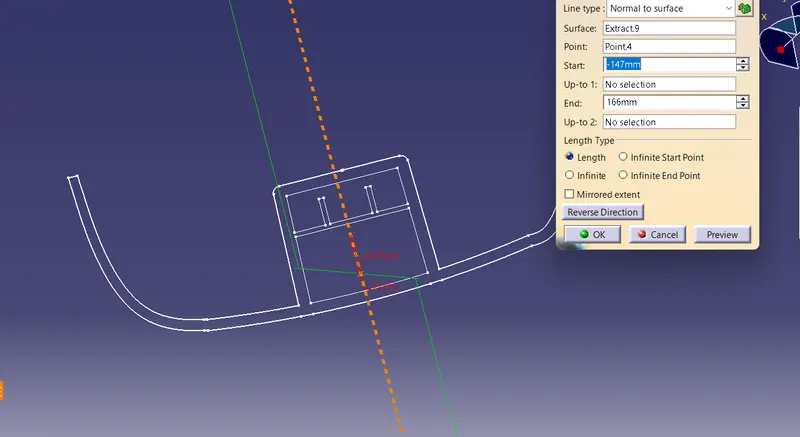

tooling axis creationg for dog house:

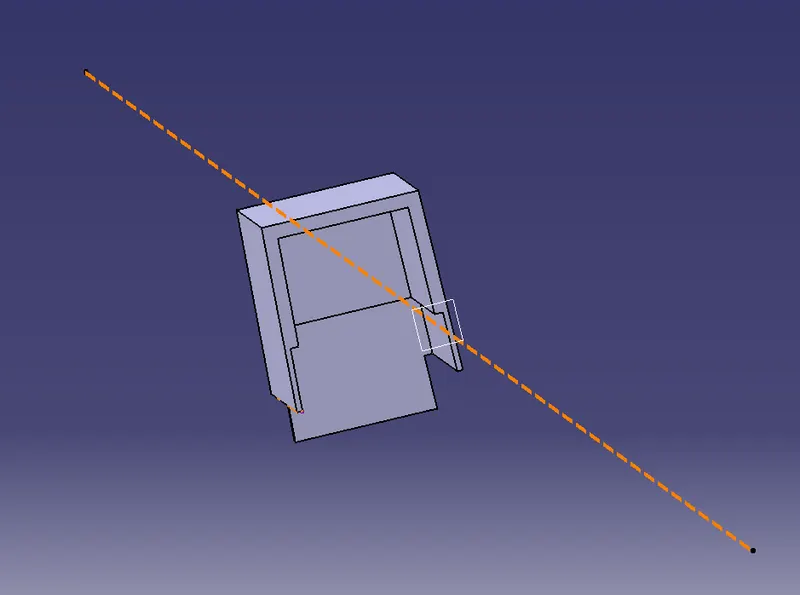

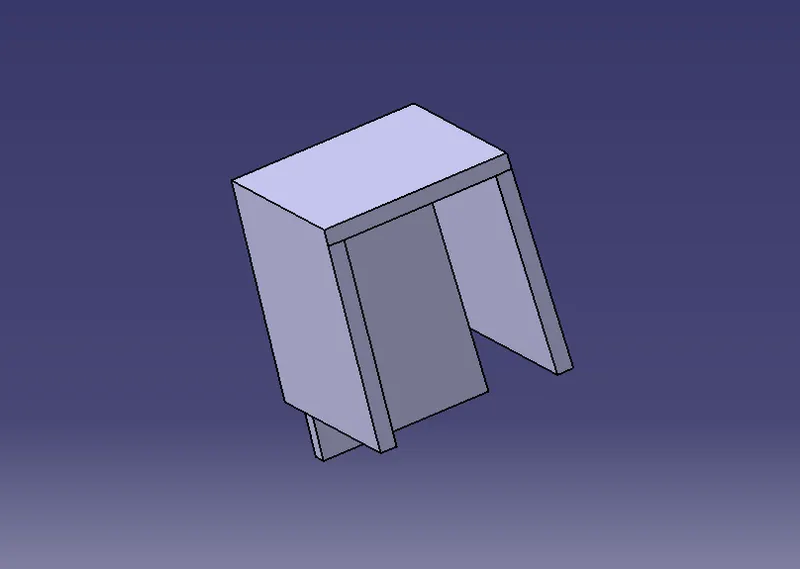

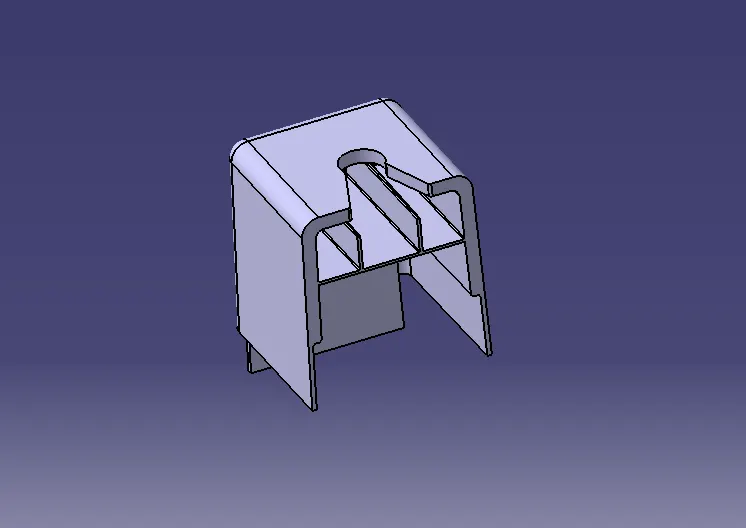

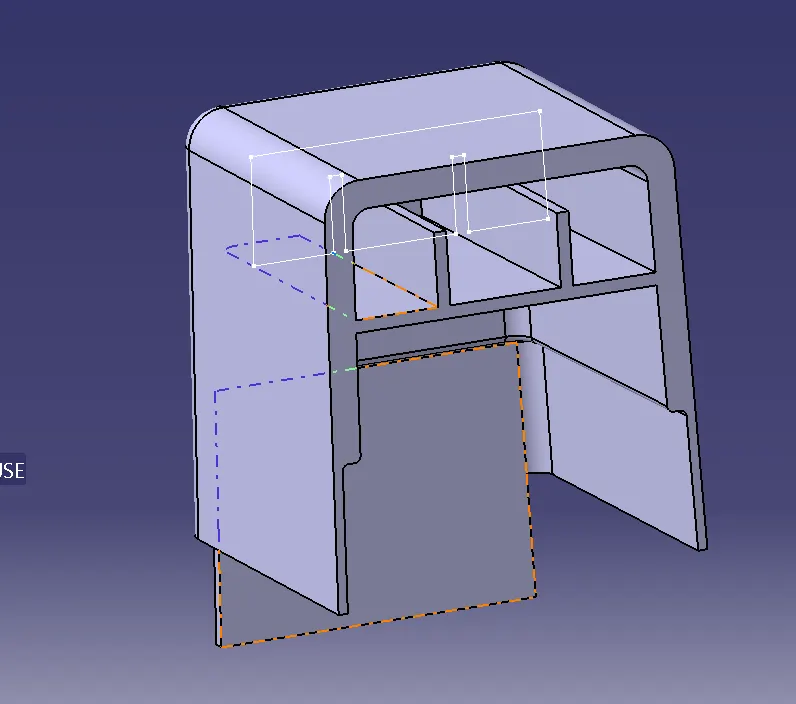

creating the dog house:

splitting the lower body 3 - 6 mm from bottom side of the thicken body:

creating side core axis for drafting analysis:

dafting of 0.5 degree with reference to the side core axis:

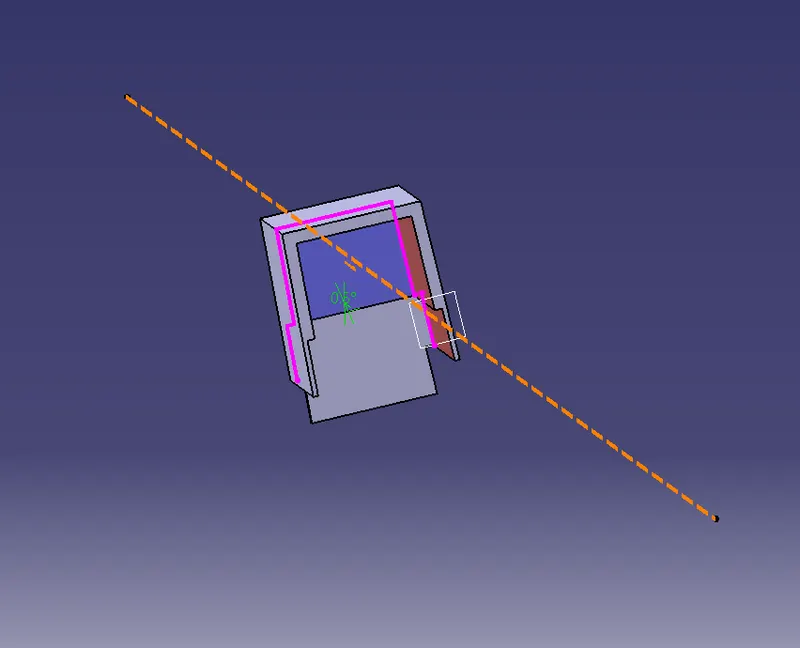

dog house side core axis drafting :

rib support is given in the master section:

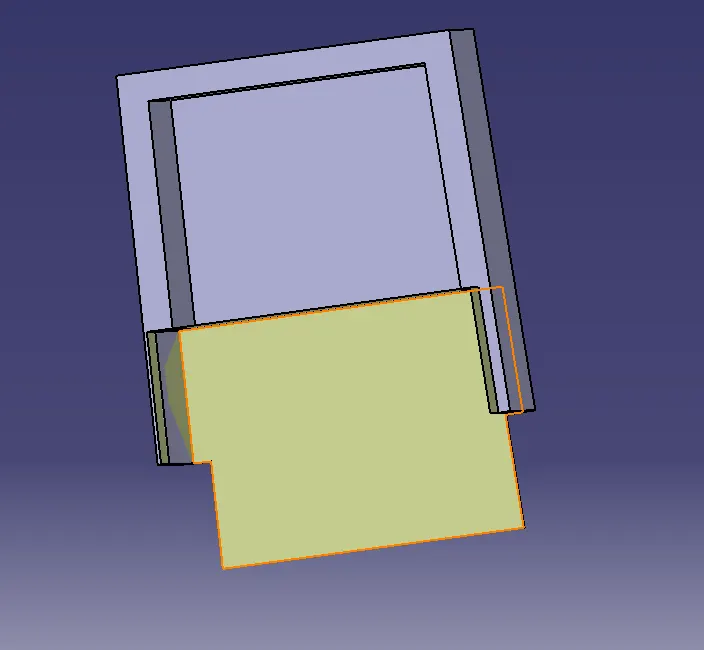

spitting the upper body of dog house to place push pin and the other combining component:

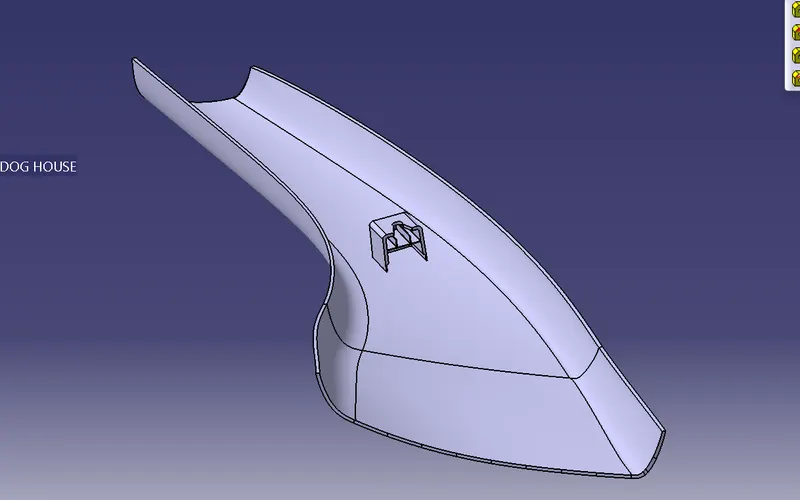

overall cpmibine body:

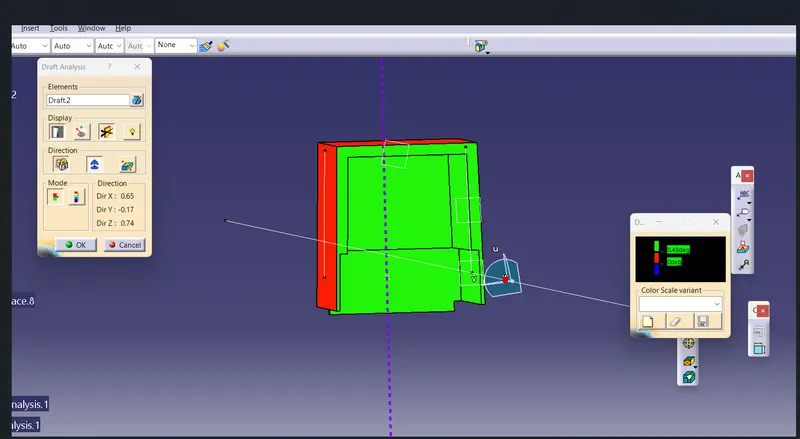

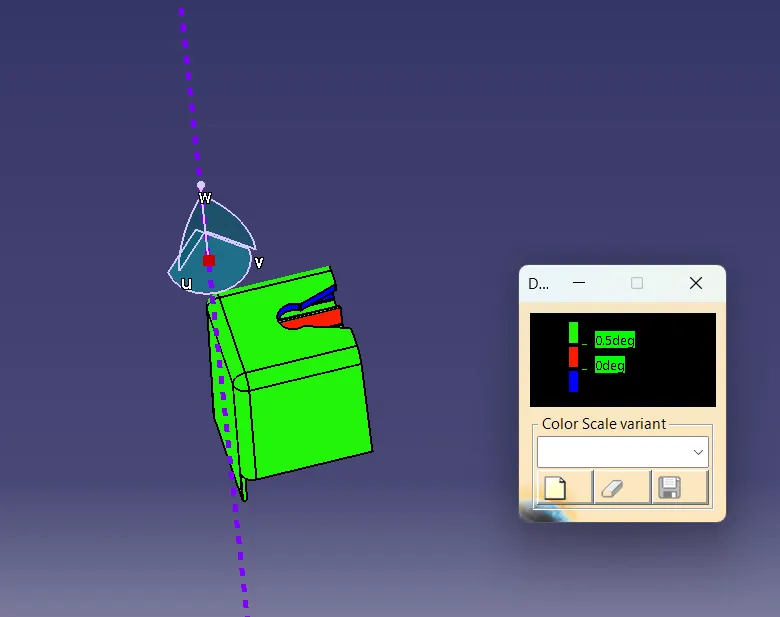

draft analysis of dog house:
