Week 9 - Project - A pillar Design with Master Section
SCREENSHOT OF FINAL PART IN DIFFRENT ORIENTATION:

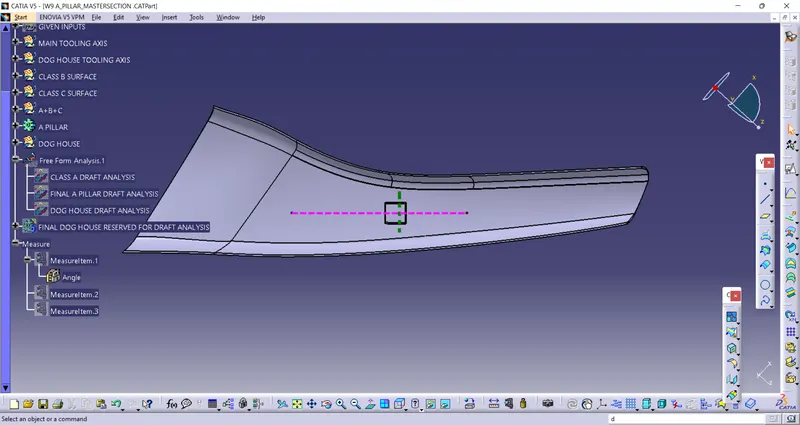

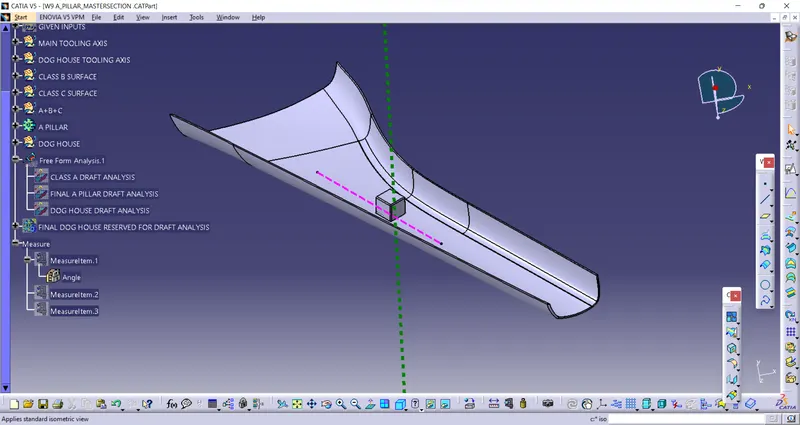

ISOMETRIC:

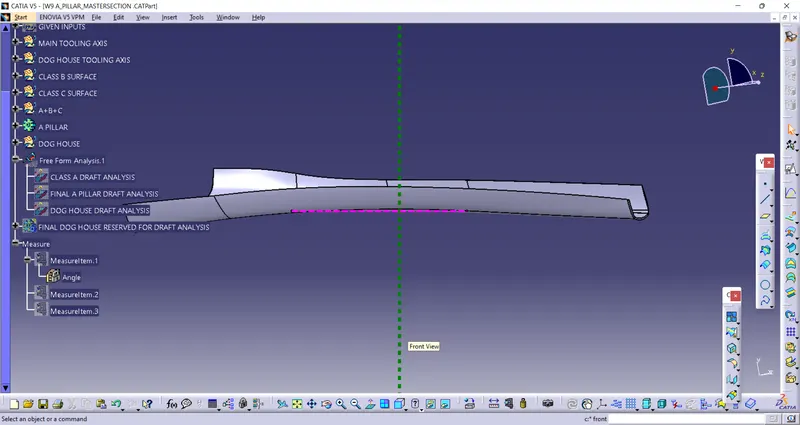

FRONT:
TOP:

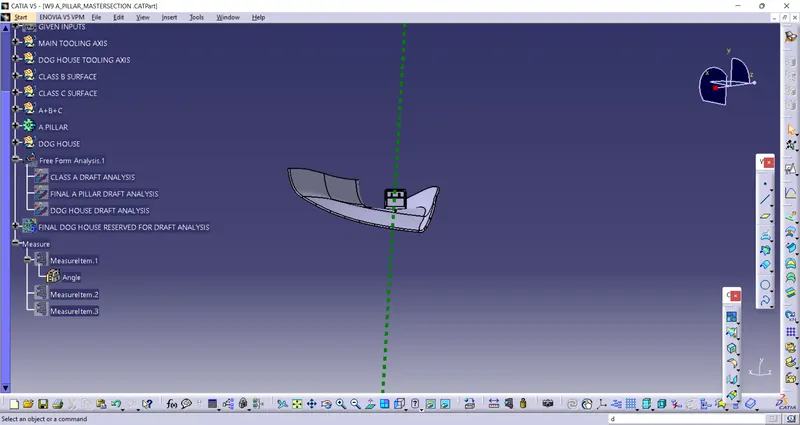

SIDE:
------
DRAFT ANALYSIS:
WE HAVE TAKEN MAIN TOLING AXIS AS DRAFT DIRECTION:
STEP FOLLOWED ARE:
1.WENT TOO INSERT MENU THEN CHOOSEN ANALYSIS:
2.ANALYSIS DIALOG BOX APPEARS.
3. CHOOSE COMPASS SYMBOL DRAFT ANALYSIS DIALOG BOX.
4.MOVE THE COMPASS BY HODING THE RAD SYMBOL AT THE CENTER VERY CAREFULLY WITHOU CAUSING ROTATION AND PLACE IT ON THE TOOLING AXIS.
5.PRESS THE LOCK BUTTON AVAILABLE IN DRAFT ANALYSIS DIALOG BOX.
6.AFTER LOCKING IT RED CROSS WILL COME IN THE CURSOR POINTER ,SELECT ANY FACE AND THE COLOUR OF RAFT WILL BE SHOWN .
7. THE DEGREE OF DRAFT CAN BE SET BY PRESSING THE SYMBOL JUST ABOVE THE LOCKING BUTTON THAT WILL OPEN ONE MORE DIALOG BOX WHERE WE CAN SET THE THE DEGREE FOR DRAFT ANALYSIS.

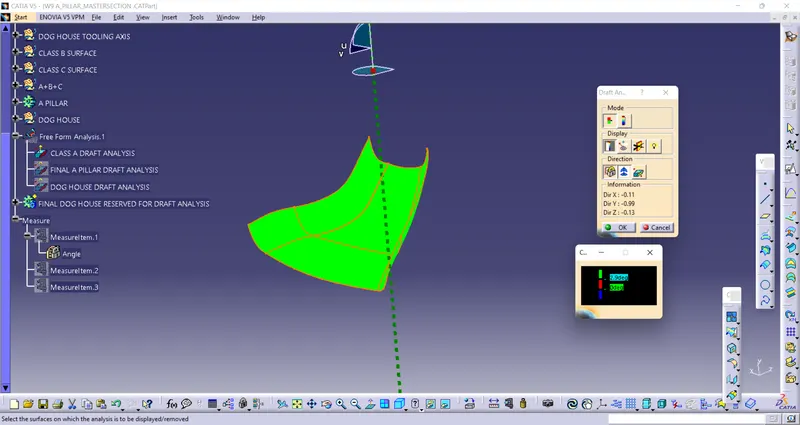

DRFAT ANALYSIS OF CLASS A:

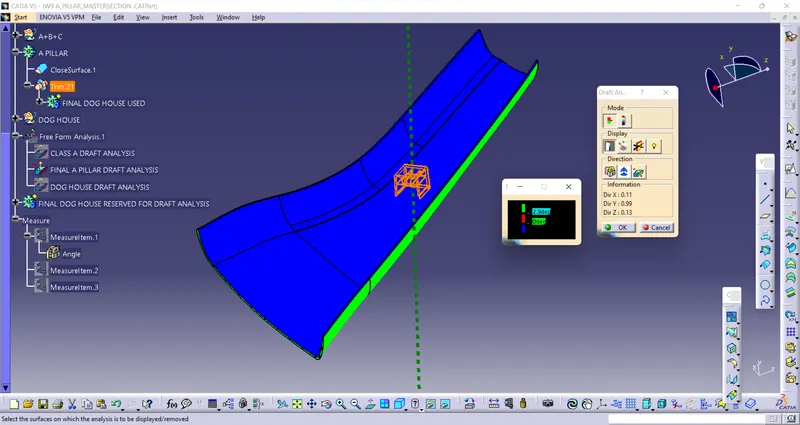

DRAFT ANALYSIS OF DINAL PART:
NOTE: DRAFT GIVEN TO DOGHOUSE ALONG MAIN TOOLING AXIS IS .5 DEGREE.

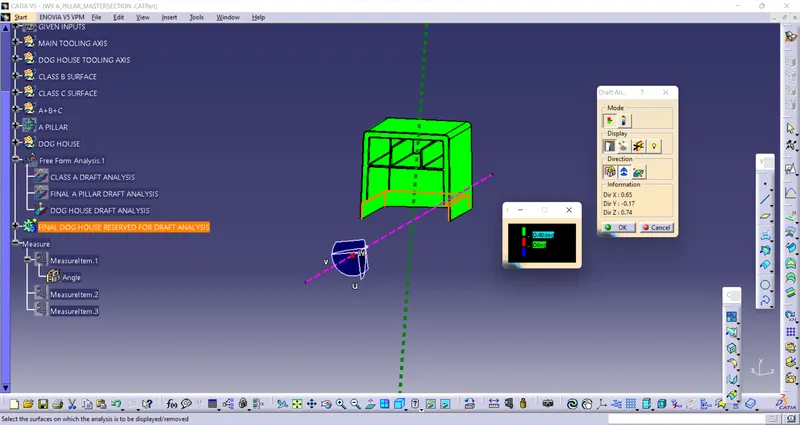

DRAFT ANALYSIS OF DOGHOUSE ALONG SIDE CORE AXIS:
----------------
TOOLING AXIS:
1.PROCEDURE TO MAKE THE TOOLING AXIS:
TWO METHOS WE CAN FOLLOW TO MAKE THE TOOLING AXIS:
- BY VISUALY CHECKING IN DRECTION TO THE NORMAL SURFACE IF ALL SURFACES ARE PERFECTLY VISIBLE FROM THAT DIRECTION WE CAN CHOOSE IRECTION TO BE DUMMY TOOLING AXIS . THEN DO THE DRAFT ANALYSIS IF FACES COMES GREEN THEN THAT ACXIS CAN BE TAKEN AS MAIN OOLING AXIS:
- IN CASE THE ALL SURFACES DOES NOT COMES GREEN THEN GO FOR BISECTING METHOD ,WHERE WE TAKE LINE PARALLEL TO TO SURFACES WHICH ARE NOT COMING GREEN AND THEN FIND TOOING.OR IF FEEL BY VISUAL EXAMINIG THAT THIS CAN CAUSE PROBLEM AT THE TIME OF REMOVAL THEN WE USE BISECTINH=G METHOD TO CREATE THE TOOLING AXIS.
- BY RANDOMLY PLACING THE COMPASS ON ANY SURFACE AND THEN PLAYING WITH IT IN DIFFERENT SURFACE AND DIRECTION TO WHOLE SURFACES GREEN IN DRAFT ANALYSIS.THE POSITION IN WHICH WE FIND THE IT TO BE GREEN THAT COMPASS DIRECTION IS TAKEN AS TOOLING AXIS:

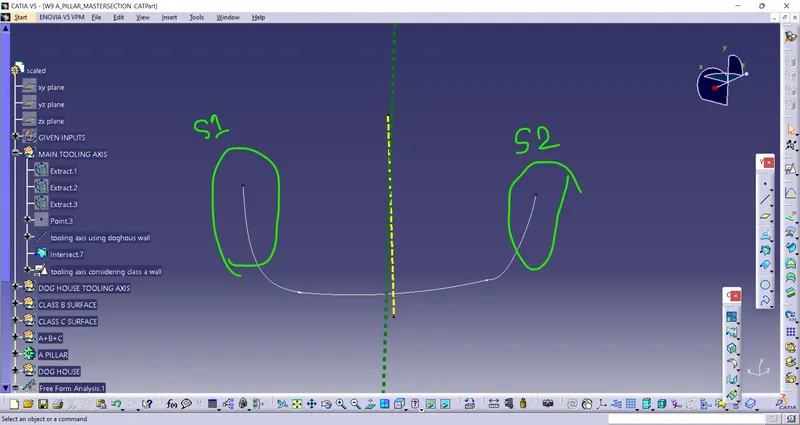

IN THIS CHALLENGE THERE FIRST OF ALL I TAKEN DOG HOUSE WALL AS REFRENCES SURFACE AND CREATED ONE TOOLING AXIS(YELLOW COLOR) USING BISECTING METHOD BUT ON ANLYSING I FOUND THAT ITS SHOWING SOME FACES AS RED IN THE CLASS A DRAFT ANALYSIS.
SO NEXT I TOOK THE INTERSECTION OF THE CLAS A AT ITS PROJECTION IS USED TO CREATE TWO LINE THEN A BISECTING LINE IS CREATED BETWEEN THEM , AND THAT BISECTING LINE(GREEEN COLOR) WAS CLEARING ALL THE FACE S VERY WELL SO THAT BECOME OUR MAIN TOOLING AXIS.
