Week 9 - Project - A pillar Design with Master Section

Master section:

Mster sections are the guides for design requirements that decide the component packaging after technical surfaces. It needa atleast 5 to 6 years ofexperience for creating the master section.

Master section helps in deciding the clearance, feasibility, packaging and fixation strategy before working it on a 3D

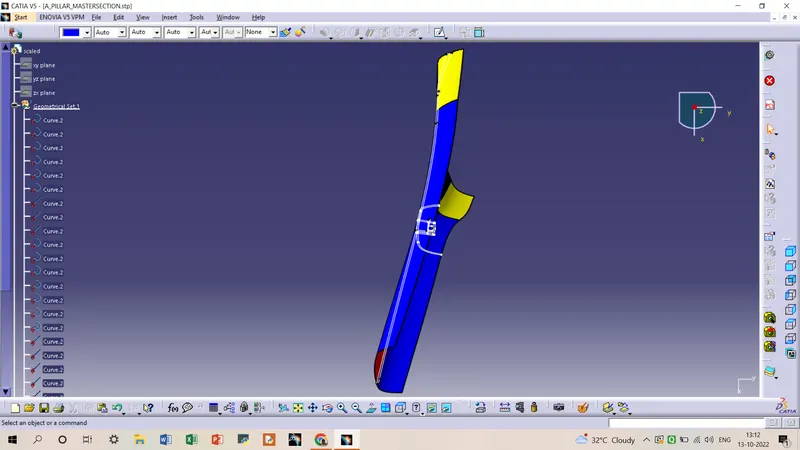

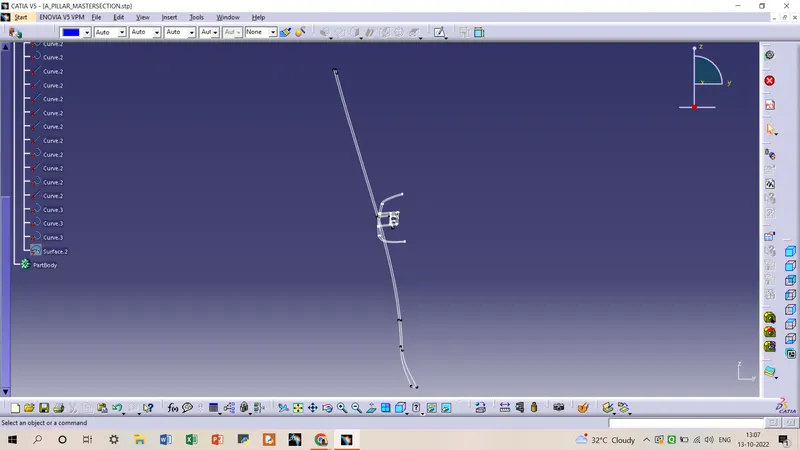

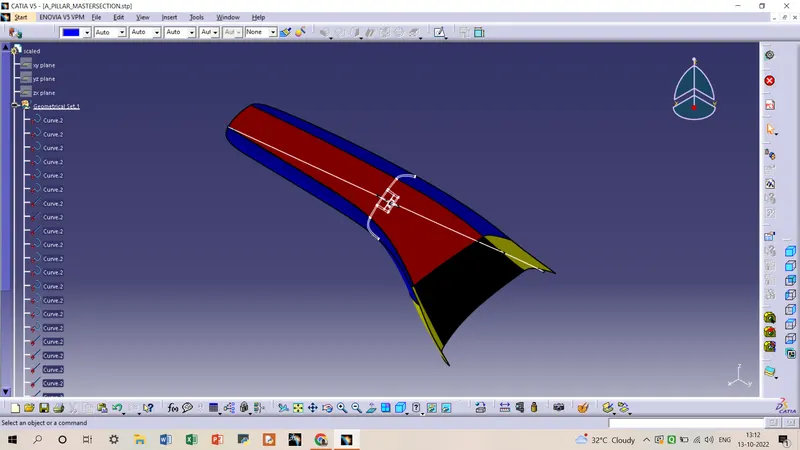

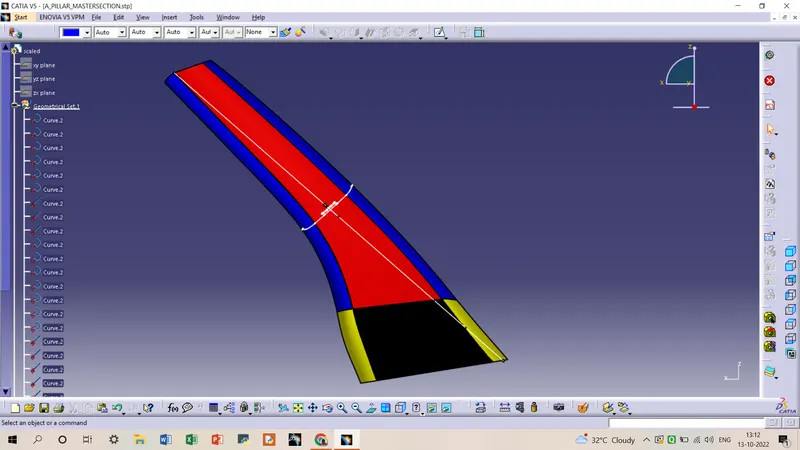

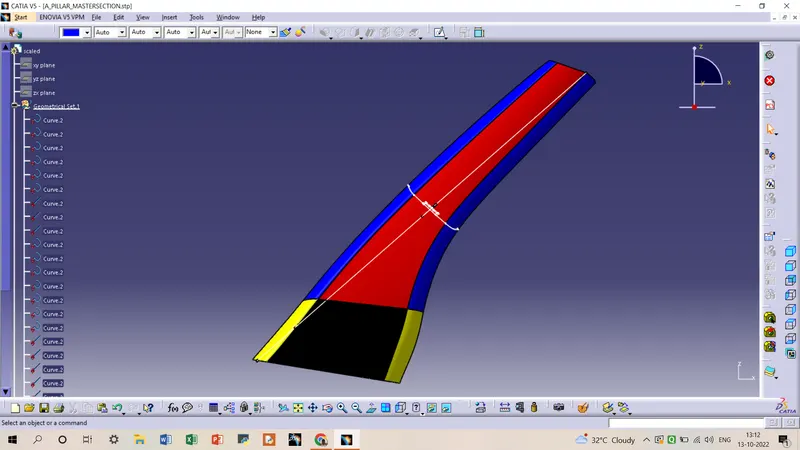

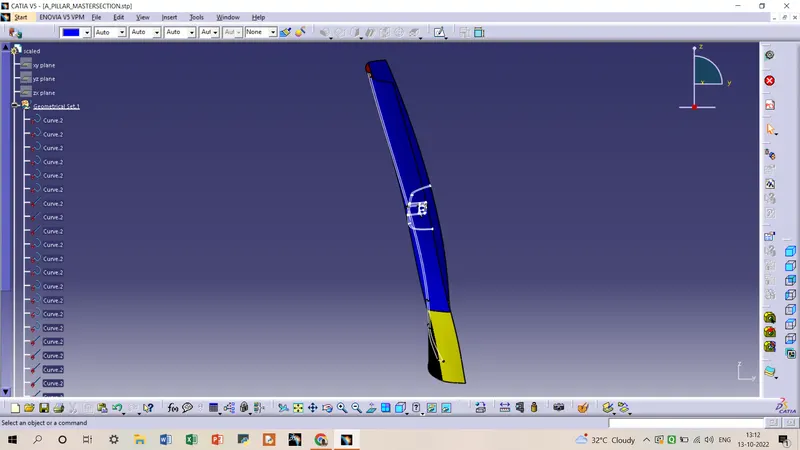

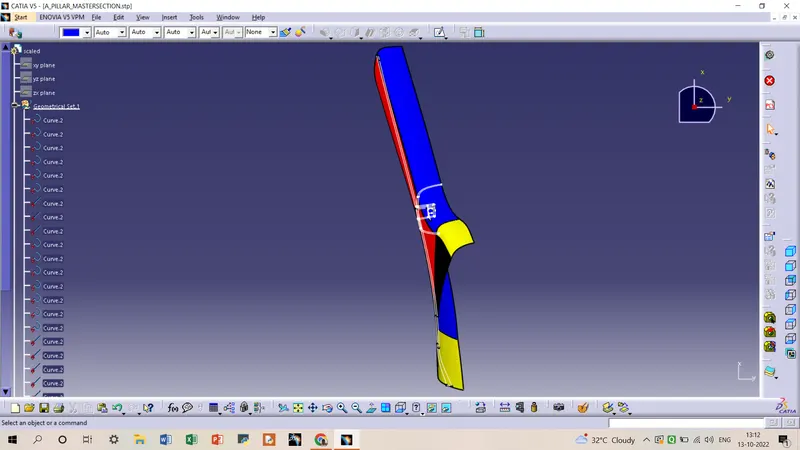

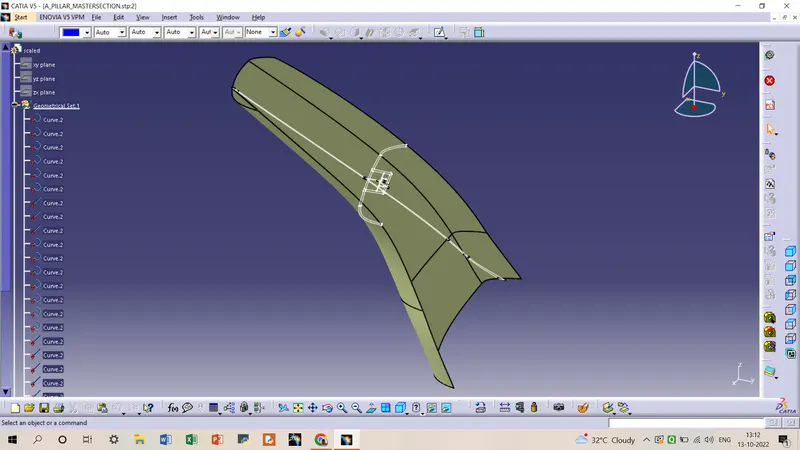

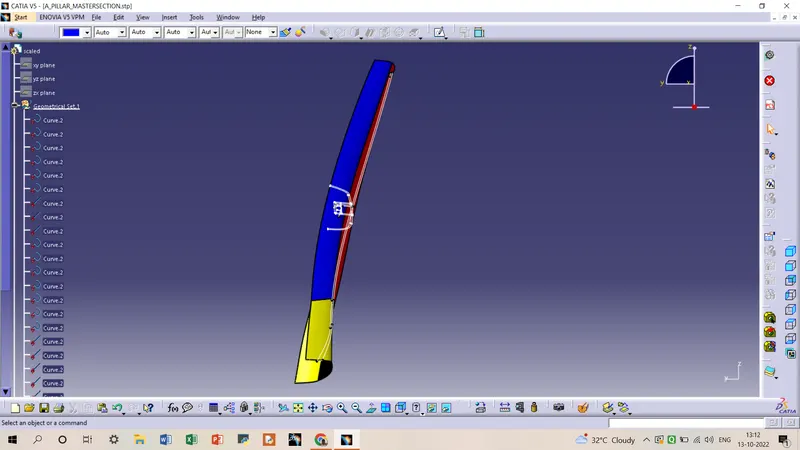

Screenshots as per the submission requirements:
