Week 9 - Project - A pillar Design with Master Section

assemly is in image form and also applied the GD & T.

Design of Backdoor Objective:  To design Back door of car using the given Class ‘A’ surface. Introduction      It is a hinged board or door at the rear of the vehicle that can be moved up or down during loading and unloading. Back Door is also referred as 'Hatch' or 'Tailgate' or 'Trunk-lid'…

FENDER DESIGN: AIM: To design a fender of a car by following the given master section as per the design considerations of OEM. FENDER DEFINITION:  Fender is a part of an automobile or other vehicle body that frames a wheel as well (the fender underside). Its primary purpose is to prevent sand, mud, rocks, liquids,…

Roof Design:-   Aim: Design a Car Roof with its components by following the master section of the front roof rail (Front roof rail, bow roofs, centre roof rail and rear roof rail) with all the design parameters. OBJECTIVE- The objective of this project is to design a car roof with essential flanges and reinforcements  like…

by increasing a small geometry propertioes section modulas vary as it is increasing than strength is also increasing and moment also increases..

AS PER THE EUROPEAN STANDARD FENDER SHOULD CCOVER THE WHEEL .. WHEEL SHOULD INSIDE THE FENDER ARC.. MINIMUM  GAP BETWEEN WHEEL AND THE FENDER IS 10MM.

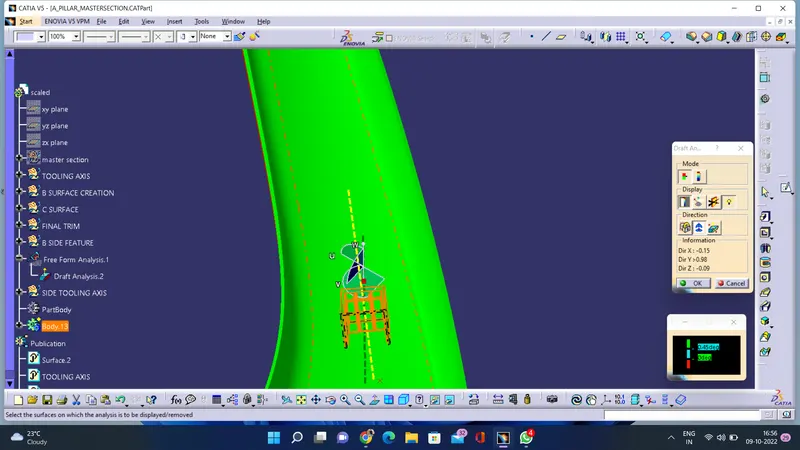

DRAFT ANALYSIS FOR SIDE CORE AXIS       ATTACHMENT FEATURES

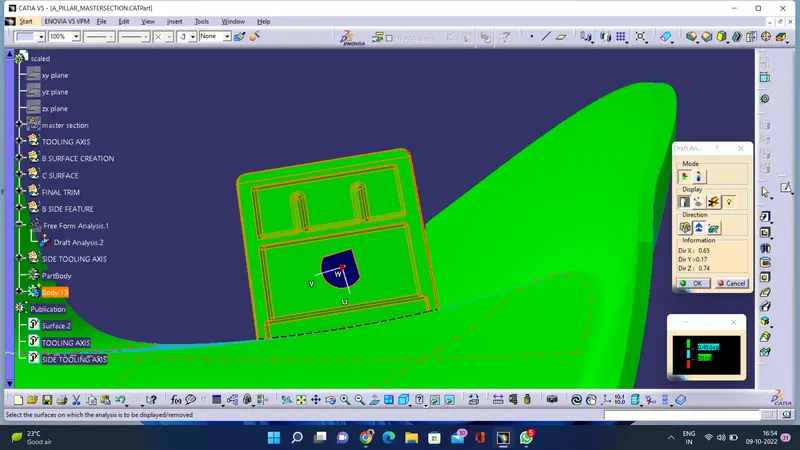

DRAFT ANALYSIS FOR SIDE CORE AXIS       ATTACHMENT FEATURES

Underbody Coating Overview Undercoating (also called Under seal ) is a thick resilient coating applied to the underbody or chassis of an automobile to protect against impact damage from small stones, which would rapidly chip ordinary paint, allowing rusting to begin.   Need of undercoating Vehicles for sale in some territories…

Benchmarking is a process of measuring the performance of a company's products, services, or processes against those of another business considered to be the best in the industry. The point of benchmarking is to identify internal opportunities for improvement. The objective of benchmarking is to…

AIM     To make a full solid model from the provided part A surface of door trim and create dog houses. INTRODUCTION: CATIA:          It means Computer-Aided Three-Dimensional Interactive Application.  It is computer aided designing software. This is…

draft analysis..
