Week 9 - Project - A pillar Design with Master Section

Aim:To Create a Pillar design with the help of the master section

PROCEDURE:

• From the Given Class A surface, B Surface has been created by offset command
• By doing this there were many missing elements in the CLASS B surface
• Sorted out each and every missing element in the Class B Surface with help of various commands like blend, multi-surface, offset, join(remove the surface), trim, offset, and more

• Once the surface is finished with the outer boundary
• After completing the b surface the Class C Surface is created from the Class A surface by sweep command
• As we cannot sweep the whole boundary the sweep is used to target continuity

• And with the join command join all the sweeps into one Class C surface
• Once the Class C surface is formed with no internal boundary
• Trim class C and Class B surface together
• Once the trim is created join the Class A Surface with trim

• Check whether there is any boundary in it to confirm the closed body
• Once confirmed using a close surface to create the part body

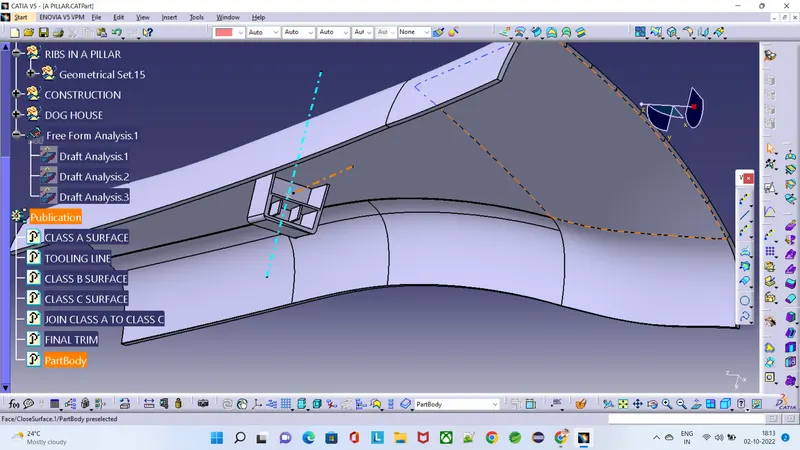

• For Doghouse Creation, create a sketch on the surface of the body
• Sweep the sketch with the draft of 1.5 deg and then create the wall of the dog house
• The top of the Doghouse surface is closed with the offset of the surface
• Now make the surface into the part using the thick command
• Once the wall and top part are made the dog house rules should be followed create the part wall at the bottom of the dog house by height should be 3 to 6 mm and thickness of 0.4 times the thickness of the element
• Cut out as given in the diagram should be removed from the part
• Once it is created assemble the dog house with the door trim
• The reference of the same are taken from the master section given

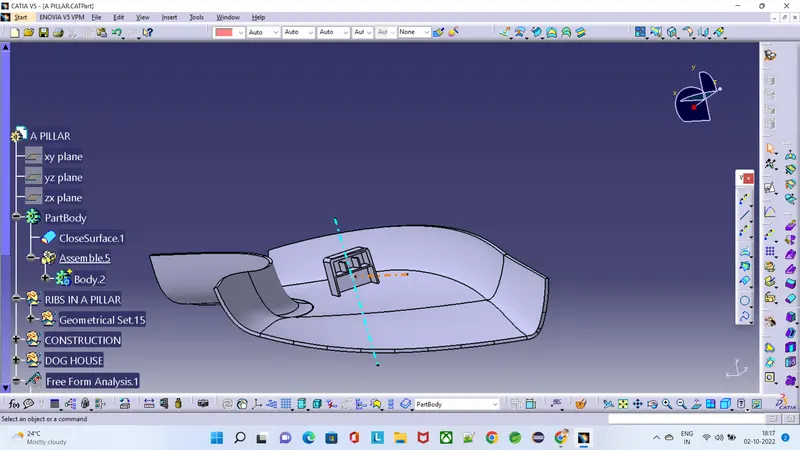

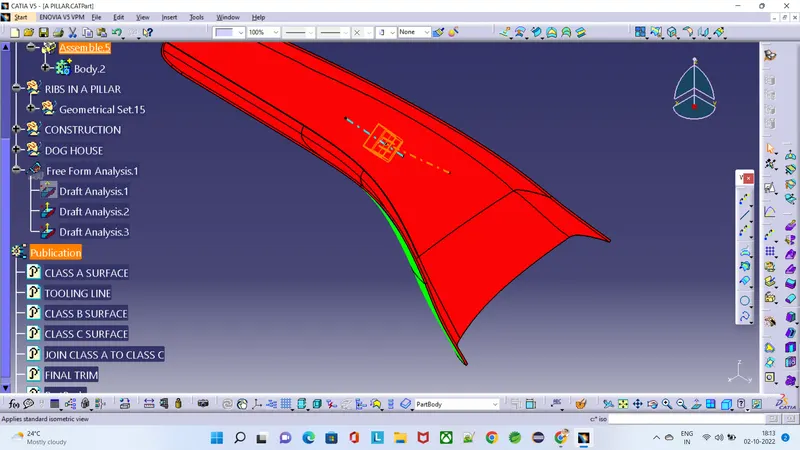

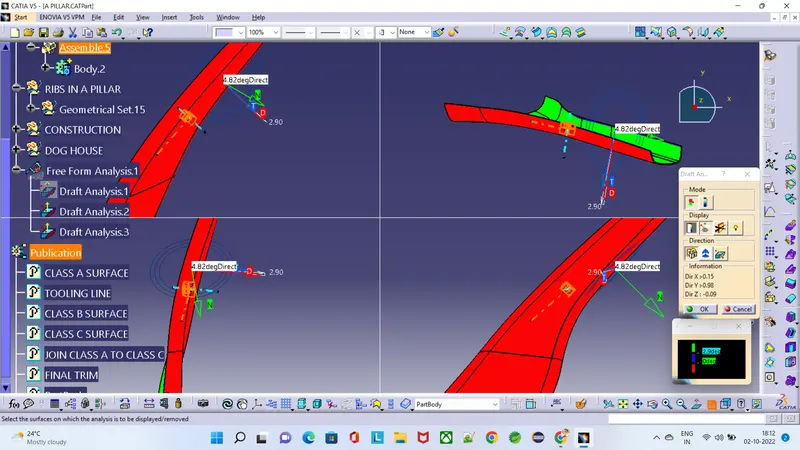

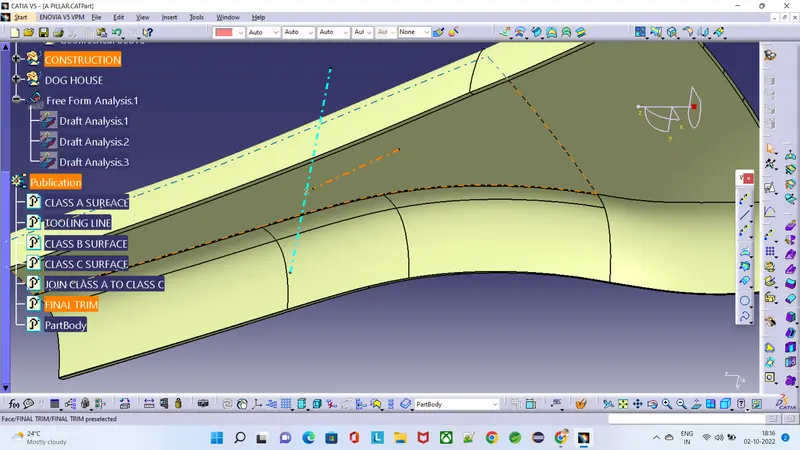

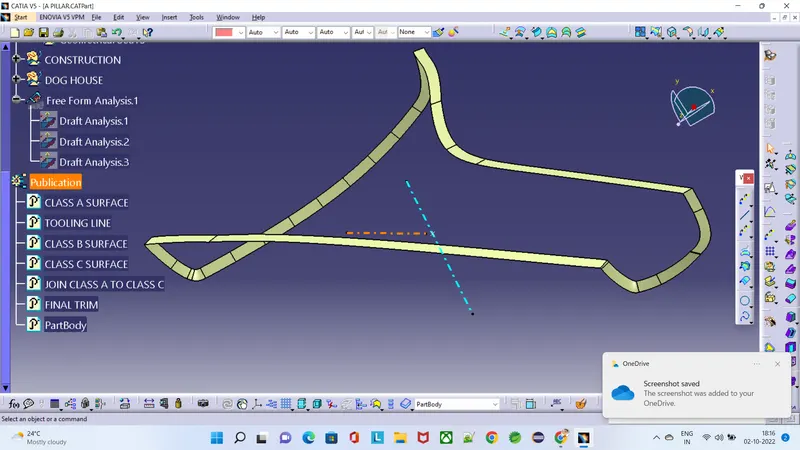

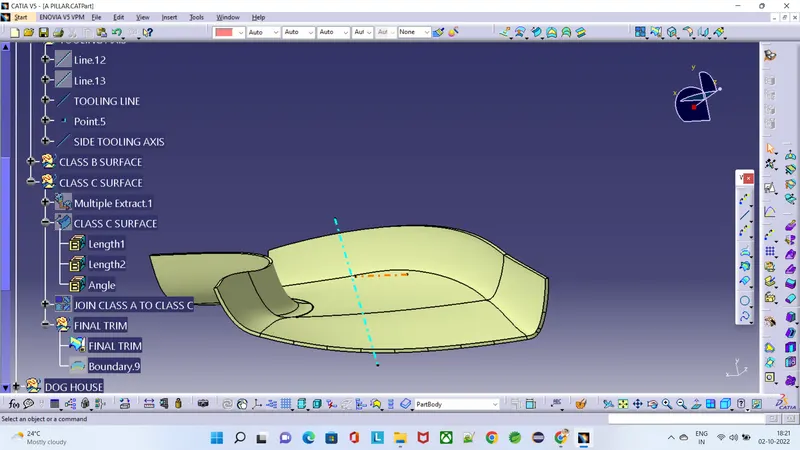

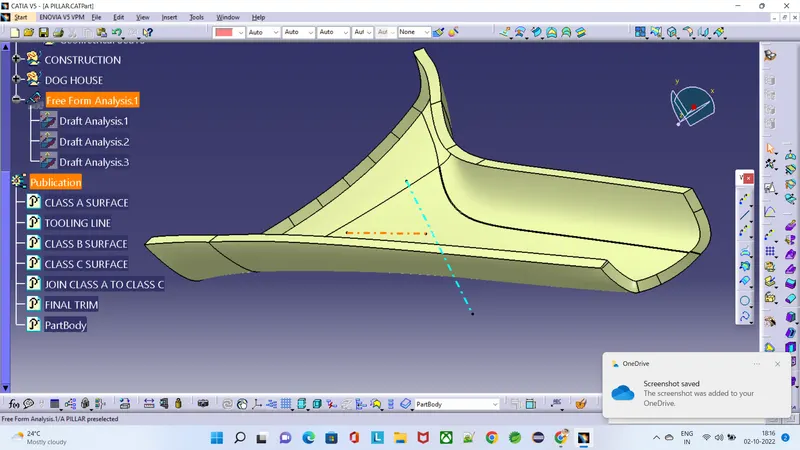

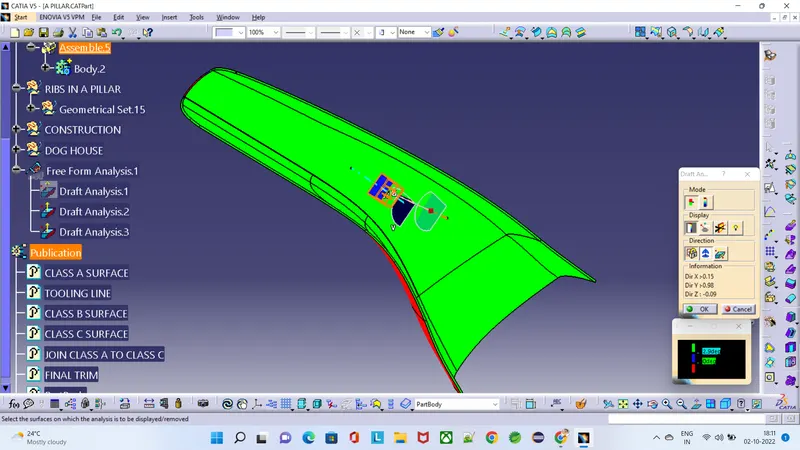

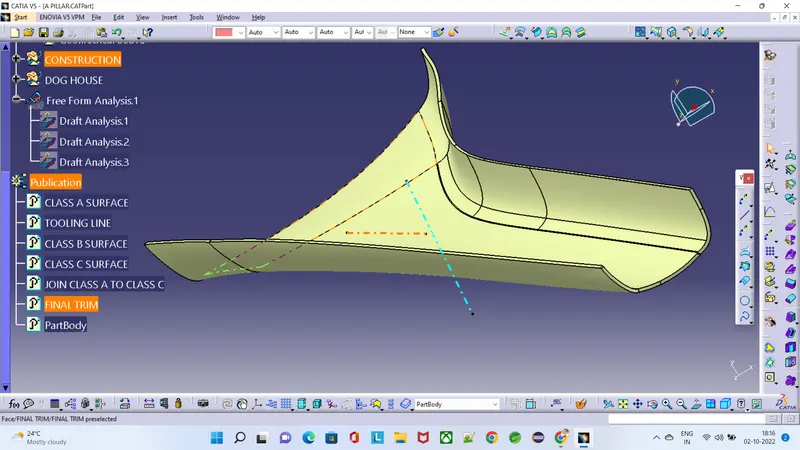

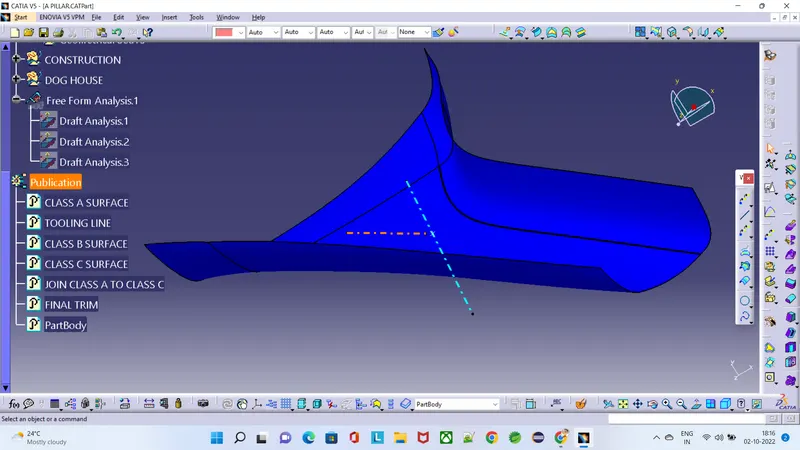

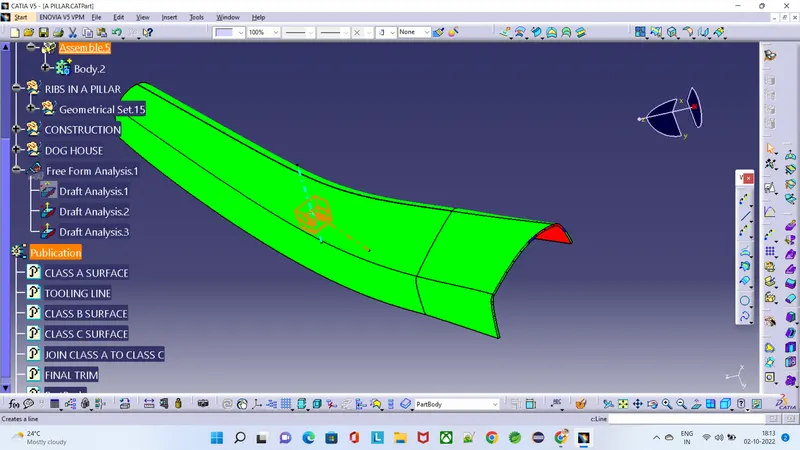

• The screenshots are attached
