Week 9 - Project - A pillar Design with Master Section

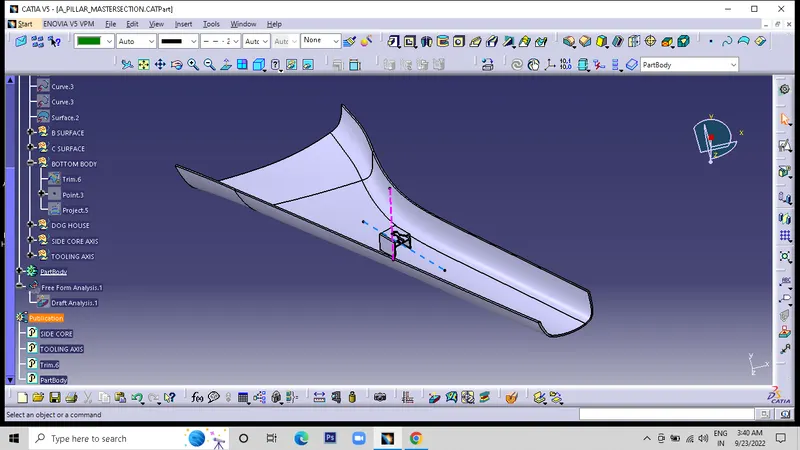

Tooling axis: the tooling axis direction to created on y direaction reference with class A surface.

side core axis : the side core to created on z direaction with reference of dog house .

draft angle is to check the component angles and dog house angle.

show the fig and ppt files also
