Week 8 - Challenge 1 - Base Bracket Design

* TOOLING AXIS TO CREATE BISECTING METHOD REFERENCE OF ' CLASS A' SURFACE TO CREATED BY Z- DIREACTION

* DRAFT ANALYSIS TO MEASURE THE DRAFT ANGLE DESIGN OF THE PRODUCT.

THE DRAFT ANGLE IS " 0 TO 3" DEGREES.

THE DRAFT ANALYSIS COMPOSE TOOLS IS FIX THE TOOLING DIREACTION AND RE-ADJUST THE COMPOSE. THEN CLICK THE COMPONENTS WALL. IF INCASE ANGLE OF DESIGN IS ANY ISSUSES, TO INFORM THE COLOUR TABLE

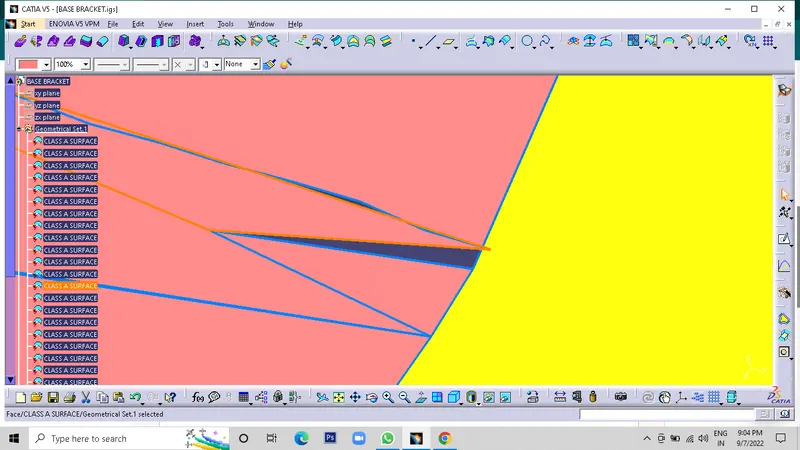

"BASE BRACKET IGES" FILE SURFACE NOT FINISHING. I ADD THE SCREEN SHOT.

STEP 1 : DRAFT ANALYSIS TOOLS WAYS ANALYSIS CLASS A SURFACES

STEP 2: PLANE SURFACESESS ONLY TO MARK AND UNTRIM THE PARTS AND EXTRACTED

STEP 3: OFFSET OF EXTRACTED PART AT "2.5mm" AND TRIM TOOLS WAYS TO CUT UNWANTED SIDE SURFACE

to create left and right side ribs , base and center surfaces

step 4: class A surface outer body to mark boundary conditions and extracted from "z" direaction using of sweep tool .

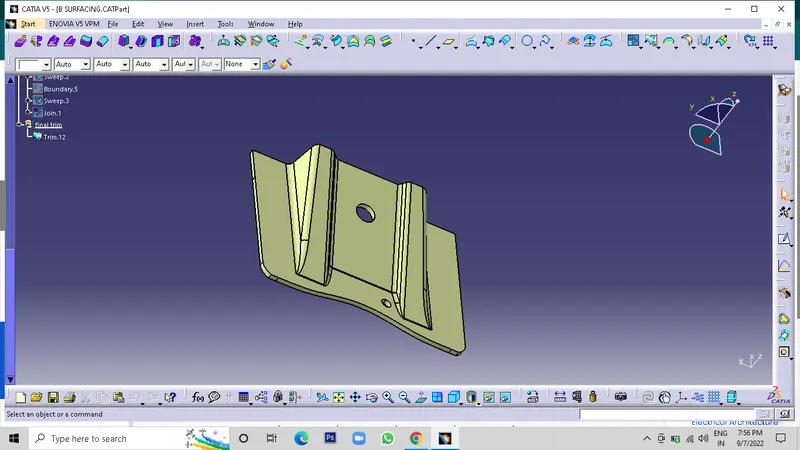

SHOW THE FIG: AND I ADDED MY FINAL PRODUCT DESIGN IN ZIB FILE.

this my complect object, and i attached final objact in gib file.

and this part is "base bracket iges" file , the class A finishing is unproper. and another one catia file is not open
