Week 9 - Project - A pillar Design with Master Section

FOR CREATING TOOLING AXIS

• FIRST WE SHOULD CONSIDER THE DUMMY TOOL AXIS ALONG THE TOOL OPEN AND CLOSE DIRECTION.
• THEN WE FIND THE ALL SURFACE THAT ARE NOT PARALLEL ALONG THE AXIS WE CREATED BUT IN THIS MODEL NO PROBLEM CREATING NON PARALLEL SURFACE FOUND.
• THUS WE CAN CONSIDER THE AXIS THAT IS NORMAL TO THE BASE SURFACE AS OUR TOOLING AXIS.

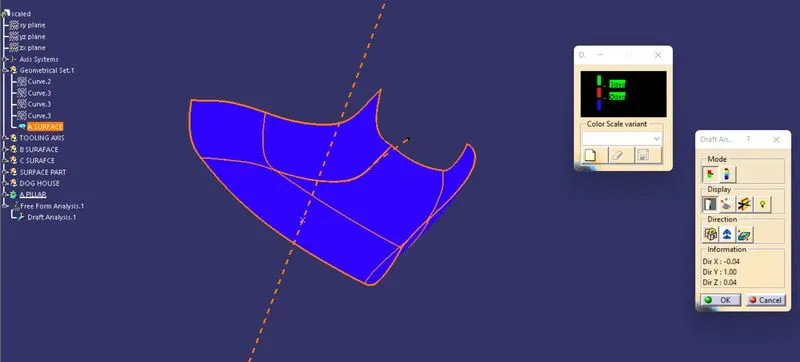

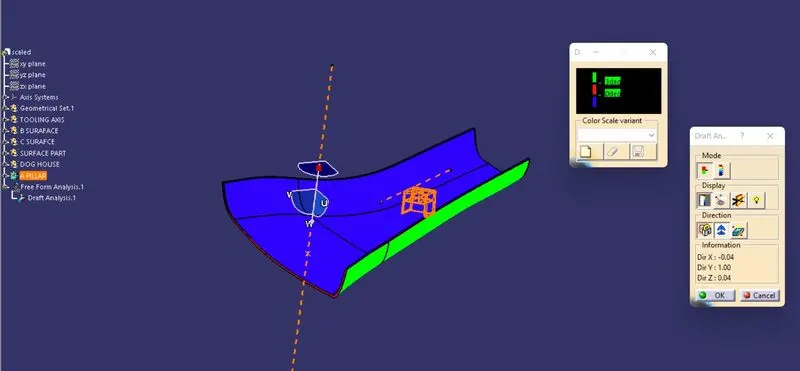

FOR DRAFT ANALYSIS FOR SOLID PART AND A SURAFCE

• FIRST THE NOMINAL DRAFT ANGLE IS 3 DEGREE
• THE DRAFT ANALYSIS IS DONE TO CHECK WHETHER THE SURFACE ALONG THE TOOLING AXIS ARE CORRECT DRAFTING ANGLE
• SINCE THE TOOLING AXIS IS NORMAL ALL THE DRAFING ANGLE WILL BE SAFE
• ALSO THE PARTING LINE FALLS IN THE PERPENDICULAR TO THE TOOLING AXIS.

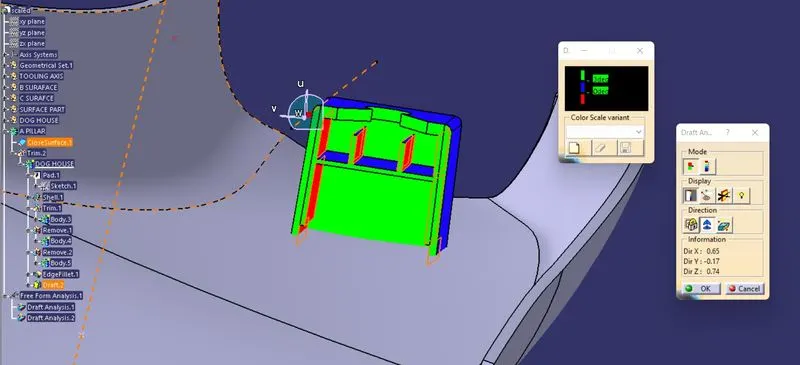

FOR DRAFT ANALYSIS FOR DOG HOUSE

• THE NOMINAL DRAFT ANGLE IS 0.5 DEGREE

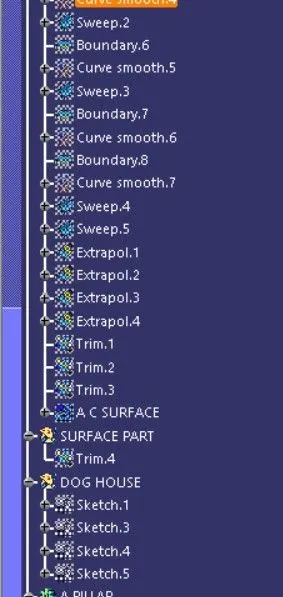

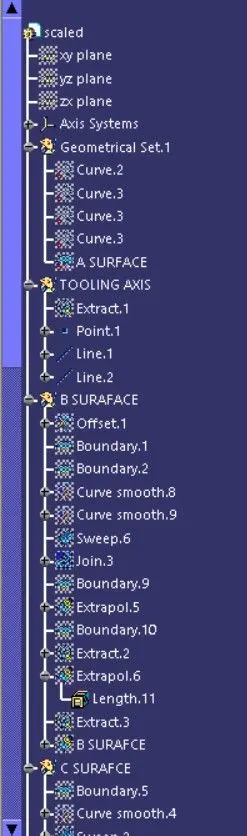

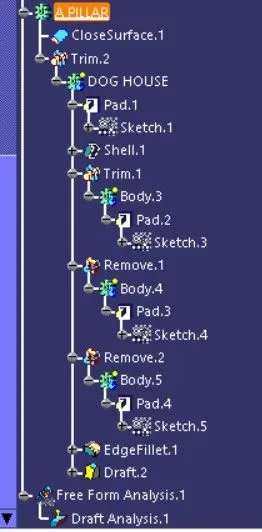

TREE FEATURE

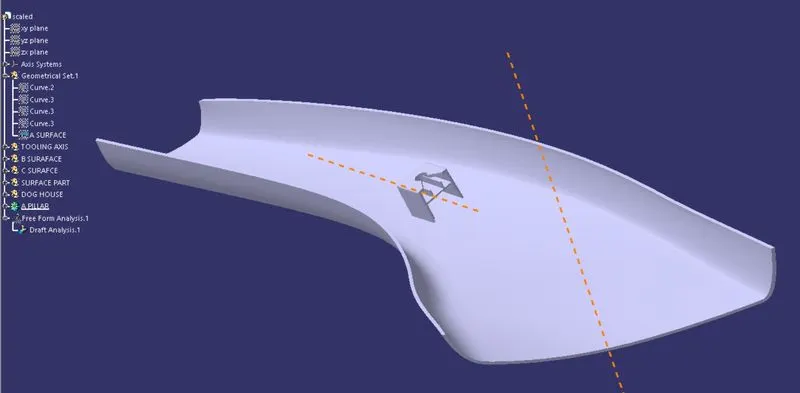

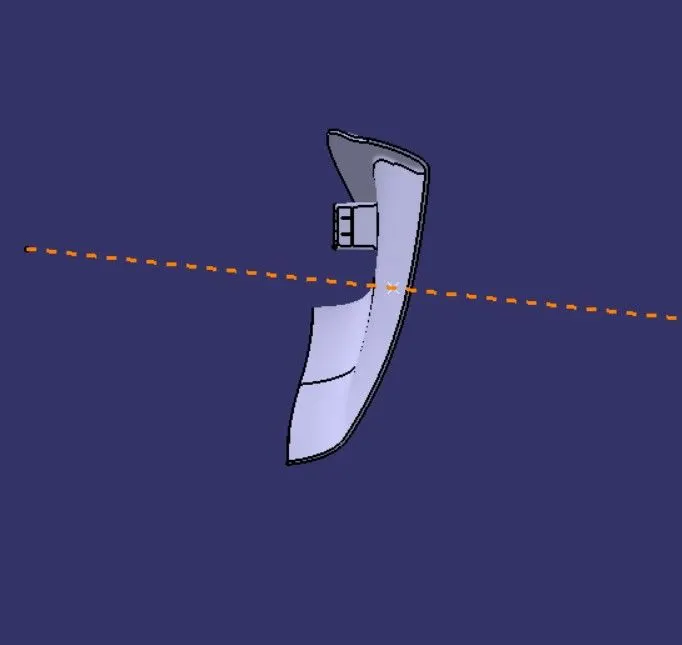

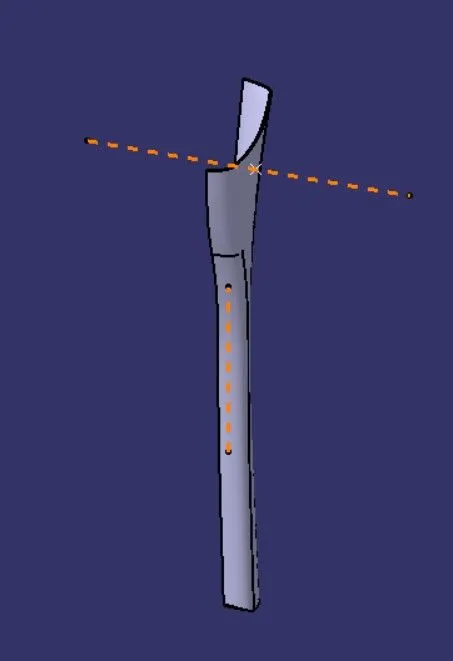

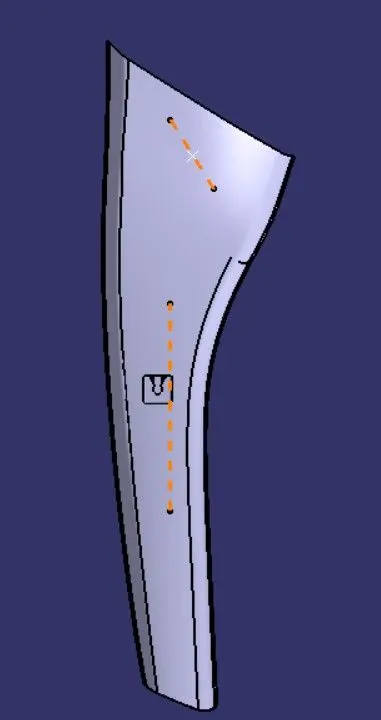

VIEW OF A PILLAR
