Week 9 - Project 1 - Door Trim Lower with Engineering Features

A closed surface was turned to solid feature and alll the req engineering features were given to the solid part as shown above.

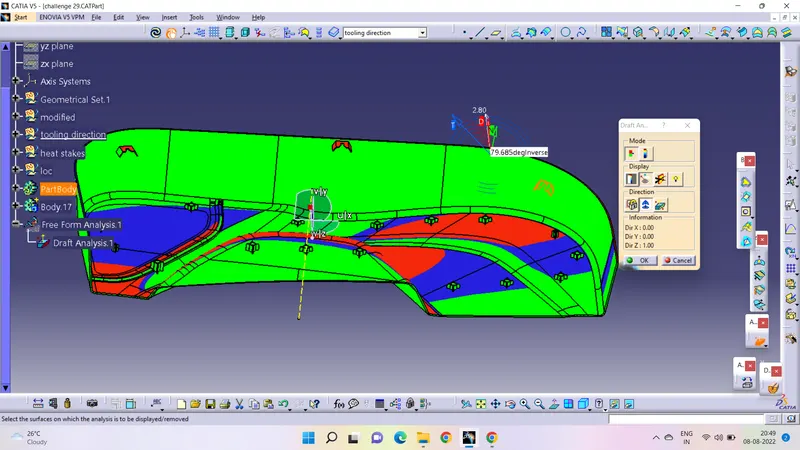

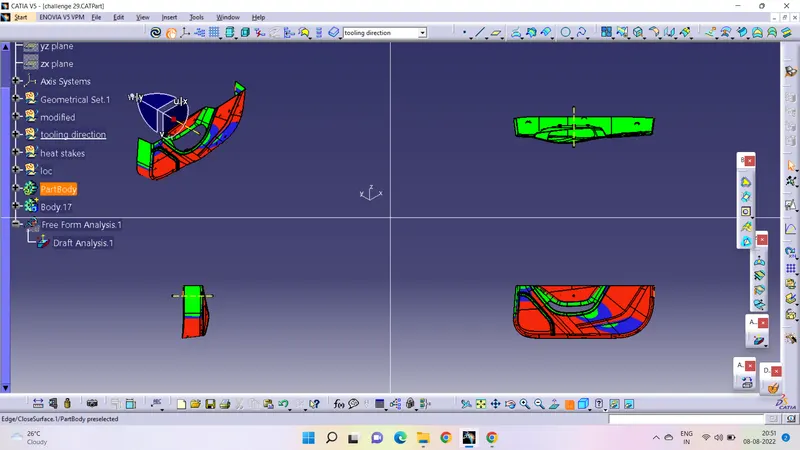

and drafting analysis is also done.

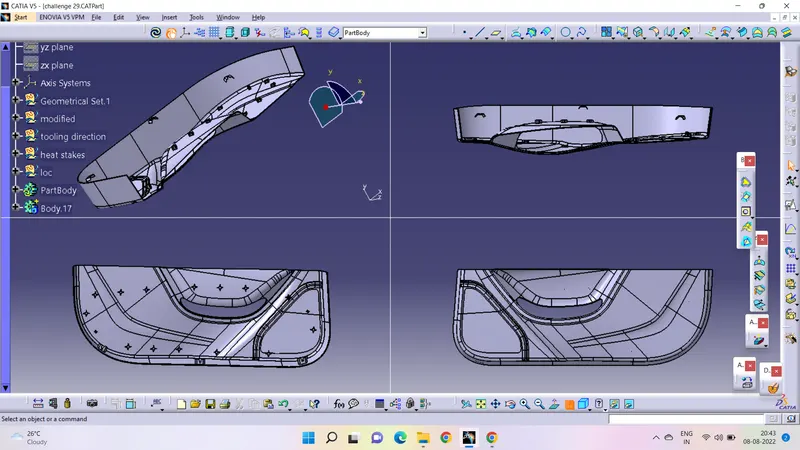

the model is shown in various view as follows:-
