Week 9 - Project_1 - Door Trim Lower with Engineering Features

AIM:

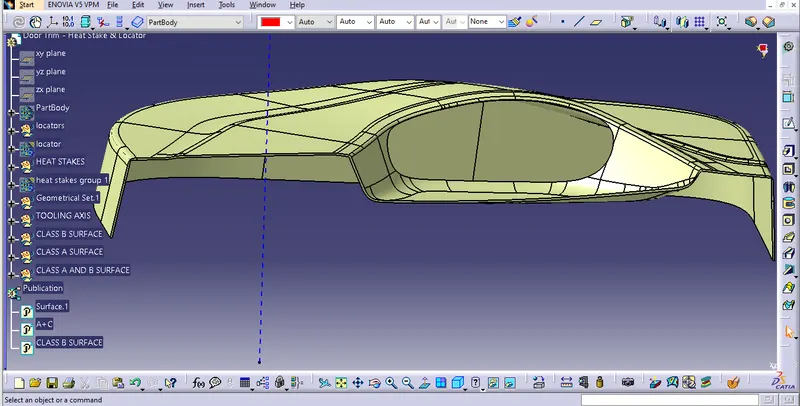

To Create the Door Trim Lower Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

To Create the Heat Stakes and the locators considering the design rules mentioned in the challange for the door applique.

| TOOLING AXIS CREATION |

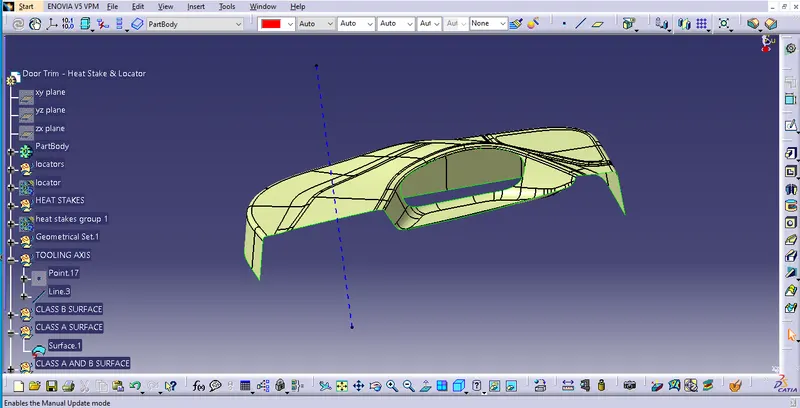

Creation of proper tooling axis considering the required draft angle of a component.

|DRAFT ANALYSIS OF CLASS A SURFACE AND FINAL COMPONENT|

Draft analysis performed on the final component and class A surface by which the draft angle is derived so that the we can check with the different part.

|CLASS B SURFACE |

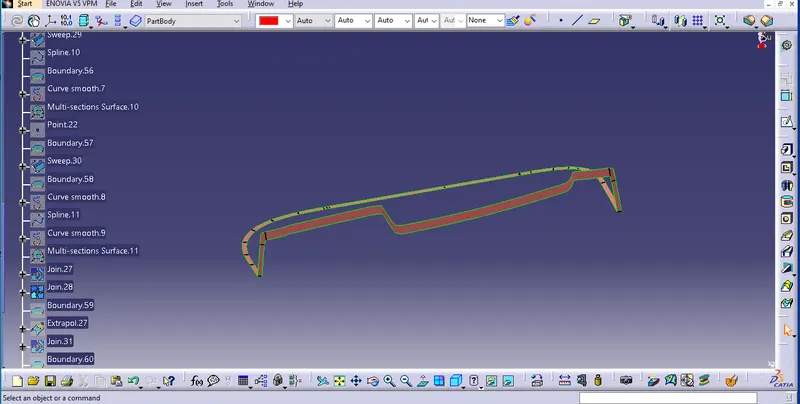

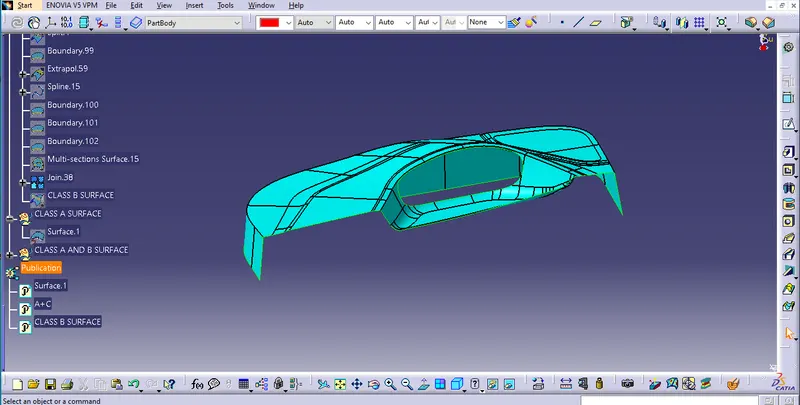

The class B surface is designed from the class A surface by extrapolating the the edges and multi sectioning.

|CLASS C SURFACE |

The class c surface is made using the sweep command.

|FINAL TRIM |

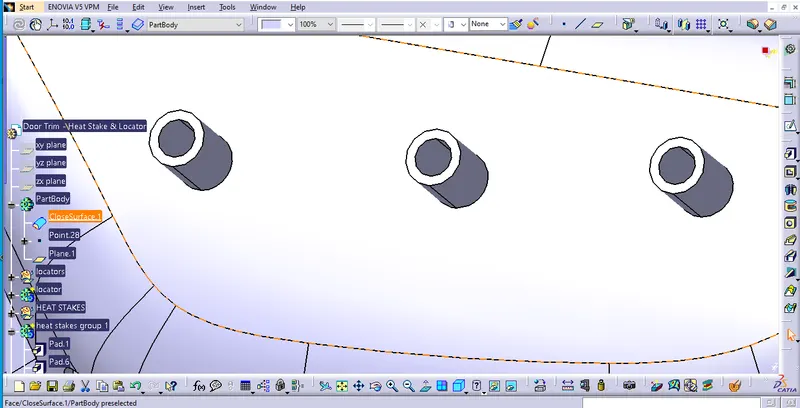

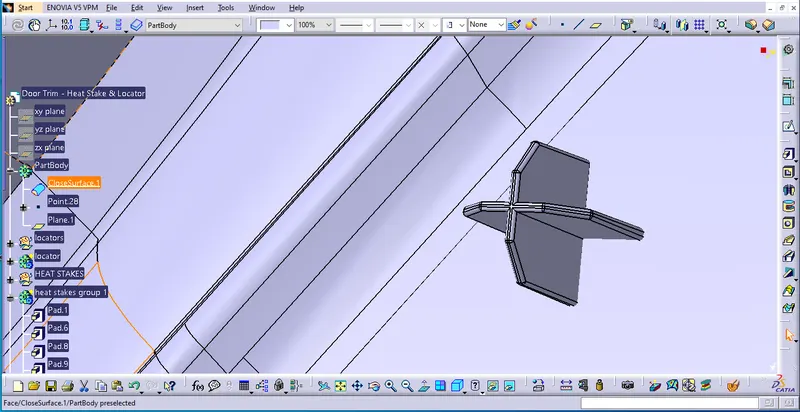

|ADDING HEAT STAKES AND LOCATORS |

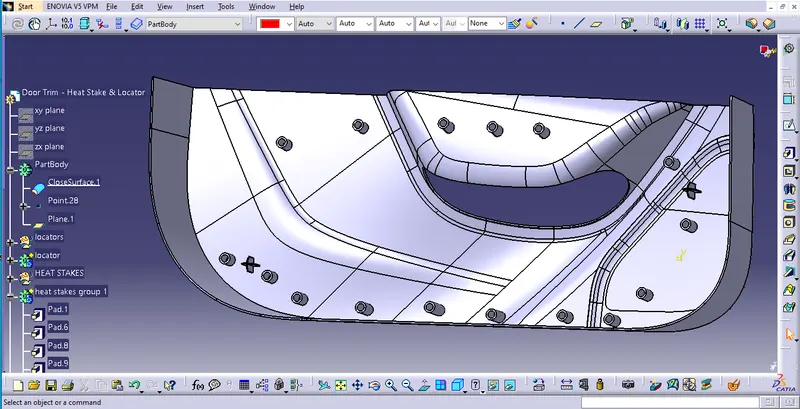

heat stakes and locator are created using the part operations, And add with the door applique trim using the boolen operation.

|LOCATORS|

Height:22mm

Length:20mm

Width:20mm

Draft angle:0.5 deg

Fillet:0.5mm

|HEAT STAKES|

Thickness: 2.5 mm

Inner dia:10mm

Outer dia:15mm

|REPORT|

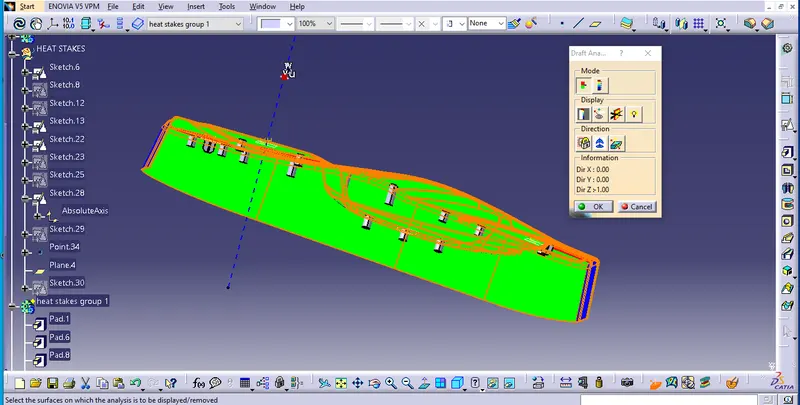

The ideal draft angle for the plastic component is 3 degree. this may vary according to the funtional requirement. the draft angle angle provided for the plastic features is 0.5 degrees. this may also get varied accordingly.

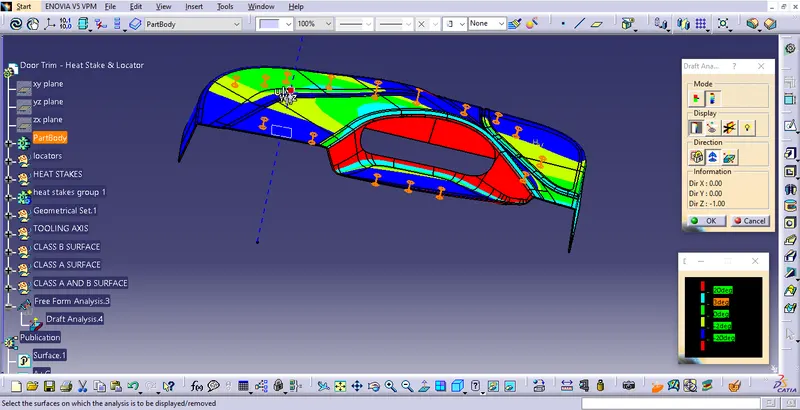

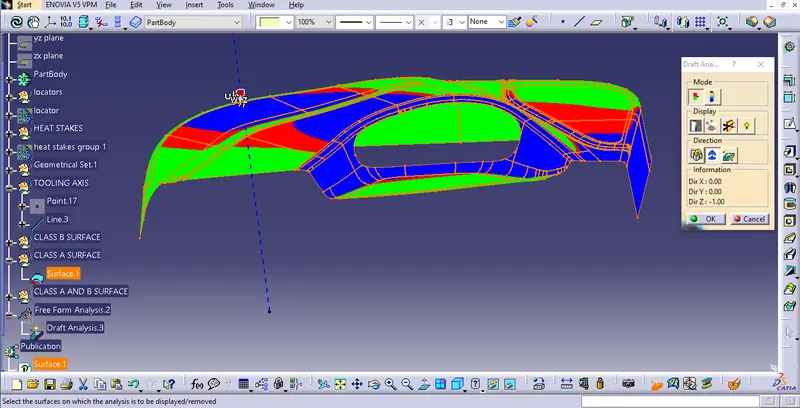

As reference to the class A surface it itself had the blue and red region with the draft angle so,the final plastic part will also be with blue and red region it determines the draft analysis is depend on class a surface.

RESULT:

Finally Created the Door Trim Lower Plastic component through the given Class-A surface.

and also Created the Heat Stakes and the locators considering the design rules mentioned in the challange for the door applique.

Draft analysis performed.
