Week 9 - Project 1 - Door Trim Lower with Engineering Features

the tooling axis is selected as line normal to ax plane. in such a way we can see and maximum region. no bisecting method is followed.

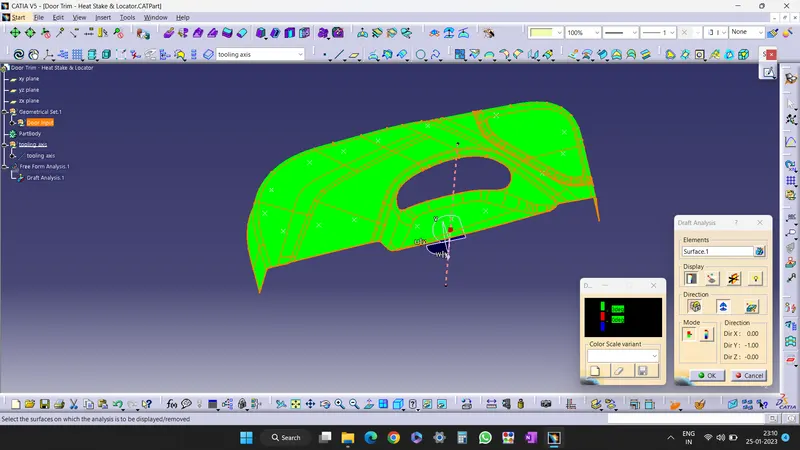

the draft analysis of surface a is shown under.all the surface region is more than 3 degree to tooling axis.

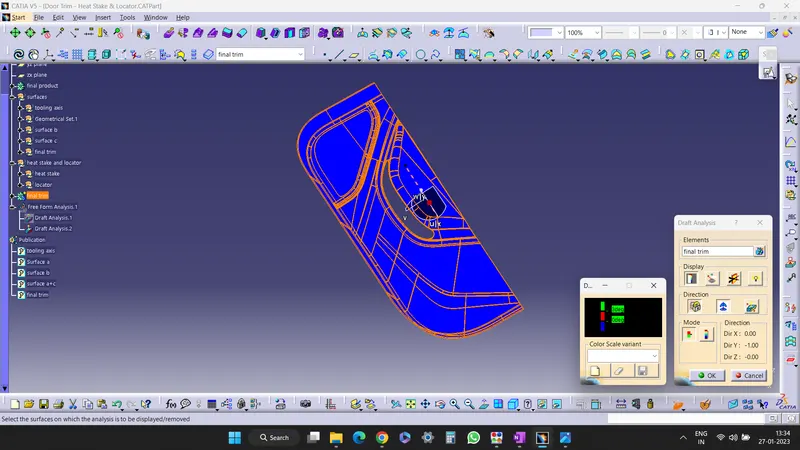

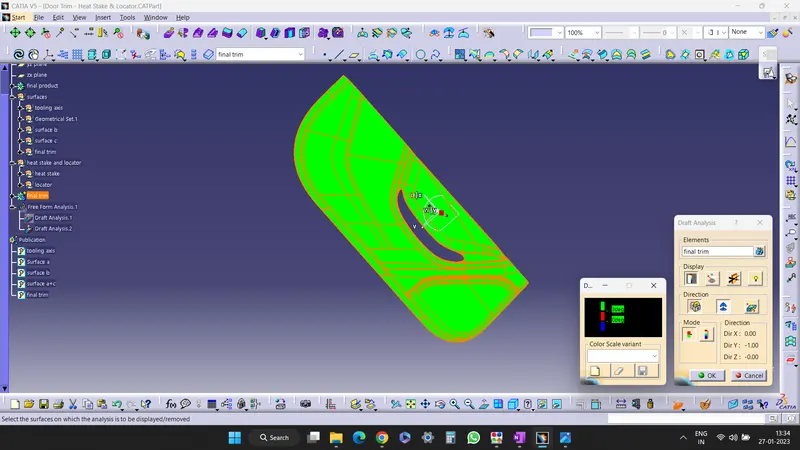

the draft analysis for final trimed product without heat stake and locator is shown under.

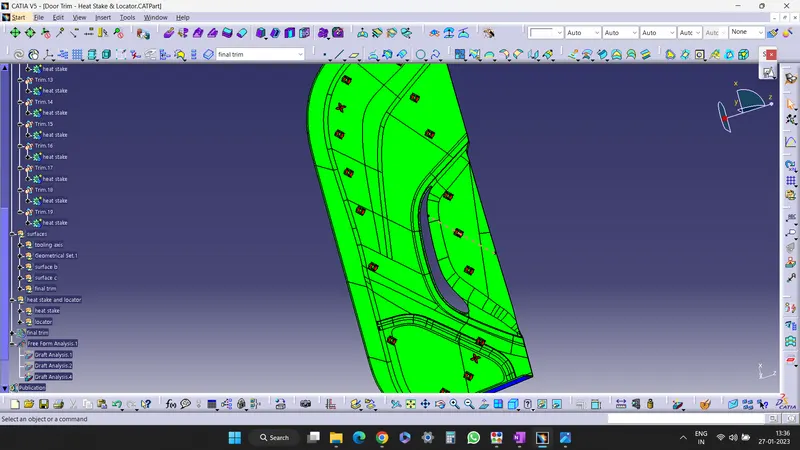

the draft analysis of final product is hown under.the red region on the heat stake and locator shows the region in between 0 and 3 degree where draft angle are present which is less than 3 degree.

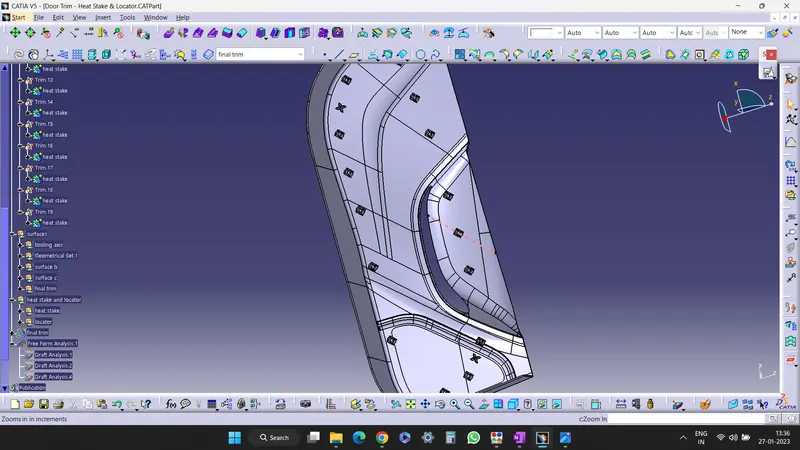

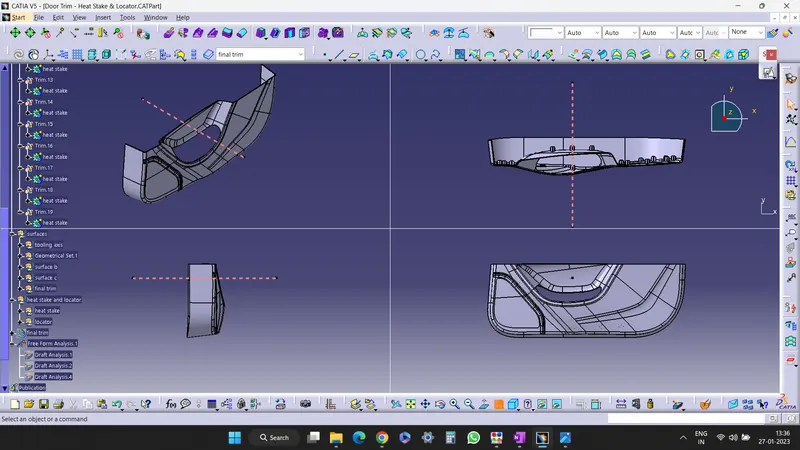

the final product with heat stakes and locator is shown under.
