Week 8 - Challenge 5 - Door Trim Lower

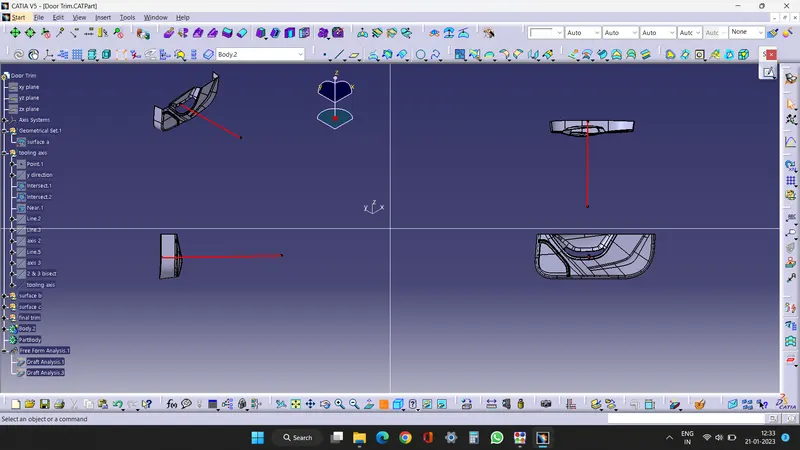

tooling axis selected in the direction of y axis.but also i took te slanted side region and make a bisecting line to slanted side and bisected with the line in y direction.so i got tooling axis slightly salnted to normal y axis .the red line is the tooling axis.

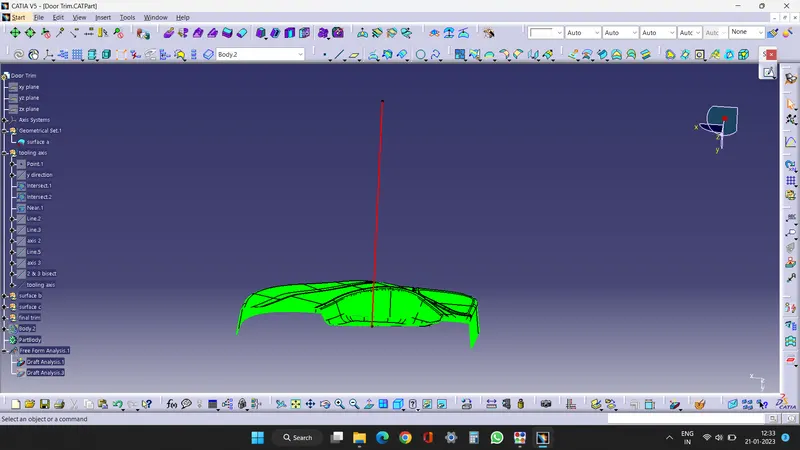

doing draft analysis i got all surafce through tooling axis is above 3 degree.

the green show surafce more than 3 degree to tooling axis ,blue shows surface less than 0 degree and red shows surafce in between 3 and 0 degree to tooling axis.

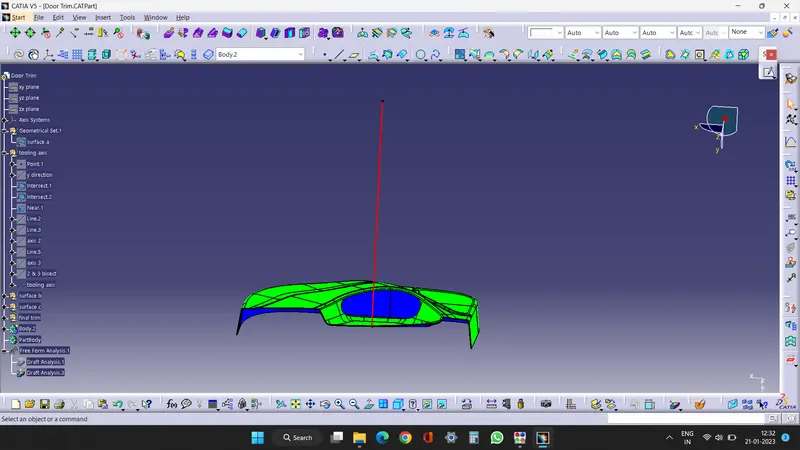

but doing draft analysis in finished product i got one side of the product more than 3 degree and other side less than 0 degree.
