Week 9 - Project 1 - Door Trim Lower with Engineering Features

Create the Door Trim Lower Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

Create the Heat Stakes and the locators considering the design rules mentioned in the video for the door applique.

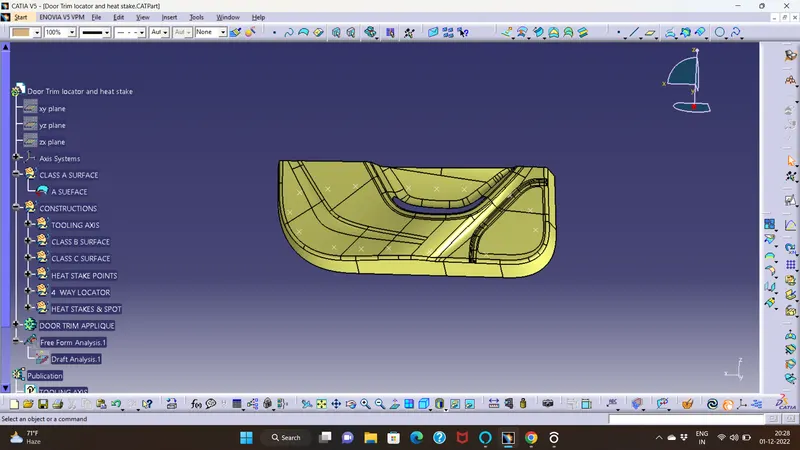

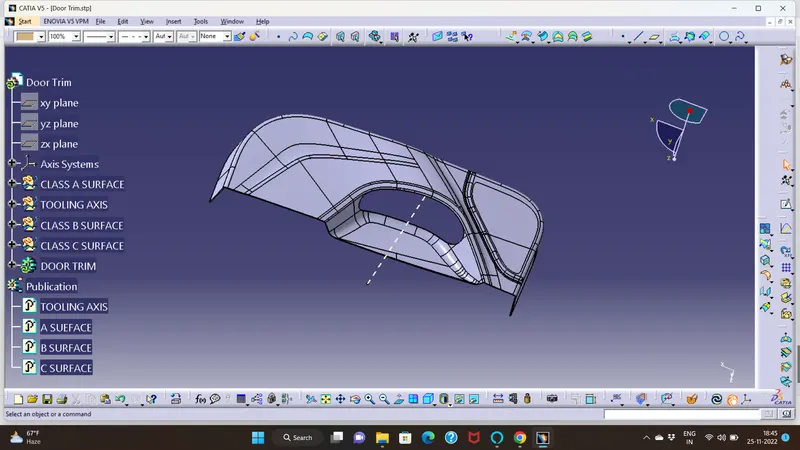

GIVEN SURFACE

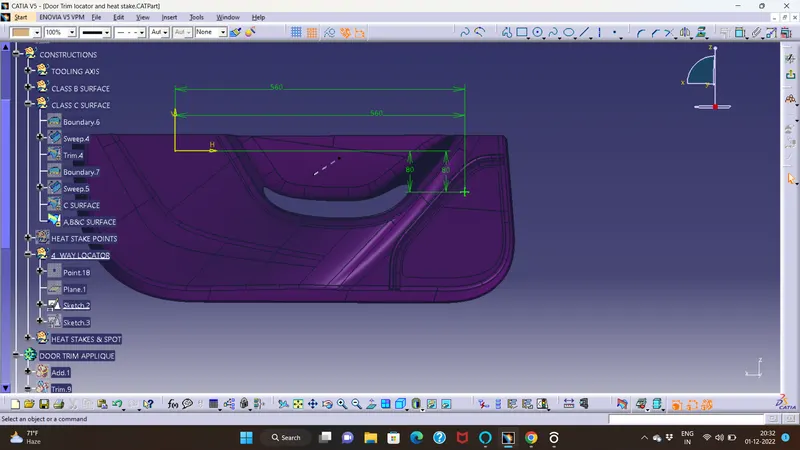

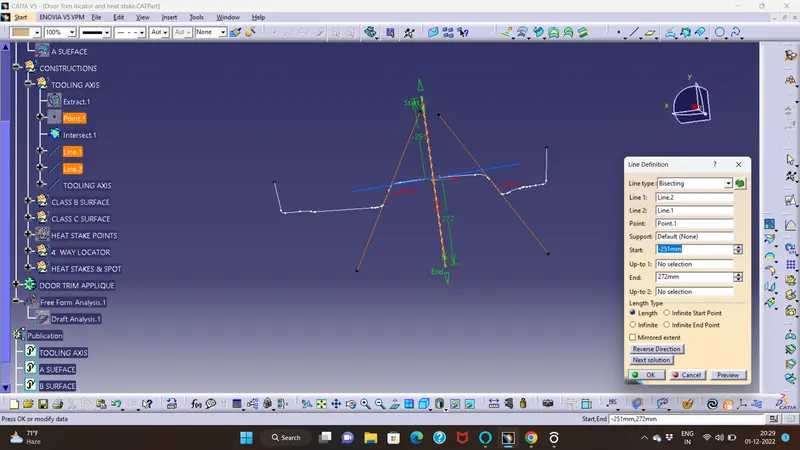

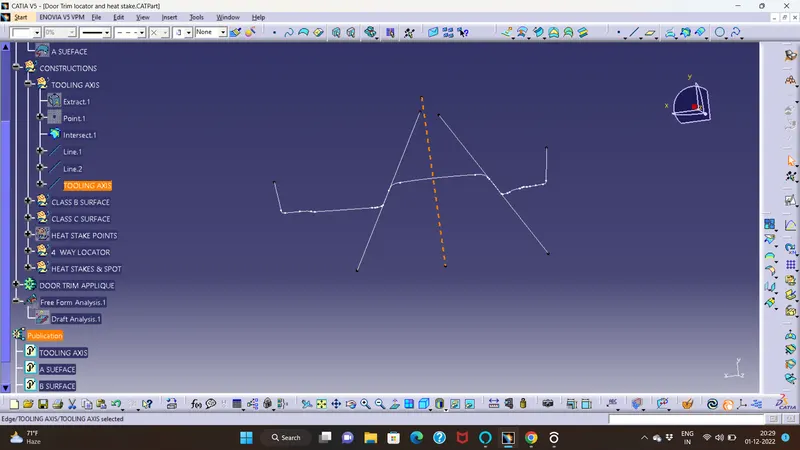

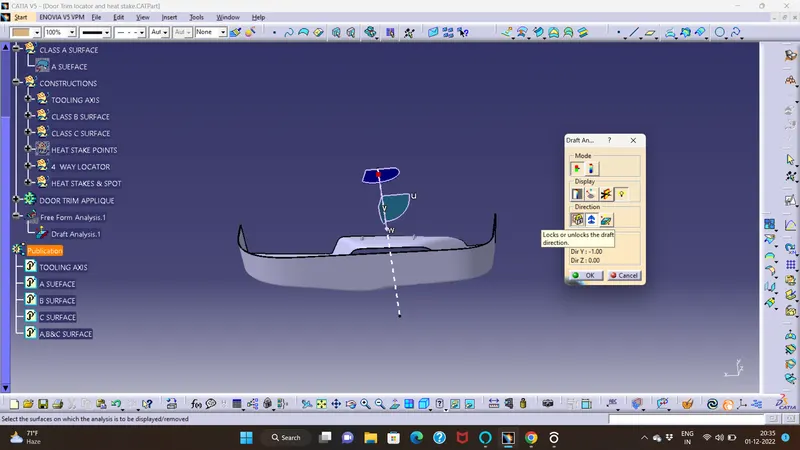

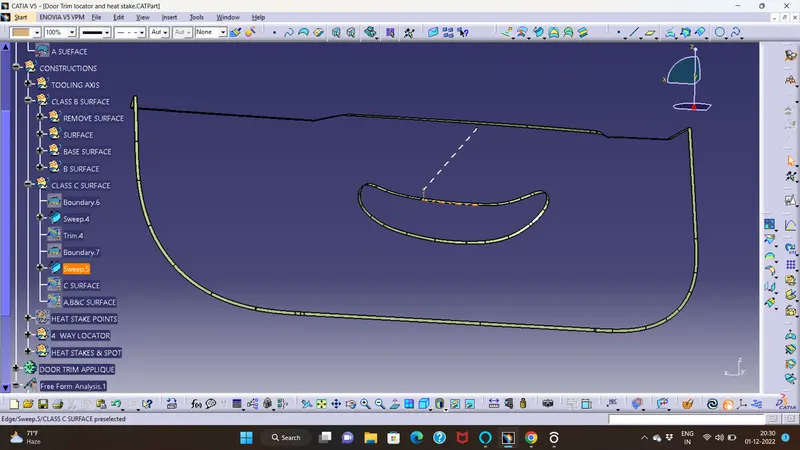

creating the tooling axis, particularly the Bisecting method.

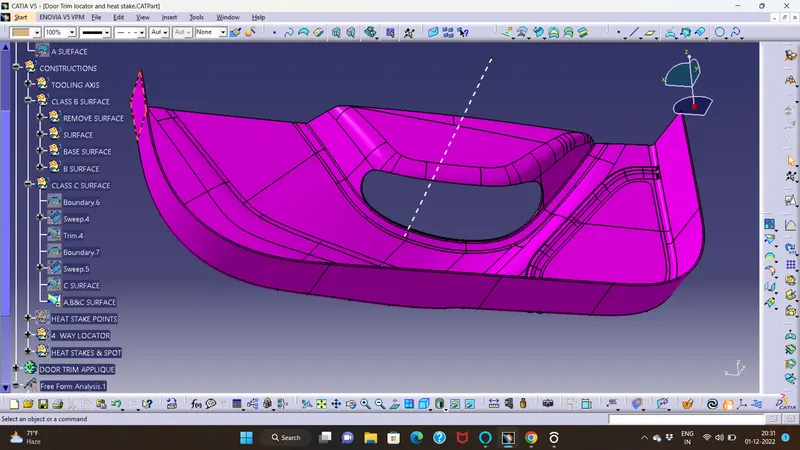

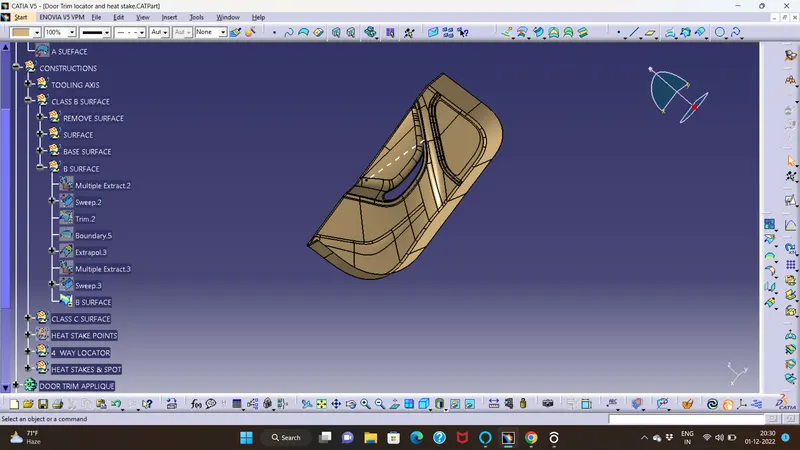

B SURFACE

C SURFACE

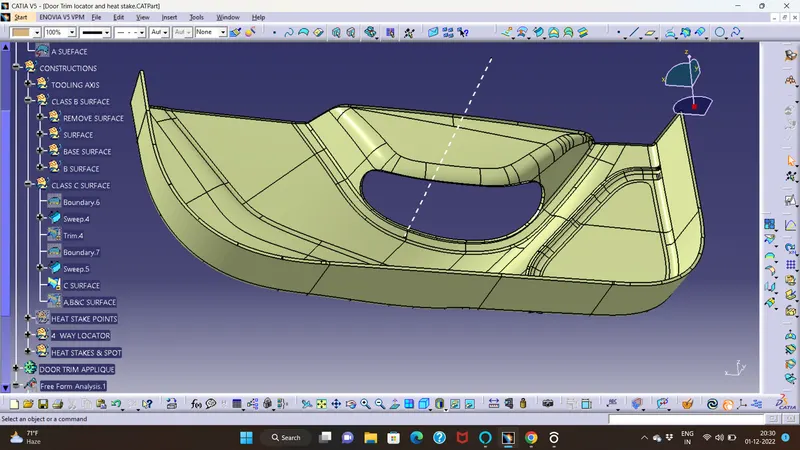

A,B &C SURFACE

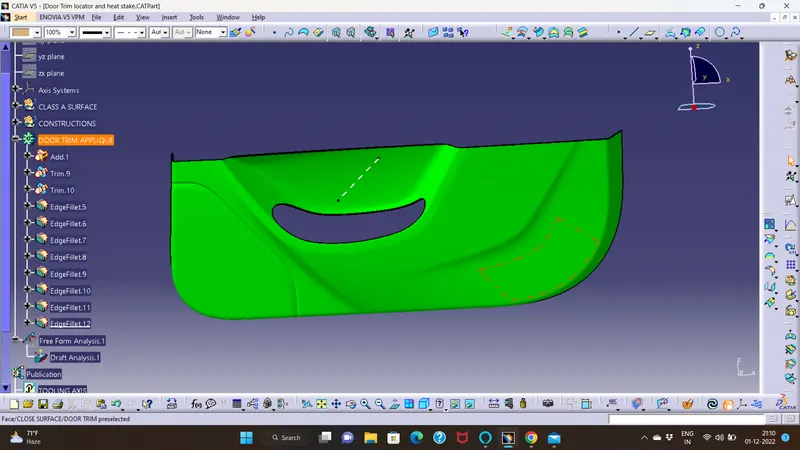

CLOSED BODY

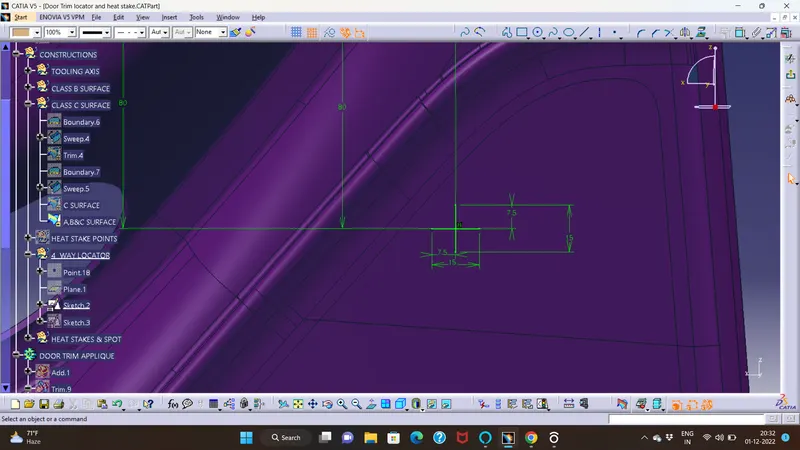

CREATING LOCATOR

LOCATOR THICKNESS USE 1MM

CAMPER - 2MM

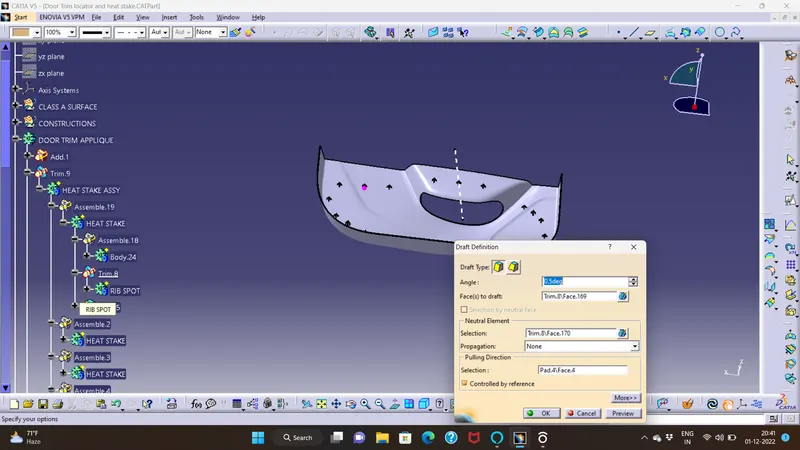

DRAFT - 0.5

FILLETS - 0.25

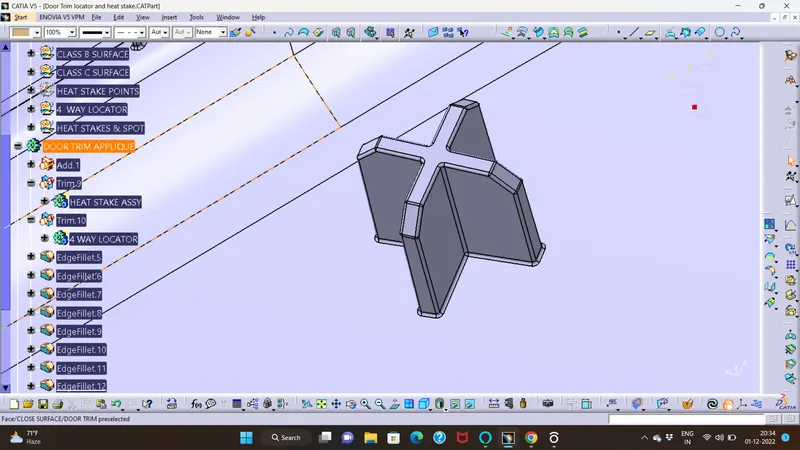

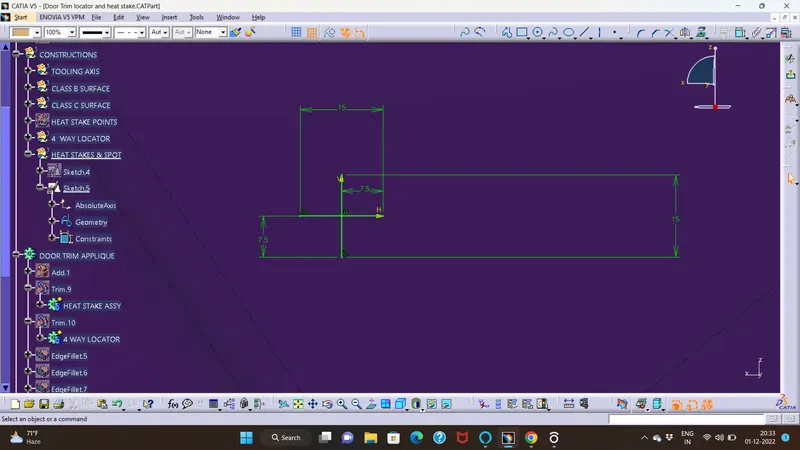

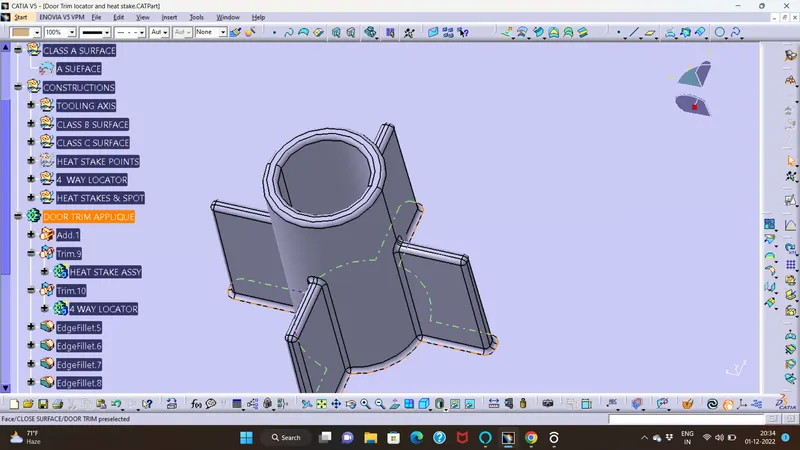

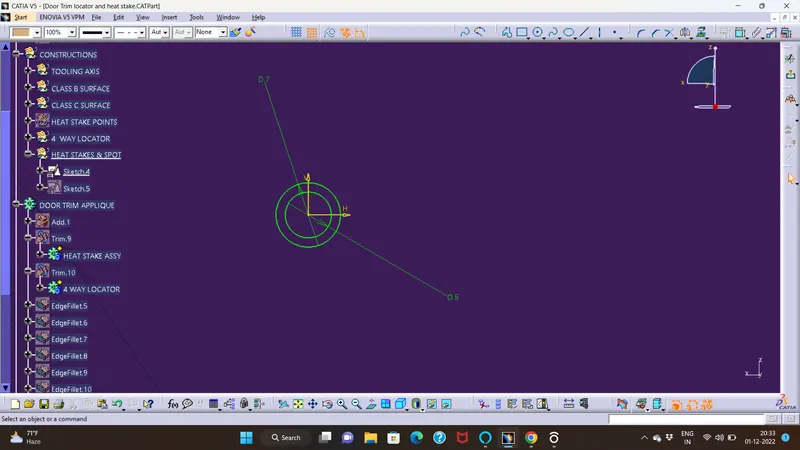

HEAT STAKE & SPOT

SPOT THICKNESS -1

DRAFT - 0.5

FILLETS- 0.25

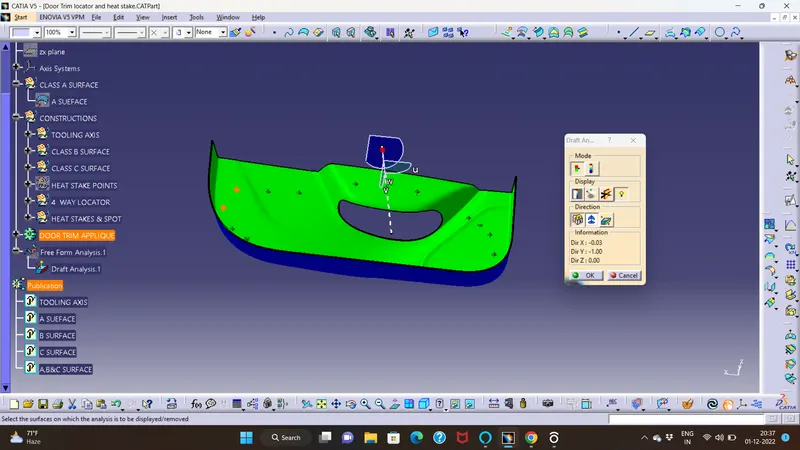

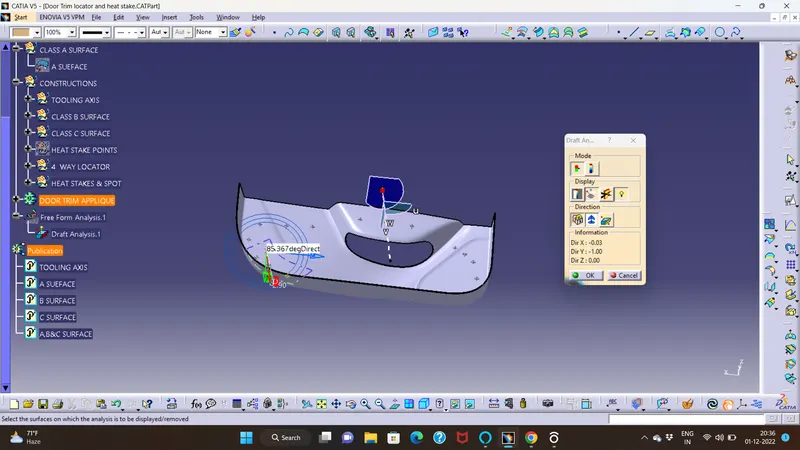

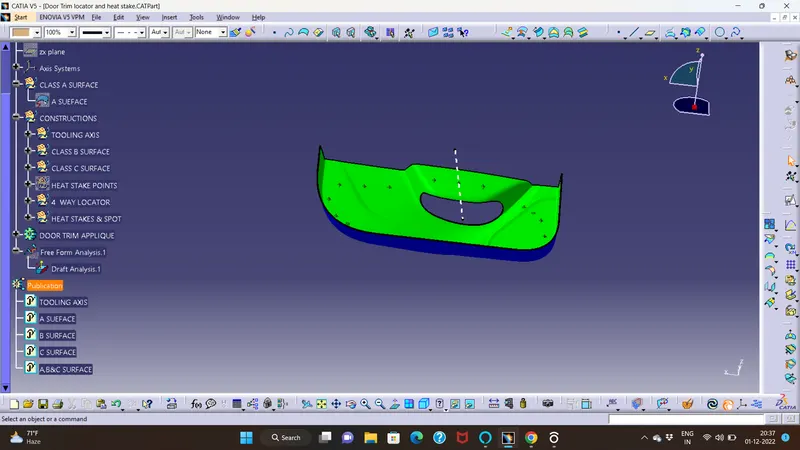

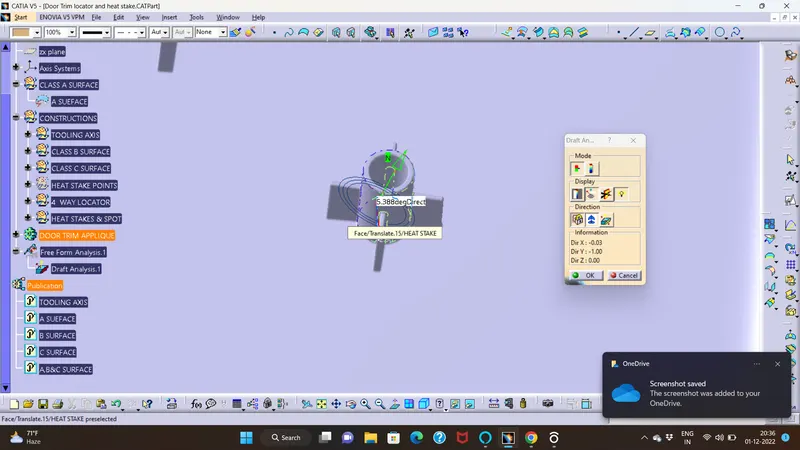

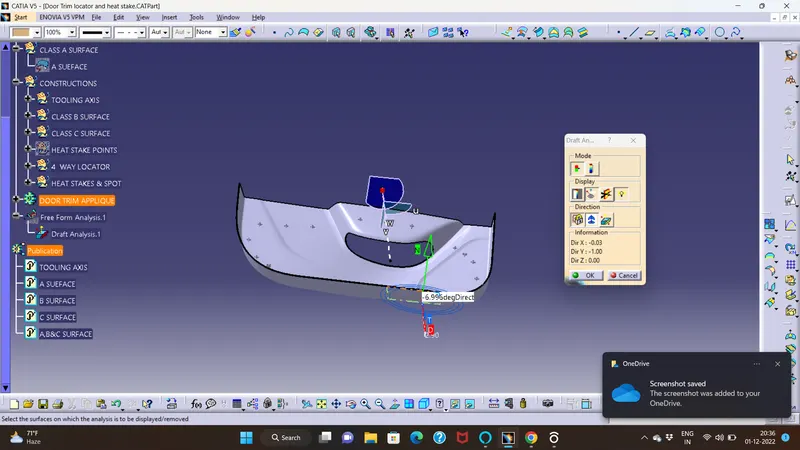

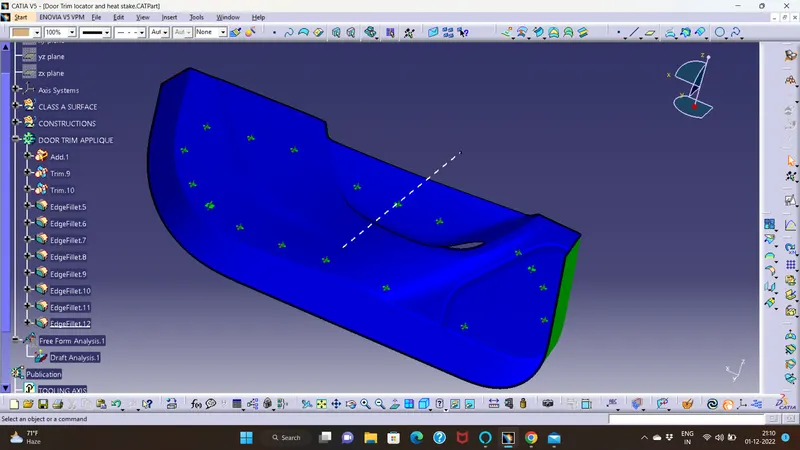

the draft analysis

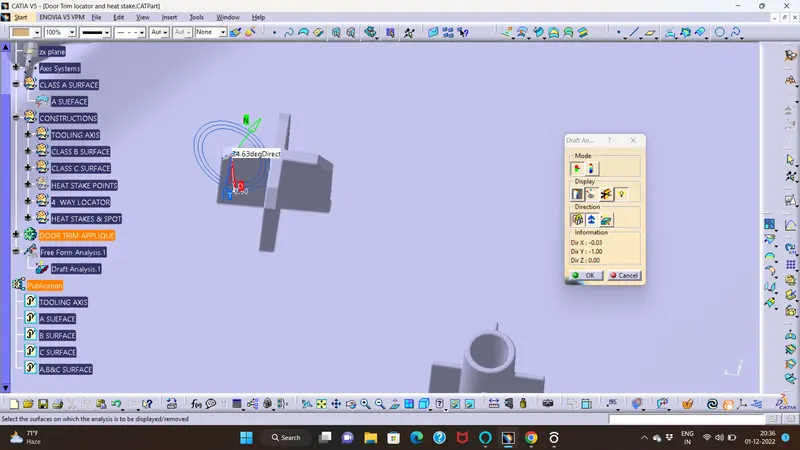

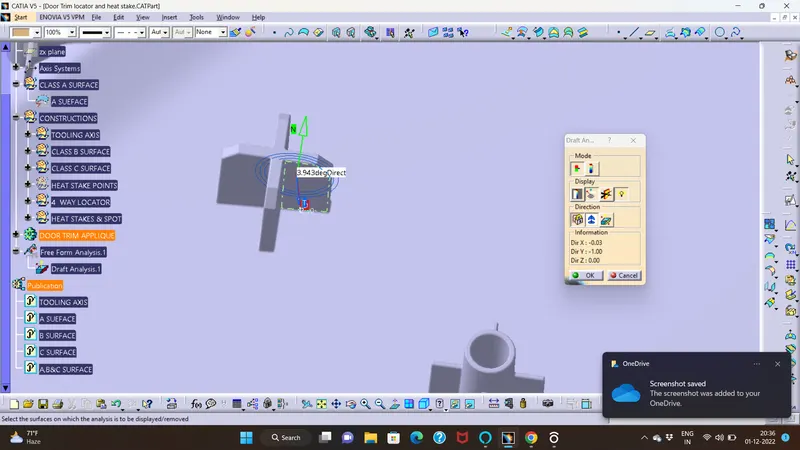

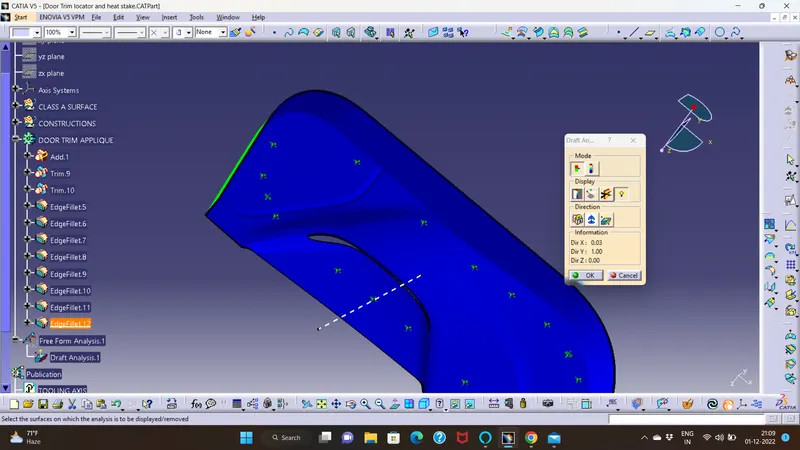

the draft angle
