Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

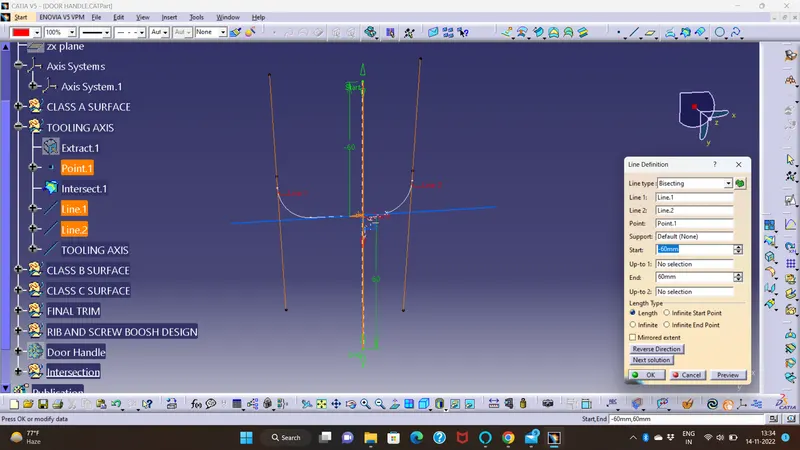

create tooling axis by bisecting mothde

Create the rib for the Drill Handle considering the design rules mentioned in the video.

Create the Screw boss for the Drill Handle considering the design rules mentioned in the video.

General Guidelines for Bosses:

• Draft - 0.5 degrees on the walls of boss
• Thickness - Typically 40%* of the nominal wall at the base.
• Height to Diameter Ratio - 3:1
• Radii - 0.25mm maximum radii.
•

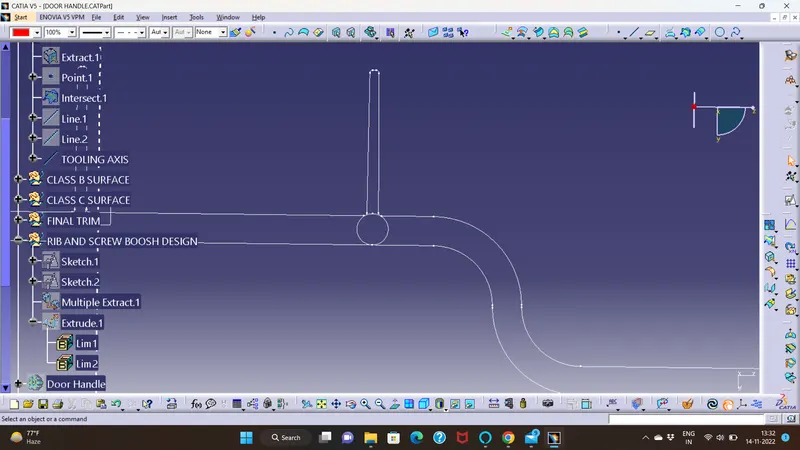

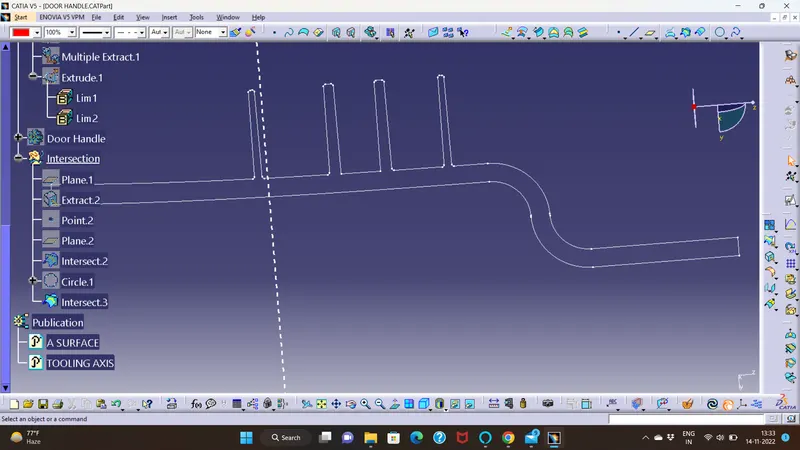

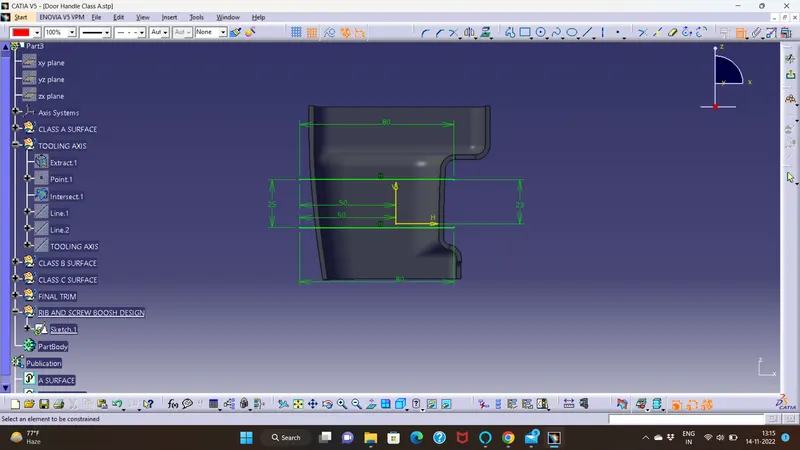

create rib

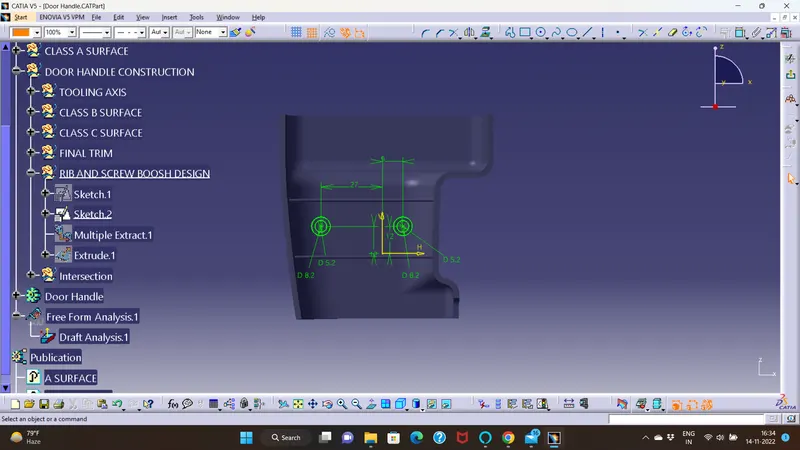

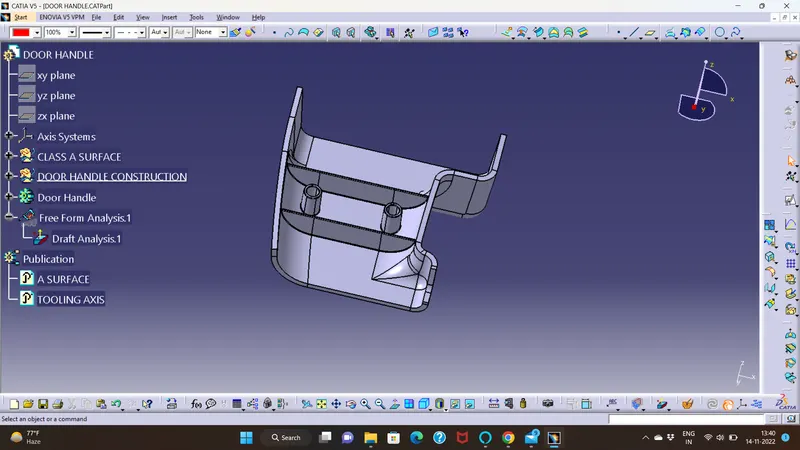

creat screw boss

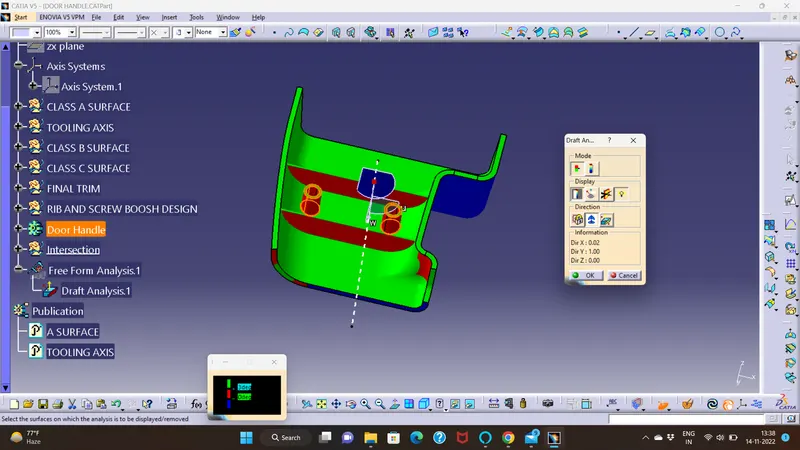

draft analysis
