Week 9 - Project 1 - Door Trim Lower with Engineering Features

Class A analysis:

Final Analysis:

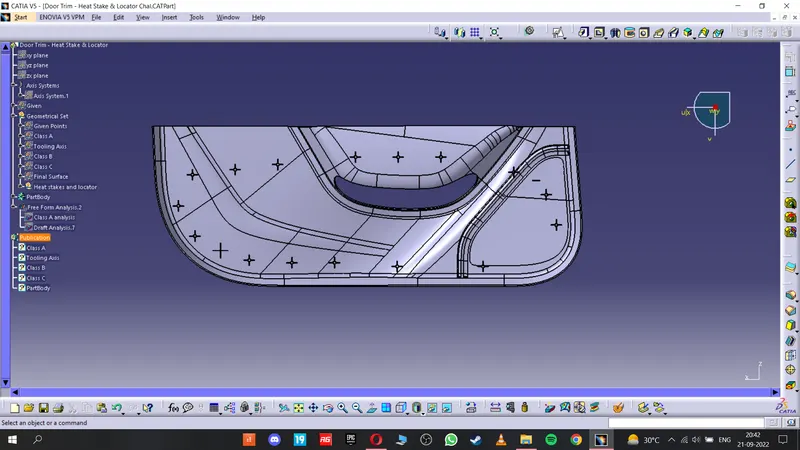

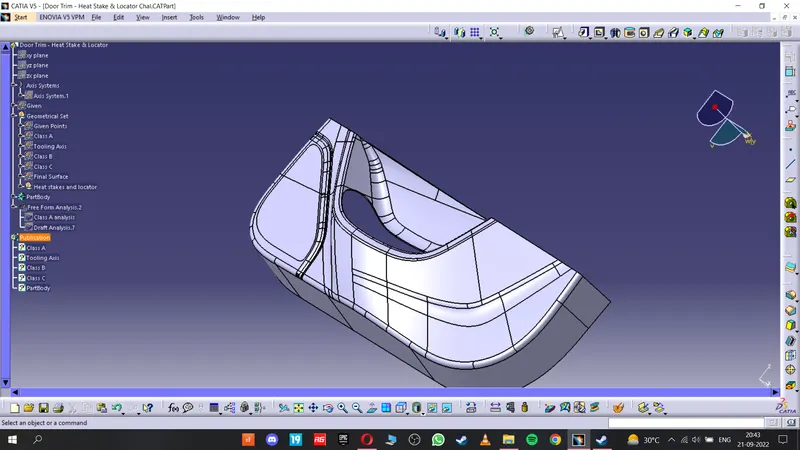

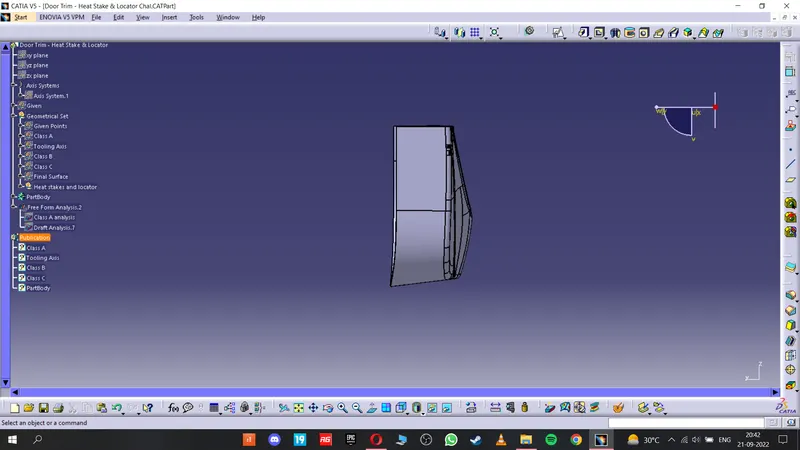

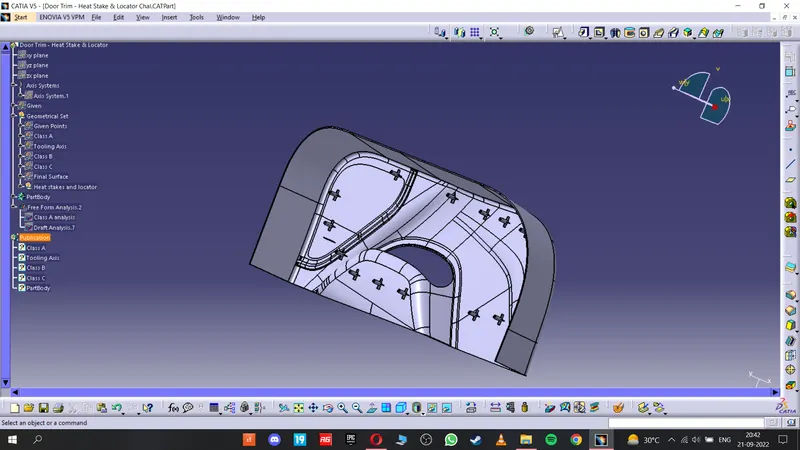

Various Views:

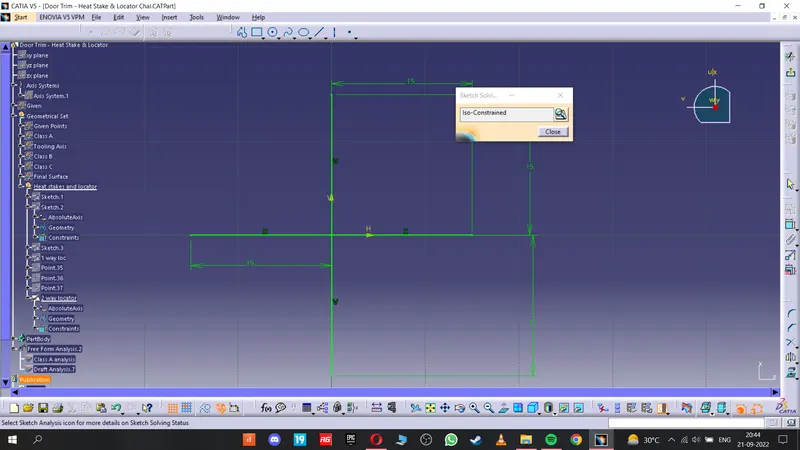

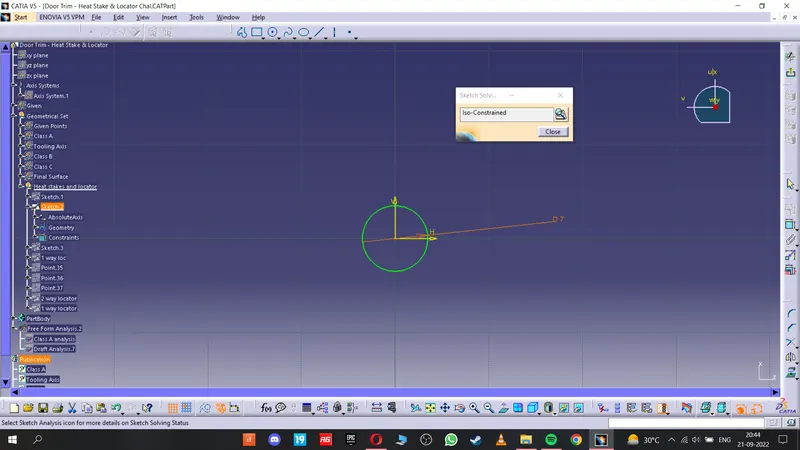

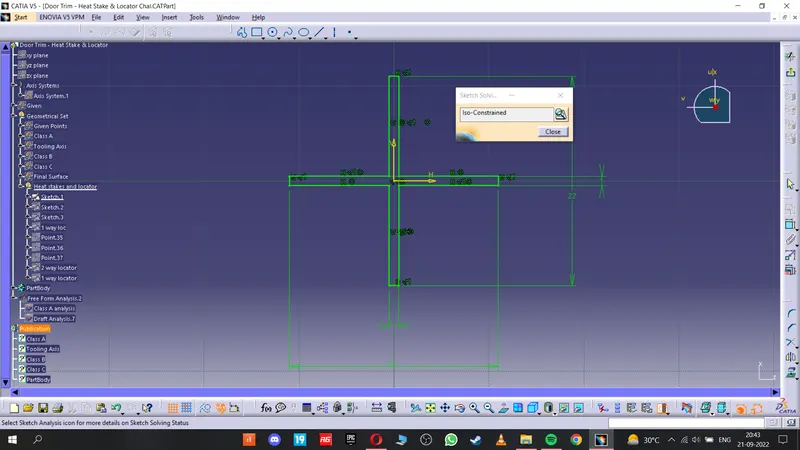

Iso Constrained sketches:

Report:

1. We have been provided with the Class A surface, Our assignment is to create Class B , Class C,

Create Heat stakes and locators. And Draft analysis For class A and Final Part body.

2. we have to create tooling axis by extracting the surface and point to direction line. we can also use bisecting method but that is unnecessary in this case

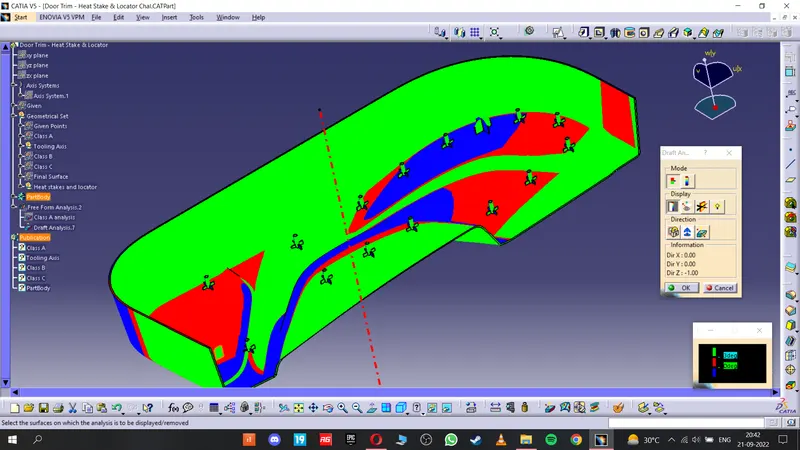

3. Offsetting the given Surface to 2.5mm For getting the class b surface, there are some patches we need to fix, that can be fixes with the multisection surface.

4. Class B surface is created.

5. for Class C surface we have to analyse where the 3deg angle needs to be done. for 3deg angle we can use sweep operation for othe surface we can use multisurface.

6. when we sweeping there might be some errors we have fix that by extrapolate, split and trim.

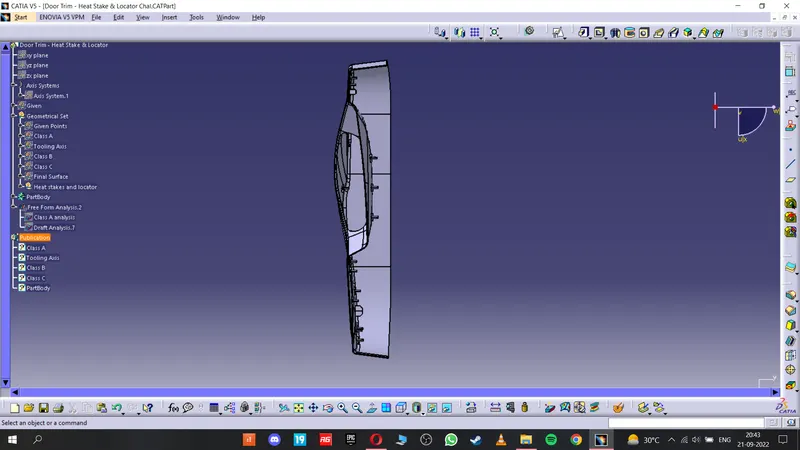

7. class b and c surface are created. check whether the surface is closed and we can use close surface option to create a final part body.

8. now, we have to create Heat stakes and locators, we can create those by sketching ausing Positioned Sketch and use add or union trim operation . And the parameter guidelines for Heatstakes and locators are followed

9. all the sketches are iso constrained.

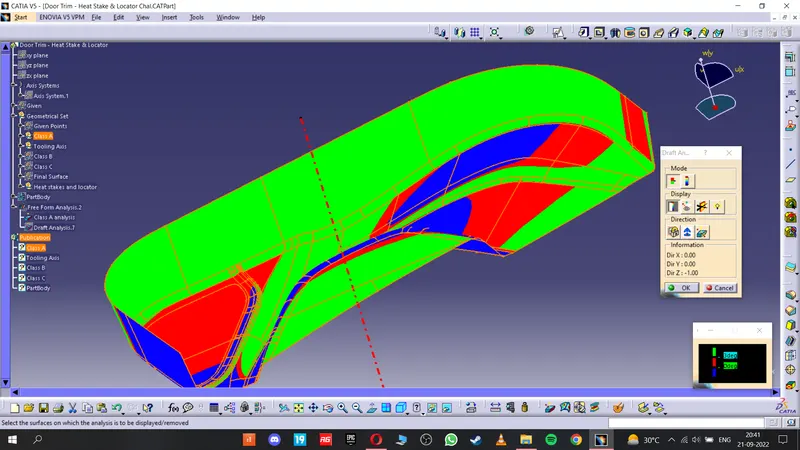

10. Draft analysis are done for class a and Final body.

For Heat stakes and locators:

1. All the sketches are created by guidlines provided

2. For heat stakes we can create in body and translate to certain points using point to point translate

3. For locators we cam do the same or we can create axis system in that point do it there itself.

4. all the sketches are iso constrained.
