Week 9 - Project 1 - Door Trim Lower with Engineering Features

Tooling axis: tooling axis to create a y direaction reference on ClASS A surface. because maximum of visualization on y direaction.

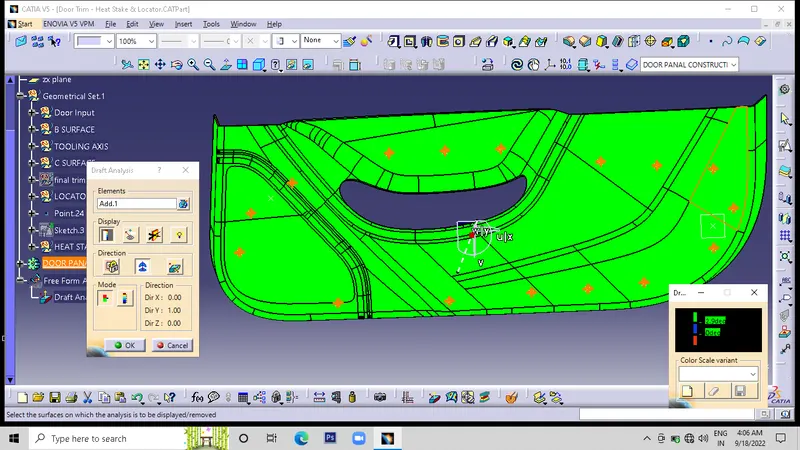

Draft angle: its to measure the design of component angle. the maximum of angle is 0 to 3 deg.

if incase angle is raised, colour to inform the angle.

the production of component angle is 0 to 3.

the locator and heat stacker angle are different

fillet angle is - 0.25 deg

draft angle is - 0.5 deg

Ribs thickness is - [ 0.4 * main wall thickness]

I added my component figure and uploaded. show my fig
