Week 9 - Project 1 - Door Trim Lower with Engineering Features

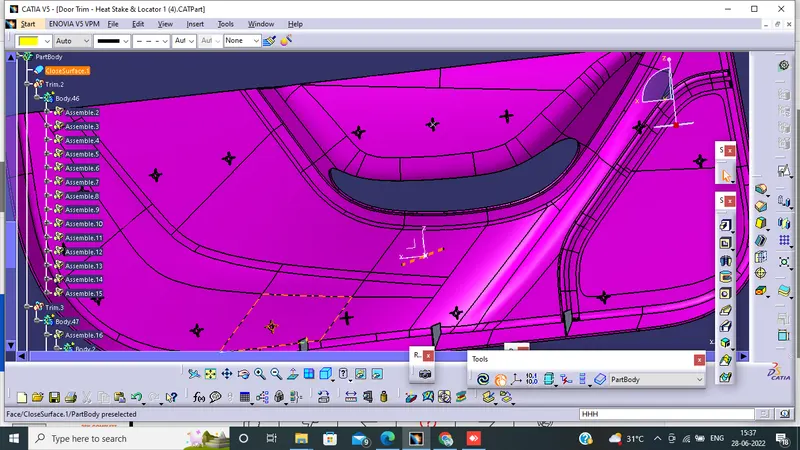

this is a finial out put of door trim with locators and heat stakes

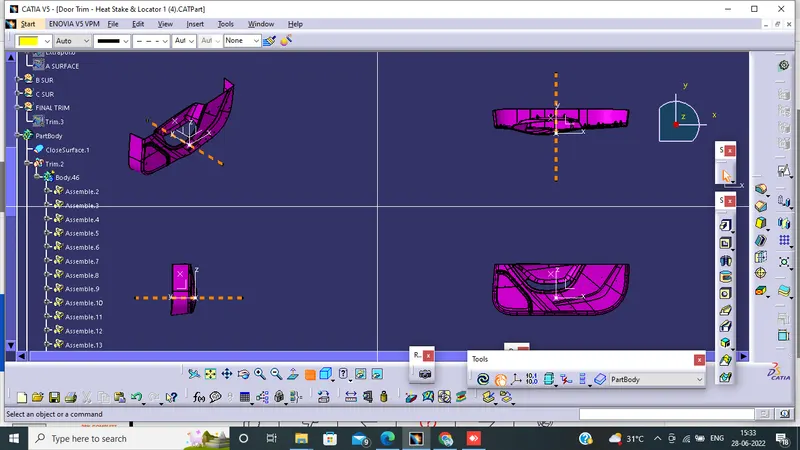

frist we design a door trim with heat stkes and locators to create atooling axis for givin surface and nest process is to create class b surface and and next class c surface comletion of those surfaces next step is to closed body

then the used to clesd body to create alocators ans heat stakes with proper dinmesions lets see one by one steps to draw surface to closed body:

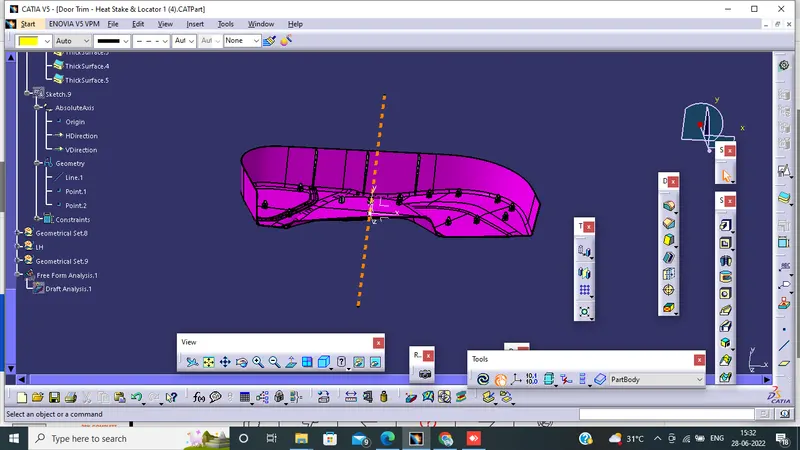

tooling axis:

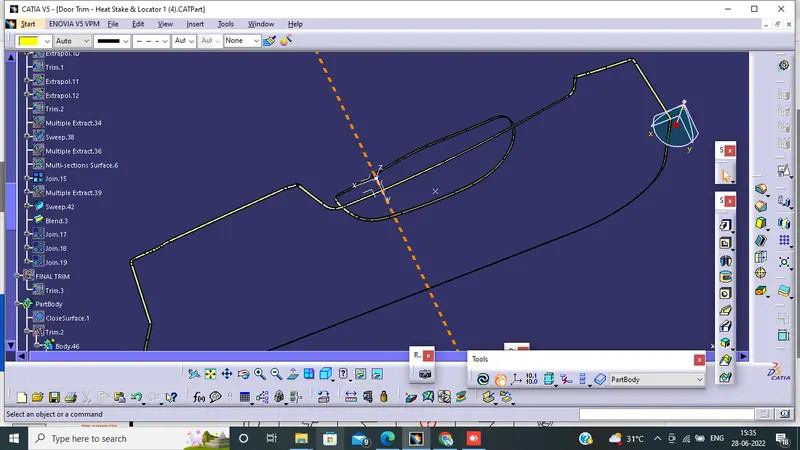

b surface:

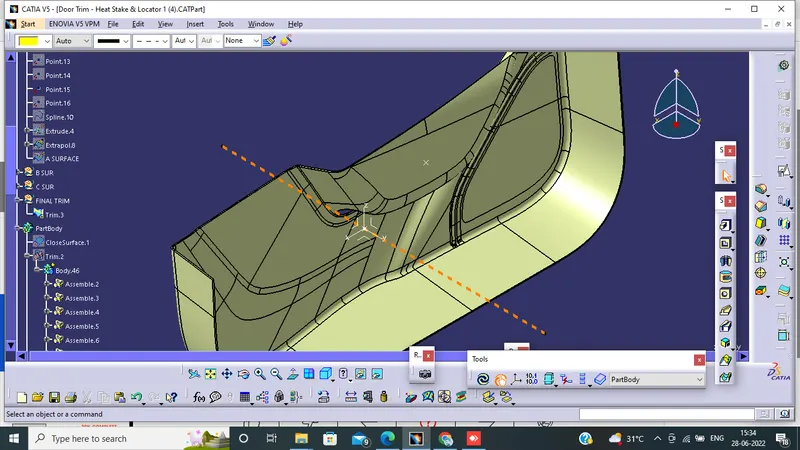

c surface:

hrat stakes and locators :

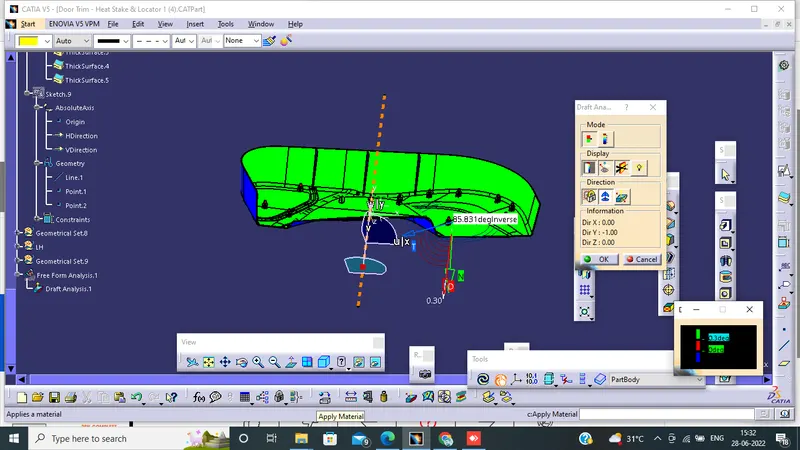

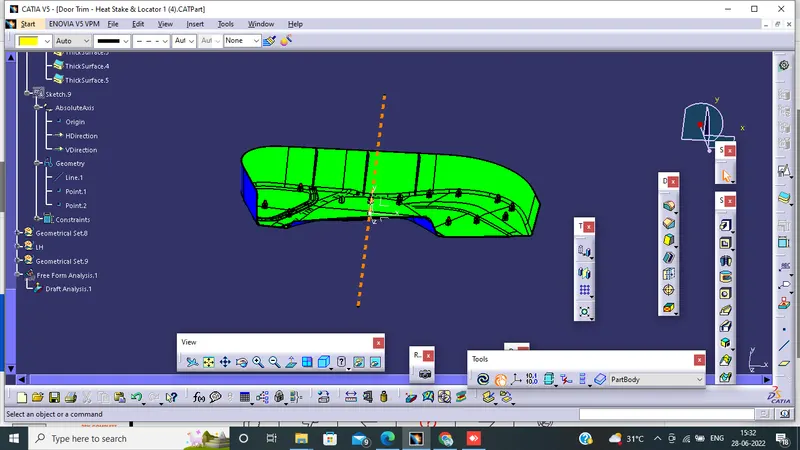

draft analysis:
