Week 8 - Challenge 6 - Core & Cavity Design
the main parts in core and cavity desin mold:
Core –This duplicates the inner surface of the model. It is larger than thefinished part to allow for material shrinkage during cooling
Cavity –This duplicates the outer surface of the model.
Mounting bosses –Holds and position core and cavity
Applications
Plastic Injection Molding
Liquid Polymer Molding
Metal Die Casting

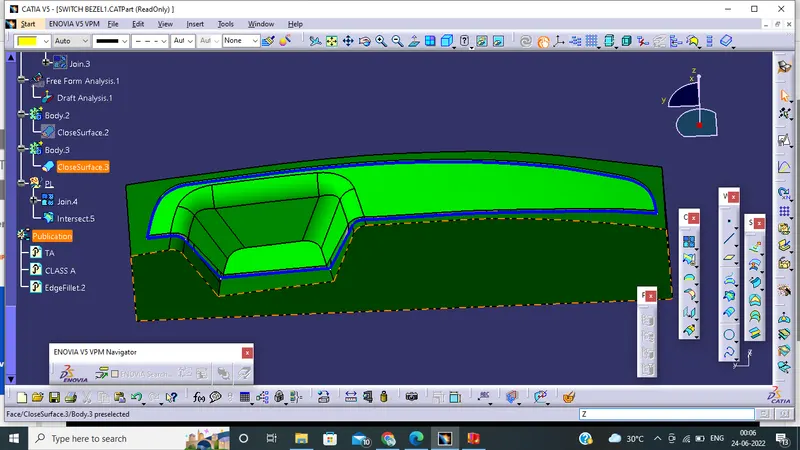

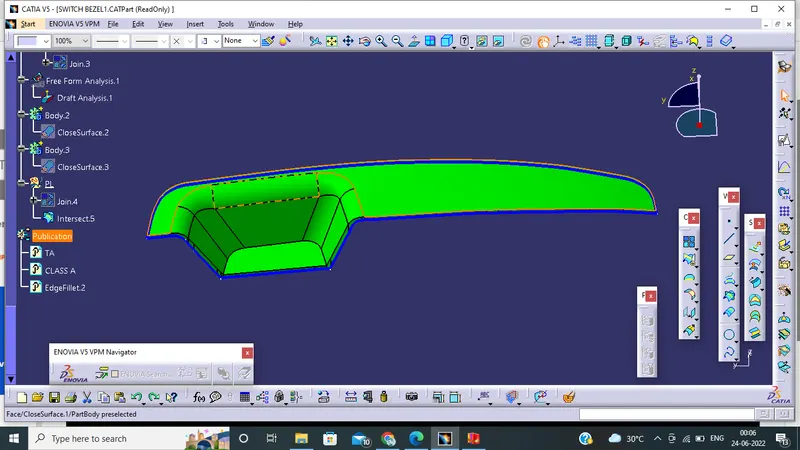

first we design axis and inside injected part:

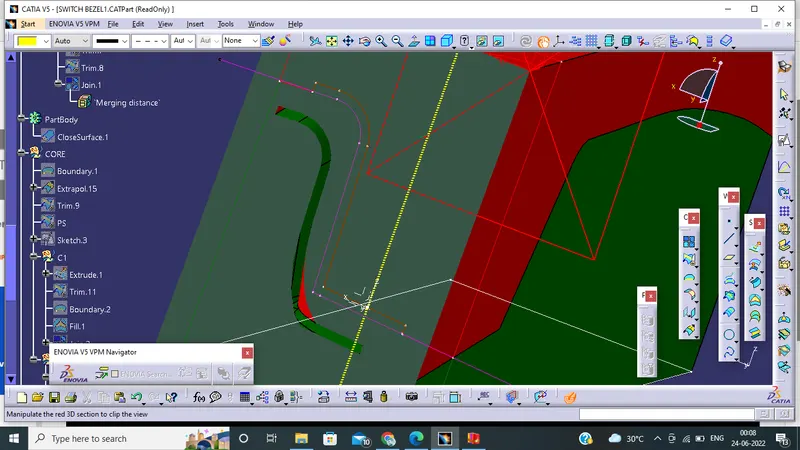

this is parting line and parting surface

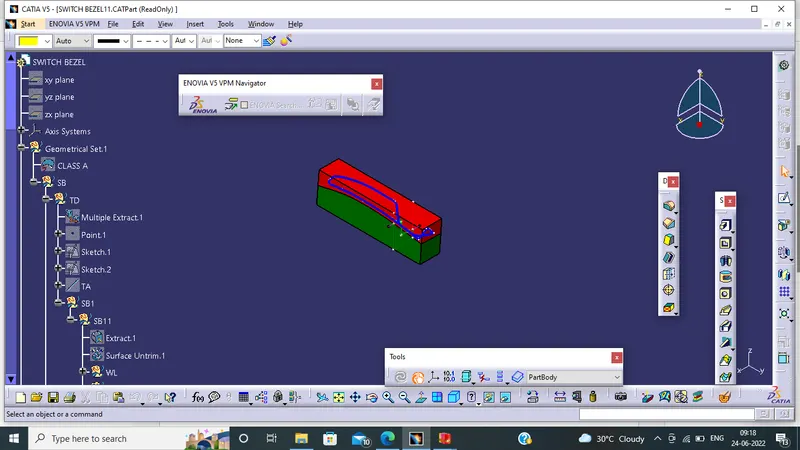

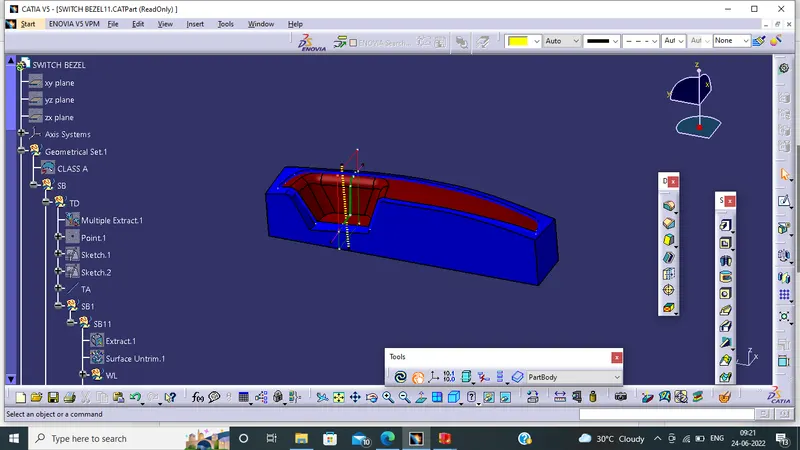

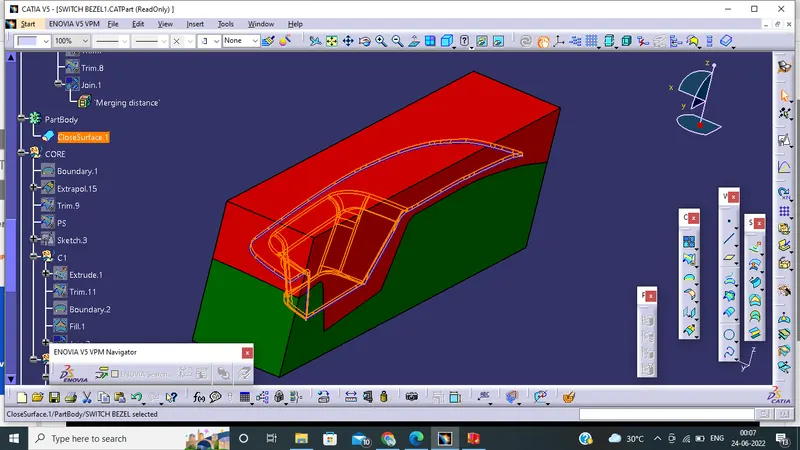

this is core and cavity :

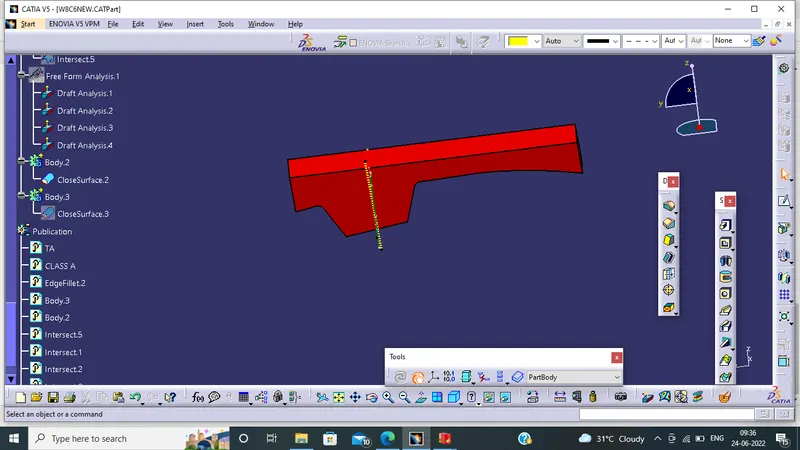

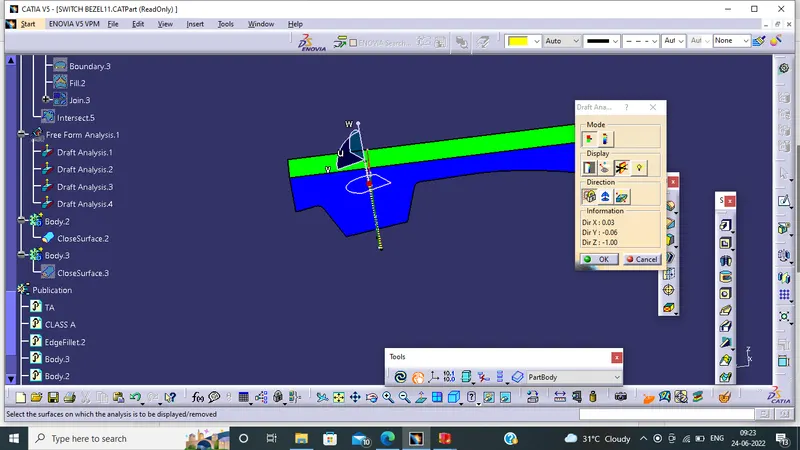

draft analysis for core and cavity:
