Week 9 - Project 1 - Door Trim Lower with Engineering Features

Report.

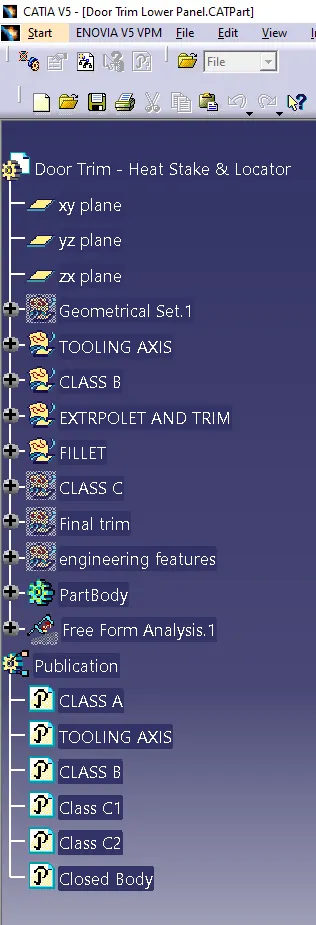

Tree structure.

Draft analysis.

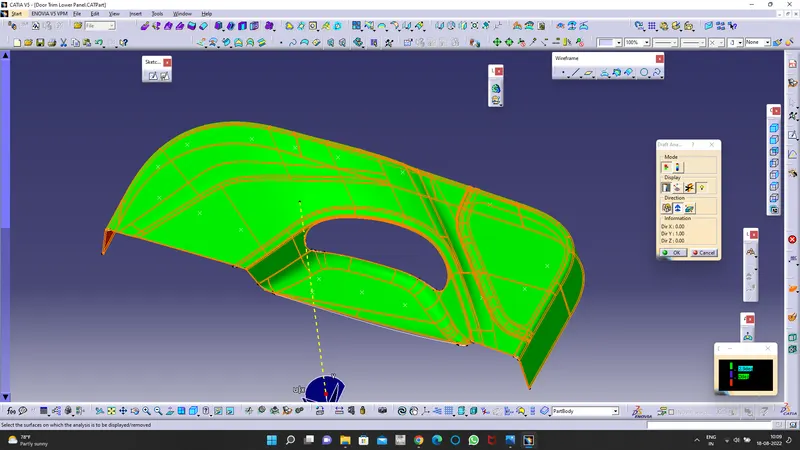

Side core draft analysis.

draft analysis is done on both surface and solid bodies.

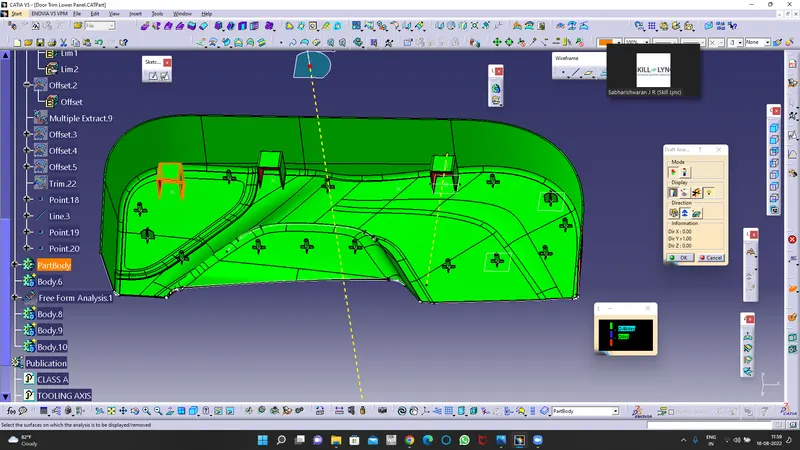

The green color encodes the minimum draft angle of 2.99 degree

The blue color encodes the minimum draft angle 0 degree

The red color encodes the negative draft angle.

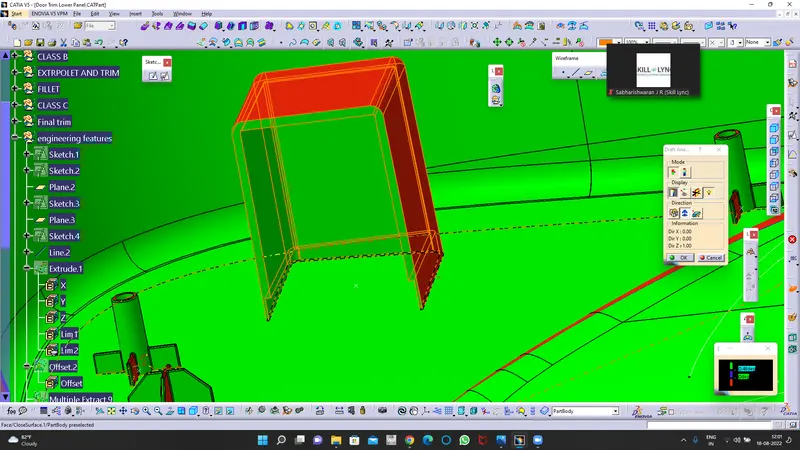

for engineering features.

green color encodes a minimum 0.48-degree draft angle.

blue color encodes a minimum 0-degree draft angle.

red color encodes a minimum negative degree draft angle.

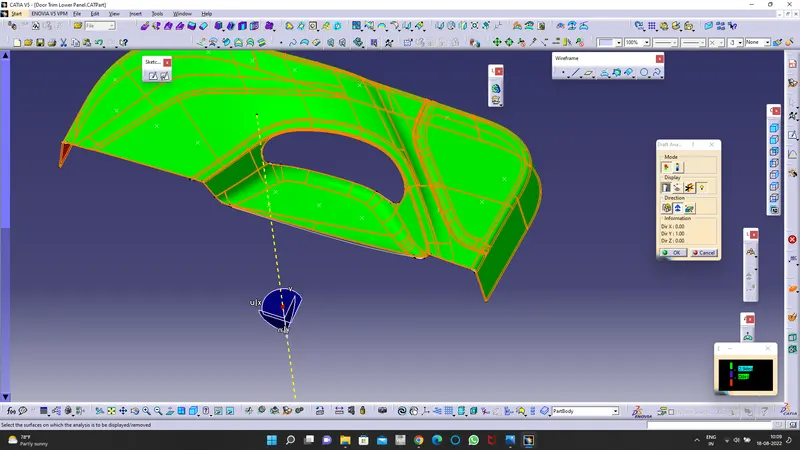

The tooling axis is taken along the Y axis initially. I found the red region. So I changed it to Normal to the surface and the amount of red region is less in this compared to the previous one. So the tooling axis is taken as normal to surface for draft analysis.

From the analysis, we found that almost all the parts of the solid body are showing green color.

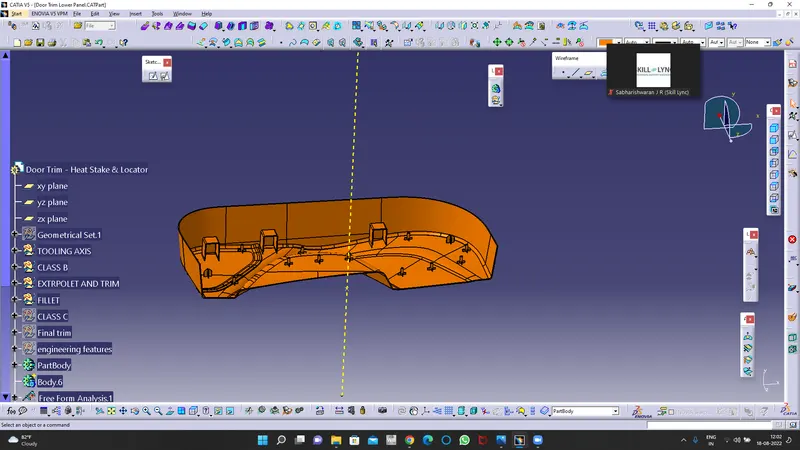

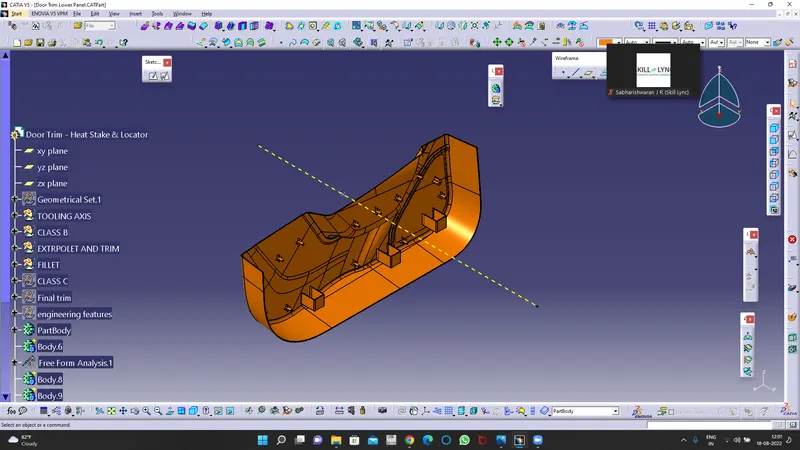

Solid model.
