Week 9 - Project 1 - Door Applique Design with Engineering Features

AIM: To add thickness to the class A surface and to design all the engineering features required to make an assembly.

DRAFT ANALYSIS REPORT

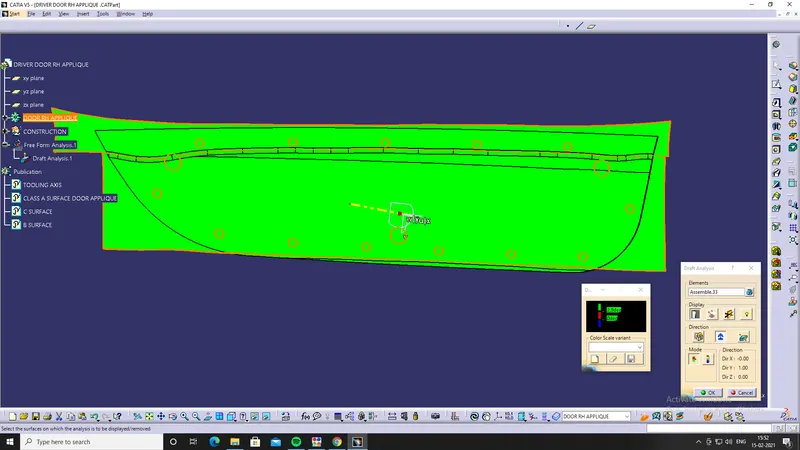

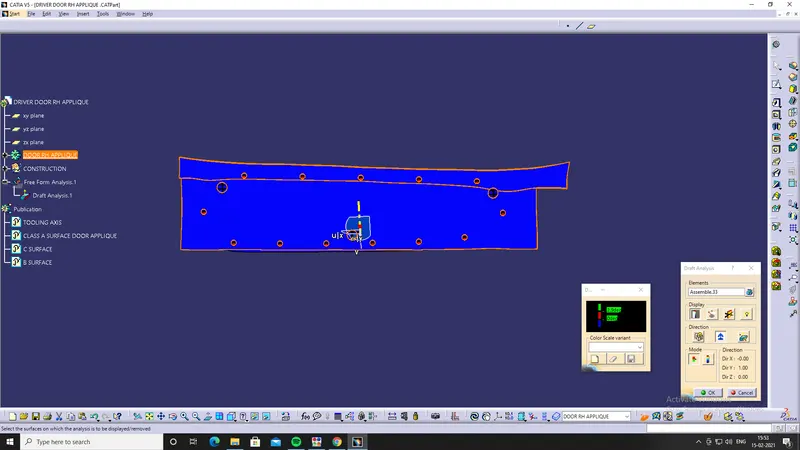

To create a tooling axis, I took a reference of A surface and created a line which meets the draft requirements. In the below images the green colour shows that the body is meeting the requirement of 3 degree draft angle with respective to the tooling axis in material view mode

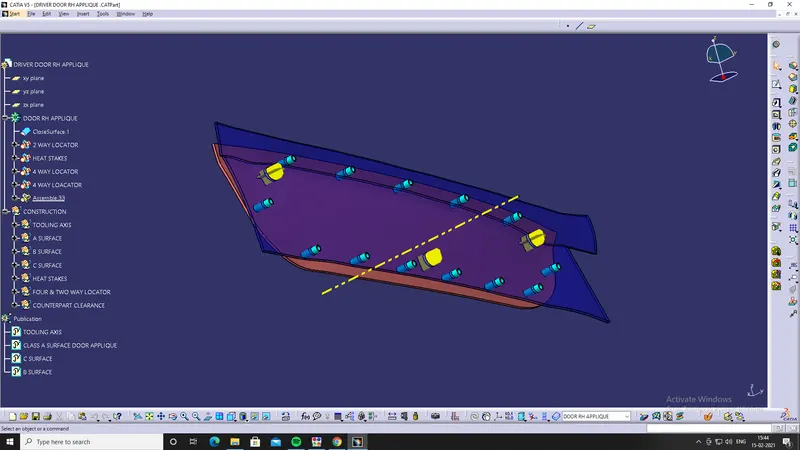

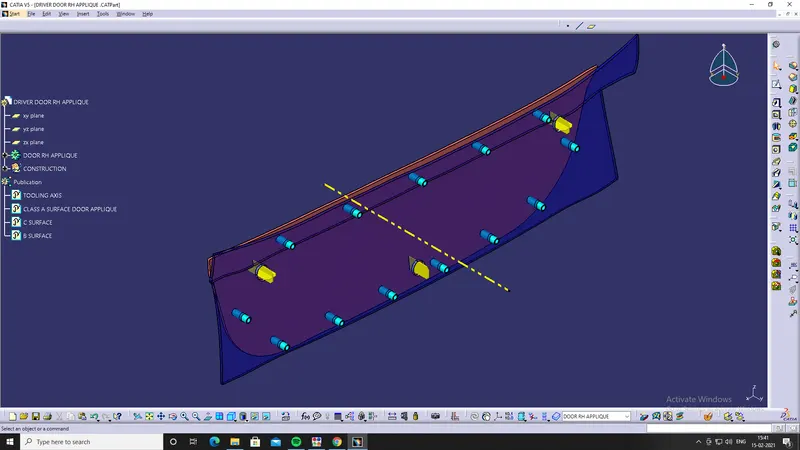

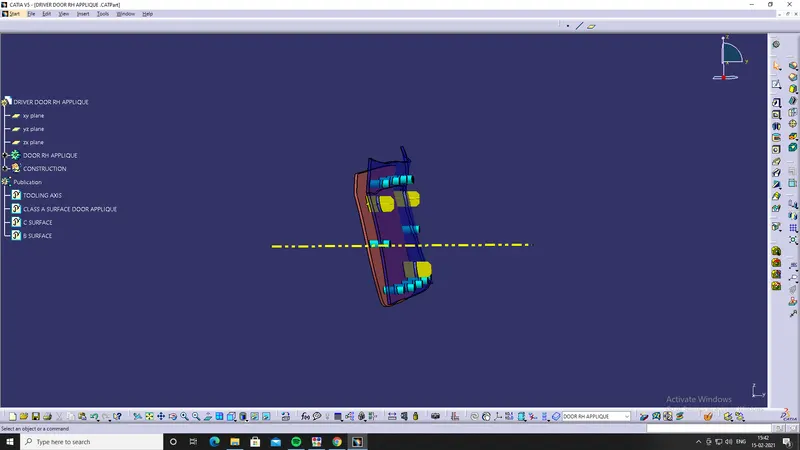

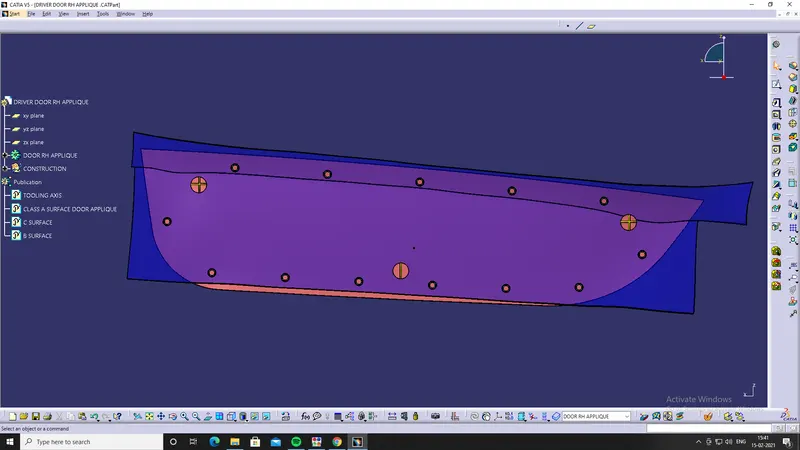

COMPLETED DESIGN WITH ALL ORIENTATION
